2013 Lancia Flavia ECO mode

ENGINE OIL
OVERHEATING
During sustained high-speed driving
or trailer tow up long grades on a hot
day, the engine oil temperature may
become too hot. If this happens, the
“HOTOIL” message flashes in the
odometer and the vehicle speed will
be reduced to 85 km/h until the en-
gine oil temperature is reduced.
NOTE: The vehicle speed is re-
duced to a maximum of 85 km/h.
You may of course, reduce your
vehicle speed further if needed.
TIREFIT KIT
Small punctures up to 6 mm in the tire
tread can be sealed with TIREFIT.
Foreign objects (e.g., screws or nails)
should not be removed from the tire.
TIREFIT can be used in outside tem-
peratures down to approximately
­20°C.
This kit will provide a temporary tire
seal, allowing you to drive your ve-
hicle up to 160 km with a maximum
speed of 88 km/h.TIREFIT STORAGE
The TIREFIT kit is located in the
trunk.
TIREFIT KIT
COMPONENTS AND
OPERATION
1. Sealant Bottle
2. Deflation Button
3. Pressure Gauge4. Power Button
5. Mode Select Knob
6. Sealant Hose (Clear)
7. Air Pump Hose (Black)
8. Power Plug
Using The Mode Select Knob And
Hoses
Your TIREFIT kit is equipped with
the following symbols to indicate the
air or sealant mode.
Selecting Air Mode
Turn the Mode Select Knob
(5) to this position for air
pump operation only. Use
the Black Air Pump Hose (7)
when selecting this mode.
Selecting Sealant Mode
Turn the Mode Se-
lect Knob (5) to this
position to inject
the TIREFIT Seal-
ant and to inflate
the tire. Use the
Sealant Hose (clear
hose) (6) when selecting this mode.
TIREFIT Location
173

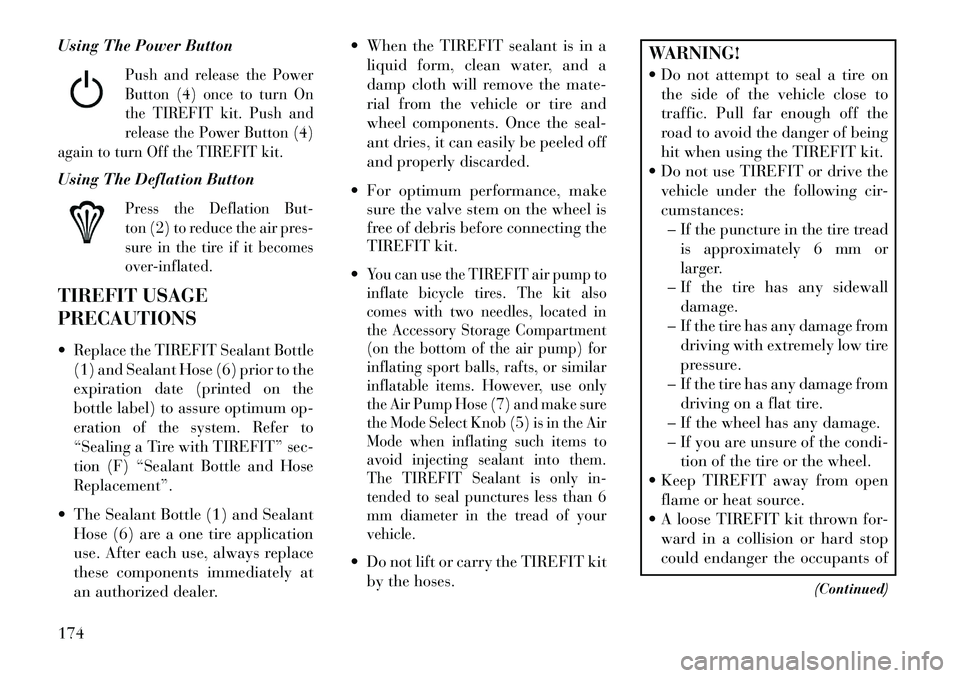

Using The Power Button
Push and release the Power
Button (4) once to turn On
the TIREFIT kit. Push and
release the Power Button (4)
again to turn Off the TIREFIT kit.
Using The Deflation Button
Press the Deflation But-
ton (2) to reduce the air pres-
sure in the tire if it becomes
over-inflated.
TIREFIT USAGE
PRECAUTIONS
Replace the TIREFIT Sealant Bottle
(1) and Sealant Hose (6) prior to the
expiration date (printed on the
bottle label) to assure optimum op-
eration of the system. Refer to
“Sealing a Tire with TIREFIT” sec-
tion (F) “Sealant Bottle and Hose
Replacement”. The Sealant Bottle (1) and Sealant Hose (6) are a one tire application
use. After each use, always replace
these components immediately at
an authorized dealer.  When the TIREFIT sealant is in a
liquid form, clean water, and a
damp cloth will remove the mate-
rial from the vehicle or tire and
wheel components. Once the seal-
ant dries, it can easily be peeled off
and properly discarded.
 For optimum performance, make sure the valve stem on the wheel is
free of debris before connecting the
TIREFIT kit.

You can use the TIREFIT air pump to
inflate bicycle tires. The kit also
comes with two needles, located in
the Accessory Storage Compartment
(on the bottom of the air pump) for
inflating sport balls, rafts, or similar
inflatable items. However, use only
the Air Pump Hose (7) and make sure
the Mode Select Knob (5) is in the Air
Mode when inflating such items to
avoid injecting sealant into them.
The TIREFIT Sealant is only in-
tended to seal punctures less than 6
mm diameter in the tread of your
vehicle. Do not lift or carry the TIREFIT kit by the hoses.
WARNING!
 Do not attempt to seal a tire onthe side of the vehicle close to
traffic. Pull far enough off the
road to avoid the danger of being
hit when using the TIREFIT kit.
 Do not use TIREFIT or drive the
vehicle under the following cir-
cumstances:–
If the puncture in the tire tread
is approximately 6 mm or
larger.– If the tire has any sidewall damage.
– If the tire has any damage from
driving with extremely low tire
pressure.
– If the tire has any damage from
driving on a flat tire.
– If the wheel has any damage.
– If you are unsure of the condi- tion of the tire or the wheel.
 Keep TIREFIT away from open flame or heat source.
 A loose TIREFIT kit thrown for- ward in a collision or hard stop
could endanger the occupants of
(Continued)
174

NOTE:
Manual transmission ve-
hicles must have the parking brake
engaged and the shift lever in NEU-
TRAL.
After pressing the Power Button (4),
the sealant (white fluid) will flow
from the Sealant Bottle (1) through
the Sealant Hose (6) and into the
tire.NOTE: Sealant may leak out
through the puncture in the tire.
If the sealant (white fluid) does not
flow within 0 – 10 seconds through
the Sealant Hose (6):
1. Press the Power Button (4) to turn
Off the TIREFIT kit. Disconnect the
Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of
debris. Reconnect the Sealant
Hose (6) to the valve stem. Check that
the Mode Select Knob (5) is in the
Sealant Mode position and not Air
Mode. Press the Power Button (4) to
turn On the TIREFIT kit. 2. Connect the Power Plug (8) to a
different 12 Volt power outlet in your
vehicle or another vehicle, if avail-
able. Make sure the engine is running
before turning ON the TIREFIT kit.
3.
The Sealant Bottle (1) may be empty
due to previous use. Call for assistance.
NOTE: If the Mode Select
Knob (5) is on Air Mode and the
pump is operating, air will dis-
pense from the Air Pump Hose (7)
only, not the Sealant Hose (6).
If the sealant (white fluid) does
flow through the Sealant Hose (6):
1.
Continue to operate the pump until
sealant is no longer flowing through
hose (typically takes 30 - 70 seconds).
As the sealant flows through the Sealant
Hose (6), the Pressure Gauge (3) can
read as high as 70 psi (5 Bar). The
Pressure Gauge (3) will decrease
quickly from approximately 70 psi
(5 Bar) to the actual tire pressure when
the Sealant Bottle (1) is empty.
2. The pump will start to inject air
into the tire immediately after the
Sealant Bottle (1) is empty. Continue
to operate the pump and inflate the
tire to the pressure indicated on the
tire pressure label on the driver-side
latch pillar (recommended pressure).
Check the tire pressure by looking at
the Pressure Gauge (3).
If the tire does not inflate to at least
26 psi (1.8 Bar) pressure within
15 minutes:
 The tire is too badly damaged. Do
not attempt to drive the vehicle fur-
ther. Call for assistance.
NOTE: If the tire becomes over-
inflated, press the Deflation But-
ton to reduce the tire pressure to
the recommended inflation pres-
sure before continuing.
177

If the tire inflates to the recom-
mended pressure or is at least 26 psi
(1.8 Bar) pressure within 15 min-
utes:1. Press the Power Button (4) to turn
off the TIREFIT kit.
2. Remove the Speed Limit sticker
from the top of the Sealant Bottle (1)
and place the sticker on the instru-
ment panel.
3.
Immediately disconnect the Sealant
Hose (6) from the valve stem, reinstall
the cap on the fitting at the end of the
hose, and place the TIREFIT kit in the
vehicle storage location. Quickly pro-
ceed to (D) “Drive Vehicle”.CAUTION!
 The metal end fitting from Power
Plug (8) may get hot after use, so
it should be handled carefully.
 Failure to reinstall the cap on the
fitting at the end of the Sealant
Hose (6) can result in sealant
contacting your skin, clothing,
and the vehicle’s interior. It can
also result in sealant contacting
(Continued)
CAUTION!(Continued)
internal TIREFIT kit components
which may cause permanent
damage to the kit.
(D) Drive Vehicle:
Immediately after injecting sealant
and inflating the tire, drive the vehicle
8 km or 10 minutes to ensure distri-
bution of the TIREFIT Sealant within
the tire. Do not exceed 88 km/h.WARNING!
TIREFIT is not a permanent flat
tire repair. Have the tire inspected
and repaired or replaced after using
TIREFIT. Do not exceed 88 km/h
until the tire is repaired or replaced.
Failure to follow this warning can
result in injuries that are serious or
fatal to you, your passengers, and
others around you.
(E) After Driving:
Pull over to a safe location. Refer to
“Whenever You Stop to Use TIRE-
FIT” before continuing. 1. Turn the Mode Select Knob (5) to
the Air Mode position.
2. Uncoil the power plug and insert
the plug into the vehicle's 12 Volt
power outlet.
3. Uncoil the Air Pump Hose (7)
(black in color) and screw the fitting
at the end of hose (7) onto the valve
stem.
4. Check the pressure in the tire by
reading the Pressure Gauge (3).
If tire pressure is less than 1.3 Bar,
the tire is too badly damaged. Do not
attempt to drive the vehicle further.
Call for assistance.
If the tire pressure is 1.3 Bar or
higher:
1. Press the Power Button (4) to turn
on TIREFIT and inflate the tire to the
pressure indicated on the tire and
loading information label on the
driver-side door opening.
178

CAUTION!Accessories that can be plugged into
the vehicle power outlets draw power
from the vehicle’s battery, even when
not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long
enough, the vehicle’s battery will dis-
charge sufficiently to degrade battery
life and/or prevent the engine from
starting.FREEING A STUCK
VEHICLE
If your vehicle becomes stuck in mud,
sand, or snow, it can often be moved
using a rocking motion. Turn the
steering wheel right and left to clear
the area around the front wheels.Then shift back and forth between
DRIVE and REVERSE, while gently
pressing the accelerator. Use the least
amount of accelerator pedal pressure
that will maintain the rocking motion,
without spinning the wheels, or racing
the engine.
CAUTION!
Racing the engine or spinning the
wheels may lead to transmission
overheating and failure. Allow the
engine to idle with the transmission
in NEUTRAL for at least one min-
ute after every five rocking-motion
cycles. This will minimize over-
heating and reduce the risk of
transmission failure during pro-
longed efforts to free a stuck ve-
hicle.NOTE:
Press the "ESC Off" switch,
to place the Electronic Stability
Control (ESC) system in "Partial Off"
mode, before rocking the vehicle.
Refer to “Electronic Brake Control”
in “Starting And Operating” for fur-
ther information. Once the vehicle
has been freed, press the "ESC Off"
switch again to restore "ESC On"
mode.
CAUTION!
 When “rocking” a stuck vehicle by shifting between DRIVE and
REVERSE, do not spin the
wheels faster than 24 km/h, or
drivetrain damage may result.
 Revving the engine or spinning
the wheels too fast may lead to
transmission overheating and
failure. It can also damage the
tires. Do not spin the wheels
above 48 km/h while in gear (no
transmission shifting occurring).
