2013 Lancia Delta Owner handbook (in English)

1
KNOWING YOUR CAR127
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM
THIS is an electrically controlled power steering system
called “Dualdrive”. It is only operational with the igni-
tion key turned to MAR and the engine running; it can be
customised by the driver according to the driving condi-
tions.
IMPORTANT When turning the ignition key quickly,
complete power steering functionality may be achieved
after 1-2 seconds.CITY FUNCTION ACTIVATION/DEACTIVATION

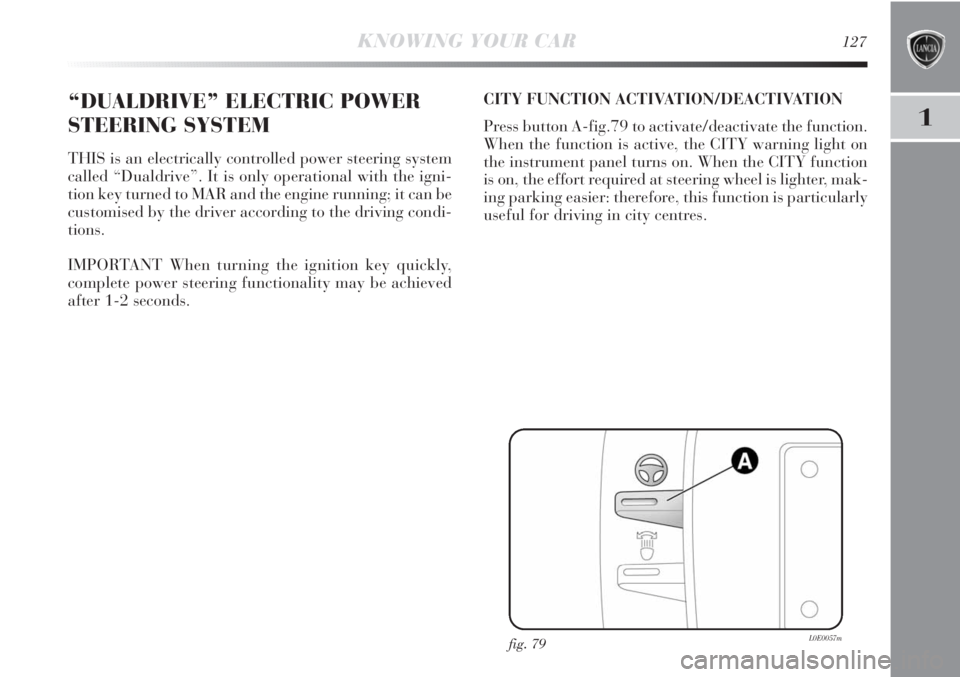

Press button A-fig.79 to activate/deactivate the function.
When the function is active, the CITY warning light on
the instrument panel turns on. When the CITY function
is on, the effort required at steering wheel is lighter, mak-
ing parking easier: therefore, this function is particularly
useful for driving in city centres.
fig. 79L0E0057m

128KNOWING YOUR CAR
FAILURE INDICATIONS
Any failure of the electric power steering is indicated by
instrument panel warning light gcoming on together
with a message in the reconfigurable multifunction dis-
play. In the event of electric power steering system fail-
ure, the car can be driven with mechanical steering.
IMPORTANT In some circumstances, factors independent
of the electric power steering could cause the warning light
gon the instrument panel to come on. In this case, stop
the car immediately, switch off the engine for about
20 seconds and then restart the engine. If the gwarn-
ing light remains on, together with the message on the re-
configurable multifunction display, contact a Lancia
Dealership as soon as possible.
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications
(e.g. installation of anti-theft device). This could
negatively affect performance and safety, invali-
date the warranty, cause serious safety problems
and also result in non-compliance of the car with
type-approval requirements.
On some versions, with the CITY function
activated, the SPORT function is not avail-
able. To activate the SPORT function, deactivate
the CITY function and vice versa, because they are
reciprocally incompatible.

1
KNOWING YOUR CAR129
IMPORTANT The steering may become slightly stiff fol-
lowing parking manoeuvres involving a lot of steering.
This is normal and is caused by a system to prevent the
motor from overheating. No servicing is required. The
power steering system will start working normally again
the next time the car is used.T.P.M.S. SYSTEM
(Tyre Pressure Monitoring System)
(for versions/markets, where provided)
The car may be equipped with a tyre pressure monitor-
ing system. This system comprises a radio frequency
transmitter fitted to each wheel (on the wheel rim inside
the tyre), which is able to send information on the tyre
inflation pressure of each wheel to the control unit.
IMPORTANT NOTES ABOUT THE TPMS SYSTEM
The fault indications are not stored and will therefore
not be displayed after the engine has been switched off
and then on again. If the fault conditions persist, the
control unit will send the relative indications to the in-
strument panel only after the vehicle has been in motion
for a short time.
Before starting any servicing operation, stop
the engine and remove the key from the igni-
tion switch to operate the steering lock, par-
ticularly when the wheels do not touch the ground.
If this is not possible (e.g. if the key must be kept in
the MAR position or the engine must be kept run-
ning), remove the electric power steering system
main fuse.

130KNOWING YOUR CAR
The TPMS is not able to warn you of sud-
den tyre pressure losses (for example when
a tyre bursts). In this case stop the car, brak-
ing with care and avoiding sharp steering actions.
Replacing the normal tyres with winter tyres
and vice versa requires the inspection of the
T.P.M.S., which should only be carried out
by a Lancia Dealership.
The T.P.M.S. requires the use of specific
equipment. Contact a Lancia Dealership to
find out which accessories are compatible
with the system (wheels, hub caps etc.). The use of
other accessories may affect the normal operation
of the system.
Tyre inflation pressure may vary according
to outdoor temperature. The TPMS system
may temporarily indicate insufficient pres-
sure. In this case, check the tyre pressures with the
tyres cold and, if necessary, pump them up.

1
KNOWING YOUR CAR131
If the vehicle is fitted with TPMS, when
a tyre is removed, it is advisable to replace
the rubber gasket for the valve. Contact
a Lancia Dealership.
If the vehicle is fitted with a T.P.M.S., tyre
and wheel fitting/removal operations re-
quire specific precautions. To avoid damag-
ing or fitting the sensors incorrectly, tyre and wheel
fitting/removal operations should only be carried
out by specialists. Contact a Lancia Dealership.
Particularly strong radiofrequency interfer-
ence may cause the T.P.M.S. to function in-
correctly. This condition is indicated to the
driver by a warning light
nor symbol lighting up
on the display together with a dedicated message.
The message will disappear automatically as soon
as the interference ceases to disturb the system.

132KNOWING YOUR CAR
Contact
a Lancia Dealership
Repair the damaged
wheel
Contact
a Lancia Dealership
–
Contact
a Lancia Dealership
––
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NO
(*) Given as an alternative in the Owner Handbook and available at Lineaccessori Lancia.
(**) Not cross-swapped (tyres must stay on the same side).
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Fault indication Lancia Authorized
Services intervention
–
Replacing a wheel
with the spare wheel
Replacing the wheels
with winter tyres
Replacing the wheels
with winter tyres
Replacing wheels
with others of a different size (*)
Switching wheels
(front/rear) (**)

1
KNOWING YOUR CAR133
PARKING SENSORS
(for versions/markets where provided)
The parking sensors are located on the rear bumper fig.
80 and their function is to inform the driver, through an
intermittent beeping, of the presence of obstacles behind
the car.
ACTIVATION/DEACTIVATION
The sensors are automatically activated when the reverse
gear is engaged. As the obstacle behind the vehicle gets
closer to the car, the buzzer becomes more frequent.
fig. 80L0E0059m
BUZZER WARNING
When reverse gear is engaged and there is an obstacle be-
hind the car a buzzer is activated and the signal varies
as the distance of the obstacle from the bumper varies.
The beep frequency:
❍increases as the distance between the car and the ob-
stacle decreases;
❍becomes continuous when the distance between the
car and the obstacle is less than around 30 cm and
stops immediately if the distance increases;
❍is constant if the distance is unchanged.
Detection distances
Centre operating radius 140 cm
Side operating radius 60 cm
If several obstacles are detected by the sensors, only the
nearest one is considered.

134KNOWING YOUR CAR
FAILURE INDICATIONS
Any faults in the parking sensor system are indicated,
when reverse gear is engaged, by the
èwarning light on
the instrument panel lighting up and a dedicated message
appearing in the multifunction display.
OPERATION WITH TRAILER
Sensor operation is automatically deactivated when the
trailer’s electric cable plug is fitted in the car’s tow hook
socket.
The sensors are automatically reactivated when the
trailer’s cable plug is removed.
For correct operation, sensors must always
be clean from mud, dirt, snow or ice. Be
careful not to scratch or damage the sensors
while cleaning them. Avoid using dry, rough or
hard cloths. The sensors should be washed using
clean water with the addition of car shampoo if
necessary. When using special washing equipment
such as high pressure jets or steam cleaning, clean
the sensors very quickly keeping the jet more than
10 cm away.
GENERAL WARNINGS
❍When parking, watch out for obstacles that may
be above or under the sensors.
❍Sometimes, objects placed close to the car are not de-
tected and could therefore cause damage to the car
or be damaged themselves.
The following conditions may influence the performance
of the parking sensor system:
❍Reduced sensor sensitivity and a reduction in the
parking assistance system performance could be due
to the presence on the surface of the sensor of:
ice, snow, mud, thick paint.
❍The sensor may detect a non-existent obstacle (echo
interference) due to mechanical interferences, for ex-
ample when washing the vehicle, rain (strong wind),
hail.
