2013 Lancia Delta Owner handbook (in English)

1
KNOWING YOUR CAR31
IMPORTANT The setting increases or decreases by one
unit each time button
ÕorÔis pressed. Hold the but-
ton pressed to increase/decrease the setting rapidly and
automatically. Complete the setting by briefly pressing
the button when you approach the required value.
– when you select “Mode”, pressing SET briefly makes
the display mode flash on the display;
– press button
ÕorÔto select “24h” or “12h”.
When you have made the required settings, briefly press
the SET button to go back to the submenu screen or hold
the button down to go back to the main menu screen
without storing the new settings.
– hold down the SET button again to return to the stan-
dard screen or to the main menu according to where you
are in the menu.Set date (Setting the date)
Using this function you can update the date (day – month
– year).
Proceed as follows to update:
– briefly press SET: the year starts flashing on the display;
– press
ÕorÔto adjust the value;
– briefly press SET: “month” will flash on the display;
– press
ÕorÔto adjust the value;
– briefly press SET: “day” will flash on the display;
– press
ÕorÔto adjust the value.
IMPORTANT The setting increases or decreases by one
unit each time button
ÕorÔis pressed. Hold the but-
ton pressed to increase/decrease the setting rapidly and
automatically. Complete the setting by briefly pressing
the button when you approach the required value.
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.

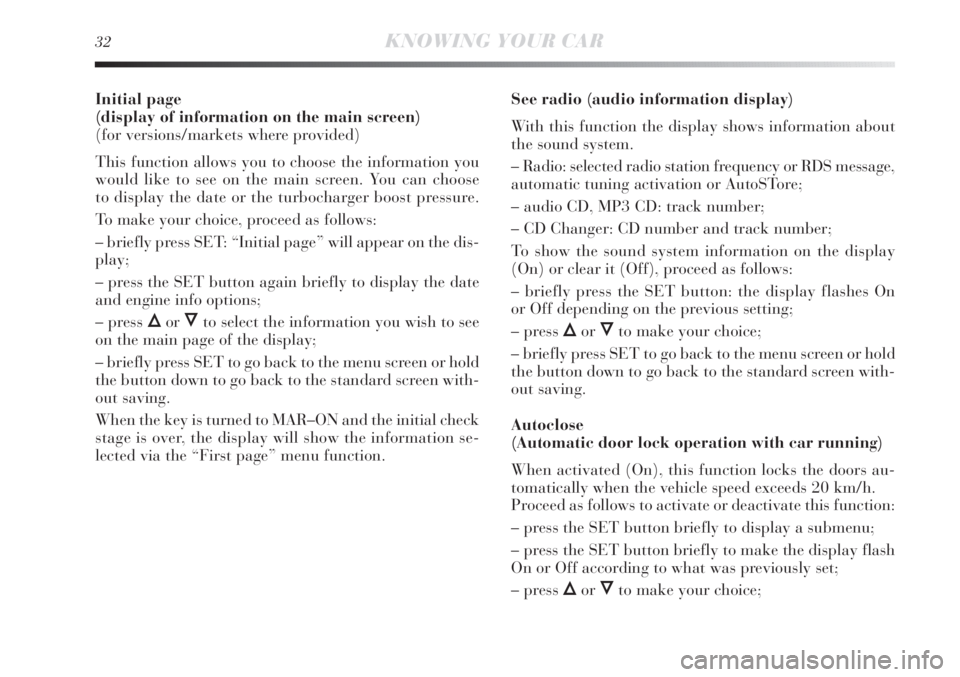

32KNOWING YOUR CAR
Initial page
(display of information on the main screen)
(for versions/markets where provided)
This function allows you to choose the information you
would like to see on the main screen. You can choose
to display the date or the turbocharger boost pressure.
To make your choice, proceed as follows:
– briefly press SET: “Initial page” will appear on the dis-
play;
– press the SET button again briefly to display the date
and engine info options;
– press
ÕorÔto select the information you wish to see
on the main page of the display;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.
When the key is turned to MAR–ON and the initial check
stage is over, the display will show the information se-
lected via the “First page” menu function.See radio (audio information display)
With this function the display shows information about
the sound system.
– Radio: selected radio station frequency or RDS message,
automatic tuning activation or AutoSTore;
– audio CD, MP3 CD: track number;
– CD Changer: CD number and track number;
To show the sound system information on the display
(On) or clear it (Off), proceed as follows:
– briefly press the SET button: the display flashes On
or Off depending on the previous setting;
– press ÕorÔto make your choice;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.
Autoclose
(Automatic door lock operation with car running)
When activated (On), this function locks the doors au-
tomatically when the vehicle speed exceeds 20 km/h.
Proceed as follows to activate or deactivate this function:
– press the SET button briefly to display a submenu;
– press the SET button briefly to make the display flash
On or Off according to what was previously set;
– press
ÕorÔto make your choice;

1
KNOWING YOUR CAR33
– press the SET button briefly to return to the submenu
screen or hold the button down to return to the main
menu screen without saving;
– press the SET button again for a time to return to the
standard screen or to the main menu according to where
you are in the menu.
Unit of measurement
(Setting the unit of measurement)
With this function is possible to set the unit of measure-
ment in three submenus: “Distance”, “Consumption”
and “Temperature”. To set the required unit proceed
as follows:
– briefly press SET to display the three sub-menus;
– press the
ÕorÔbutton to move between the three sub-
menus;
– once the submenu to be modified has been selected,
briefly press the SET button;
– if the submenu “Distances” is entered: by briefly press-
ing SET the display shows “km” or “mi” depending on
the previous setting;
– press
ÕorÔto make your choice;
– when you select “Consumption”, pressing SET makes
km/l, l/100km or mpg appear on the display depending
on the previous setting;If the distance unit is set to km, you can set the fuel con-
sumption unit to km/l or l/100 km.
If the distance unit is set to mi, fuel consumption is dis-
played in mpg.
– press
ÕorÔto make your choice;
– when you select “Temperature”, pressing SET makes
°C or °F appear on the display depending on the previ-
ous setting;
– press
ÕorÔto make your choice;
When you have made the required settings, briefly press
the SET button to go back to the submenu screen or hold
the button down to go back to the main menu screen
without storing the new settings.
– hold down the SET button again to return to the stan-
dard screen or to the main menu according to where you
are in the menu.

34KNOWING YOUR CAR
Language (Language selection)
Display messages can be shown in different languages:
Italian, German, English, Spanish, French, Portuguese
and Dutch.
To set the desired language, proceed as follows:
– briefly press the button SET: the previously set lan-
guage starts flashing on the display;
– press
ÕorÔto make your choice;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.
Warnings volume (Adjusting the alert/warning
acoustic signal volume)
With this function the volume of the buzzer which ac-
companies the display of any failure/warning can be ad-
justed according to 8 levels.
To set the desired volume, proceed as follows:
– press the SET button briefly, making the display flash
the previously set volume level;
– press
ÕorÔto adjust the value;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.Button volume (Adjusting the button volume)
This function enables you to adjust the volume of the
acoustic signal (8 settings) accompanying the activation
of buttons SET,
ÕandÔ.
To set the desired volume, proceed as follows:
– press the SET button briefly, making the display flash
the previously set volume level;
– press
ÕorÔto adjust the value;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.
Belt reminder
(Buzzer/reactivation for S.B.R. indication)
This function is only displayed after a Lancia Dealership
has deactivated the S.B.R. system (see “S.B.R. system”
paragraph, chapter “2”).

1
KNOWING YOUR CAR35
Service (Scheduled servicing)
Using this function you can display information about the
mileage intervals for car servicing.
To consult this display, proceed as follows:
– briefly press the SET button, which makes the display
show the service interval in km or mi according to the
previous setting (see “Distance units of measurement”
paragraph);
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen.
IMPORTANT The “Scheduled Servicing Plan” ensures
car servicing every 35,000 km (or the equivalent in
miles). This is automatically displayed when the ignition
key is in the MAR position, from 2,000 km (or the equiv-
alent in miles) before the service and reappears every
200 km (or the equivalent in miles). Below 200 km ser-
vicing indications are more frequent. The display will be
in kilometres or miles depending on the measurement
unit settings. When the next scheduled service is ap-
proaching and the key is turned to MAR, the word Ser-
vice will appear on the display, followed by the number
of kilometres or miles left. Go to a Lancia Dealership,
where the “Scheduled Servicing Plan” operations will be
performed and the message will be reset.Air Bag/Passenger Bag
This function is used to activate/deactivate the front pas-
senger’s airbag.
Proceed as follows:
– press SET and, after the message Bag pass: Off (to de-
activate) or Bag pass: On (to activate) is displayed by
pressing buttons
ÕandÔ, press SET again;
– the confirmation request message appears in the dis-
play;
– press
ÕorÔto select Yes (to confirm activation/
deactivation) or No (to cancel);
– press the SET button briefly, a message confirming the
selection will be displayed and you will return to the
menu screen or, pressing the button for longer, you will
return to the standard screen without memorising.

36KNOWING YOUR CAR
Daytime lights (D.R.L. – Daytime Running Lights)
With this function is possible to turn the day lights on
and off.
Proceed as follows to activate or deactivate this function:
– press the SET button briefly to display a submenu;
– press the SET button briefly to make the display flash
On or Off according to what was previously set;
– press
ÕorÔto change the setting;
– press the SET button briefly to return to the submenu
screen or hold the button down to return to the main
menu screen without saving;
– press the SET button again for a time to return to the
standard screen or to the main menu according to where
you are in the menu.
Exit Menu
This is the last function that closes the cycle of settings
listed in the menu screen. Pressing the SET button briefly
will return the display to the standard screen without
storing. Press
Ôto return to the first menu option (Speed
Beep).DISPLAY READINGS
IMPORTANT Failure indications displayed are divided
into two categories: very serious and less serious failures.
Very serious failures prompt a prolonged cycle of signals.
Less serious failures prompt a shorter cycle of signals.
The displaying cycle of both failure categories can be
stopped by pressing the button SET. The warning light
(or symbol) will stay on until the fault is eliminated.
Luggage compartment not properly shut
(red)
This symbol (for versions/markets where pro-
vided) switches on in the display when the lug-
gage compartment is not properly shut. The display
shows the dedicated message.
R
Bonnet not properly shut (red)
This symbol (for versions/markets where pro-
vided) switches on in the display when the
bonnet is not properly shut. The display will
show a dedicated message.
S

1
KNOWING YOUR CAR37
Possible presence of ice on the road
The outside temperature indicator starts
flashing when the outside temperature reaches
or falls below 3 °C and the
❄symbol lights up
on the display to warn the driver of the possible presence
of ice on the road.
The display will show a dedicated message.Adaptive lights not available
The display shows the dedicated message when
the adaptive lights system is not available.
Contact a Lancia Dealership. Exterior lights failure (amber)
The symbol switches on in the display when
a fault is detected in the brake lights.
The display shows the dedicated message.
W
❄
Driving advisor on
The display shows a dedicated message when
the driving advisor function is switched on.
ef
Steering corrector not available
(DST – Dynamic Steering Torque)
The display shows a dedicated message when
the steering corrector is faulty. Contact a Lancia
Dealership.
è
Service deadline
The display shows a specific message to indi-
cate the scheduled servicing deadline.
Speed limit exceeded
The display shows a dedicated message when the preset
speed limit is exceeded (for Arab countries the speed limit
is set at 120 km/h). The icon shown on the display rep-
resents the set speed limit.
õ

38KNOWING YOUR CAR
TRIP COMPUTER
GENERAL INFORMATION
The Trip computer is used to display information on car
operation when the key is turned to MAR. This function
is composed by separate trips, called “Trip A” and “Trip
B” which can monitor the entire mission (journey) in
a reciprocally independent manner.
Both functions can be reset (reset means start of a new
journey). “Trip A” is used to display the figures relating to:
– Range
– Trip distance
– Average consumption
– Current consumption
– Average speed
– Trip time (driving time)
– Trip A Reset
“Trip B” may be used to display the figures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Trip time B (driving time)
– Trip B Reset
N.B. “Trip B” may be disabled (see “Activating Trip B”).
“Range” and “Instant consumption” parameters cannot
be reset.Values displayed
Range
This indicates the approximate distance which can be
travelled with the present amount of fuel in the tank. The
display will show the reading ‘----’ when the following
events take place:
– range value lower than 50 km (or 30 mi)
– car parked with engine running for long period.
IMPORTANT The range can be affected by several fac-
tors: driving style (see “Driving style” in the “Starting
and driving” section), type of route (motorway, towns
and cities, mountain roads, etc.), conditions of use (load,
tyre pressures, etc.). Trip planning must therefore take
the above into account.
Distance travelled
This indicates the approximate distance covered from the
start of the new mission.
