KNOWING YOUR CAR103
HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct aiming of the headlights is important for the
comfort and safety of not only the driver but all other
road users. This is also covered by a specific rule of the
highway code.
The headlights must be correctly aimed to guarantee the
best visibility conditions for all drivers while travelling
with headlights on.
Contact a Lancia Dealership to have the headlights prop-
erly adjusted.
Check beam alignment every time the load or its distri-
bution changes.

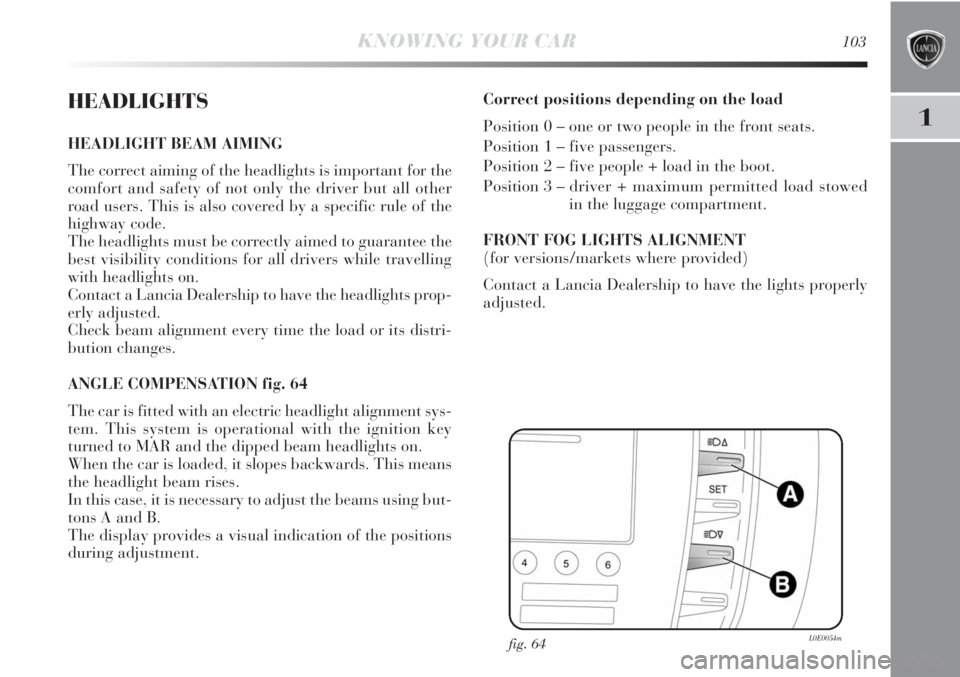

ANGLE COMPENSATION fig. 64
The car is fitted with an electric headlight alignment sys-
tem. This system is operational with the ignition key
turned to MAR and the dipped beam headlights on.
When the car is loaded, it slopes backwards. This means
the headlight beam rises.
In this case, it is necessary to adjust the beams using but-
tons A and B.
The display provides a visual indication of the positions
during adjustment.Correct positions depending on the load
Position 0 – one or two people in the front seats.
Position 1 – five passengers.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed
in the luggage compartment.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact a Lancia Dealership to have the lights properly
adjusted.
fig. 64L0E0054m

104KNOWING YOUR CAR
ADJUSTING THE HEADLIGHTS WHEN ABROAD
Dipped headlights are adjusted to drive in the country
where the vehicle was originally purchased. When trav-
elling in countries with opposite driving direction, to
avoid blinding the drivers on the other side of the road,
you need to cover the headlight areas depending on the
Highway code of the country you are travelling in.
ADAPTIVE LIGHTS (AFS – Adaptive Xenon Light)
This is a system combined with Xenon headlamps which
directs the main light beam and continuously and auto-
matically adapts it to the driving conditions round
bends/when cornering. The system directs the light beam
to light up the road in the best way, taking into account
the speed of the vehicle, the bend/corner angle and the
speed of steering.Activating/deactivating the system fig. 65
The adaptive lights are automatically activated when the
vehicle is started. In this situation the LED (amber) on
button A will remain off.
Press button A to deactivate the adaptive lights (if acti-
vated); they will be deactivated and the LED on button
A will come on constantly. Press AFS button again to turn
the adaptive lights on (LED off on the button).
In the event of a system failure, an indication is provided
on the instrument panel by the flashing of warning light
f
or the symbol
fappearing on the display along with a ded-
icated message (for versions/markets where provided).
fig. 65L0E0055m

1
KNOWING YOUR CAR105
DST SYSTEM
(Dynamic Steering Torque)
This system is incorporated with the ESP control unit
and suggests steering corrections whilst driving via the
electric power steering. The system applies a torque to
the steering wheel which increases the safety perception
of the vehicle, maintaining control of the steering and
making the intervention of the Advanced ESP system
less intrusive.
SPORT FUNCTION
(for versions/markets where provided)
The vehicle may be equipped with a system that allows
a choice between two styles of driving, normal and sports.
Pressing the SPORT button fig. 66 produces sporty dri-
ving featuring higher acceleration response and more ef-
fort required on the steering wheel to produce this effect.
When the function is active, “S” is lit up in the instru-
ment panel. Press the button again to turn the function
off and restore the normal driving setting.IMPORTANT The function is activated about 5 seconds
after the SPORT button is pressed.
IMPORTANT The steering may become stiffer during
parking manoeuvres including a great deal of steering.
This is normal and caused by the system preventing the
electric control motor overheating. No repairs are needed.
The power steering system will start working normally
again the next time the car is used.
fig. 66L0E0058m

106KNOWING YOUR CAR
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications
(e.g. installation of anti-theft device). This could
negatively affect performance and safety, invali-
date the warranty, cause serious safety problems
and also result in vehicle non-compliance with
type-approval requirements.
Before servicing the car, switch off the engine
and remove the key from the ignition device
to activate the steering lock. This is espe-
cially important when the car wheels are not touch-
ing the ground. If this is not possible (e.g. if the key
must be kept in the MAR position or the engine must
be kept running), remove the electric power steering
system main fuse.
On some versions, with the CITY function
activated, the SPORT function is not avail-
able. To activate the SPORT function, deactivate
the CITY function and vice versa, because they are
reciprocally incompatible.REACTIVE SUSPENSION
SYSTEM (active shock
absorber system)
This system interacts with the Sport function (see “Sport
function” paragraph).
The SPORT button, fig. 67, allows you to choose between
two different driving settings depending on the route type
and on the road surface:
– with the button released: “normal” mode
– with the button pressed: “SPORT” mode.
fig. 67L0E0058m

1
KNOWING YOUR CAR107
In “normal” operating mode, active shock absorbers ad-
just car suspensions, adapting them to the type of road
and to the driving stresses, improving driving comfort in
particular on rough terrain.
In “SPORT” operating mode, the letter “S” is lit up on
the instrument panel display. This function produces
a sports driving setting featuring greater responsiveness
during acceleration and a sports driving feeling with the
steering, as well as the regulation and distribution of the
damping at the shock absorbers guaranteeing greater ve-
hicle precision and reaction, whilst maintaining a good
level of comfort. The driver will notice that the vehicle
is more precise when cornering and quicker in changing
direction.
This function is particularly useful whenever maximum
performance is required for a short time (e.g. when over-
taking).
IMPORTANT During acceleration, when the SPORT
function is used the steering may shudder which is typi-
cal of a sports setting.
IMPORTANT The function is activated about 5 seconds
after the SPORT button is pressed.System failure
In the event of a malfunction, the system notifies the dri-
ver of the fault via a dedicated message in the reconfig-
urable multifunction display instrument panel and the
amber
isymbol coming on. In this case, go to a Lancia
Dealership.

108KNOWING YOUR CAR
DRIVING ADVISOR
(Lane crossing warning )
(for versions/markets, where provided)
The Driving Advisor is a warning system that notifies
the driver if he/she crosses the lane because he/she
has been distracted.A video sensor, fitted on the wind-
screen near the interior rear view mirror, detects the lane
demarcation lines and the position of the car in relation
to them.
IMPORTANT If the windscreen needs replacing on cars
fitted with a Driving Advisor system, it is advisable to go
to a Lancia Dealership. If the repair is being carried out
at a specialist window replacement centre, it is still nec-
essary to go to a Lancia Dealership to have the TV cam-
era calibrated. OPERATION
The system is not active when the vehicle is started. It is
only activated when button A-fig. 68 in the dashboard
is pressed. The LED in the button lights up to confirm
that the system has been switched on plus a dedicated
warning message in the instrument panel display. Once it
is turned on the system will recognise the operating con-
ditions and this is signalled to the driver by the LED lo-
cated in the button flashing and the symbol
ein the am-
ber coloured panel in the instrument panel display
flashing too. Once the system has recognised the operat-
ing conditions, it becomes active. Therefore: the
eicon
in the display switches off and the LED on the button
remains on constantly.
IMPORTANT If the operating conditions are no longer
present then the system will deactivate. This is signalled
to the driver by the LED on the button flashing and the
amber
eicon on the display flashing.

1
KNOWING YOUR CAR109
OPERATING CONDITIONS FOR ACTIVATION
Once switched on, the system becomes active only if the
following conditions are present:
❍always keep at least one hand on the steering wheel;
❍vehicle speed between 65 km/h and 180 km/h;
❍presence of lane demarcation lines not deteriorated
and visible on both sides;
❍suitable visibility conditions;
❍straight line or wide radius bends;
❍visual field condition sufficient (safe distance from ve-
hicle in front). ACTIVATING/DEACTIVATING THE SYSTEM
With the system on, if the vehicle approaches one of the
lines defining the side of the lane, a torque is applied to
the steering wheel to let the driver know which direction
to steer in order to stay within the lane. If the driver turns
on the direction indicator in order to change lanes or for
overtaking, then the system will switch off momentarily.
If the driver wishes to change lanes without turning the
direction indicator on, then there will be a warning from
the steering wheel that they are about to cross the line.
If the driver continues with the manoeuvre to change
lanes, the system will be temporarily deactivated and then
switch back on again once it has recognised the new dri-
ving lane. This temporary deactivation will be signalled
to the driver by the LED in the button flashing and by
the
esymbol in the amber coloured panel in the instru-
ment panel display also flashing.
IMPORTANT The force applied to the steering wheel by
the system is sufficient for the driver to notice it but they
can easily override it and maintain control of the vehicle.

110KNOWING YOUR CAR
DEACTIVATING THE SYSTEM
Manual mode
The system can be deactivated by pressing button
A-fig. 68 in the dashboard. Confirmation that the system
has been switched off is given by the LED in the button
and the message 1-fig. 69 in the instrument panel display
going out.Automatic mode
The system can be switched off in automatic mode (there-
fore it must be activated again to use it). The driver is ad-
vised that the system has been turned off automatically
by three consecutive acoustic signals and the message
1 – fig. 69 in the instrument panel display after the fol-
lowing situations:
❍the driver does not keep their hands on the steering
wheel (indication 2-fig. 69 is shown on the instrument
panel and a buzzer sounds until the driver places their
hands back on the wheel. This is considered a dan-
gerous condition and the system is automatically de-
activated);
❍intervention of the vehicle safety systems (ABS, ESP,
ASR, DST and TTC);
❍the driver activates the sports driving setting pressing
the SPORT button (for versions/markets where pro-
vided).
IMPORTANT The system cannot be activated if the dri-
ver has previously selected the sports driving mode. The
impossibility of using the system will be communicated
to the driver by three consecutive beeps and by the dis-
played message 1 in fig. 69.
