Be sure to check the sealant
compound’s “use by” date regularly.
The “use by” date is on the lower
right hand corner of the label
located on the sealant canister
(bottle). The sealant canister should be replaced after four years.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
Retighten the lug nuts to the specified torque within 100 miles (160 km)
after any wheel disturbance (rotation, flat tire, wheel removal, etc.).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Ensure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Note:Inspect the wheel pilot hole (1) and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
Wheels and Tires353
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine3.5L V6 SHO
engine2.0L
EcoBoost™
engine
Cubic inches 214 214 122
Required fuelSeeOctane recommendationsin the Fuel and
Refueling chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1-3-4-2
Ignition
systemCoilonplug Coilonplug Coilonplug
Spark plug
gap0.049-0.053 in.
(1.25-1.35 mm)0.033–0.037 in.
(0.84–0.94 mm)0.027–0.031 in.
(0.70–0 .80 mm)
Compression
ratio10.8:1 10.0:1 9.3:1
354Capacities and Specifications
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

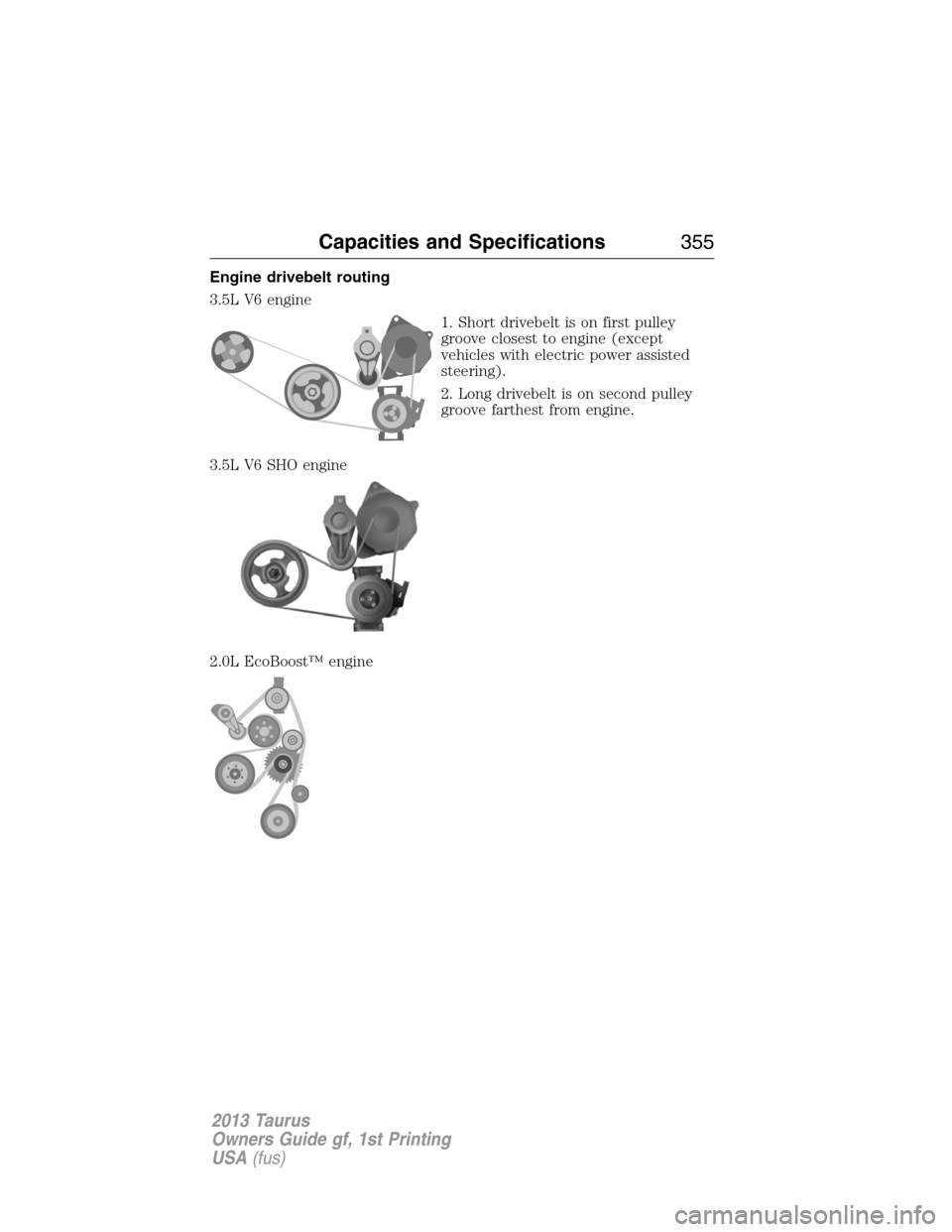

Engine drivebelt routing
3.5L V6 engine
1. Short drivebelt is on first pulley
groove closest to engine (except
vehicles with electric power assisted
steering).
2. Long drivebelt is on second pulley
groove farthest from engine.
3.5L V6 SHO engine
2.0L EcoBoost™ engine
Capacities and Specifications355
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

TECHNICAL SPECIFICATIONS
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluid
1
Between MAX and
MIN on reservoirMotorcraftDOT4LV
High Performance Motor
Vehicle Brake FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
10.9 quarts
(10.3L)
(6F50)
Motorcraft
MERCONLV AT F
2
XT-10-QLV /
MERCONLV 11.6 quarts
(11.0L)
(6F55)
9.0 quarts (8.5L)
(6F35)
Rear differential (AWD)
fluid2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
18 ounces (0.53L)MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
356Capacities and Specifications
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification

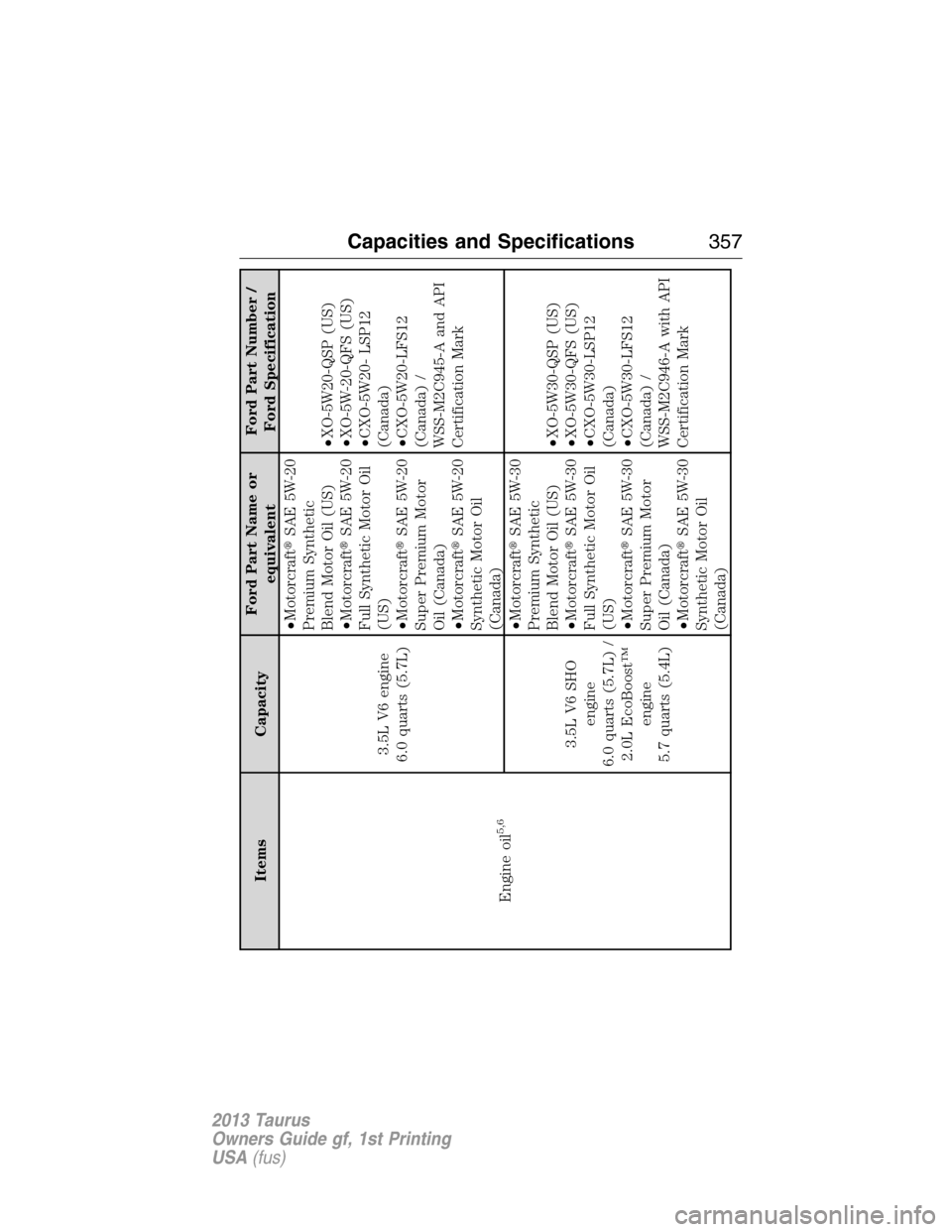

Engine oil
5,6
3.5L V6 engine
6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
3.5L V6 SHO
engine
6.0 quarts (5.7L) /
2.0L EcoBoost™
engine
5.7 quarts (5.4L)•MotorcraftSAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-30
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-30
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil
(Canada)•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C946-A with API
Certification Mark
Capacities and Specifications357
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification

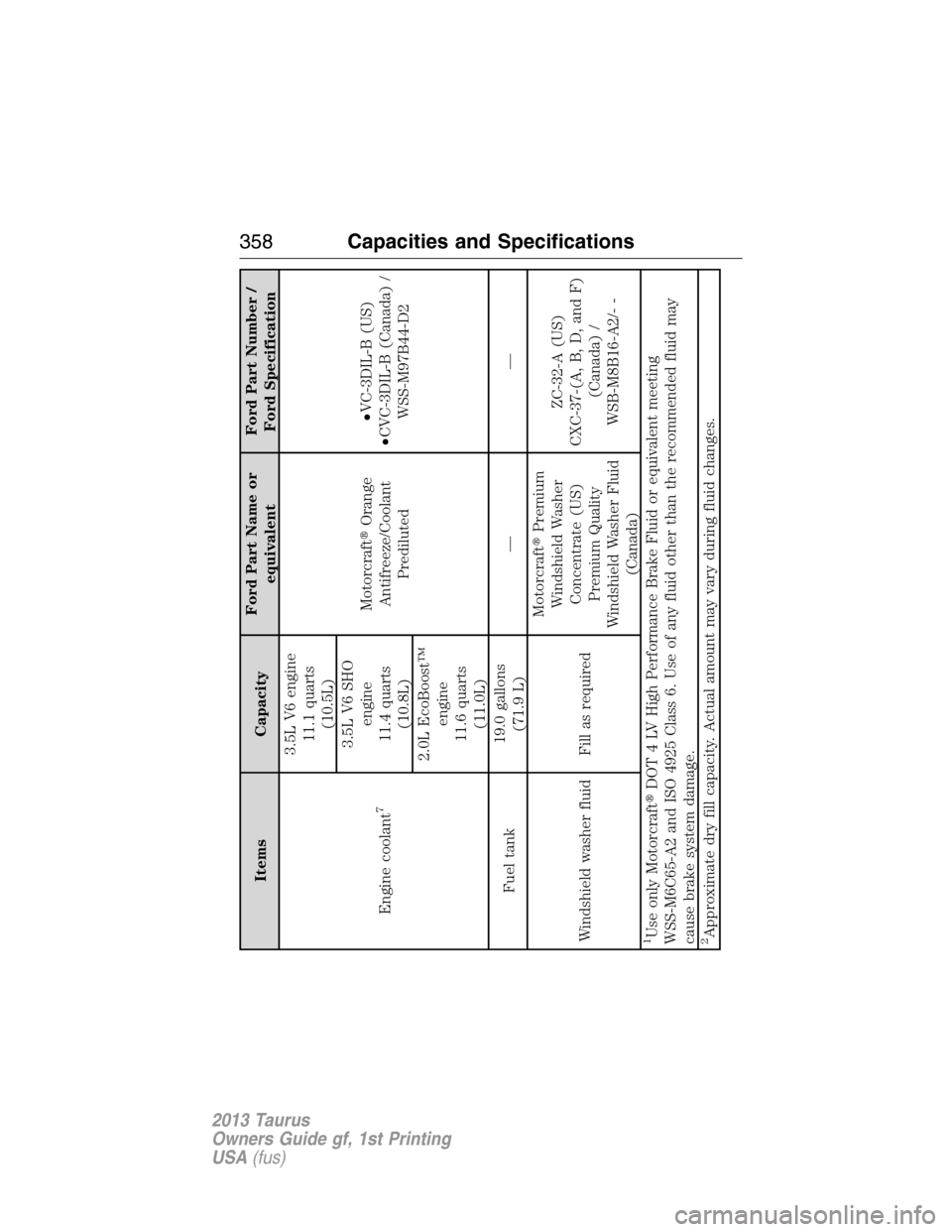

Engine coolant
7
3.5L V6 engine
11.1 quarts
(10.5L)
MotorcraftOrange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 3.5L V6 SHO
engine
11.4 quarts
(10.8L)
2.0L EcoBoost™
engine
11.6 quarts
(11.0L)
Fuel tank19.0 gallons
(71.9 L)——
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
1Use only MotorcraftDOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.
358Capacities and Specifications
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
3Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer
toscheduled maintenance informationto determine the correct service interval. Use of any
fluid other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.5Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C946-A (3.5L V6 SHO/2.0L EcoBoost™ engines) or
WSS-M2C945 -A (3.5L V6 engine) and display the API Certification Mark.6Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine.
Using oils other than the one specified can result in longer engine cranking periods, reduced
engine performance, reduced fuel economy and increased emission levels.7Add the coolant type originally equipped in your vehicle.
Capacities and Specifications359
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

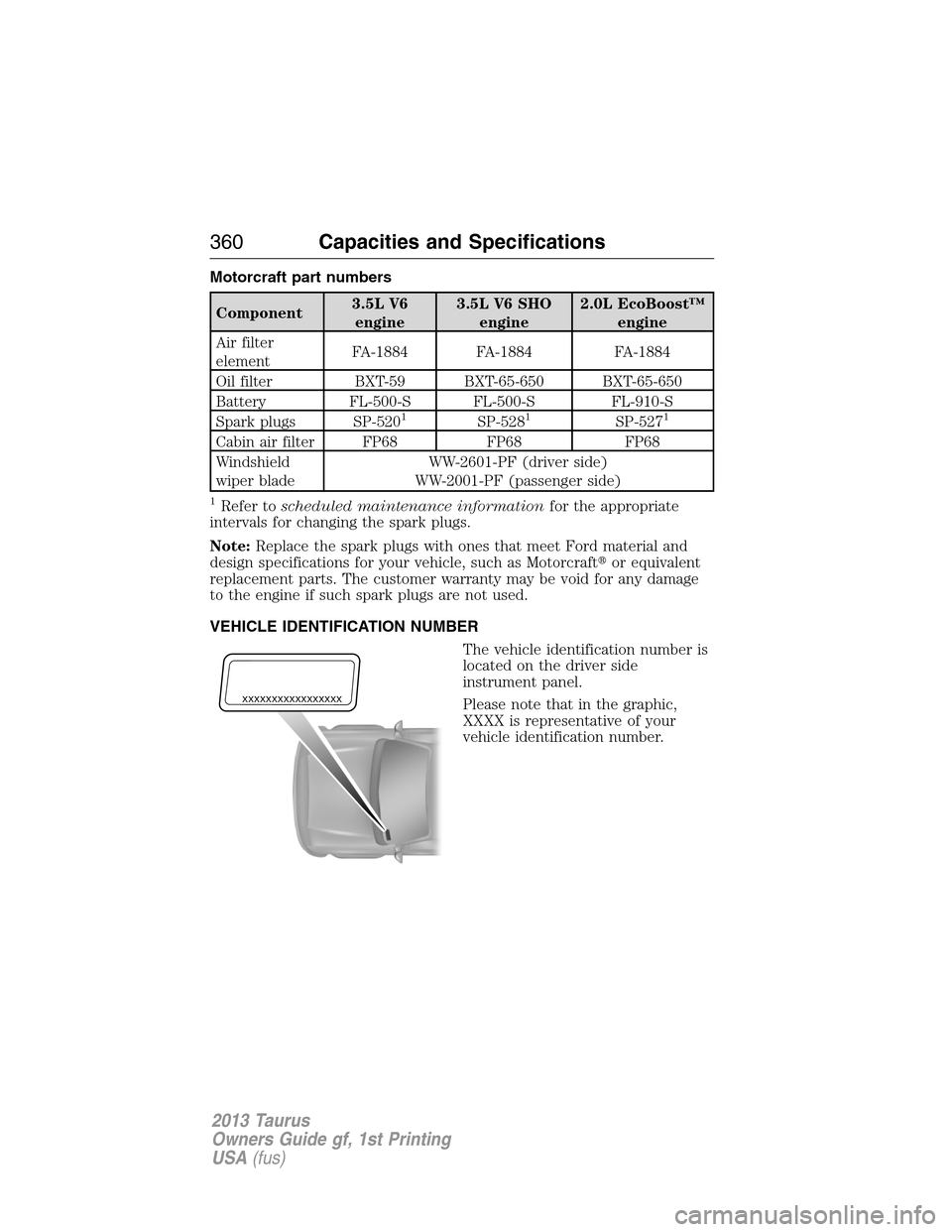

Motorcraft part numbers
Component3.5L V6
engine3.5L V6 SHO
engine2.0L EcoBoost™
engine
Air filter
elementFA-1884 FA-1884 FA-1884
Oil filter BXT-59 BXT-65-650 BXT-65-650
Battery FL-500-S FL-500-S FL-910-S
Spark plugs SP-520
1SP-5281SP-5271
Cabin air filter FP68 FP68 FP68
Windshield
wiper bladeWW-2601-PF (driver side)
WW-2001-PF (passenger side)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
