2013 FORD FOCUS ELECTRIC climate control

The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
The interior dome lamps and parking lamps will illuminate when all
doors are closed and the vehicle is turned off.
The lamps will turn off if all the doors remain closed and:
•25 seconds elapse
•the POWER button is pressed.
Battery saver
The battery saver will shut off the lamps 10 minutes after the vehicle has
been turned off.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the vehicle has been
turned off.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk was opened, the battery saver will shut them off
10 minutes after the vehicle has been turned off.
•The battery saver will shut off the headlamps 10 minutes after the
vehicle has been turned off.
Accessory mode battery saver
Accessory mode will shut off after 30 minutes.
Remote Start
Your vehicle has remote start if the transmitter has this button.
The remote start feature allows you to start the vehicle from outside the
vehicle. The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Control
chapter for more information.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
166Locks and Security
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

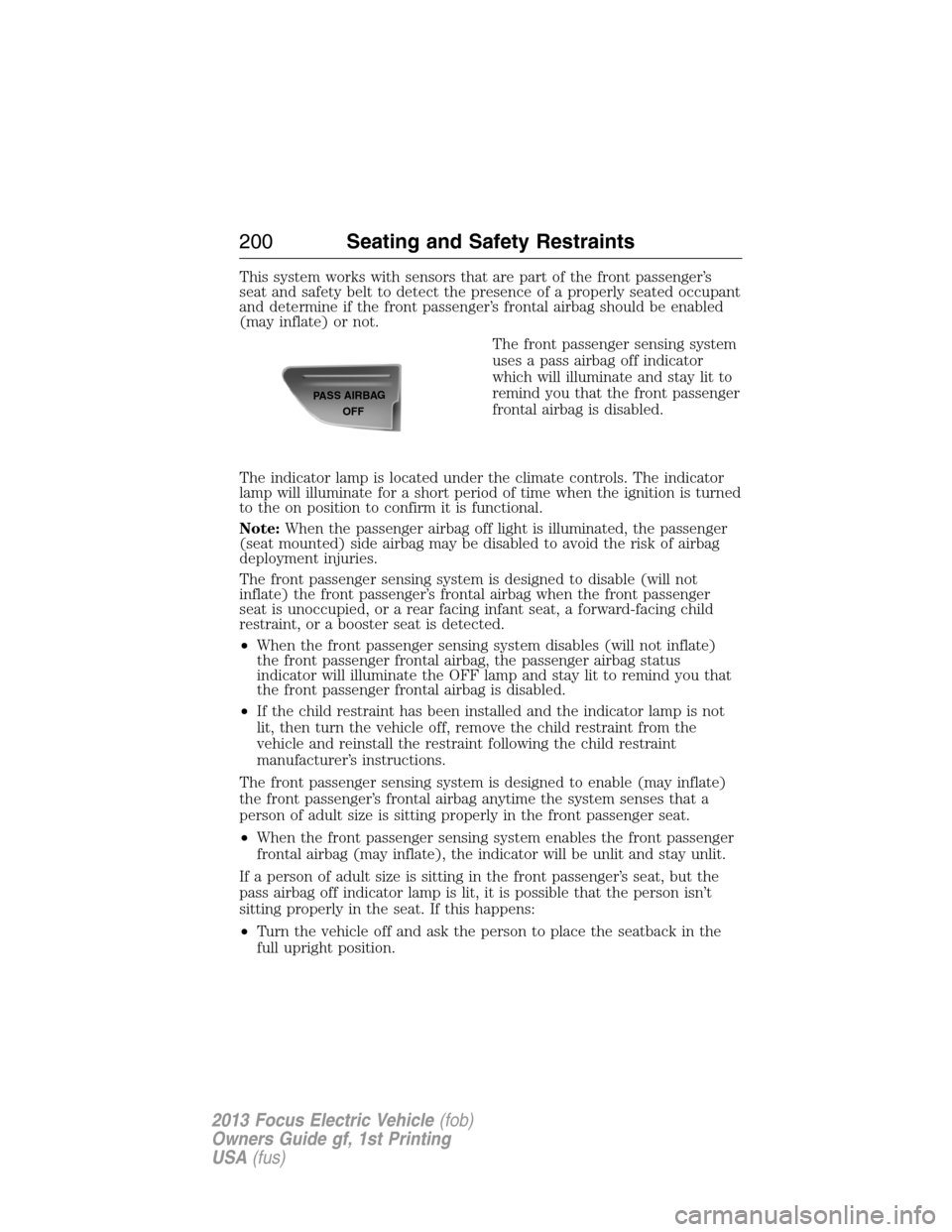

This system works with sensors that are part of the front passenger’s
seat and safety belt to detect the presence of a properly seated occupant
and determine if the front passenger’s frontal airbag should be enabled
(may inflate) or not.
The front passenger sensing system
uses a pass airbag off indicator
which will illuminate and stay lit to
remind you that the front passenger
frontal airbag is disabled.
The indicator lamp is located under the climate controls. The indicator
lamp will illuminate for a short period of time when the ignition is turned
to the on position to confirm it is functional.
Note:When the passenger airbag off light is illuminated, the passenger
(seat mounted) side airbag may be disabled to avoid the risk of airbag
deployment injuries.
The front passenger sensing system is designed to disable (will not
inflate) the front passenger’s frontal airbag when the front passenger
seat is unoccupied, or a rear facing infant seat, a forward-facing child
restraint, or a booster seat is detected.
•When the front passenger sensing system disables (will not inflate)
the front passenger frontal airbag, the passenger airbag status
indicator will illuminate the OFF lamp and stay lit to remind you that
the front passenger frontal airbag is disabled.
•If the child restraint has been installed and the indicator lamp is not
lit, then turn the vehicle off, remove the child restraint from the
vehicle and reinstall the restraint following the child restraint
manufacturer’s instructions.
The front passenger sensing system is designed to enable (may inflate)
the front passenger’s frontal airbag anytime the system senses that a
person of adult size is sitting properly in the front passenger seat.
•When the front passenger sensing system enables the front passenger
frontal airbag (may inflate), the indicator will be unlit and stay unlit.
If a person of adult size is sitting in the front passenger’s seat, but the
pass airbag off indicator lamp is lit, it is possible that the person isn’t
sitting properly in the seat. If this happens:
•Turn the vehicle off and ask the person to place the seatback in the
full upright position.
PASS AIR
BAG
OFF
200Seating and Safety Restraints
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

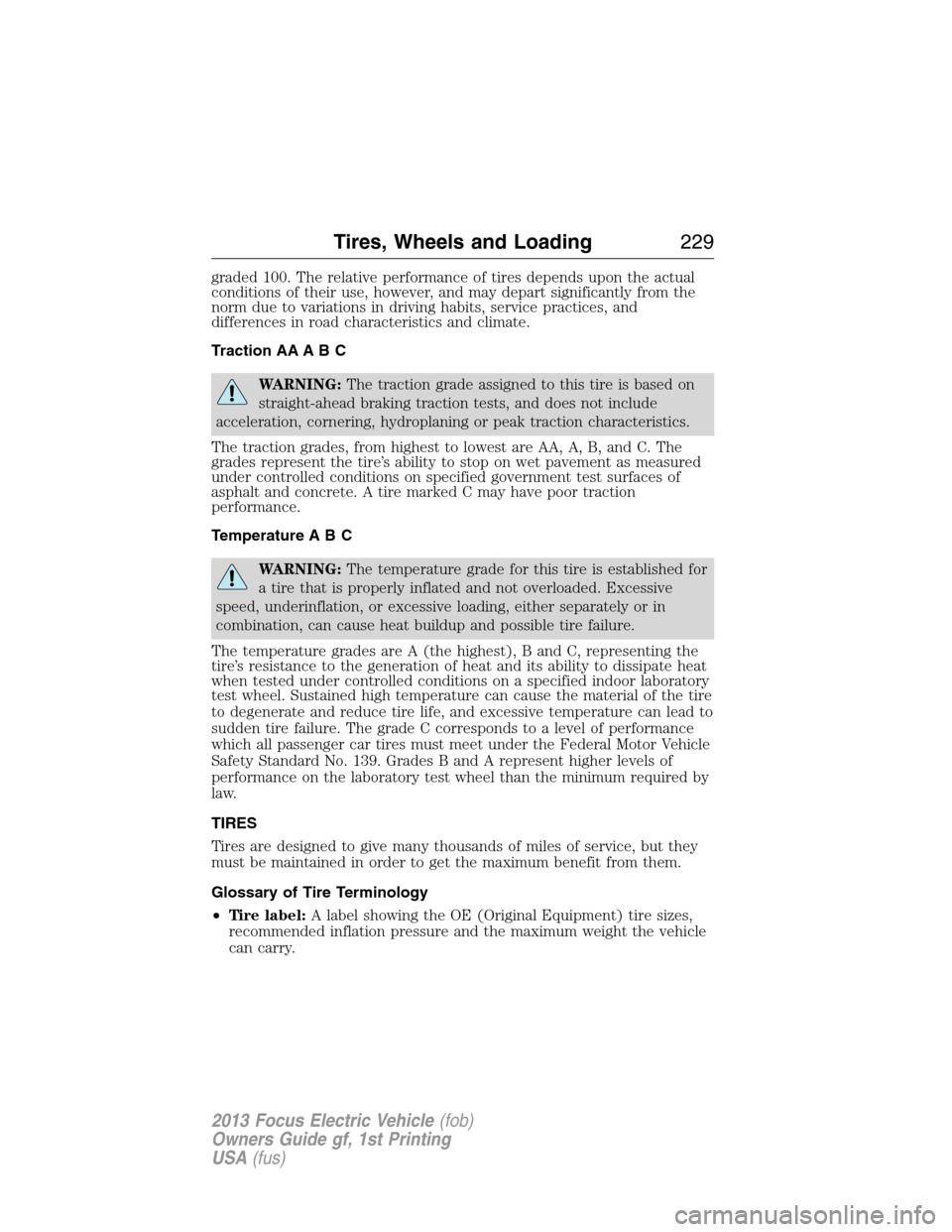

graded 100. The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly from the
norm due to variations in driving habits, service practices, and
differences in road characteristics and climate.
Traction AA A B C
WARNING:The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not include
acceleration, cornering, hydroplaning or peak traction characteristics.
The traction grades, from highest to lowest are AA, A, B, and C. The
grades represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor traction
performance.
Temperature A B C
WARNING:The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded. Excessive
speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
The temperature grades are A (the highest), B and C, representing the
tire’s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a level of performance
which all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 139. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum required by
law.
TIRES
Tires are designed to give many thousands of miles of service, but they
must be maintained in order to get the maximum benefit from them.
Glossary of Tire Terminology
•Tire label:A label showing the OE (Original Equipment) tire sizes,
recommended inflation pressure and the maximum weight the vehicle
can carry.
Tires, Wheels and Loading229
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Components
64 — Not used
65 10A Liftgate release
66 20A Not used (spare)
67 7.5A SYNC, Multifunction display,
Global positioning system module,
Compass
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Climate control
72 7.5A Steering wheel module
73 5A Datalink connector
74 15A Low beam headlamp supply
75 15A Not used (spare)
76 10A Reversing lamp supply,
Electrochromatic rear view mirror
77 20A Windshield and rear washer
supply
78 5A Ignition switch, Start button
79 15A Radio, Hazard light switch, Door
lock switch, Electronic finish
panel
80 20A Not used (spare)
81 5A Radio frequency receiver
82 20A Windshield and rear washer relay
83 20A Central locking
84 20A Unlock supply, Double lock
85 7.5A Front seat heater switch
86 10A Airbag module, Occupant
classification sensor, Passenger
airbag deactivation indicator
87 — Not used
286Roadside Emergencies
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

CD voice commands ...................73
Cell phone use ............................13
Changing a tire .........................291
Child safety seats ......................214
attaching with tether straps ..221
in front seat ............................215
in rear seat ..............................215
LATCH .....................................218
recommendations ...................212
Child safety seats -
booster seats .............................223
Cleaning the touchscreen ..........49
Cleaning your vehicle
engine compartment ..............319
instrument panel ....................321
interior .....................................322
plastic parts ............................320
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................320
Climate voice commands .........111
Clock ............................................98
Console ......................................141
Controls
steering column ......................149
Coolant ......................................337
checking and adding ..............337
refill capacities ........................343
specifications ..........................343
Cruise control
(see Speed control) ..................146
Customer Assistance ................278
Ford Extended Service
Plan ..................................348, 350
Getting assistance outside
the U.S. and Canada ..............315
Getting roadside assistance ...278Getting the service you
need .........................................310
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................314
D
Daytime running lamps
(see Lamps) ..............................130
Defrost .......................................123
Dipstick
automatic transmission
fluid ..........................................340
Display settings ...........................98
Doors
central unlocking ....................159
Driving under special
conditions ..................................269
through water .........................277
Dual automatic temperature
control (DATC) .........................123
E
Emergencies, roadside
jump-starting ..........................303
End user license agreement ....361
Engine
cleaning ...................................319
service points ..........................325
Engine fan .................................325
Event data recording ..................11
F
Fan, Engine Cooling .........324–325
Index381
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

push button start system .......256
Steering wheel
controls ....................................149
tilting .......................................141
Supported media file types ........77
Supported player, media
formats and metadata
information ..................................77
SYNCServices ...........................87
System settings .........................100
T
Temperature control
(see Climate control) .......109, 123
Temporary mobility kit .............293
Text messaging ...........................83
Tilt steering wheel ....................141
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....244
Tires ...........................228–229, 291
alignment ................................237
care ..........................................233
changing ..................................291
checking the pressure ............233
inflating ...................................230
label .........................................243
replacing ..................................235
rotating ....................................238
safety practices .......................237
sidewall information ...............238
snow tires and chains ............248
spare tire .................................291
Temporary mobility kit ..........293
terminology .............................229
tire grades ...............................229
treadwear ........................228, 233Touchscreen features
(climate) ....................................109
Towing .......................................254
recreational towing .................254
trailer towing ..........................254
wrecker ....................................306
Traffic preferences ...................116
Transmission
brake-shift interlock (BSI) ....265
fluid, checking and adding
(automatic) .............................340
fluid, refill capacities ..............343
lubricant specifications ..........343
Trunk .........................................151
remote release ........................164
Turn signal ................................133
U
USB port ................................40, 74
V
Vehicle health report ..................96
Vehicle Identification Number
(VIN) ..........................................344
Vehicle loading ..........................248
Voice recognition ........................54
W
Warning lights (see Lights) .......16
Washer fluid ..............................327
Water, Driving through .............277
Wi-Fi ..........................................106
Windows
power .......................................142
rear wiper/washer ...................140
Index385
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
