2013 FORD FOCUS ELECTRIC keyless entry

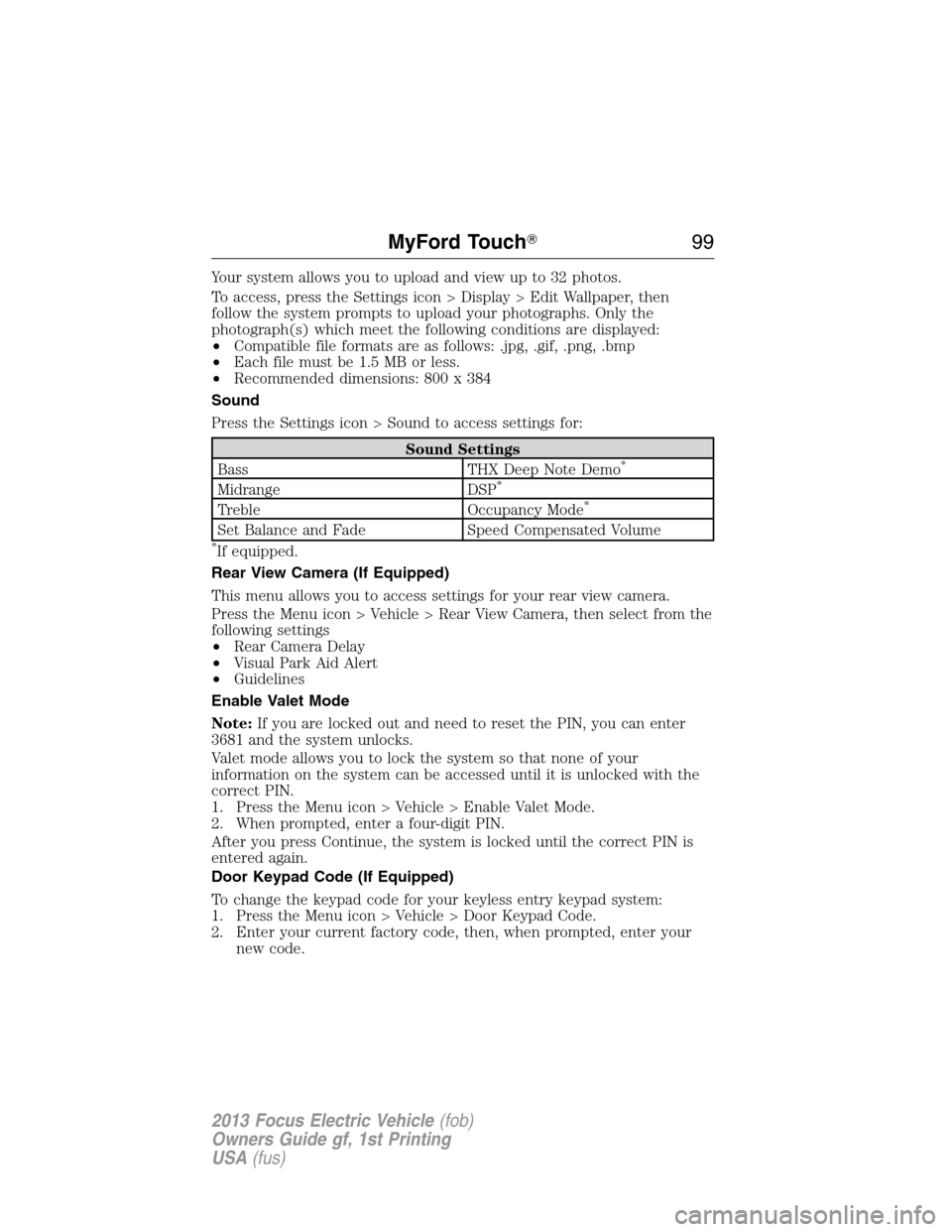

Your system allows you to upload and view up to 32 photos.
To access, press the Settings icon > Display > Edit Wallpaper, then
follow the system prompts to upload your photographs. Only the
photograph(s) which meet the following conditions are displayed:
•Compatible file formats are as follows: .jpg, .gif, .png, .bmp
•Each file must be 1.5 MB or less.
•Recommended dimensions: 800 x 384
Sound
Press the Settings icon > Sound to access settings for:
Sound Settings
Bass THX Deep Note Demo*
Midrange DSP*
Treble Occupancy Mode*
Set Balance and Fade Speed Compensated Volume*If equipped.
Rear View Camera (If Equipped)
This menu allows you to access settings for your rear view camera.
Press the Menu icon > Vehicle > Rear View Camera, then select from the
following settings
•Rear Camera Delay
•Visual Park Aid Alert
•Guidelines
Enable Valet Mode
Note:If you are locked out and need to reset the PIN, you can enter
3681 and the system unlocks.
Valet mode allows you to lock the system so that none of your
information on the system can be accessed until it is unlocked with the
correct PIN.
1. Press the Menu icon > Vehicle > Enable Valet Mode.
2. When prompted, enter a four-digit PIN.
After you press Continue, the system is locked until the correct PIN is
entered again.
Door Keypad Code (If Equipped)
To change the keypad code for your keyless entry keypad system:
1. Press the Menu icon > Vehicle > Door Keypad Code.
2. Enter your current factory code, then, when prompted, enter your
new code.
MyFord Touch99
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

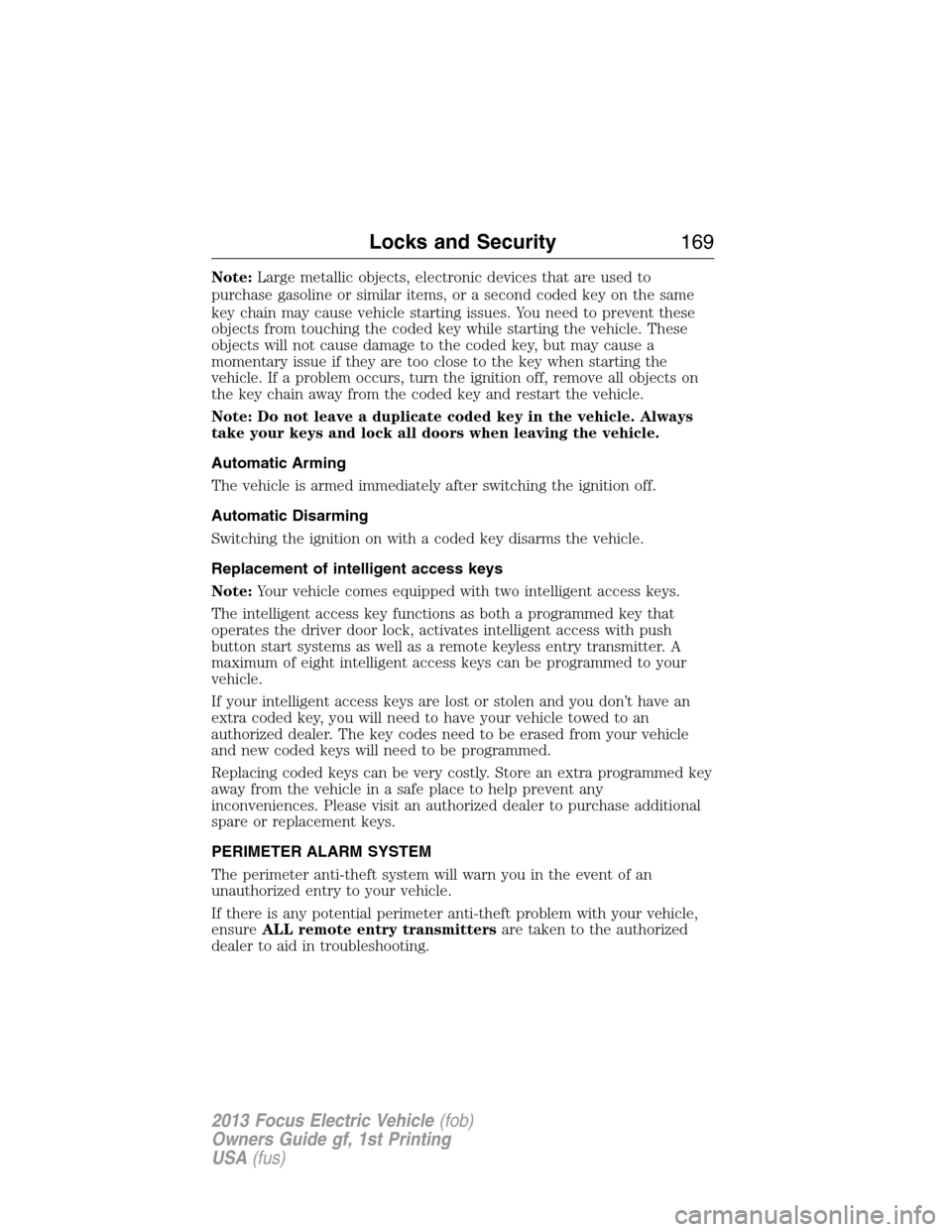

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the vehicle. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
vehicle. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the vehicle.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement of intelligent access keys
Note:Your vehicle comes equipped with two intelligent access keys.
The intelligent access key functions as both a programmed key that
operates the driver door lock, activates intelligent access with push
button start systems as well as a remote keyless entry transmitter. A
maximum of eight intelligent access keys can be programmed to your
vehicle.
If your intelligent access keys are lost or stolen and you don’t have an
extra coded key, you will need to have your vehicle towed to an
authorized dealer. The key codes need to be erased from your vehicle
and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Locks and Security169
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Fleet MyKey programming ......153
Floor mats .........................150–151
Fluid capacities .........................343
Fuses ..................................280, 282
G
Gauges .........................................20
Guidance for electric and
hybrid-electric vehicles ............307
H
Hazard flashers .........................279
HD Radio™ .................................62
Headlamps .................................129
aiming ......................................131
autolamp system .....................129
bulb specifications ..................135
daytime running lights ...........130
flash to pass ............................130
high beam ...............................130
replacing bulbs .......................136
turning on and off ..................129
Head restraints .........................171
Heated steering wheel ..............109
Heating ......................................123
Help ............................................108
High-voltage battery
charging ...................................331
service disconnect ..................336
High-voltage shut off ................280
Hill start assist ..........................268
Hood ..........................................325
How to use voice commands .....54
I
Ignition .......................................255Illuminated visor mirror ...........141
Infant seats
(see Safety seats) .....................214
Infotainment display ...................52
Instrument panel
cleaning ...................................321
cluster ........................................16
lighting up panel and
interior .....................................131
Intelligent Access Key ..............153
Intelligent Access with push
button start ...............................162
J
Jack ............................................291
positioning ...............................291
storage .....................................291
Jump-starting your vehicle ......303
K
Keyless entry system
autolock ...................................160
Keys ...........................................169
positions of the ignition .........255
L
Lamps ........................................129
autolamp system .....................129
bulb replacement
specifications chart ................135
daytime running light .............130
headlamps ...............................129
headlamps, flash to pass ........130
instrument panel, dimming ...131
interior lamps .................133–134
replacing bulbs .......................136
LATCH anchors .........................218
382Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
