2013 FIAT 500E Owners Manual

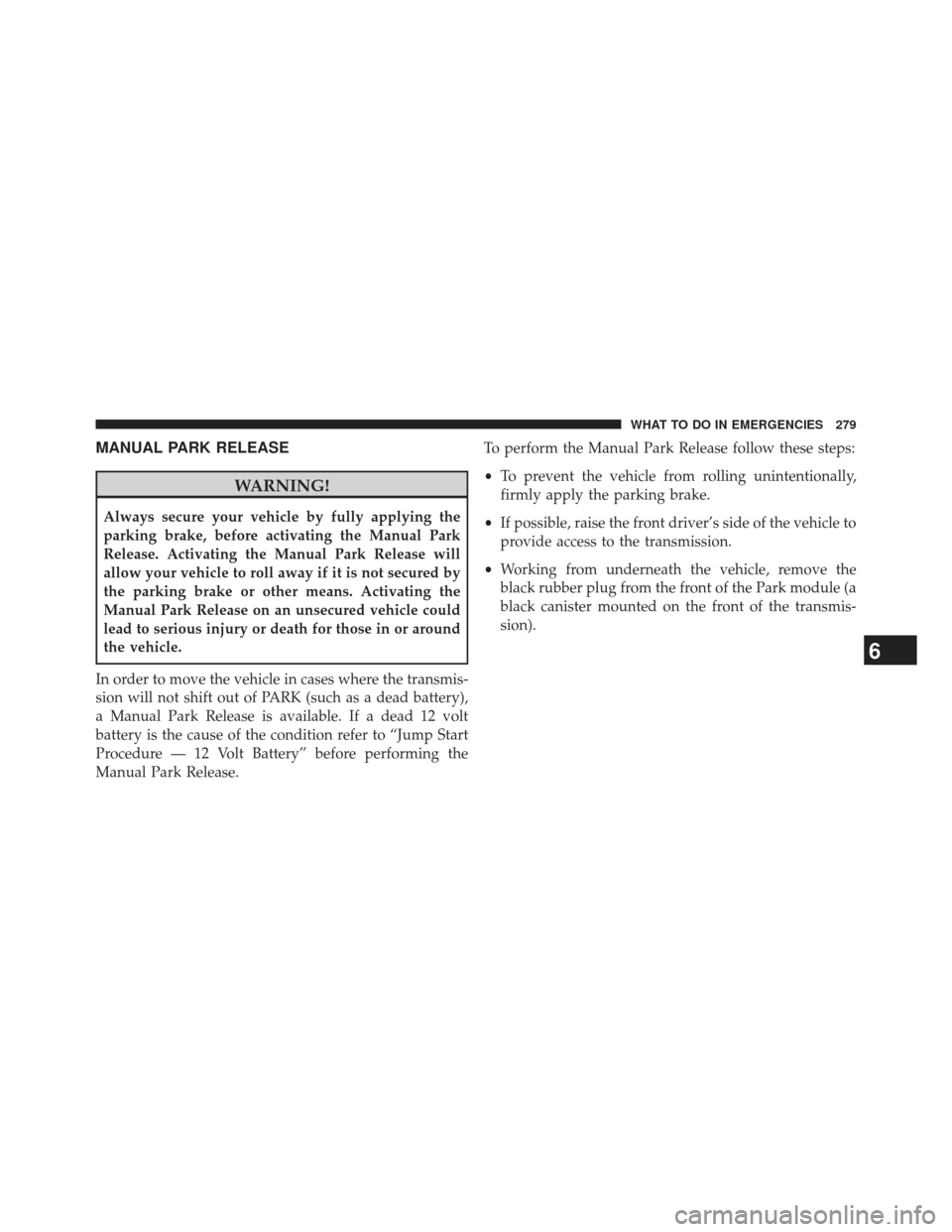

MANUAL PARK RELEASE
WARNING!
Always secure your vehicle by fully applying the
parking brake, before activating the Manual Park
Release. Activating the Manual Park Release will
allow your vehicle to roll away if it is not secured by
the parking brake or other means. Activating the
Manual Park Release on an unsecured vehicle could
lead to serious injury or death for those in or around
the vehicle.
In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery),
a Manual Park Release is available. If a dead 12 volt
battery is the cause of the condition refer to “Jump Start
Procedure — 12 Volt Battery” before performing the
Manual Park Release. To perform the Manual Park Release follow these steps:
•
To prevent the vehicle from rolling unintentionally,
firmly apply the parking brake.
• If possible, raise the front driver’s side of the vehicle to
provide access to the transmission.
• Working from underneath the vehicle, remove the
black rubber plug from the front of the Park module (a
black canister mounted on the front of the transmis-
sion).
6
WHAT TO DO IN EMERGENCIES 279

•Using a T25 driver bit, rotate the Manual Park Release
shaft (located just behind the rubber plug) clockwise,
at least 20 turns, to release the Park mechanism. The
vehicle is now out of PARK and can be moved. •
Reinstall the rubber plug.
• Release the parking brake only when a driver is in the
vehicle, or the vehicle is secured by other means. The
Manual Park Release will be reset automatically once
the vehicle is restarted.
TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial wrecker service.
Manual Park Release Location
280 WHAT TO DO IN EMERGENCIES

Towing ConditionWheels OFF The Ground SINGLE-SPEED TRANSMISSION
Flat Tow NONENOT ALLOWED
Wheel Lift RearNOT ALLOWED
Front OK
Flatbed ALLOK
This vehicle must be towed on a flatbed truck or vehicle
trailer, with the front wheels OFF the ground.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the ignition key is unavailable, or the battery is
discharged, see “Manual Park Release” in “What To Do
In Emergencies” for instructions on shifting the transmis-
sion out of PARK for towing.
CAUTION!
DO NOT use sling-type equipment when towing.
When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
6
WHAT TO DO IN EMERGENCIES 281

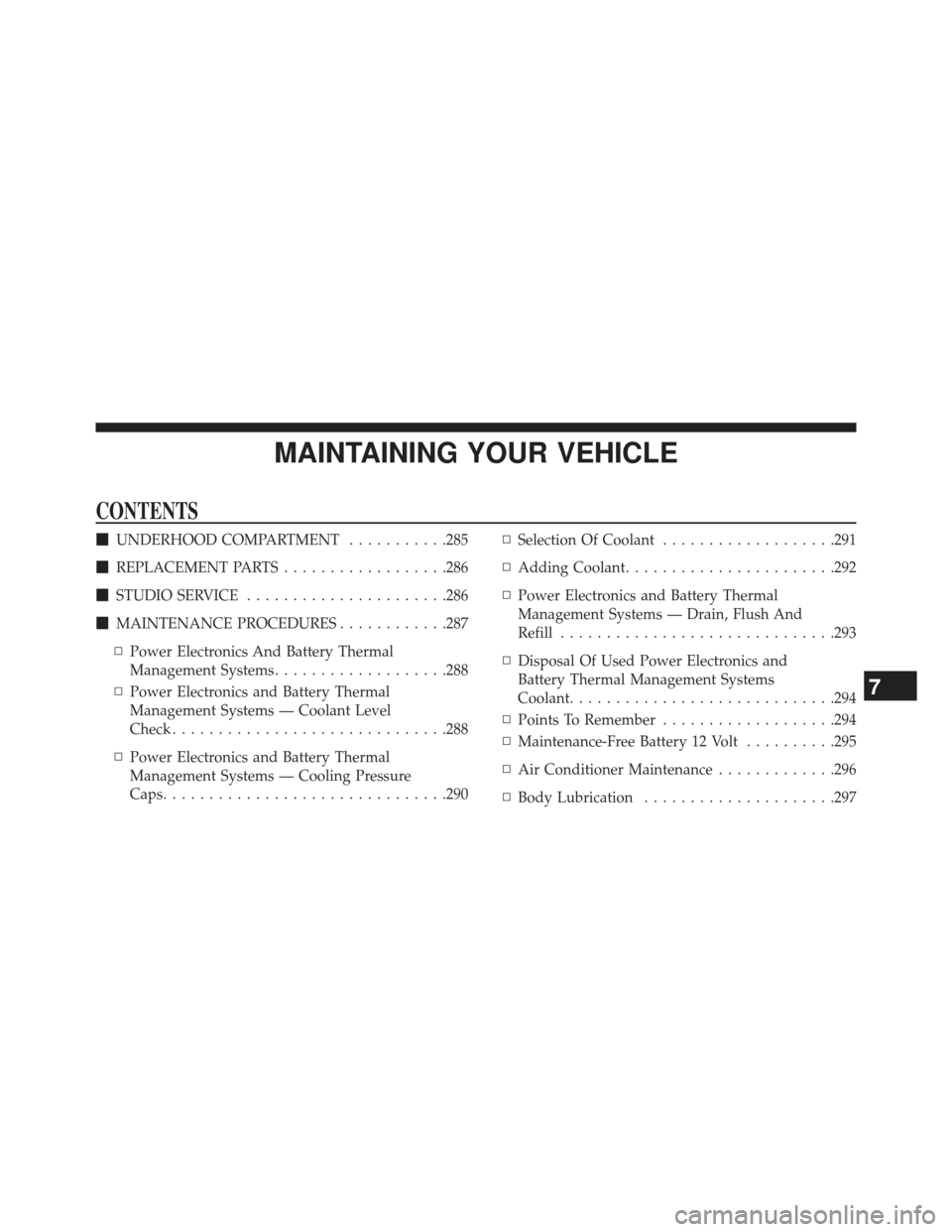

MAINTAINING YOUR VEHICLE
CONTENTS
UNDERHOOD COMPARTMENT ...........285
 REPLACEMENT PARTS ..................286
 STUDIO SERVICE ..................... .286
 MAINTENANCE PROCEDURES ............287
▫ Power Electronics And Battery Thermal
Management Systems ...................288
▫ Power Electronics and Battery Thermal
Management Systems — Coolant Level
Check ............................. .288
▫ Power Electronics and Battery Thermal
Management Systems — Cooling Pressure
Caps .............................. .290▫
Selection Of Coolant ...................291
▫ Adding Coolant ...................... .292
▫ Power Electronics and Battery Thermal
Management Systems — Drain, Flush And
Refill ............................. .293
▫ Disposal Of Used Power Electronics and
Battery Thermal Management Systems
Coolant ............................ .294
▫ Points To Remember ...................294
▫ Maintenance-Free Battery 12 Volt ..........295
▫ Air Conditioner Maintenance .............296
▫ Body Lubrication .....................297
7

▫Wiper Blades ....................... .298
▫ Adding Washer Fluid ..................298
▫ Brake System ....................... .299
▫ Appearance Care And Protection From
Corrosion .......................... .301
 FUSES ............................. .307
▫ Interior Fuses ....................... .308
▫ Power Distribution Center #1 .............310
▫ Power Distribution Center (PDC) #2 ........313
 VEHICLE STORAGE .....................314
 REPLACEMENT BULBS .................314
 BULB REPLACEMENT ..................315 ▫
Headlamps Low beam and High beam ......316
▫ Front Turn Signal, Parking And Daytime
Running Lamps ...................... .316
▫ Front Fog Lamps ..................... .317
▫ Front/Rear Side Marker Lamps ............317
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ .317
▫ Center High Mounted Stop Lamp (CHMSL) . . .318
 FLUID CAPACITIES .....................318
 FLUIDS, LUBES, AND GENUINE PARTS ......319
284 MAINTAINING YOUR VEHICLE

UNDERHOOD COMPARTMENT
1 — Battery Thermal Coolant Reservoir2 — Power Electronics Coolant Reservoir
4 — Fuses 3 — Brake Fluid Reservoir
5 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 285

REPLACEMENT PARTS
Use of genuine parts for normal/scheduled maintenance
and repairs is highly recommended to ensure the de-
signed performance. Damage or failures caused by the
use of parts which are not quality-equivalent to genuine
parts for maintenance and repairs will not be covered by
the manufacturer ’s warranty.
STUDIO SERVICE
Your authorized studio has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.NOTE:
Intentional tampering with emissions control
systems may void your warranty and could result in civil
penalties being assessed against you.
WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
286 MAINTAINING YOUR VEHICLE
