2013 FIAT 500E Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS .............................98
▫ Inside Day/Night Mirror .................98
▫ Automatic Dimming Mirror — If Equipped . . .99
▫ Power Mirrors ...................... .100
▫ Folding Mirrors ...................... .101
▫ Heated Mirrors — If Equipped ...........101
▫ Sun Visors ......................... .102
 BLUE&ME™ HANDS-FREE COMMUNICATION —
IF EQUIPPED ........................ .102
▫ Overview .......................... .102▫
The Hands-Free Kit ....................103
 SEATS ..............................110
▫ Front Seats Forward/Rearward Adjustment . . .110
▫ Recline Adjustment ....................111
▫ Seat Height Adjustment .................112
▫ EZ Entry Feature ......................112
▫ Memory Feature ......................113
▫ Heated Seats — If Equipped .............114
▫ Head Restraints .......................115
 TO OPEN AND CLOSE THE HOOD .........1173

LIGHTS .............................119
▫ Multifunction Lever ....................119
▫ Headlights ..........................119
▫ High Beams ........................ .120
▫ Flash-To-Pass ....................... .120
▫ Parking Lights ...................... .120
▫ Daytime Running Lights — If Equipped .....120
▫ Turn Signals ........................ .120
▫ Lane Change Assist ...................121
▫ Follow Me Home/Headlight Delay .........121
▫ Interior Lights ...................... .122
▫ Front Fog Lights — If Equipped ...........123
 WINDSHIELD WIPERS AND WASHERS ......124▫
Front Windshield Wiper Operation .........124
▫ Rear Windshield Wiper .................126
 TILT STEERING COLUMN — IF EQUIPPED . . .127
 ELECTRONIC SPEED CONTROL ...........128
▫ To Activate ......................... .129
▫ To Set A Desired Speed .................129
▫ To Deactivate ....................... .130
▫ To Resume Speed .....................130
▫ To Vary The Speed Setting ...............130
▫ To Accelerate For Passing ................130
 REAR PARK ASSIST — IF EQUIPPED ........131
▫ Rear Park Assist Sensors ................132
▫ Rear Park Assist Alerts ..................132
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

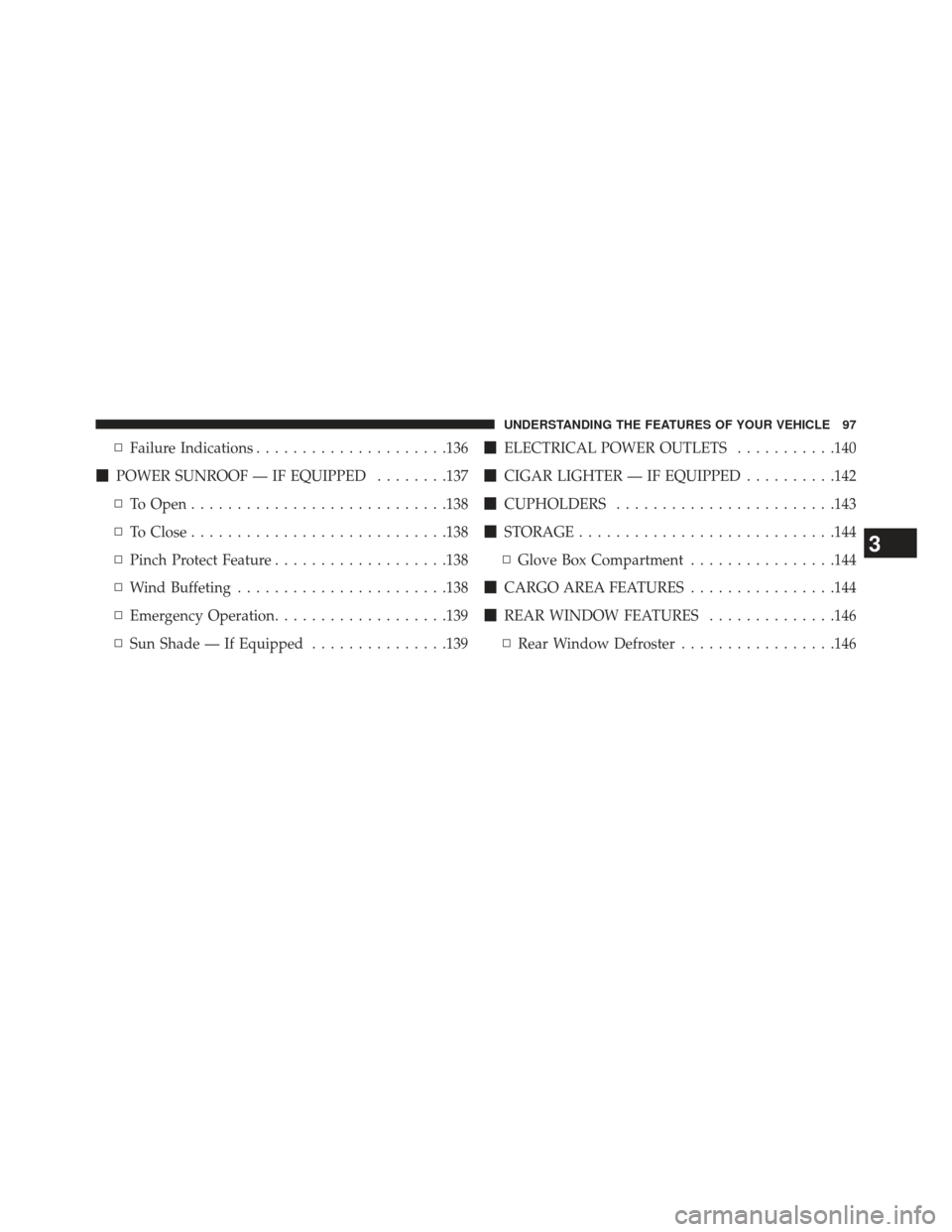

▫Failure Indications .....................136
 POWER SUNROOF — IF EQUIPPED ........137
▫ To Open ........................... .138
▫ To Close ........................... .138
▫ Pinch Protect Feature ...................138
▫ Wind Buffeting ...................... .138
▫ Emergency Operation ...................139
▫ Sun Shade — If Equipped ...............139
ELECTRICAL POWER OUTLETS ...........140
 CIGAR LIGHTER — IF EQUIPPED ..........142
 CUPHOLDERS ....................... .143
 STORAGE ........................... .144
▫ Glove Box Compartment ................144
 CARGO AREA FEATURES ................144
 REAR WINDOW FEATURES ..............146
▫ Rear Window Defroster .................146
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
Adjusting Rearview Mirror
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel.The power mirror controls consist of a mirror select
switch and a four-way mirror control switch. To adjust a
mirror, press the mirror select switch to either the L (left)
or R (right) to select the mirror you need to adjust.
Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side convex mirror.
Power Mirror Switches
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Spotter Mirror — If Equipped
Some models are equipped with a driver’s side spotter
mirror. The spotter mirror allows for a greater range of
visibility on the driver’s side of the vehicle.
Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster (if equipped). Some vehicles may
not be equipped with rear window defroster, in this case
the heated mirrors will still function as intended. Refer to
“Rear Window Features” in “Understanding The Fea-
tures Of Your Vehicle” for further information.
Spotter Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Sun Visors
The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass. Both sun
visors are equipped with courtesy mirrors.
BLUE&ME™ HANDS-FREE COMMUNICATION —
IF EQUIPPED
Overview
Windows Mobile™-based FIAT BLUE&ME™ is a per-
sonal telematic system enabling you to use communica-
tion and entertainment applications expressly designed
for use in the car.
The BLUE&ME™ system installed on your car is
equipped with a hands-free kit, message reader and
media player, and it is preset for future installation of
additional services.
The BLUE&ME™ system, fully integrated with voice
commands, buttons on the steering wheel and multifunc-
tion display messages, gives you the possibility of inter-
acting with your Bluetooth® wireless technology mobile
phone (even if you keep it in your pocket or bag) without
having to take your eyes off the road or remove your
hands from the steering wheel. To use voice commands
Sun Visor (Passenger Side Shown)
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
