2013 FIAT 500E Owners Manual

•MP3 Display function: display of folder name, ID3-
TAG information, time elapsed since the start of the
track, name of the file
• Playing audio or data CD, CD-R and CD-RW
Audio Section
•Mute/pause function
• Soft mute function
• Loudness function
• Graphic 7 band equalizer (if equipped)
• Separate bass/treble tone adjustment
• Right/left channel balancing
• Front/rear fader
Functions And Adjustments
Turning The Car Radio On
The car radio comes on when the(ON/OFF) button is
pressed briefly.
When the car radio is turned on and the on volume limit
is on, the volume is limited to a setting of five even if it
had been set higher when previously used.
Turning The Car Radio Off
Press the(ON/OFF) button to turn the radio off.
Selecting The Radio Functions
By pressing the TUNER button briefly and repeatedly,
the following audio sources can be selected cyclically:
• AM, FM and Satellite Bands (if equipped)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 175

Selecting The CD Function
By briefly pressing the MEDIA button, the CD audio
source can be selected (only if a CD is loaded).
Volume Adjustment
To adjust the volume, press the buttons +Vol or –Vol to
increase/decrease the volume.
Mute/Pause Function
Press thebutton briefly to activate the MUTE func-
tion. The volume will gradually decrease and the word-
ing “TUNER Mute” will be shown on the display (in
radio mode) or “CD Pause” (in CD mode).
Press the
button again to deactivate the MUTE func-
tion. The volume will gradually increase until it reaches
the previously set level. When the volume level is changed using the dedicated
controls, the Mute function is deactivated and the vol-
ume is adjusted to the new level selected.
Audio Adjustment
The functions that can be selected from the audio menu
change depending on the context: AM/FM/MEDIA/
SATELLITE.
Press the AUDIO button briefly to change the Audio
functions. After the AUDIO button is first pressed, the
display will show the Bass level value for the source
activated at that time (e.g. in FM mode the display will
show the wording “FM Bass +2”).
Use the buttons
orto scroll through the Menu
functions. To change the setting of the selected function,
use the
orbuttons.
The current status of the selected function appears on the
display.
176 UNDERSTANDING YOUR INSTRUMENT PANEL

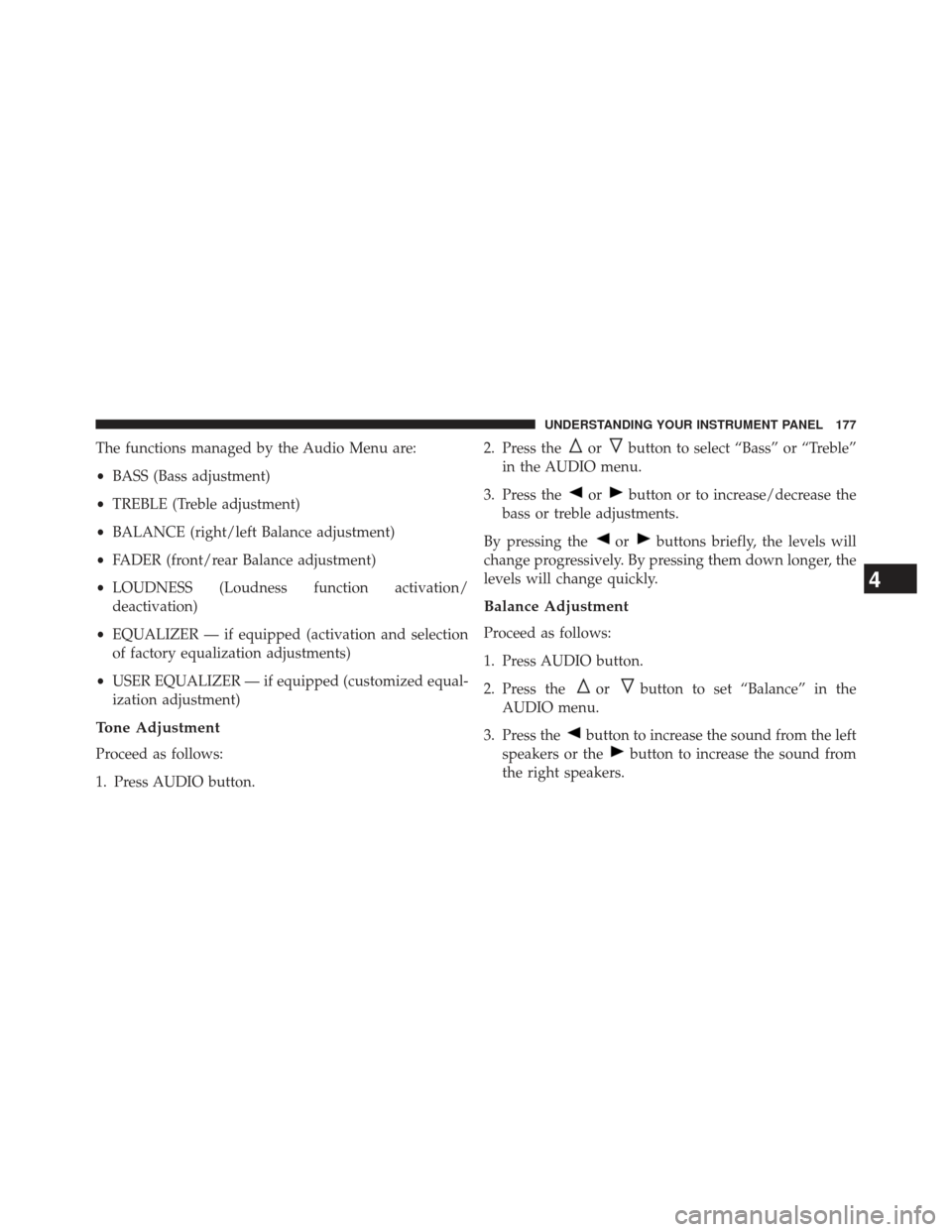

The functions managed by the Audio Menu are:
•BASS (Bass adjustment)
• TREBLE (Treble adjustment)
• BALANCE (right/left Balance adjustment)
• FADER (front/rear Balance adjustment)
• LOUDNESS (Loudness function activation/
deactivation)
• EQUALIZER — if equipped (activation and selection
of factory equalization adjustments)
• USER EQUALIZER — if equipped (customized equal-
ization adjustment)
Tone Adjustment
Proceed as follows:
1. Press AUDIO button. 2. Press the
orbutton to select “Bass” or “Treble”
in the AUDIO menu.
3. Press the
orbutton or to increase/decrease the
bass or treble adjustments.
By pressing the
orbuttons briefly, the levels will
change progressively. By pressing them down longer, the
levels will change quickly.
Balance Adjustment
Proceed as follows:
1. Press AUDIO button.
2. Press the
orbutton to set “Balance” in the
AUDIO menu.
3. Press the
button to increase the sound from the left
speakers or the
button to increase the sound from
the right speakers.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177

By pressing theorbuttons briefly, the levels will
change progressively. By pressing them down longer, the
levels will change quickly.
Select the value “0” to set the right and left audio outputs
at the same level.
Fader Adjustment
Proceed as follows:
1. Press AUDIO button.
2. Press the
orbutton to set “Fader” in the AUDIO
menu.
3. Press the
button to increase the sound coming from
the rear speakers or the
button to increase the
sound coming from the front speakers.
By pressing the
orbuttons briefly, the levels will
change progressively. By pressing them down longer, the
levels will change quickly. Select the value “0” to set the right and left audio outputs
at the same level.
Loudness Function — If Equipped
The Loudness function improves the volume of the
sound while listening at low volumes, increasing the bass
and treble.
To activate/deactivate this function, select the “Loud-
ness” setting in the AUDIO menu. The condition of the
function (on or off) is shown on the display for a few
seconds by the wording “Loudness On” or “Loudness
Off”.
Preset/User/Classic/Rock/Jazz Functions — If
Equipped
The built-in equalizer can be activated/deactivated.
When the equalizer function is off, the audio settings can
only be changed by adjusting the “Bass” and “Treble”
settings, whereas when the function is on, the acoustic
178 UNDERSTANDING YOUR INSTRUMENT PANEL

curves can be adjusted. To deactivate the equalizer, select
the “EQ Preset” function in the audio menu.
To activate the equalizer, use the AUDIO button or to
select one of the adjustments:
•“EQ User” (adjustment of 7 equalizer bands that can
be changed by the user)
• “Classic” (equalizer preset for optimal classic music
sound)
• “Rock” (equalizer preset for optimal rock and pop
music sound)
• “Jazz” (equalizer preset for optimal jazz music sound)
When one of the equalizer adjustments is activated the
wording “EQ” lights up.User EQ Settings Function — If Equipped
To set a personalized equalizer adjustment:
1. Press AUDIO button.
2. Use the
orbuttons to set EQ function.
3. Use
orbuttons to select EQ User.
4. Press MENU button to start adjusting equalizer.
5. On the display a seven bar graph will appear, in which each bar represents a frequency. Select the bar to be
adjusted by using the
orbuttons. The selected
bar will start to flash and it can be adjusted using
orbuttons.
6. To store the setting, press the MENU or AUDIO buttons.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

Menu
MENU Button Functions
Press the MENU button briefly to activate the Menu
function.
Use the
orbuttons to scroll through the menu
functions. To change the setting of the selected function,
use the
orbuttons.
The current status of the selected function appears on the
display.
The functions managed by the Menu are:
• Speech Volume
• Aux Audio Offset
• Radio Off
• Sat ID •
SiriusXM Telephone Number
• System Reset
• Speed Volume
• On Volume Limit
Press the MENU button again to exit the Menu function.Speed Volume Function — If Equipped
This function automatically adapts the volume level to
the speed of the car, turning up the volume when the
speed increases to maintain the ratio with the noise level
inside the passenger compartment. To activate/
deactivate the function, use the buttons. The wording
“Speed volume” appears on the display, followed by the
current status of the function:
• Off: function deactivated
• Low: function activated (low sensitivity)
180 UNDERSTANDING YOUR INSTRUMENT PANEL

•High: function activated (high sensitivity)
On Volume Limit
This function makes it possible to activate/deactivate the
maximum volume limit when turning the radio on.
The display shows the function status:
•“On volume limit: on” – when the radio is turned on
the volume level will be:
– If the volume level is equal to or higher than the maximum value, the radio will come on at the
maximum volume.
– If the volume level is between the minimum and maximum values, the radio will come on at the
same volume as before it was switched off.
– If the volume level is equal to or lower than the minimum value, the radio will come on at the
minimum volume. •
“On volume limit: off” – The radio will come on at the
same volume as before it was switched off. The
volume level can be between 0 and 40.
Use the buttonsorto change the setting.
NOTE:
• Using the Menu it is only possible to adjust the
activation/deactivation of the function and not the
minimum or maximum volume value.
• If the battery charge is too low, the volume cannot be
adjusted between the minimum and the maximum
level.
Radio Off Function
This function makes it possible to set the radio switching
off mode by choosing between two methods.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

The chosen mode appears on the display:
•“Radio off: 00 min” — The radio turns off in connec-
tion with the ignition key; the radio is turned auto-
matically off as soon as the key is turned to the STOP
position.
• “Radio off: 20 min” — The radio turns off indepen-
dently from the ignition key; the radio remains on for
a maximum period of 20 minutes after the key has
been turned to the STOP position.
System Reset Function
This function is used to restore all settings to the factory
values. The options are:
• NO — No restore intervention. •
YES — The default parameters will be restored. Dur-
ing such operation, the wording “Resetting” appears
on the display. At the end of the operation, the source
does not change and the previous situation will be
displayed.
Radio
(Tuner) Introduction
When the car radio is turned on, the last function that
was selected before turning it off (Radio, CD, CD MP3,
AUX) is activated.
To select the Radio function when another audio source is
being listened to, briefly press the TUNER button.
Once the Radio mode has been activated, the display will
show the name (RBDS stations only) or the frequency of
the selected radio station, the frequency band selected
(e.g. FMA) and the preset button number (e.g. P1).
182 UNDERSTANDING YOUR INSTRUMENT PANEL
