2013 DODGE JOURNEY Owners Manual

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it ¼ turn clockwise to
lock it in place.
Front Fog Lamp
NOTE:Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel.2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
7
MAINTAINING YOUR VEHICLE 575

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
4. Install the replacement bulb and connector assembly
straight into the fog lamp until it locks into place.
5. Reinstall the front lower wheel well access panel and
fasteners.
Rear Turn Signal And Backup Lamp
The taillamps are a two-piece design. The tail/stop/rear
turn signal lamps are located in the rear corner body
panels. The tail and backup lamps are located in the
liftgate.
Changing The Rear Turn Signal Lamp
1. Open the liftgate.
2. Remove the two fasteners from the inboard side of the
taillamp housing.
576 MAINTAINING YOUR VEHICLE

3. Carefully insert a trim stick (plastic flat-blade tool)
between the body panel and the outboard side of the
taillamp housing with one hand and grasp the flange
on the inboard side of the taillamp housing with the
other hand. Use the trim stick and hand pressure
together to disengage the taillamp housing from the
vehicle.
4. Rotate the applicable bulb’s electrical connector ¼ turn
counterclockwise and remove it from the taillamp
housing.
5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
taillamp housing and rotate the connector ¼ turn
clockwise to lock it in place.
7. Reinstall the taillamp housing and fasteners.Changing The Backup Lamp
1. Open the liftgate.
2.
Remove the two fasteners retaining the taillamp hous-
ing to the liftgate from the inboard face of the liftgate.
7
MAINTAINING YOUR VEHICLE 577

3. Carefully insert a trim stick (plastic flat-blade tool)
between the taillamp housing and the liftgate. Use the
trim stick and hand pressure together to disengage the
taillamp housing from the liftgate.4. Rotate the applicable bulb’s electrical connector ¼ turn
counterclockwise and remove it from the housing.
5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
housing and rotate the connector ¼ turn clockwise to
lock it in place.
7. Reinstall the taillamp housing and fasteners.
578 MAINTAINING YOUR VEHICLE

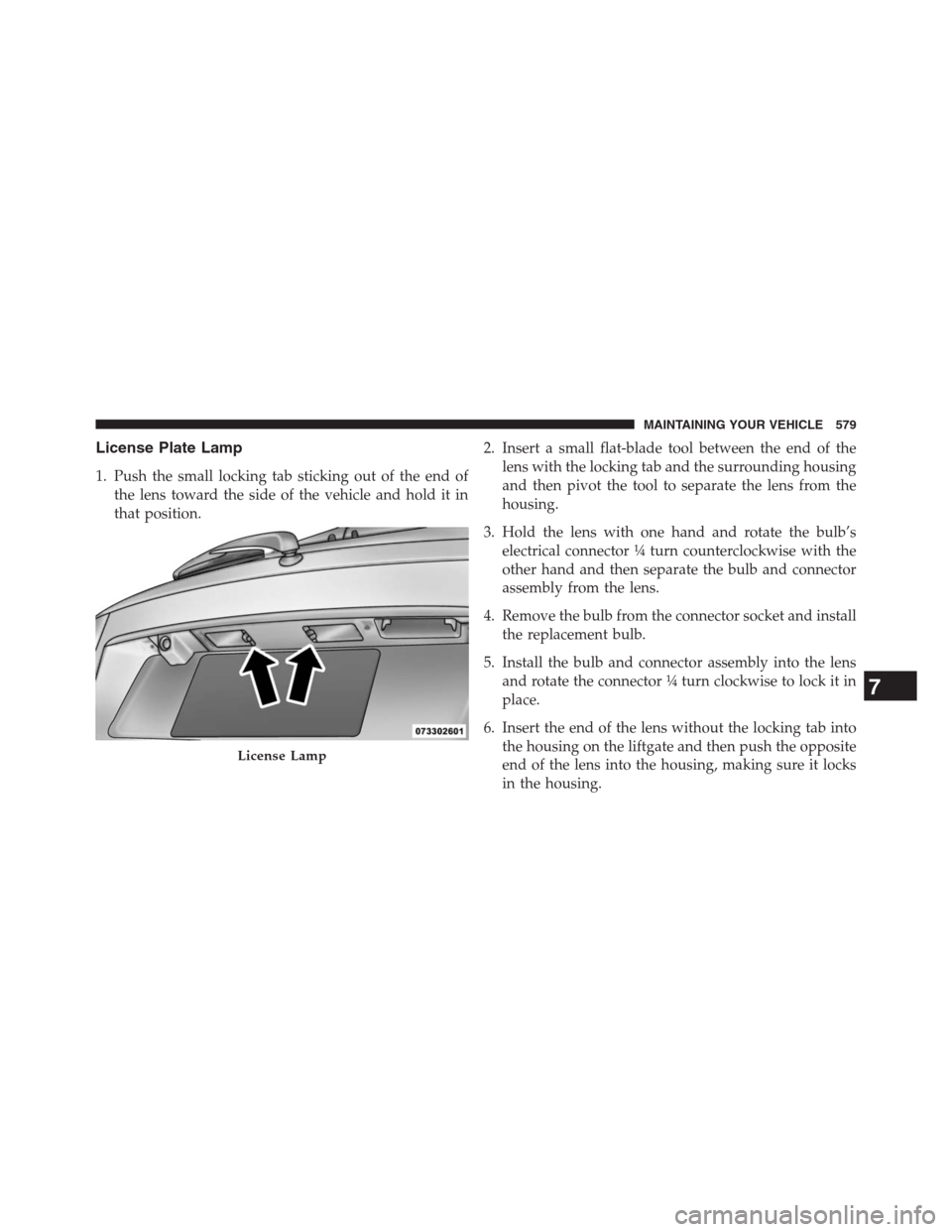

License Plate Lamp
1. Push the small locking tab sticking out of the end of
the lens toward the side of the vehicle and hold it in
that position.2. Insert a small flat-blade tool between the end of the
lens with the locking tab and the surrounding housing
and then pivot the tool to separate the lens from the
housing.
3. Hold the lens with one hand and rotate the bulb’s
electrical connector ¼ turn counterclockwise with the
other hand and then separate the bulb and connector
assembly from the lens.
4. Remove the bulb from the connector socket and install
the replacement bulb.
5. Install the bulb and connector assembly into the lens
and rotate the connector ¼ turn clockwise to lock it in
place.
6. Insert the end of the lens without the locking tab into
the housing on the liftgate and then push the opposite
end of the lens into the housing, making sure it locks
in the housing.
License Lamp
7
MAINTAINING YOUR VEHICLE 579

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
Front Wheel Drive (FWD) Models 20.5 Gallons 77.6 Liters
All-Wheel Drive Models 21 Gallons 79.8 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts 5.6 Liters
580 MAINTAINING YOUR VEHICLE

U.S. Metric
Cooling System*
2.4L Engine and Single or Dual-Zone Climate Control System
(MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula)10.7 Quarts 10.1 Liters
2.4L Engine and Three-Zone Climate Control System (MOPAR®
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula)11.6 Quarts 11.0 Liters
3.6L Engine and Single or Dual-Zone Climate Control System
(MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula)13.1 Quarts 12.4 Liters
3.6L Engine and Three-Zone Climate Control System (MOPAR®
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula)14.5 Quarts 13.7 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 581

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil – 2.4L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting
the requirements of Chrysler Material Standard MS-6395. Refer to your
engine oil filler cap for correct SAE grade.
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting
the requirements of Chrysler Material Standard MS-6395. Refer to your
engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filter.
Spark Plugs – 2.4L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
582 MAINTAINING YOUR VEHICLE
