2013 Citroen C3 PICASSO fuse box

Practical information
176
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery (left-hand side).

Access to fuses
)
Unclip the cover.)
Change the fuse (see correspondingparagraph).)
When you have finished, close the cover carefully to ensure the correct sealing of
the fusebox.


All work on these fuses, located on
the battery, must be carried out bya CITROËN dealer or a qualified workshop.

11
Practical information
179

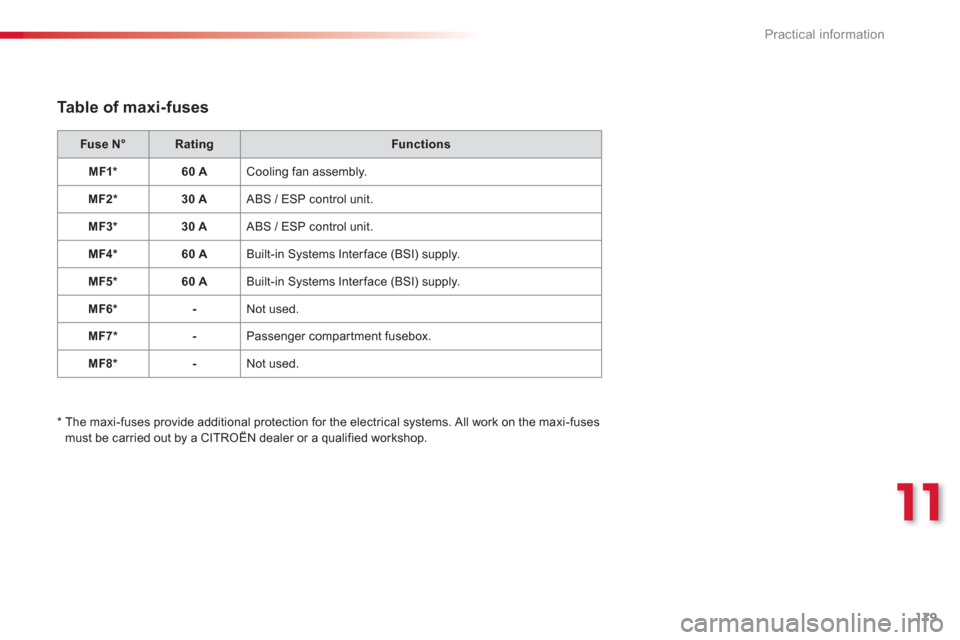

Table of maxi-fuses
Fuse N°RatingFunctions
MF1*60 ACooling fan assembly.
MF2*30 A ABS / ESP control unit.
MF3 * 30 A ABS / ESP control unit.
MF4 * 60 ABuilt-in Systems Interface (BSI) supply.
MF5 * 60 ABuilt-in Systems Interface (BSI) supply.
MF6 *-Not used.
MF7 *-Passenger compartment fusebox.
MF8 *
-Not used.

*

The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fusesmust be carried out by a CITROËN dealer or a qualified workshop.

11
Practical information
189

"Multimedia":

semi-integral navigation systems, Bluetooth®
hands free kit, audio systems interfaced to steering mounted controls, speakers, DVD player, USB box, por table navigation systems,mapping update CD, Hi-Fi module, drivingaid assistant, Wi-Fi on board, rear multimediasupport, telephone and smartphone carriers, iPhone ®
charger, head-up display...®
or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and
accessories.


Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can
contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).


By visiting a CITROËN dealer, you canalso obtain cleaning and maintenance products (interior and exterior), including the ecological products inthe "TECHNATURE" range, productsfor topping up (screenwash fluid...), touch-up pens and paint aerosols theexact colour of your vehicle, recharges (cartridge for the temporary puncturerepair kit...), ....
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. The fitting of electrical equipment

276Alphabetical index
Fuel tank..................................................77,79Fusebox, dashboard ...................................173Fuses...........................................................173
G.P.S...........................................................210Gearbox, electronic.....................128, 133,151Gearbox, manual.........................126,127,151Gear efficiency indicator.............................r127Gear lever......................................................20Gear lever, electronic gearbox system.....128,151Gear lever, manual gearbox.......................126Glove box......................................................94Guidance .............................................208,215Guide-me-home ............................................83
Identification plates.....................................198Indicators, direction....................................114Inflating accessories (using the kit)............152Inflating tyres ................................................20Inputs for audio system ............... 241, 262,264Instrument panel ........................................... 22Instrument panel lighting..............................34Instrument panel screen.......................22, 127Interior fittings...............................................93ISOFIX.........................................................111ISOFIX child seats...............................110-112ISOFIX mountings.......................................110
Jack .............................................................157JACK socket ................................241, 262,264
Hands-free kit......................................224, 265Hazard warning lamps................................114Headlamp adjustment...................................86Head restraints, front....................................60Heated seats.................................................61Heating....................................................20, 53Height and reach adjustment,steering wheel............................................65Hill start assist.............................................132Hooks..................................................100, 102Horn.............................................................114
G
H
I
J
Filling with fuel.........................................77-79Fitting a wheel .............................................160Fitting roof bars ...........................................187Fittings, boot ...............................................100Fittings, front .................................................93Flashing indicators......................................114Foglamps, rear..............................................r81Fragrance car tridge......................................58Front foglamps................................81,85,167Front seats ....................................................59Fuel..........................................................20, 78Fuel consumption..........................................20Fuel filler flap...........................................77, 79Fuel gauge ....................................................77
F
Economy mode...........................................182Electric window controls ...............................70Electronic brake force distribution (EBFD)...... 115Electronic engine immobiliser.................r67, 69Emergency boot release...............................75Emergency braking system........................116Emergency call...................................115, 200Emergency warning lamps .........................114eMyWay ......................................................201Energy economy mode ...............................182Engine, Diesel ...............................78, 147,195Engine, petrol ................................78, 146,191Engine compartment...........................146,147Engine compar tment fusebox.....................173Engine oil level indicator.......................r33,148Engines.......................................191,193,195Environment............................................20, 69ESP/ASR.....................................................117
K
Keeping children safe ..........104,111, 112,122Key in ignition warning..................................67Key with remote control ....................66, 67, 69
L
Labels, identification...................................198Lamps, front................................................164Lamps, warning and indicator...........r23, 26, 27

278Alphabetical index
Unlocking......................................................66Unlocking from the inside .............................73Update risk areas ........................................ 212USB Reader................................................r262
U
Vehicle identification...................................198Ventilation .........................................50, 51,53
V
Synchronising the remote control.................68Synthesiser, voice.......................................218System, navigation......................................208Systems, ASR and ESP ..............................117
Table of weights..........................191, 193, 195Table position ................................................61Tables, aircraft ..............................................97Tables of engines ........................ 191, 193, 195Ta bles of fuses............................................173Tank, fuel.................................................77,79Te c hnical data.............................191, 193, 195Telephone...........................................224,228Temperature control for heated seats ..........61Temporary tyre repair kit.............................152Ticket holder..................................................r96TMC (Tr affic info) ........................................221To ols............................................................157Torch.............................................92,100, 171Total distance recorder.................................r34To w b a r.........................................................r186Towed loads................................191, 193, 195Towing another vehicle...............................184Traction control (ASR)................................117Traffic information (TA) ..............222,235, 260Traffic information (TMC) ....................221, 222Tr a i l e r..........................................................r186Tr i p c o m p u t e r.....................................r43, 47-49Tr i p d i s t a n c e r e c o r d e r...................................r34Tyre pressures............................................198Tyres..............................................................20
T
Safety for children...............................108,113Scented air freshener...................................r58Screen, colour and mapping...............205, 244Screen, monochrome................258, 268, 270Screen, multifunction (with audio equipment)......................................37,40, 43Screen, multifunction (without audioequipment)..................................................35Screen-wash reservoir................................149Screen menu map .......................244, 268, 270Screenwash..................................................88Screenwash fluid level ................................149Seat, rear bench ...........................................62Seat adjustment......................................59,62Seat back storage pockets...........................97Seat belts.....................................107, 118,121Serial number, vehicle................................198Ser vice indicator...........................................r31Servicing .......................................................20Shor t-cut menus .........................................206Sidelamps .....................................80, 166,169Side repeater...............................................168Ski flap..........................................................99Snow chains................................................190Spare wheel................................................157Speed limiter...............................................r136Speedometer................................................r22Stability control (ESP).................................117Starting the vehicle ...............................67, 128Steering mounted controls, audio ...............257Stopping the vehicle.............................67, 128Stop Start ..........49,56, 77, 133, 144, 150, 180Storage..................................................93, 100Storage box...................................................93Storage boxes...............................................97Storage drawer..............................................95Storage wells...............................................100Stowing rings..............................................100Sun visor.......................................................r94
S
W
Warning lamps..............................................27Wash-wipe, rear............................................r88Washing (advice) ......................................... 146Weights ....................................... 191, 193,195Window controls............................................70Wiper, rear.....................................................r88Wiper control stalk...................................87-89Wipers.....................................................87,89
