2013 Citroen C3 PICASSO height adjustment

Familiarisation
8
1. Cruise control / speed limiter switches. 2.
Steering wheel adjustment control.3.Lighting and direction indicator control stalk. 4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear lever.
7. Bonnet release.
8.Door mirror controls.
Electric window controls.
Rear electric windows and doors deactivation control.9. Fusebox.10.Manual headlamp height adjustment. 11.
Front side window demisting vent.12 .Windscreen demisting vent.


Instruments and controls

Familiarisation
10
Driver's seat adjustment
Forwards - backwards
59


Backrest angle

Height

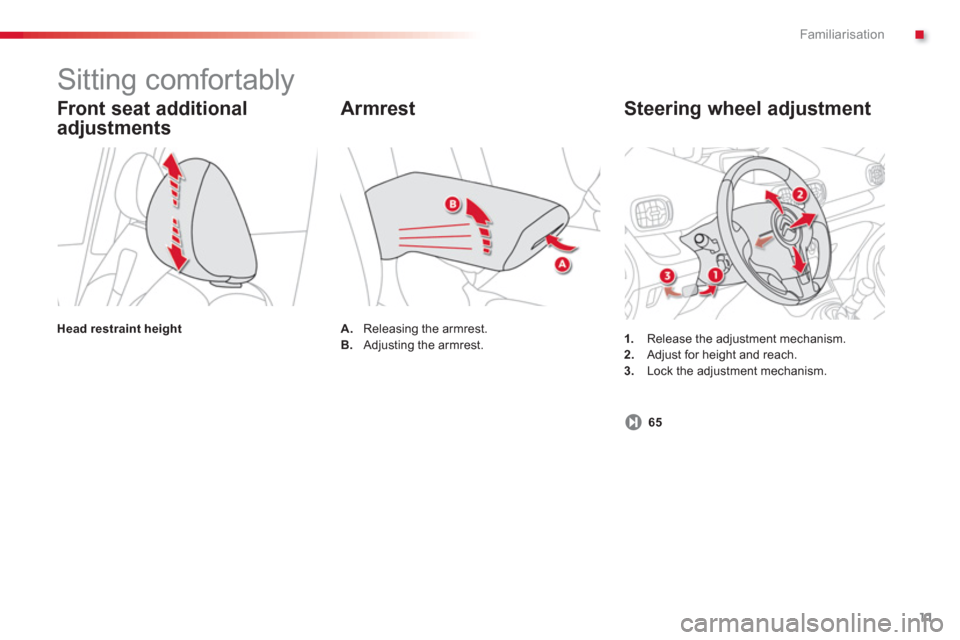

Sitting comfortably

.Familiarisation
11

Steering wheel adjustment
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Front seat additional
adjustments
Head restraint height
Armrest
A.
Releasing the armrest.
B. Adjusting the armrest.


Sitting comfortably
65

Familiarisation
12
Adjustment
This operates when the ignition is on.
From the driver's seat, select the mirror bymoving the control 1, to the left or to the right,
then adjust the mirror in the four directions
using the control 2.The demisting/defrosting of the mirrors is linked
with that of the rear screen.


Rear view mirror


Manual day/night model
1.Selection of the "day" position of the mirror.
2. Mirror adjustment.



Front seat belt
1.
Fastening.2.Height adjustment. 65
118
Folding the mirrors
When parked, the mirrors can be folded manually or electrically.
6
4
Sitting comfortably


Automatic day/night model
1.Automatic detection of day/night mode. 2.Mirror adjustment.

3
Comfort
59








Front seats Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to
adapt your position for ease of driving and comfor t.
Driver's seat height adjustment
Seat back angle adjustment

Forwards-backwards adjustment
)Raise the control bar and slide the seat
forwards or backwards.

)
Pull the control lever upwards to raise
or push it downwards to lower, as many
times as necessar
y, to obtain the positionrequired.

)
Push the control rearwards.

Comfort
60

Adjusting the armrest
)Press the control located under the frontend of the armrest to release it.)Move it to the low position. )Raise it notch by notch to reach the desired position.
To place the armrest in the ver tical position,
raise it and push it backwards beyond the pointof resistance.

Head restraint height adjustment
)To raise the head restraint, pull it upwards. )To remove the head restraint, press thelug A
and pull the head restraint upwards.)To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat back. )To lower the head restraint, press the lug Aand the head restraint at the same time.
Additional adjustments
The head restraint is fitted with a framewith notches which prevents it fromlowering; this is a safety device in caseof impact. The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

3
Comfort
65

Adjustment
)Adjust the mirror so that the glass is
directed correctly in the "day" position.




Manual day/night model

Da
y / night position
)Pull the lever to change to the "night" anti-dazzle position. )Push the lever to change to the normal"day" position.






Rear view mirror
Adjustable mirror providing a central rearward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...








Steering wheel adjustment
)When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your
driving position.) Push the control lever to lock theadjustment mechanism.


As a safety measure, the mirrors should be adjusted to reduce the "blind spot".


As a safety precaution, these operations should only be carried out while the vehicle is stationary.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes
between the day and night uses.
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.

Visibility
86








Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the halogen headlampsshould be adjusted according the load in the
vehicle.0.1 or 2 people in the front seats. -.Less than 5 people. 1. 5 people.
-.5 people + maximum authorised load. 2 - 3. Driver + maximum authorised load.
The initial setting is position "0".
Tr a v e l l i ng abroad
If using your vehicle in a country thatdrives on the other side of the road, the headlamps must be adjusted to avoiddazzling on-coming drivers. Contact a CITROËN dealer or aqualified workshop.
