2013 CHEVROLET CAPTIVA SPORT Owners Manual

Black plate (7,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

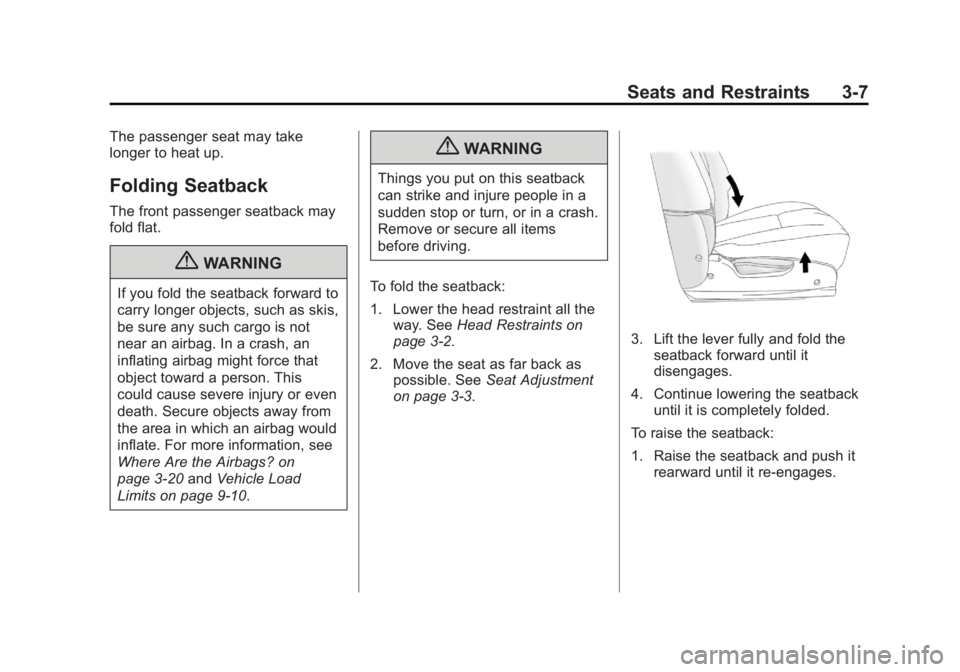

Seats and Restraints 3-7The passenger seat may take
longer to heat up.
Folding Seatback The front passenger seatback may
fold flat.
{ WARNINGIf you fold the seatback forward to
carry longer objects, such as skis,
be sure any such cargo is not
near an airbag. In a crash, an
inflating airbag might force that
object toward a person. This
could cause severe injury or even
death. Secure objects away from
the area in which an airbag would
inflate. For more information, see
Where Are the Airbags? on
page 3 ‑ 20 and Vehicle Load
Limits on page 9 ‑ 10 .{ WARNINGThings you put on this seatback
can strike and injure people in a
sudden stop or turn, or in a crash.
Remove or secure all items
before driving.
To fold the seatback:
1. Lower the head restraint all the
way. See Head Restraints on
page 3 ‑ 2 .
2. Move the seat as far back as
possible. See Seat Adjustment
on page 3 ‑ 3 . 3. Lift the lever fully and fold the
seatback forward until it
disengages.
4. Continue lowering the seatback
until it is completely folded.
To raise the seatback:
1. Raise the seatback and push it
rearward until it re-engages.

Black plate (8,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

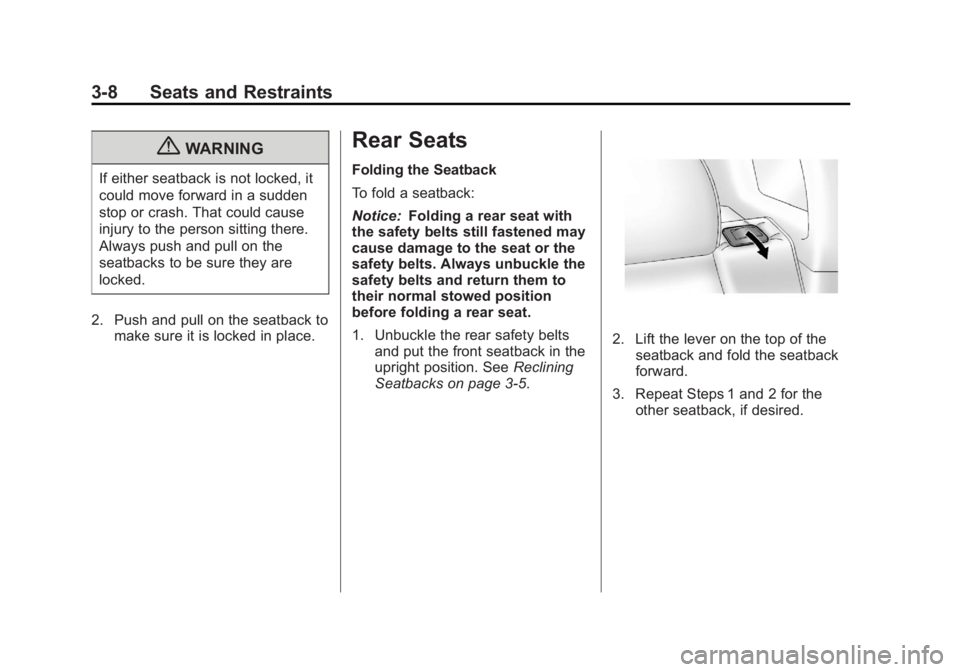

3-8 Seats and Restraints
{ WARNINGIf either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
2. Push and pull on the seatback to
make sure it is locked in place. Rear Seats Folding the Seatback
To fold a seatback:
Notice: Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
1. Unbuckle the rear safety belts
and put the front seatback in the
upright position. See Reclining
Seatbacks on page 3 ‑ 5 . 2. Lift the lever on the top of the
seatback and fold the seatback
forward.
3. Repeat Steps 1 and 2 for the
other seatback, if desired.

Black plate (9,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

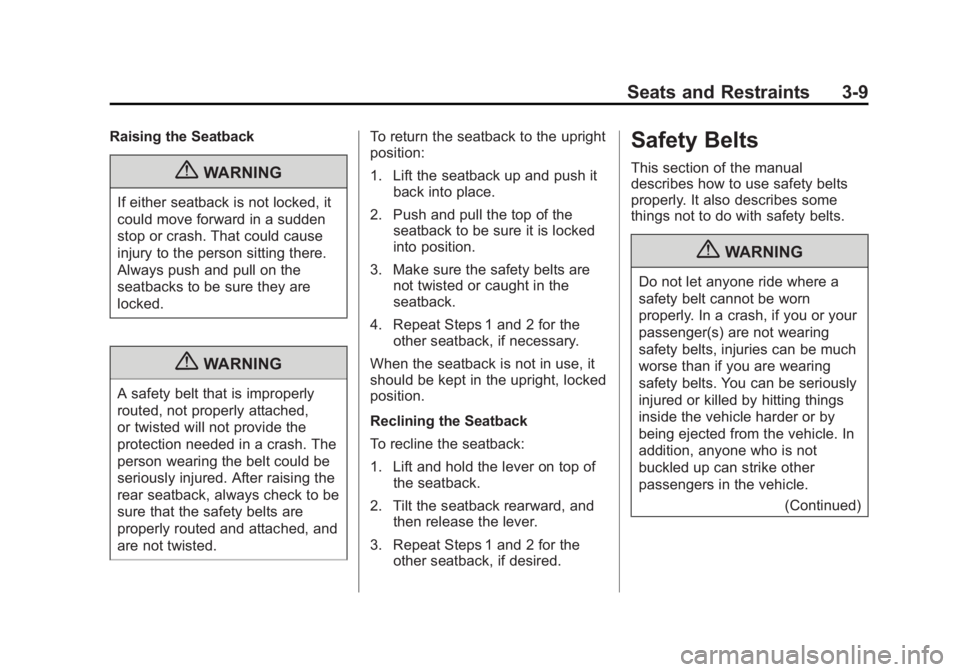

Seats and Restraints 3-9Raising the Seatback
{ WARNINGIf either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
{ WARNINGA safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted. To return the seatback to the upright
position:
1. Lift the seatback up and push it
back into place.
2. Push and pull the top of the
seatback to be sure it is locked
into position.
3. Make sure the safety belts are
not twisted or caught in the
seatback.
4. Repeat Steps 1 and 2 for the
other seatback, if necessary.
When the seatback is not in use, it
should be kept in the upright, locked
position.
Reclining the Seatback
To recline the seatback:
1. Lift and hold the lever on top of
the seatback.
2. Tilt the seatback rearward, and
then release the lever.
3. Repeat Steps 1 and 2 for the
other seatback, if desired. Safety Belts This section of the manual
describes how to use safety belts
properly. It also describes some
things not to do with safety belts.
{ WARNINGDo not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, injuries can be much
worse than if you are wearing
safety belts. You can be seriously
injured or killed by hitting things
inside the vehicle harder or by
being ejected from the vehicle. In
addition, anyone who is not
buckled up can strike other
passengers in the vehicle.
(Continued)

Black plate (10,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

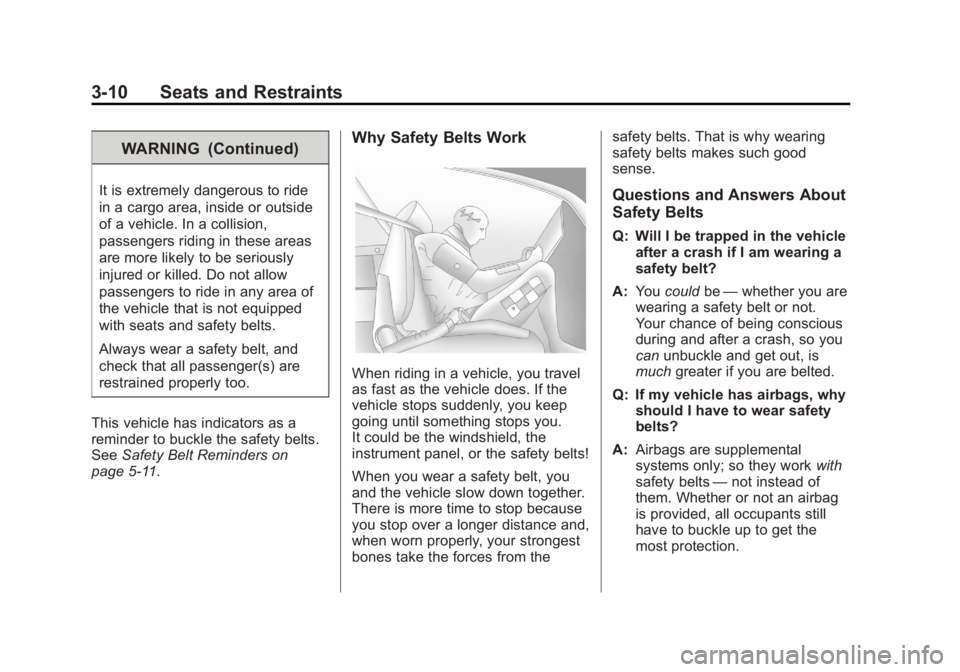

3-10 Seats and Restraints WARNING (Continued)It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision,
passengers riding in these areas
are more likely to be seriously
injured or killed. Do not allow
passengers to ride in any area of
the vehicle that is not equipped
with seats and safety belts.
Always wear a safety belt, and
check that all passenger(s) are
restrained properly too.
This vehicle has indicators as a
reminder to buckle the safety belts.
See Safety Belt Reminders on
page 5 ‑ 11 . Why Safety Belts Work
When riding in a vehicle, you travel
as fast as the vehicle does. If the
vehicle stops suddenly, you keep
going until something stops you.
It could be the windshield, the
instrument panel, or the safety belts!
When you wear a safety belt, you
and the vehicle slow down together.
There is more time to stop because
you stop over a longer distance and,
when worn properly, your strongest
bones take the forces from the safety belts. That is why wearing
safety belts makes such good
sense.
Questions and Answers About
Safety Belts Q: Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A: You could be — whether you are
wearing a safety belt or not.
Your chance of being conscious
during and after a crash, so you
can unbuckle and get out, is
much greater if you are belted.
Q: If my vehicle has airbags, why
should I have to wear safety
belts?
A: Airbags are supplemental
systems only; so they work with
safety belts — not instead of
them. Whether or not an airbag
is provided, all occupants still
have to buckle up to get the
most protection.

Black plate (11,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

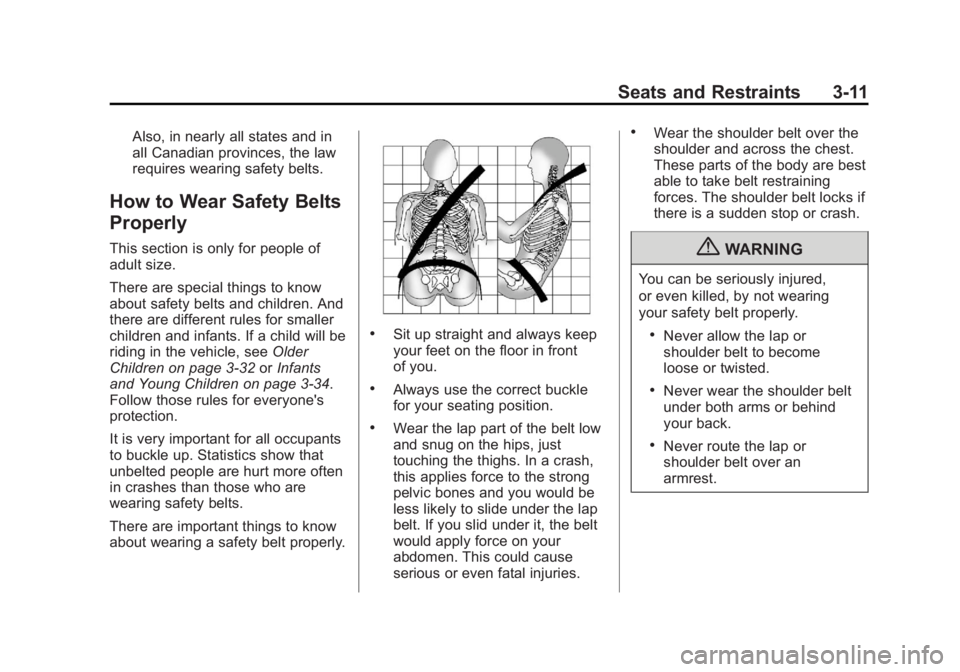

Seats and Restraints 3-11Also, in nearly all states and in
all Canadian provinces, the law
requires wearing safety belts.
How to Wear Safety Belts
Properly This section is only for people of
adult size.
There are special things to know
about safety belts and children. And
there are different rules for smaller
children and infants. If a child will be
riding in the vehicle, see Older
Children on page 3 ‑ 32 or Infants
and Young Children on page 3 ‑ 34 .
Follow those rules for everyone's
protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
There are important things to know
about wearing a safety belt properly. .
Sit up straight and always keep
your feet on the floor in front
of you. .
Always use the correct buckle
for your seating position. .
Wear the lap part of the belt low
and snug on the hips, just
touching the thighs. In a crash,
this applies force to the strong
pelvic bones and you would be
less likely to slide under the lap
belt. If you slid under it, the belt
would apply force on your
abdomen. This could cause
serious or even fatal injuries. .
Wear the shoulder belt over the
shoulder and across the chest.
These parts of the body are best
able to take belt restraining
forces. The shoulder belt locks if
there is a sudden stop or crash.
{ WARNINGYou can be seriously injured,
or even killed, by not wearing
your safety belt properly. .
Never allow the lap or
shoulder belt to become
loose or twisted. .
Never wear the shoulder belt
under both arms or behind
your back. .
Never route the lap or
shoulder belt over an
armrest.

Black plate (12,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

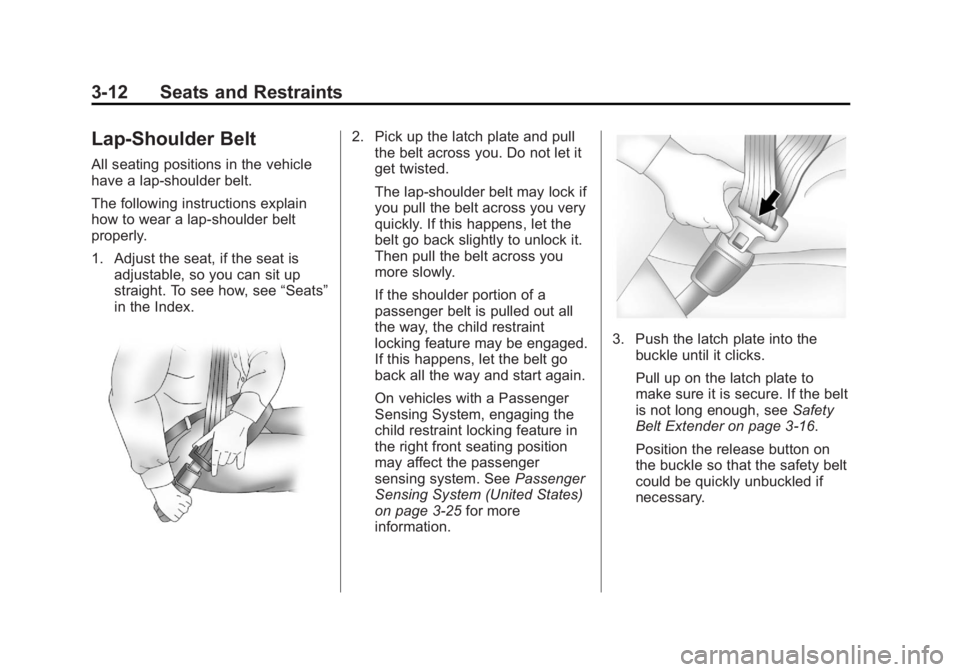

3-12 Seats and Restraints
Lap-Shoulder Belt All seating positions in the vehicle
have a lap-shoulder belt.
The following instructions explain
how to wear a lap-shoulder belt
properly.
1. Adjust the seat, if the seat is
adjustable, so you can sit up
straight. To see how, see “ Seats ”
in the Index. 2. Pick up the latch plate and pull
the belt across you. Do not let it
get twisted.
The lap-shoulder belt may lock if
you pull the belt across you very
quickly. If this happens, let the
belt go back slightly to unlock it.
Then pull the belt across you
more slowly.
If the shoulder portion of a
passenger belt is pulled out all
the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.
On vehicles with a Passenger
Sensing System, engaging the
child restraint locking feature in
the right front seating position
may affect the passenger
sensing system. See Passenger
Sensing System (United States)
on page 3 ‑ 25 for more
information. 3. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, see Safety
Belt Extender on page 3 ‑ 16 .
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.

Black plate (13,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

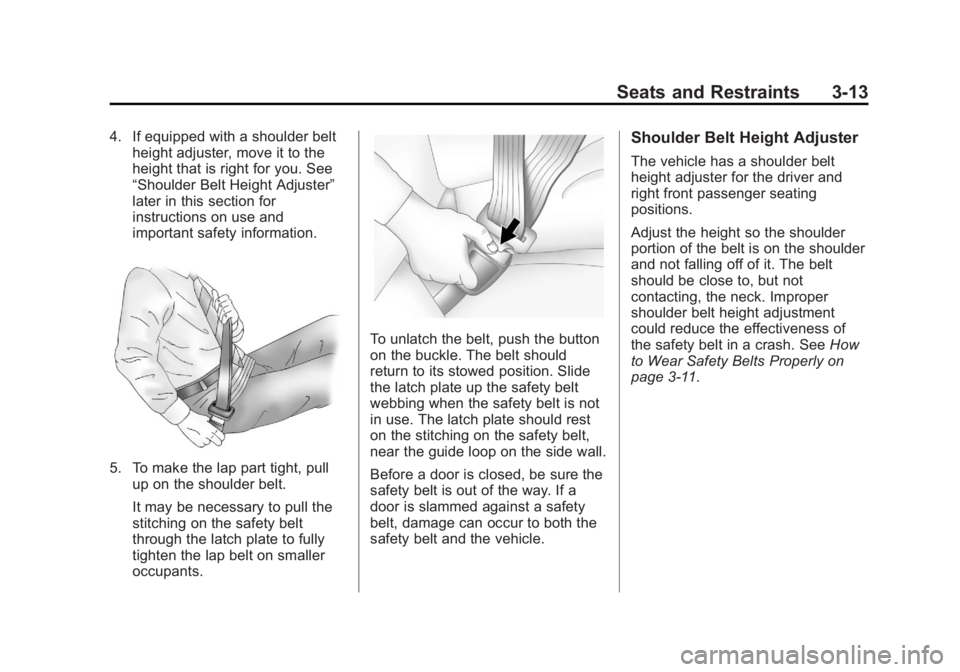

Seats and Restraints 3-134. If equipped with a shoulder belt
height adjuster, move it to the
height that is right for you. See
“ Shoulder Belt Height Adjuster ”
later in this section for
instructions on use and
important safety information.
5. To make the lap part tight, pull
up on the shoulder belt.
It may be necessary to pull the
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants. To unlatch the belt, push the button
on the buckle. The belt should
return to its stowed position. Slide
the latch plate up the safety belt
webbing when the safety belt is not
in use. The latch plate should rest
on the stitching on the safety belt,
near the guide loop on the side wall.
Before a door is closed, be sure the
safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle. Shoulder Belt Height Adjuster The vehicle has a shoulder belt
height adjuster for the driver and
right front passenger seating
positions.
Adjust the height so the shoulder
portion of the belt is on the shoulder
and not falling off of it. The belt
should be close to, but not
contacting, the neck. Improper
shoulder belt height adjustment
could reduce the effectiveness of
the safety belt in a crash. See How
to Wear Safety Belts Properly on
page 3 ‑ 11 .

Black plate (14,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

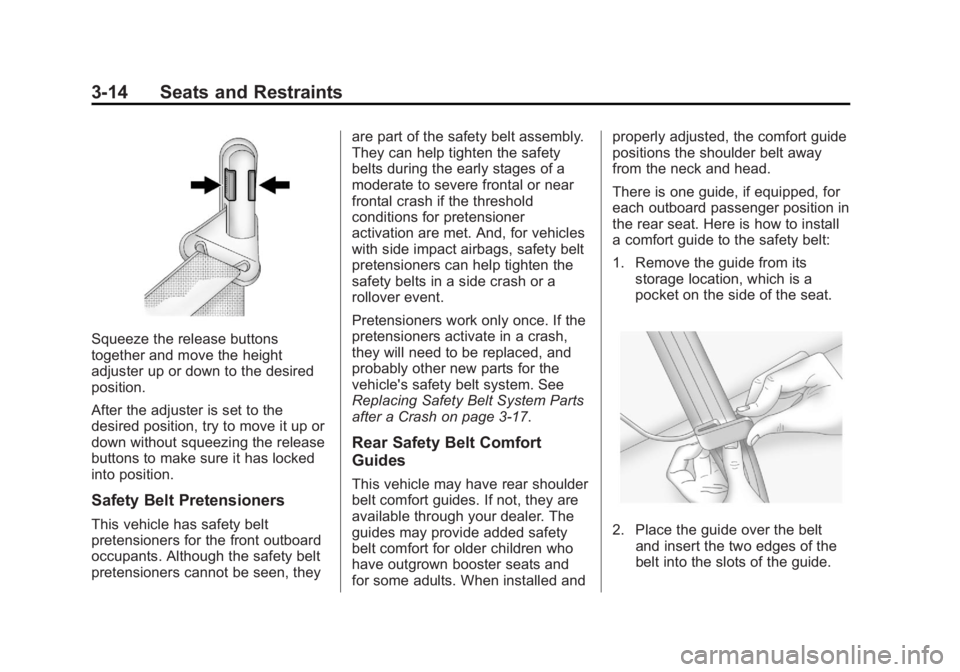

3-14 Seats and Restraints
Squeeze the release buttons
together and move the height
adjuster up or down to the desired
position.
After the adjuster is set to the
desired position, try to move it up or
down without squeezing the release
buttons to make sure it has locked
into position.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety belt
pretensioners cannot be seen, they are part of the safety belt assembly.
They can help tighten the safety
belts during the early stages of a
moderate to severe frontal or near
frontal crash if the threshold
conditions for pretensioner
activation are met. And, for vehicles
with side impact airbags, safety belt
pretensioners can help tighten the
safety belts in a side crash or a
rollover event.
Pretensioners work only once. If the
pretensioners activate in a crash,
they will need to be replaced, and
probably other new parts for the
vehicle's safety belt system. See
Replacing Safety Belt System Parts
after a Crash on page 3 ‑ 17 .
Rear Safety Belt Comfort
Guides
This vehicle may have rear shoulder
belt comfort guides. If not, they are
available through your dealer. The
guides may provide added safety
belt comfort for older children who
have outgrown booster seats and
for some adults. When installed and properly adjusted, the comfort guide
positions the shoulder belt away
from the neck and head.
There is one guide, if equipped, for
each outboard passenger position in
the rear seat. Here is how to install
a comfort guide to the safety belt:
1. Remove the guide from its
storage location, which is a
pocket on the side of the seat.
2. Place the guide over the belt
and insert the two edges of the
belt into the slots of the guide.
