2013.5 Citroen DS4 RHD Owner's Manual

55Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs the
driver when the next ser vice is due,
in accordance with the manufacturer's
servicing schedule.
The point at which the ser vice is due is
calculated from the last ser vice indicator zero
reset. It is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.







Service indicator


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next ser vice is due.

For example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.
A few seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, depending
on the type of driving.
Therefore, the spanner may also come
on if you have exceeded the two year
service interval.









Service indicator zero reset

After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:



switch off the ignition,


press and hold the ".../000"
trip distance
recorder zero reset button,


switch on the ignition; the distance recorder
display begins a countdown,


when the screen indicates "=/0"
and the
spanner disappears, release the button. This operation cannot be carried
out while a reminder of the ser vicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.


Recalling the service information

You can recall the ser vice information at any
time.



Briefly press the ".../000"
trip distance
recorder zero reset button.
The ser vice information is displayed for a
few seconds, in the total distance recorder
line or in the type 2 instrument panel
central screen.




Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.

Example:
the ser vice is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:

57Monitoring





















Manual test in the type 2 instrument panel central screen

This function allows you to check the status of the vehicle systems (reminder of the "activated"/"deactivated" status of the configurable functions) and to
display the alerts log.



With the engine running, to start a manual
test, briefly press the ".../000"
button on
the instrument panel. The following information appears successively
in the instrument panel central screen:


- engine oil level indicator
(see corresponding section),

- ser vice indicator (see corresponding
section),

- under-inflation detection (if your vehicle
is fitted with this system; see the "Safety"
section),

- current warnings and alert messages,
if any (see corresponding section for the
warning lamp or system concerned),

- status of configurable functions
(see "Multifunction screens"). This information also appears every
time the ignition is switched on
(automatic test).

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.












Distance recorders


Total distance recorder

Trip distance recorder

Measures the distance travelled since it was
last reset to zero by the driver.



With the ignition on, press and hold this
button until zeros appear.
Measures the total distance travelled by the
vehicle since its first registration.

59Monitoring









Lighting dimmer

Permits manual adjustment of the brightness of
the instruments and controls in relation to the
exterior brightness. Only operates when the
vehicle lighting is on in night mode.

Activation




Press button A
to change the brightness of
the instruments and controls.


When the lighting reaches the minimum
setting, release the button, then press
again to increase it.
or



When the lighting reaches the maximum
setting, release the button, then press
again to reduce it.


When the lighting reaches the level of
brightness required, release the button.
This indicator and the lighting
value appear in the middle of the
instrument panel during adjustment
to show the lighting level compared
to the 16 levels available. You can also modify the level of lighting by
turning the thumb wheel B
, located on the left
of the steering wheel:



upwards; to reduce the level,


downwards; to increase the level.



Deactivation

When the vehicle lighting is off, or in day mode
(daytime running lamps on), pressing the button
or turning the thumb wheel does not have any
effect.

System allowing certain screens to be switched
off for night driving.
The instrument panel remains on with
the analogue vehicle speed, electronic or
automatic gearbox gear selected, cruise control
or speed limiter information, if in use, and the
low fuel alerts as appropriate.
If there is an alert or a change in a function
or to a setting, the black panel mode is
interrupted.






Black panel (black screen)


Activation




With the vehicle lighting on, press this
button again to activate the black panel.


Press once more to illuminate on the
various screens again.
In order to retain the digital reading of the
speed in km/h, activation of black panel mode
is prohibited in countries that use metric units.
In the instrument panel, you can change the
colour of its dials (button A
) independently from
that of the screens (button B
).
There are five colour variants, from white to
blue.



press the appropriate button as many times
as needed to obtain the desired colour.








Customising the instrument
panel colours

61Monitoring






Customising the polyphonic
sounds
This menu allows you to choose a family of
polyphonic sounds from the four available.
These sounds are grouped together in a family
and are adapted to suit the situation and
context (alert, confirmation, rejection, direction
indicators, lighting left on, key in ignition...).

For the type 2 customisable
colour instrument



Press the thumb wheel for access to the
main menu.


Select the "Choice of sounds" line and
confirm.


Select the desired family of sounds and
confirm.


Save the modifications by confirming "OK".

For safety reasons, the driver must
only carry out these operation when
stationary. For safety reasons, these operations
are only possible when stationary.


For the type 1 customisable
colour instrument panel



Press the "MENU"
button for access to the
main menu.


Select the "Personalisation-configuration"
menu and confirm.


Select the "Choice of sounds" line and
confirm.


Select the desired family of sounds and
confirm.


Save the modifications by confirming "OK".

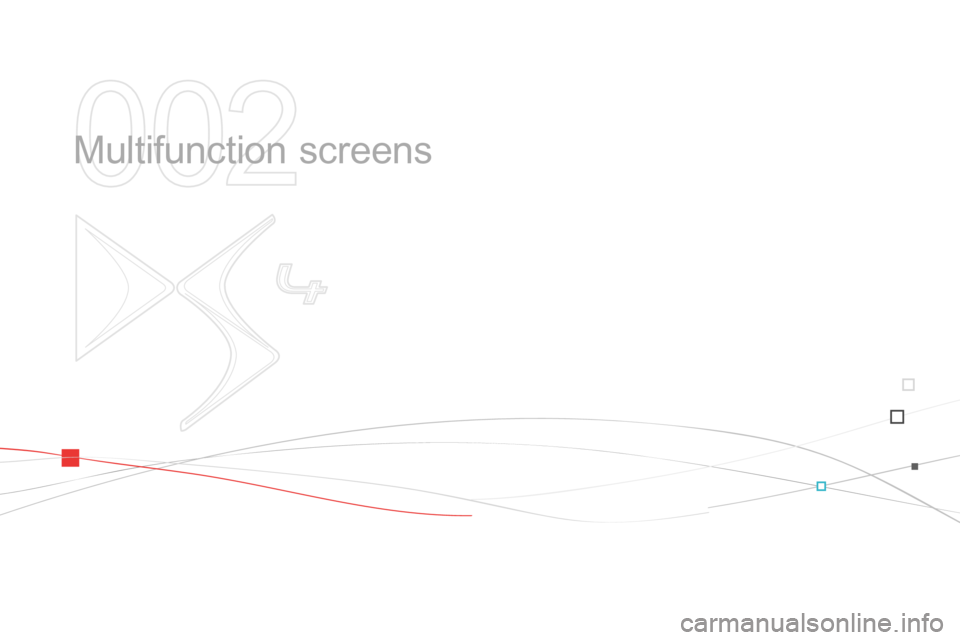

002
Multifunction screens
