2012 TOYOTA TUNDRA Owners Manual

577
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
The fuses are located in the following places. To check the
fuses, follow the in structions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel Remove the lid.
After a system failure, s ee “Fuse layout and amperage
ratings” ( P. 580) for details about which fuse to check.

578 4-3. Do-it-yourself maintenance
Remove the fuse with the pull-
out tool.

579
4-3. Do-it-yourself maintenance
4
Maintenance and care

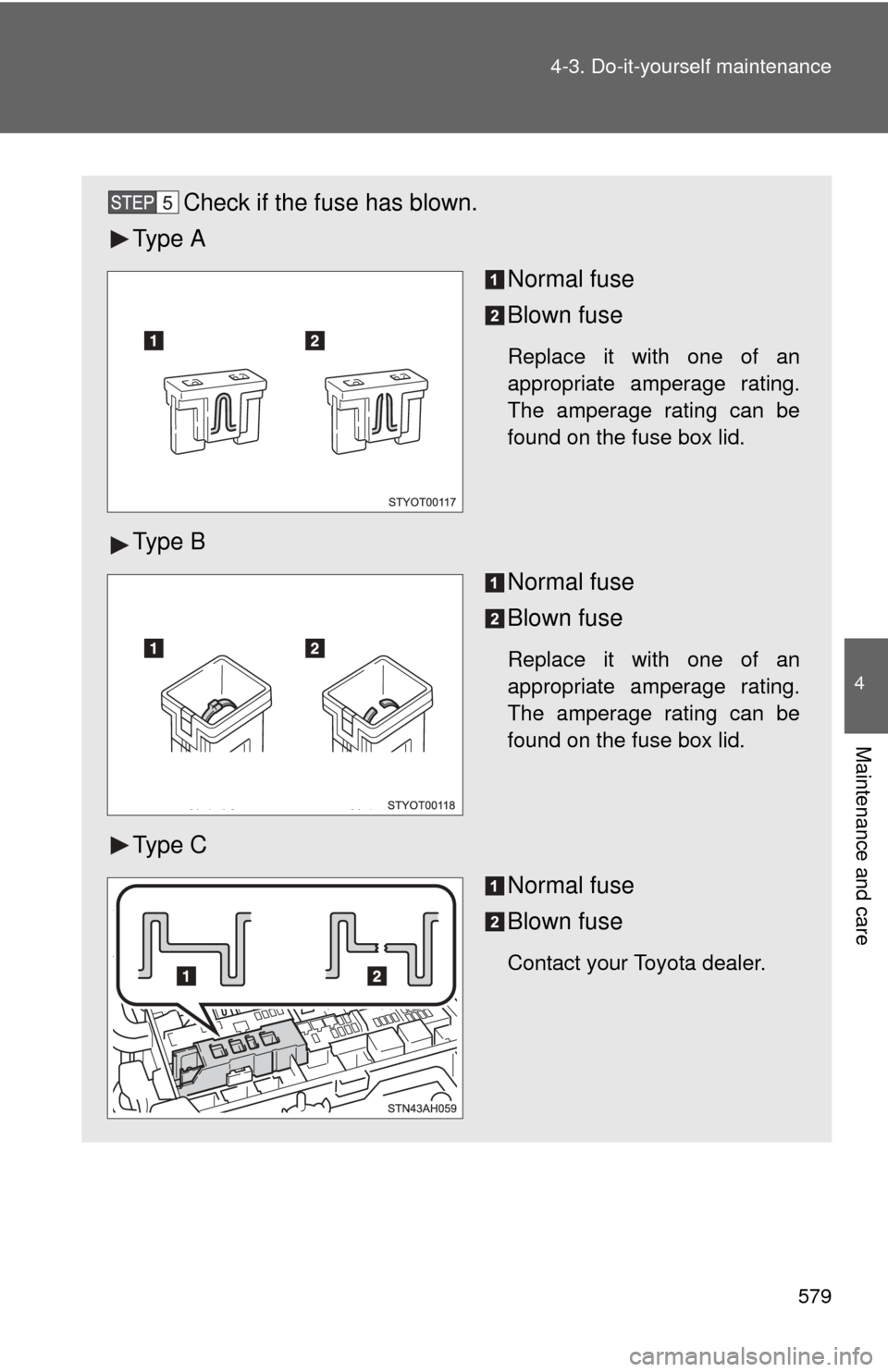

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.

580 4-3. Do-it-yourself maintenance

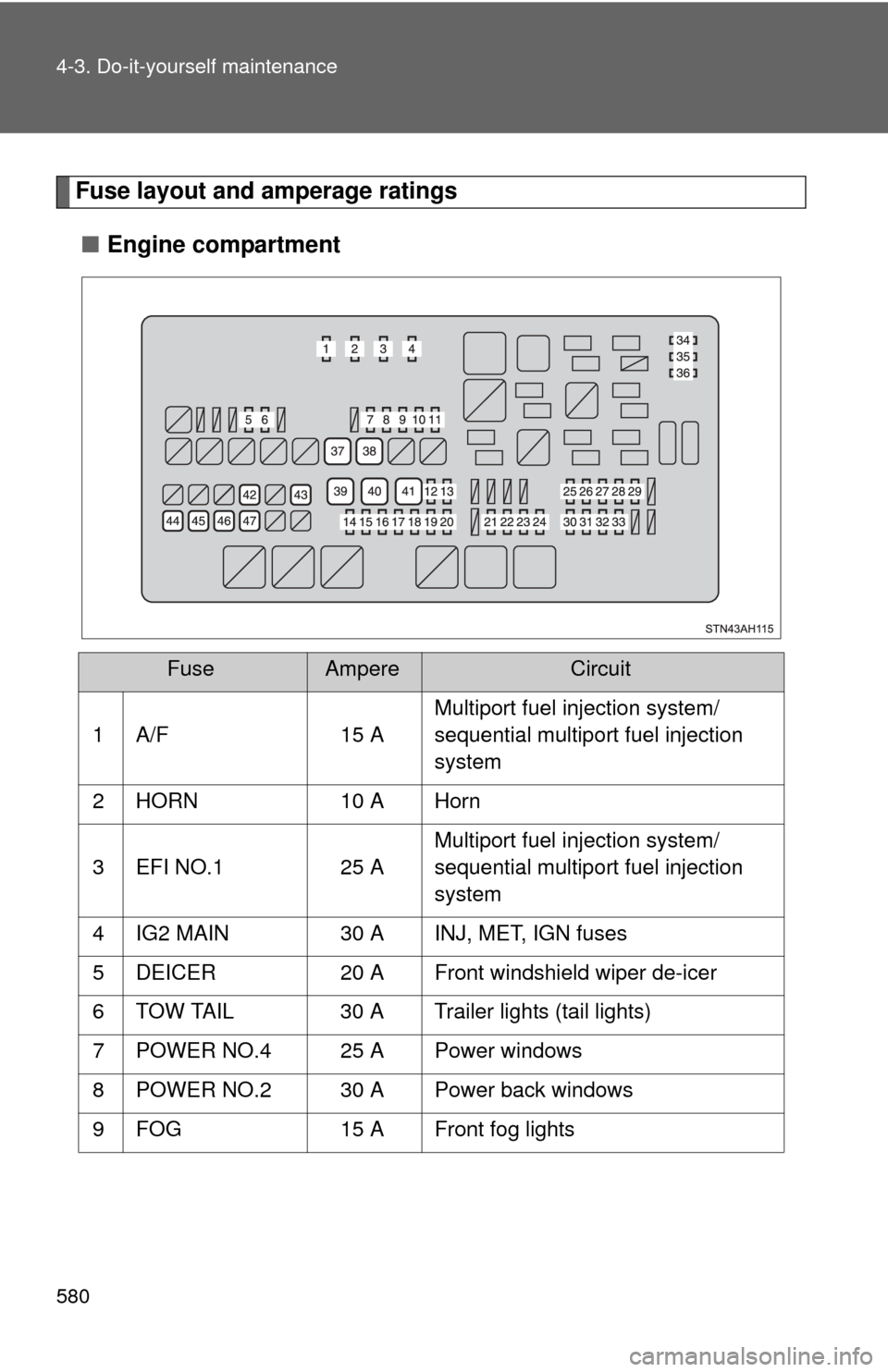

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1 A/F 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
2 HORN 10 A Horn
3 EFI NO.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system
4 IG2 MAIN 30 A INJ, MET, IGN fuses
5 DEICER 20 A Front windshield wiper de-icer
6 TOW TAIL 30 A Trailer lights (tail lights)
7 POWER NO.4 25 A Power windows
8 POWER NO.2 30 A Power back windows
9 FOG 15 A Front fog lights

581
4-3. Do-it-yourself maintenance
4
Maintenance and care
10 STOP
15 AStop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing converter
11 TOW BRK 30 A Trailer brake controller
12 IMB 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
13 AM2 7.5 A Starting system
14 TOWING 30 A Towing converter
15 AI PMP HTR 10 A Air injection system
16 ALT-S 5 A Charging system
17 TURN-HAZ 15 A Turn signal lights, emergency
flashers, towing converter
18 F/PMP 25 A Fuel system
19 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electric throttle control sys-
tem
20 MET-B 5 A Gauges and meters
21 AMP 30 AAudio system, rear view monitor,
navigation system, rear seat enter-
tainment system
22 RAD NO.1 15 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
FuseAmpereCircuit

582 4-3. Do-it-yourself maintenance
23 ECU-B17.5 AMultiplex communication system,
Multiport fuel injection system/
sequential multiport fuel injection
system, auto anti-glare inside rear
view mirror, power outlets, power
front driver’s seat, power tilt and
power telescopic
24 DOME 7.5 AInterior lights, personal lights, van-
ity lights, engine switch light, foot
light, accessory meter
25 HEAD LH 15 ALeft-hand headlight
(high beam)
26 HEAD LL 15 ALeft-hand headlight
(low beam)
27 INJ 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
28 MET 7.5 A Gauges and meters
29 IGN 10 ASRS airbag system, multiport fuel
injection system/sequential multi-
port fuel injection system, cruise
control system
30 HEAD RH 15 ARight-hand headlight
(high beam)
31 HEAD RL 15 ARight-hand headlight
(low beam)
32 EFI NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, leak detection pump
33 DEF I/UP 5 A No circuit
34 SPARE 5 A Spare fuse
35 SPARE 15 A Spare fuse
36 SPARE 30 A Spare fuse
FuseAmpereCircuit

583
4-3. Do-it-yourself maintenance
4
Maintenance and care
*: Replace the fuse with one of the same ampere rating as the original.
37 DEFOG 40 A Back window defogger
38 SUB BATT 40 A Trailer towing
39 ABS1 50 A
Anti-lock brake system, vehicle sta-
bility control system
40 ABS2 40 A Anti-lock brake system, vehicle sta-
bility control system
41 ST 30 A Starting system
42 HTR 50 A Air conditioning system
43 LH-J/B 150 A AM1, TAIL, PANEL, ACC, CIG, LH-
IG, 4WD, ECU-IG No.1, BK/UP LP,
SEAT-HTR, A/C IG, ECU-IG No.2,
WSH, WIPER, OBD, A/C, TI&TE,
FR P/SEAT RH, MIR, DR/LCK, FR
P/SEAT LH, CARGO LP, PWR
OUTLET, POWER No.1 fuses
44 ALT 180 A
*LH-J/B, HTR, SUB BATT, TOW
BRK, STOP, FOG, TOW TAIL,
DEICER fuses
140 A
*
45 A/PUMP NO.1 50 A Multiport fuel injection system/
sequential multiport fuel injection
system
46 A/PUMP NO.2 50 A Multiport fuel injection system/
sequential multiport fuel injection
system
47 MAIN 40 A HEAD LL, HEAD RL,
HEAD LH, HEAD RH fuses
FuseAmpereCircuit

584 4-3. Do-it-yourself maintenance

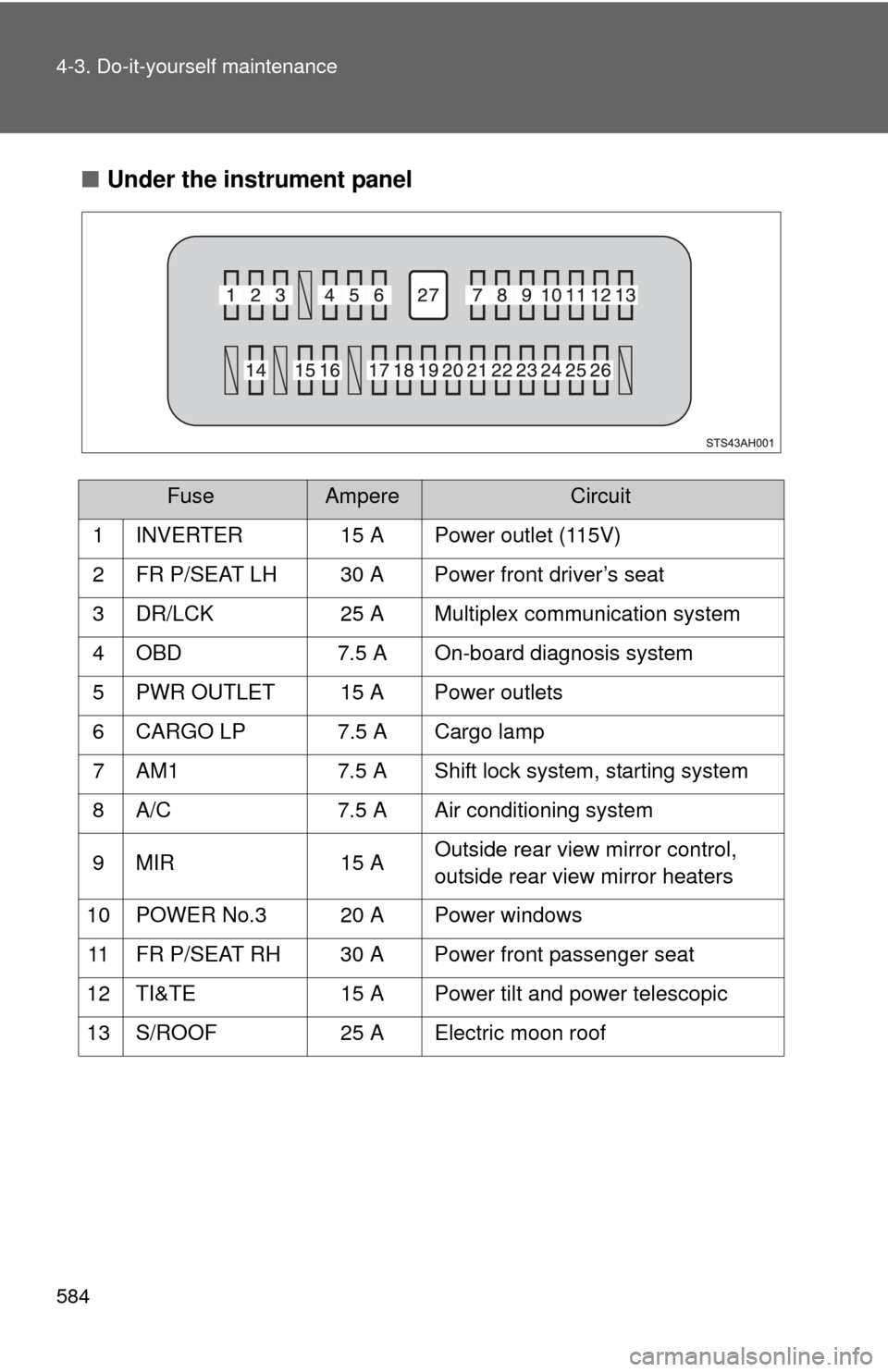

■Under the instrument panel
FuseAmpereCircuit
1 INVERTER 15 A Power outlet (115V)
2 FR P/SEAT LH 30 A Power front driver’s seat
3 DR/LCK 25 A Multiplex communication system
4 OBD 7.5 A On-board diagnosis system
5 PWR OUTLET 15 A Power outlets
6 CARGO LP 7.5 A Cargo lamp
7 AM1 7.5 A Shift lock system, starting system
8 A/C 7.5 A Air conditioning system
9 MIR 15 A Outside rear view mirror control,
outside rear view mirror heaters
10 POWER No.3 20 A Power windows
11 FR P/SEAT RH 30 A Power front passenger seat
12 TI&TE 15 A Power tilt and power telescopic
13 S/ROOF 25 A Electric moon roof
