2012 TOYOTA TUNDRA Owners Manual

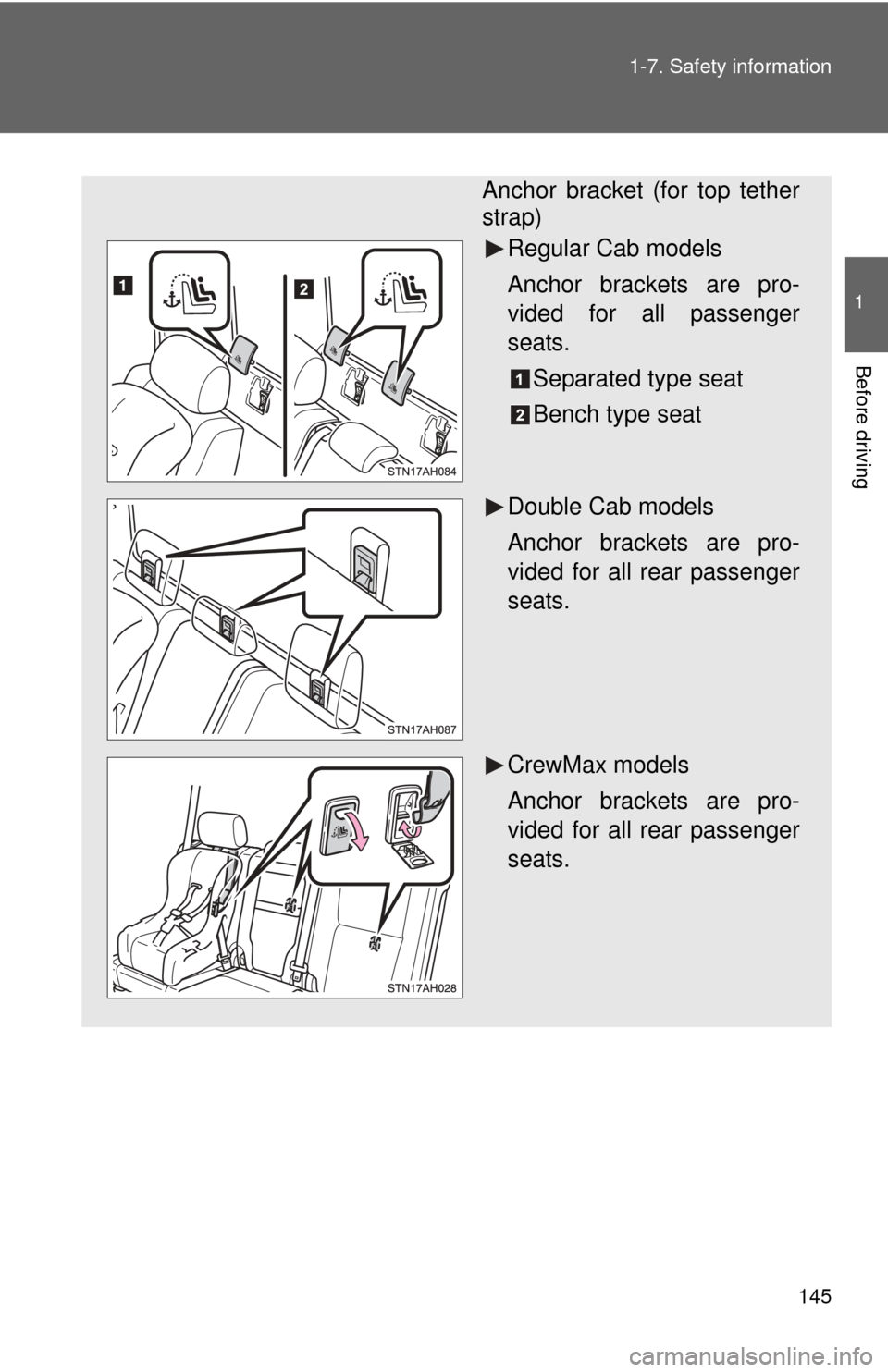

145
1-7. Safety information
1
Before driving
Anchor bracket (for top tether
strap)
Regular Cab models
Anchor brackets are pro-
vided for all passenger
seats.
Separated type seat
Bench type seat
Double Cab models
Anchor brackets are pro-
vided for all rear passenger
seats.
CrewMax models
Anchor brackets are pro-
vided for all rear passenger
seats.

146 1-7. Safety information
Installation with LATCH system (Double Cab models)Type A Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
LATCH anchors and
tighten the lower straps.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 157)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

147
1-7. Safety information
1
Before driving
Type B
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 157)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

148 1-7. Safety information
Installation with LATCH system (CrewMax models)If the child restraint has a top te ther strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 161)
Fold down the seatback and
back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 8th lock position.
(  P. 65)
1st lock position
8th lock position

149
1-7. Safety information
1
Before driving
Type A
Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
LATCH anchors and
tighten the lower straps.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

150 1-7. Safety information
Type BWiden the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

151
1-7. Safety information
1
Before driving
Installing child restraints using a seat belt (child restraint lock function belt)
■
Rear-facing (Regular Cab models) Infant seat/convertible
seat
Never install a rear-facing child restraint. Your vehicle is not
designed to carry an infant.
■ Rear-facing (Double Cab and CrewMax models)  Infant seat/
convertible seat
Place the child seat on the rear
seat facing the rear of the vehi-
cle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.

152 1-7. Safety information
While pushing the child seat
down into the rear seat, allow the
shoulder belt to retract until the
child seat is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing Convertible seat
CrewMax models: If the child restraint has a top tether strap,
the top tether strap should be latched onto the top tether strap
anchor. ( P. 161)
Place the child seat on the seat
facing the front of the vehicle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
