2012 TOYOTA PRIUS Owners Manual

457
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 4
STEP 5
12
ITY42C012

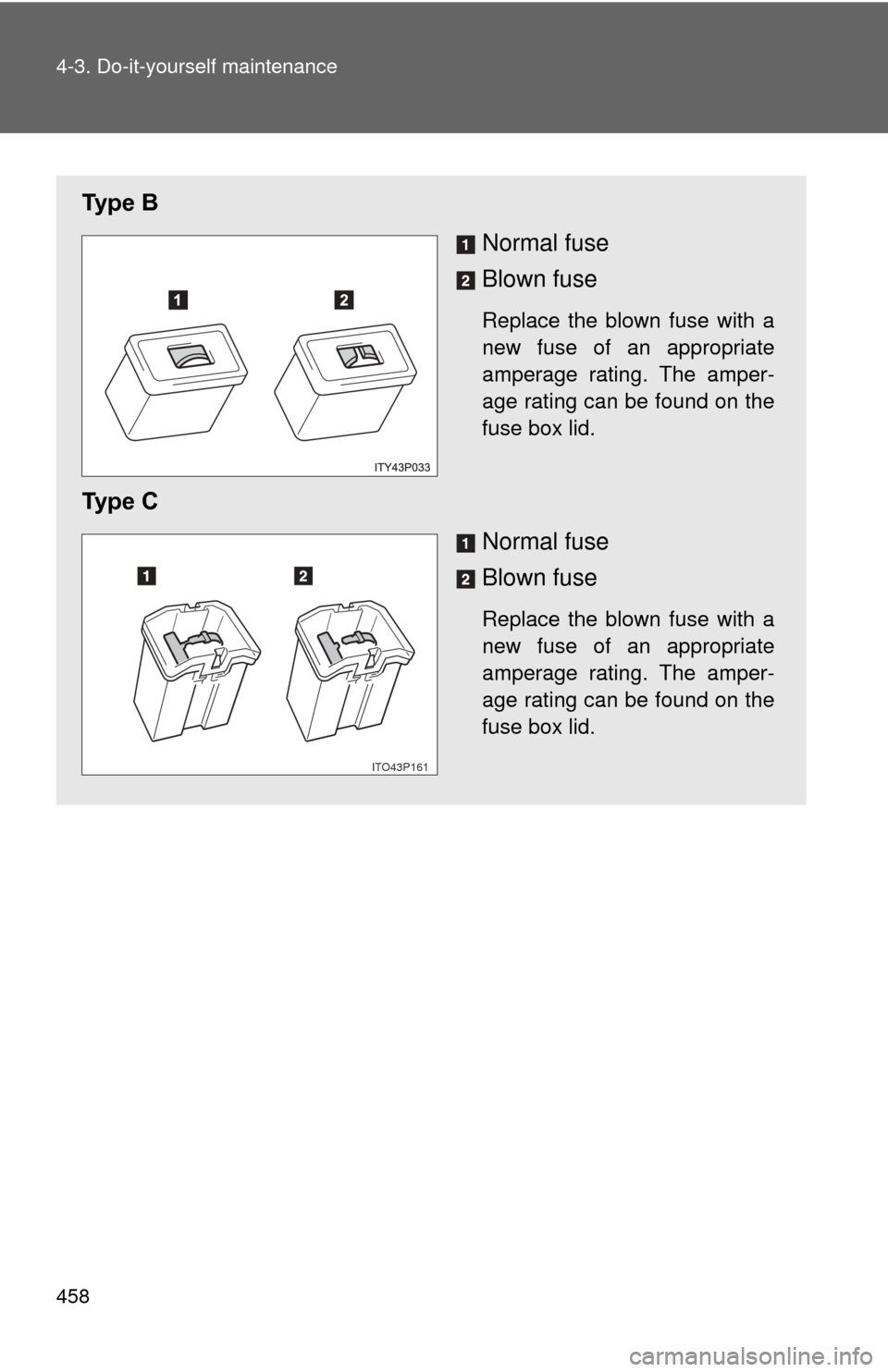

458 4-3. Do-it-yourself maintenance
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
ITO43P161

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings
■ Engine compartment
FUSEAmpereCircuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A No circuit
5 ENG W/P 30A Cooling system
6 ABS MAIN
NO.2 7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 P-CON MTR 30A P position control system, trans-
mission
9 AMP NO.1 30A Audio system
10 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
11 DC/DC-S 5A Inverter and converter
12 P CON MAIN 7.5A P position control system, P posi-
tion switch

460 4-3. Do-it-yourself maintenance
FUSEAmpereCircuit
13 AM2 7.5A Power management system
14 ECU-B2 7.5A Smart key system, hybrid system
15 MAYDAY 10A MAYDAY
16 ECU-B3 10A Air conditioning system
17 TURN & HAZ 10A Turn signal lights
18 ETCS 10AMultiport fuel injection system/
sequential multiport fuel injection
system
19 ABS MAIN
NO.1 20A Anti-lock brake system
20 H-LP LH LO 15A Left-hand headlight (low beam)
21 P/I 2 40AP position control system, horn,
headlight low beams, back-up
lights
22 ABS MTR 1 30A Anti-lock brake system
23 ABS MTR 2 30A Anti-lock brake system
24 H-LP HI MAIN 20A Headlight high beams, daytime
running lights
25 DRL 7.5A Daytime running lights
26 AMP NO.2 30A Audio system, navigation system
27 P/I 1 60A IG2, EFI MAIN, BATT FAN
28 EPS 60A Electric power steering
29 H-LP RH LO 15A Right-hand headlight (low beam)
30 PCU 10A Inverter and converter
31 IGCT NO.2 10A Hybrid system, P position control
system, power management sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system

461
4-3. Do-it-yourself maintenance
4
Maintenance and care
FUSEAmpereCircuit
32 MIR HTR 10A Outside rear view mirror defoggers
33 RAD NO.1 15A Audio system, navigation system
34 DOME 10ADoor courtesy lights, luggage
compartment light, personal light,
interior light, foot lights, vanity
lights, inside rear view mirror,
garage door opener
35 ECU-B 7.5ASmart key system, personal lights,
gauges and meters, emergency
flashers
36 H-LP LH HI 10A Left-hand headlight (high beam)
37 H-LP RH HI 10A Right-hand headlight (high beam)
38 EFI NO.2 10AMultiport fuel injection system/
sequential multiport fuel injection
system
39 IGCT NO.3 10A Cooling system
40 SPARE 30A Spare fuse
41 SPARE 10A Spare fuse
42 SPARE 7.5A Spare fuse
43 EFI MAIN 20AMultiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
44 BATT FAN 10A Battery cooling fan
45 IG2 20AMultiport fuel injection system/
sequential multiport fuel injection
system, MET, IGN, power man-
agement system

462 4-3. Do-it-yourself maintenance
■Left side instrument panel
FUSEAmpereCircuit
1 CIG 15A Power outlets
2 ECU-ACC 10AMultiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system, advanced
parking guidance system, head-up
display
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front passenger’s seat
9 DBL LOCK 25A No circuit
10 FR FOG 7.5A Front fog lights
11 PWR SEAT FL 30A Driver’s seat
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
14 STOP 10AStop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
ITO43P133
1
2
3 4
56 7
8
910
11 12
13
14 15
16 17
18 19
23 24 25
26
2728
29
30
20 21 22

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
FUSEAmpereCircuit
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A Moon roof
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, LKA system, inside
rear view mirror, garage door
opener, yaw rate & G sensor,
brake system, electric power
steering, navigation system, moon
roof, tire pressure warning system,
seat belt pretensioners, audio sys-
tem, emergency flashers, turn sig-
nal lights, windshield wipers,
headlight cleaner
22 GAUGE 10A Headlight leveling system, gauges
and meters, emergency flashers,
turn signal lights
23 A/C 10A Air conditioning system, Solar
Ventilation System, Remote Air
Conditioning System
24 WASHER 15A Windshield washer

464 4-3. Do-it-yourself maintenance
FUSEAmpereCircuit
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, front passenger occupant
classification system (ECU and
sensors), power management sys-
tem, smart key system, front pas-
senger’s seat belt reminder light
29 PANEL 10AAir conditioning system, personal
light, transmission, P position
switch, navigation system, Solar
Ventilation System, Remote Air
Conditioning System, advanced
parking guidance system, head-
light cleaner, front passenger’s
seat belt reminder light, headlight
leveling system, glove box light,
clock, audio system, MPH or km/h
switch
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights
