After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 467)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.

466 4-3. Do-it-yourself maintenance
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 570)

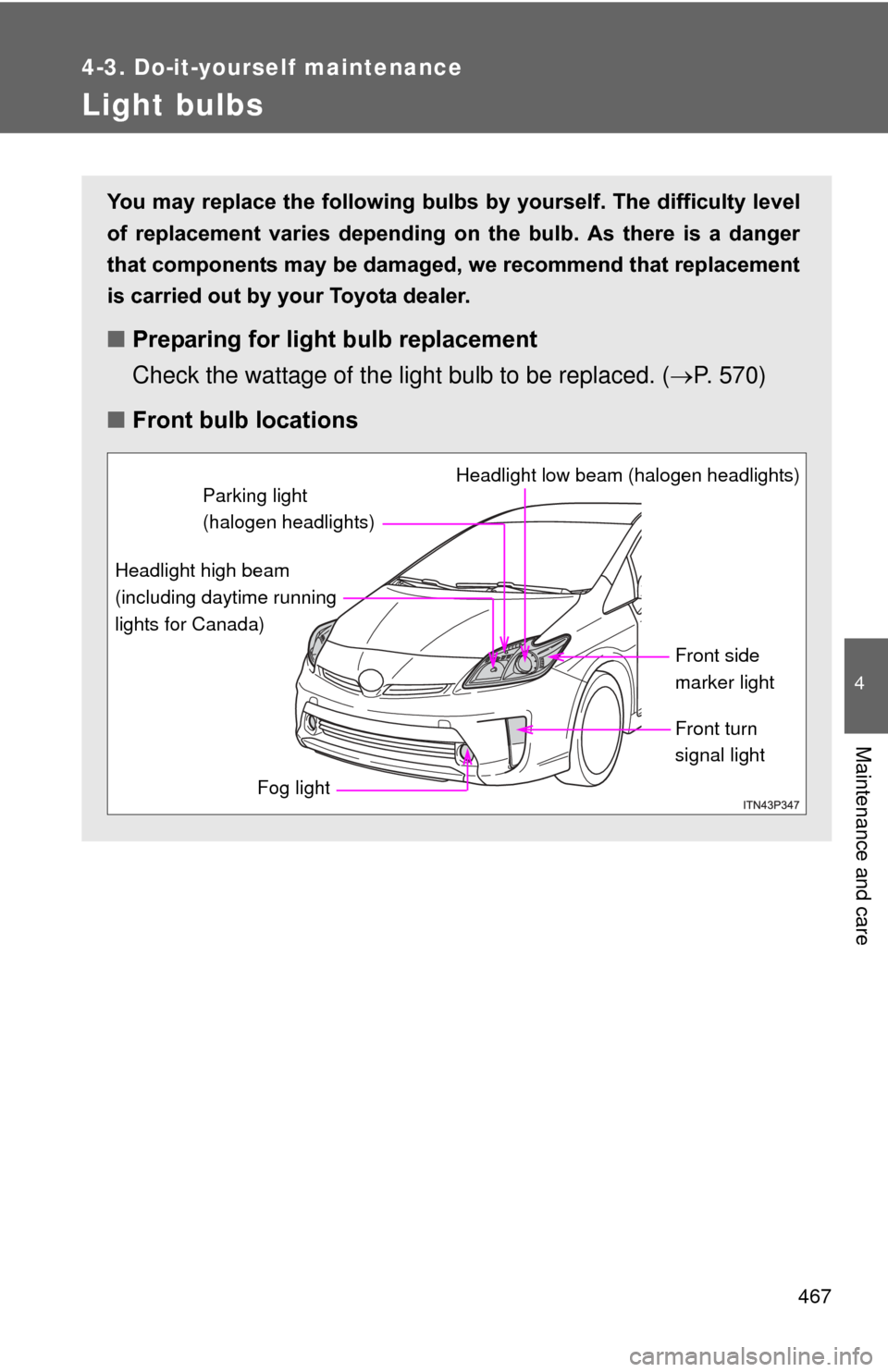

■ Front bulb locations
Front side
marker light
Headlight low beam (halogen headlights)
Headlight high beam
(including daytime running
lights for Canada)
Fog light
Front turn
signal light
Parking light
(halogen headlights)

468 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Rear turn signal light
Back-up light License plate lights
STEP 1

469
4-3. Do-it-yourself maintenance
4
Maintenance and care

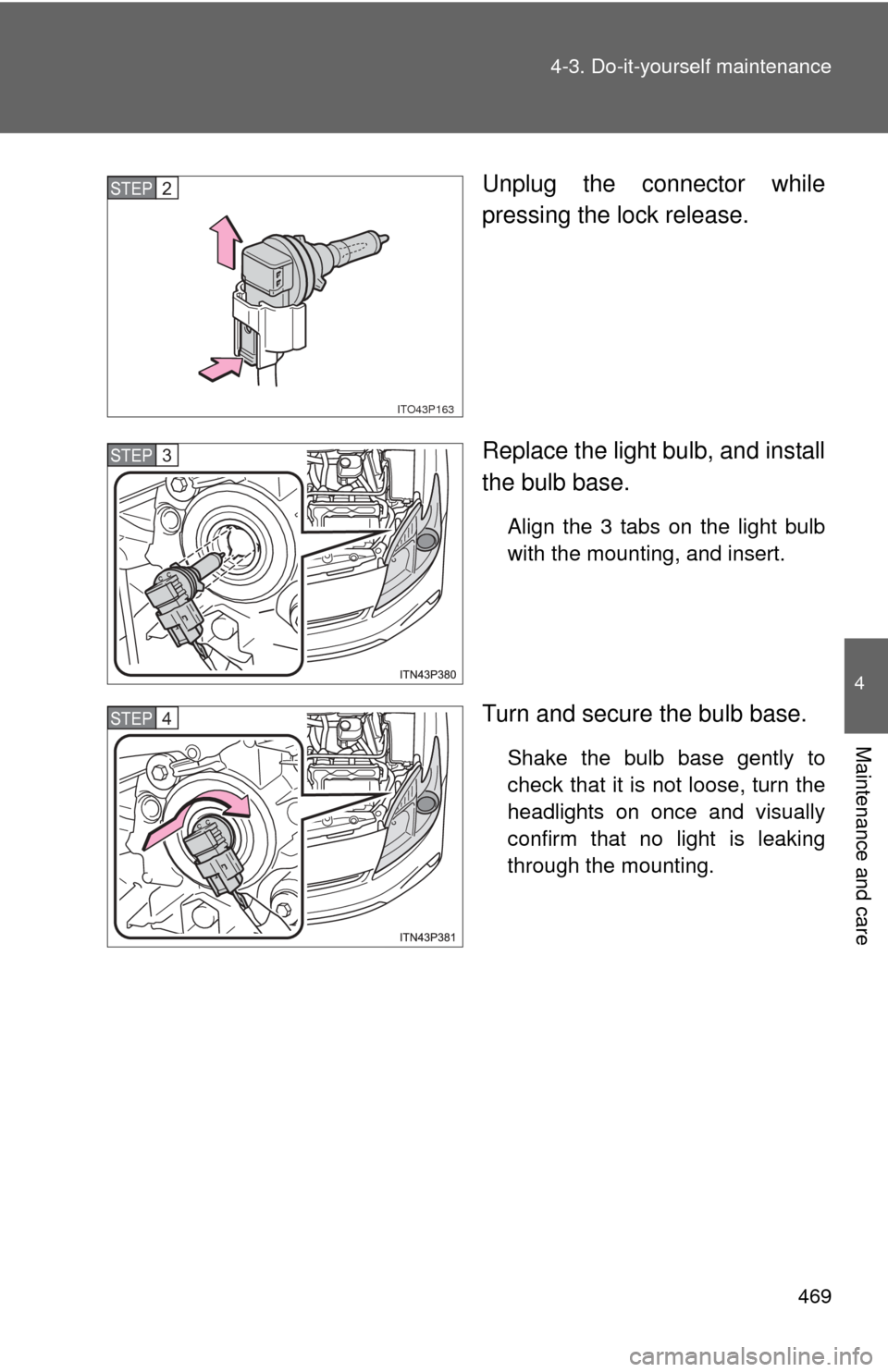

Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
ITO43P163
STEP 2
STEP 3
STEP 4

470 4-3. Do-it-yourself maintenance
■Headlight high beams (includi ng daytime running lights for
Canada)

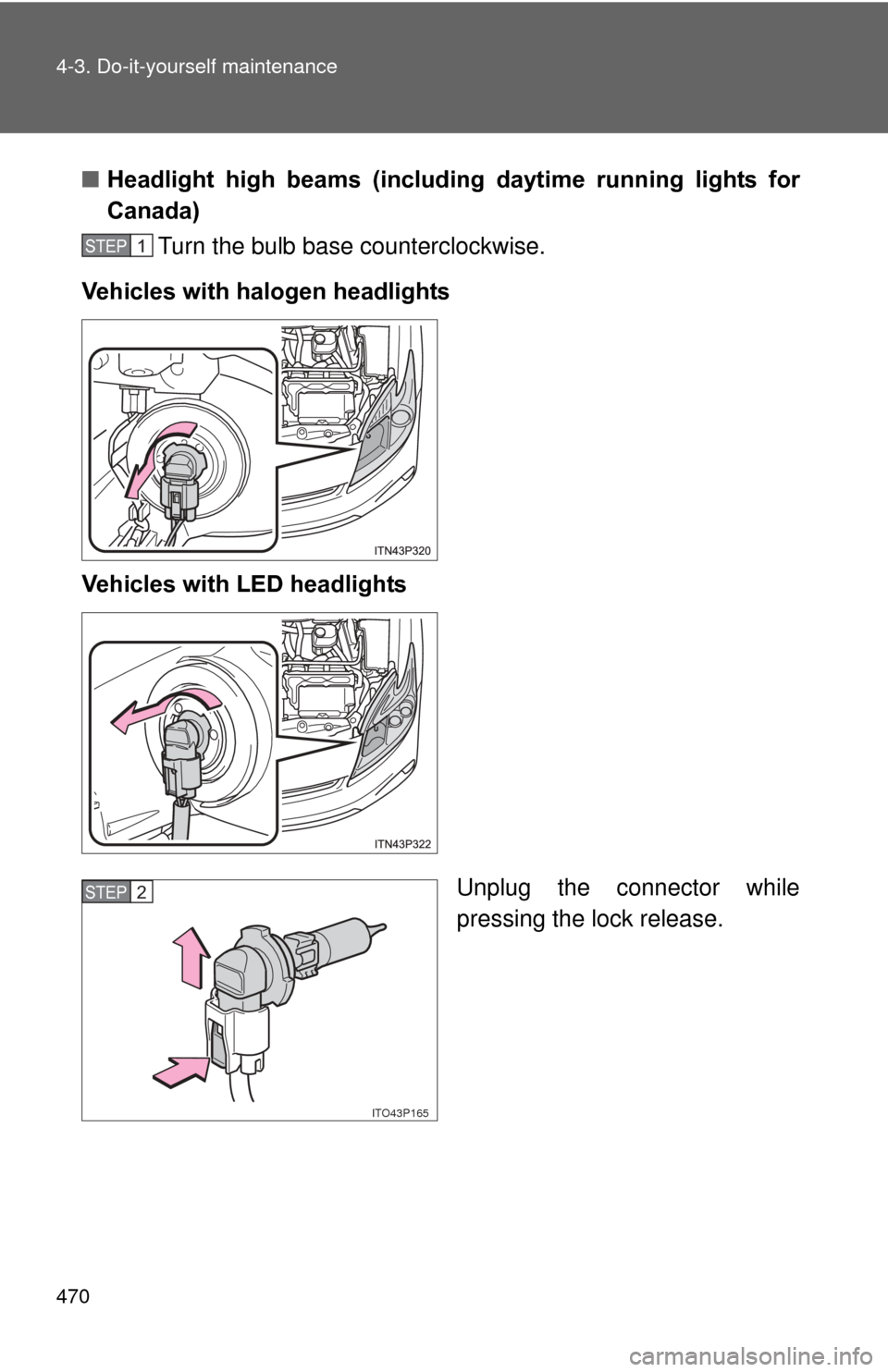

Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Unplug the connector while
pressing the lock release.
STEP 1
ITO43P165
STEP 2

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replace the light bulb, and install
the bulb base.

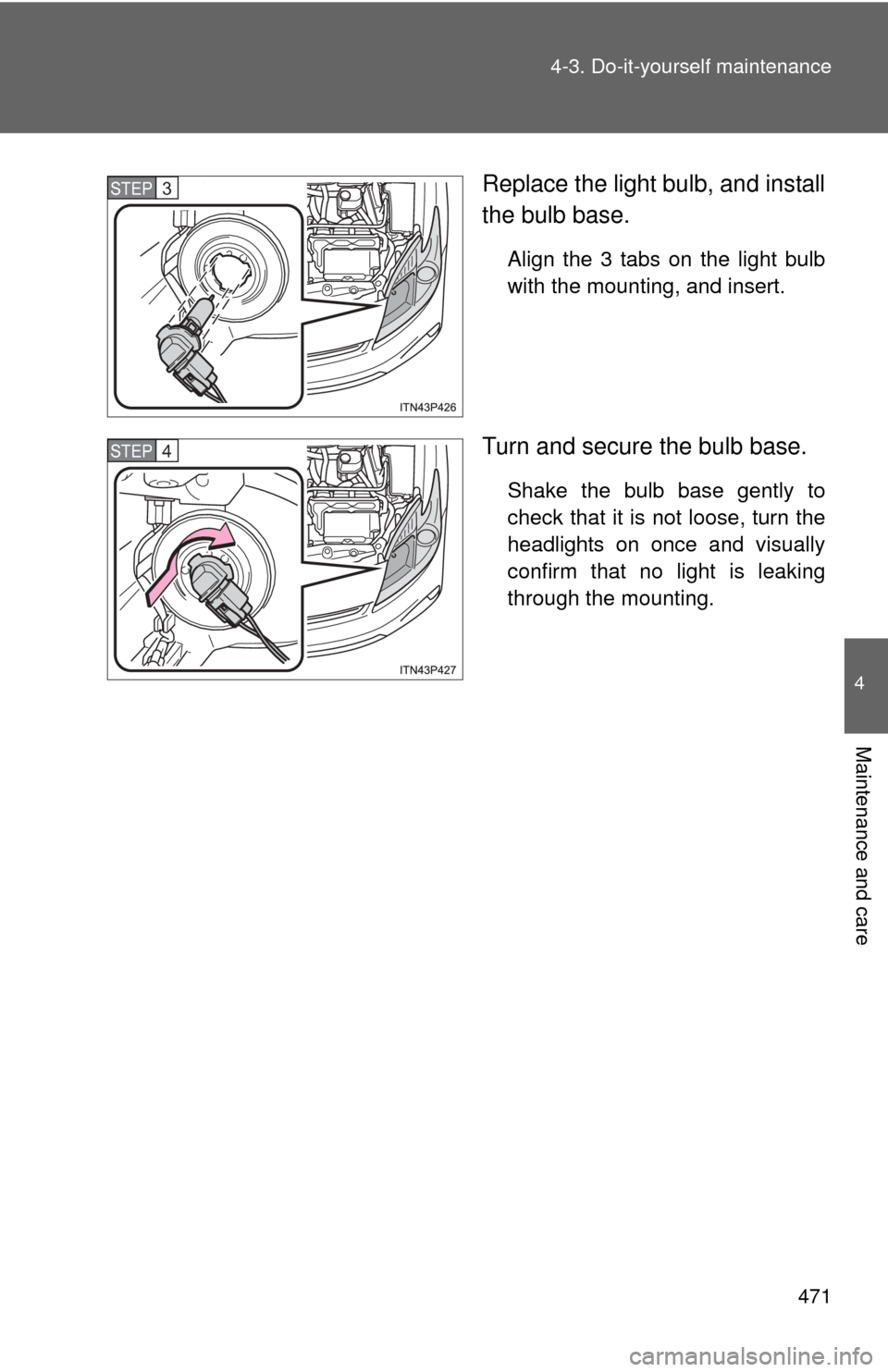

Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 3
STEP 4

472 4-3. Do-it-yourself maintenance
■Parking lights (halogen headlights)

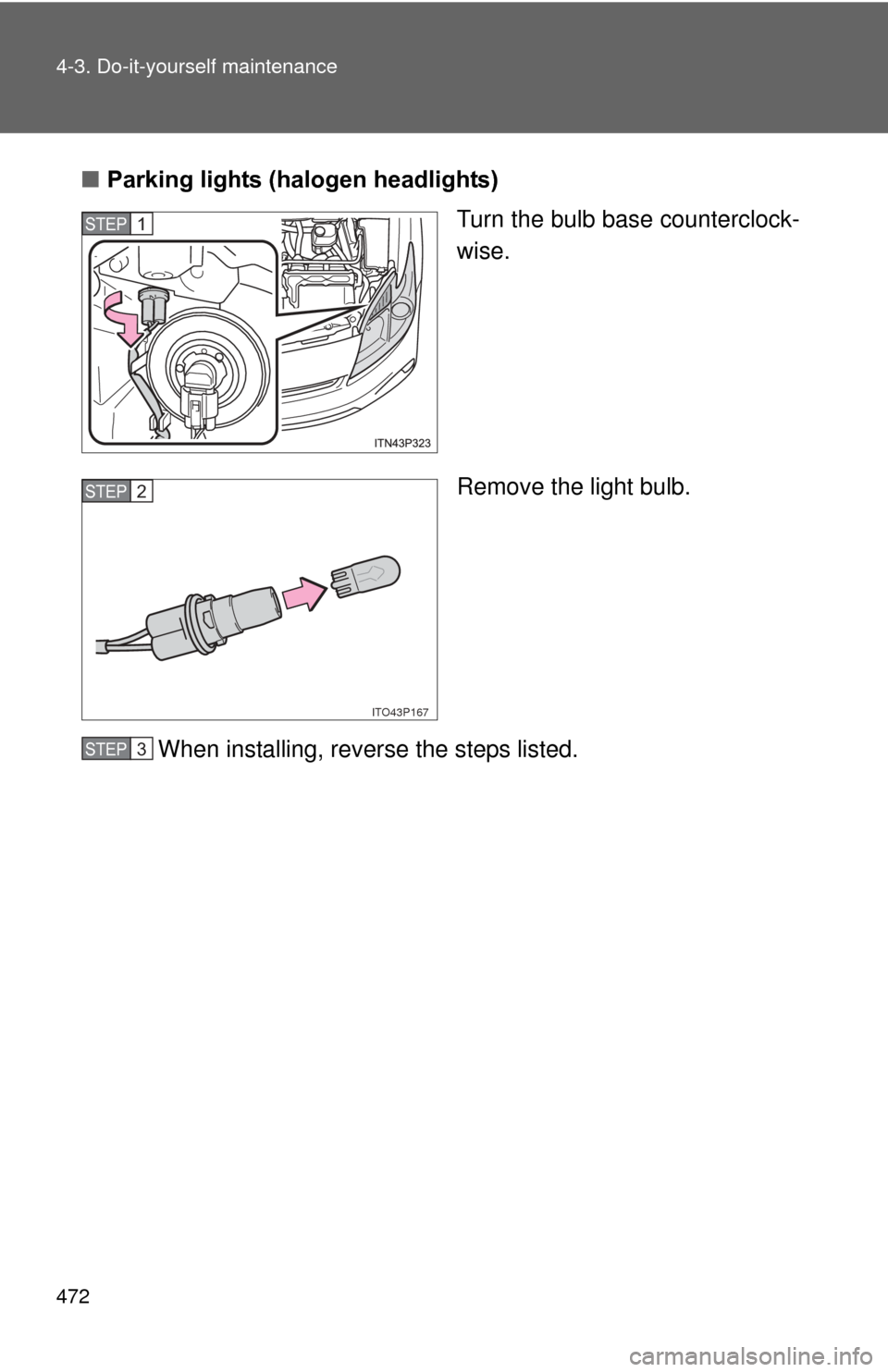

Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3
