2012 TOYOTA PRIUS Owners Manual

257
2-3. Operating the lights and windshield wipers
2
When driving
■
Fog lights can be used when
The headlights are on in low beam.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.
Ty p e B
Turns the fog lights
off
Turns the fog lights
on

258
2-3. Operating the lights and windshield wipers

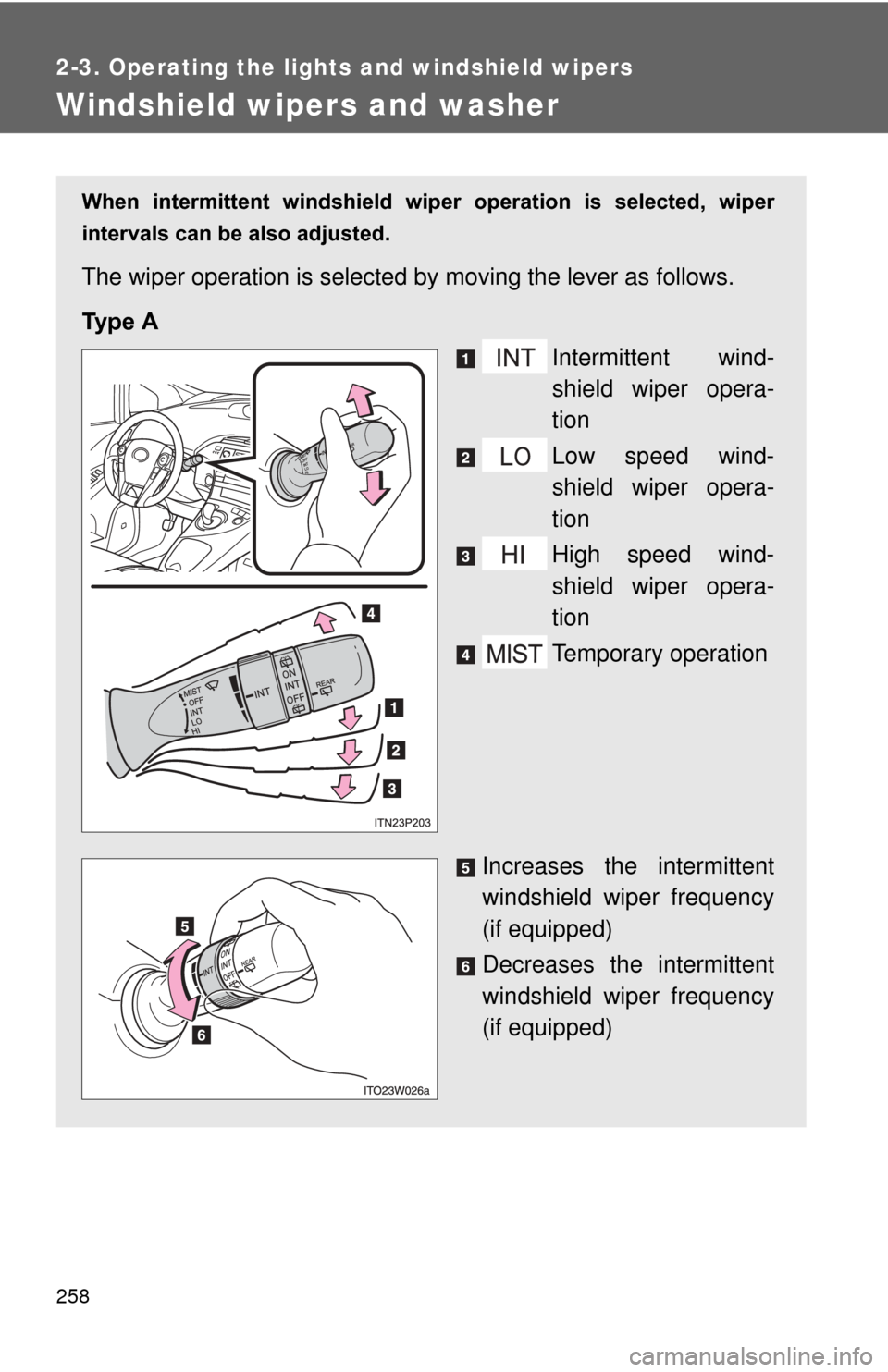

Windshield wipers and washer
When intermittent windshield wiper operation is selected, wiper
intervals can be also adjusted.
The wiper operation is selected by moving the lever as follows.
Ty p e A Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation

Increases the intermittent
windshield wiper frequency
(if equipped)
Decreases the intermittent
windshield wiper frequency
(if equipped)

259
2-3. Operating the lights and windshield wipers
2
When driving
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaner will operate
once.
Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation

260 2-3. Operating the lights and windshield wipers
■The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.
Increases the intermittent
windshield wiper frequency
(if equipped)
Decreases the intermittent
windshield wiper frequency
(if equipped)
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaner will operate
once.

261
2-3. Operating the lights and windshield wipers
2
When driving
CAUTION
■
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■ To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system is
off.

262
2-3. Operating the lights and windshield wipers

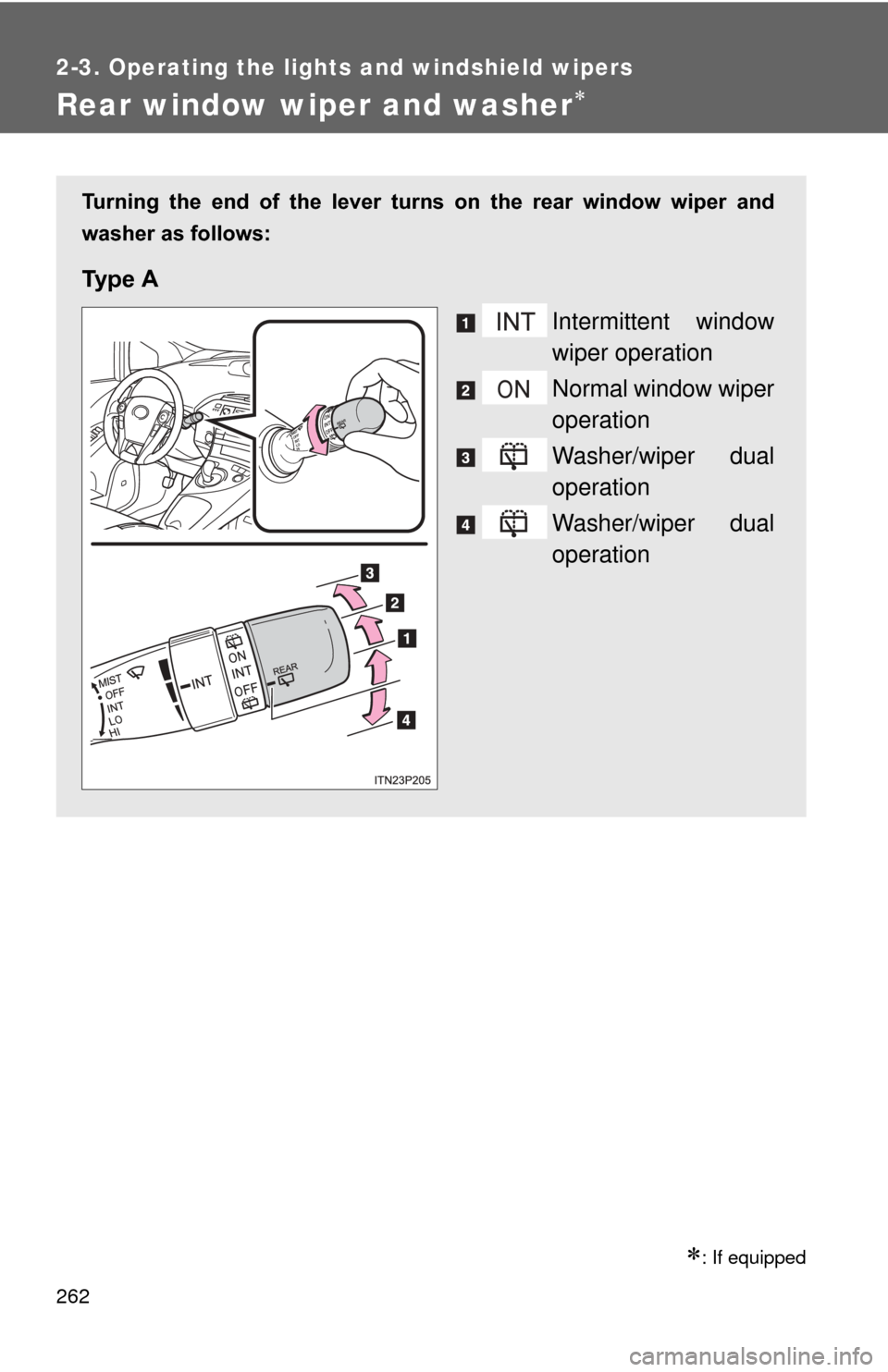

Rear window wiper and washer
: If equipped
Turning the end of the lever turns on the rear window wiper and
washer as follows:
Ty p e A
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

263
2-3. Operating the lights and windshield wipers
2
When driving
■
The rear window wiper and washer can be operated when
The “POWER” switch is in ON mode.
■ If no washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid reservoir.
Ty p e B
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

264 2-3. Operating the lights and windshield wipers
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
