2012 TOYOTA PRIUS Owners Manual

105
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
Head restraints
Head restraints are provided for all seats.
Front seatsUp
Pull the head restraints up.
Down
Push and hold the lock release
button when lowering the head
restraint.
Rear center seatUp
Down
Pull up or push down the head
restraint while pressing the
lock release button.
Foldable type rear outside seats
To f o l d
Pull the head restraint up while
pressing the lock release but-
ton.
To u s e
Lift up and push down the
head restraint to the lowest
lock position.
Lock
release
button
Lock
release
button
Lock release button

106 1-4. Adjustable components (seats, mirrors, steering wheel)
■Removing the head restraints
Front and rear center seats
Foldable type rear outside seats
Non-foldable type rear outside seats
Pull the head restraint up while pressing
the lock release button.
Lock
release
button
Pull the head restraint up while pressing
the lock release buttons.
Lock release buttons
Pull the head restraint up while pressing
the lock release button.
Lock release button

107
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Installing the head restraints
Front and rear center seats
Rear outside seats
■ Adjusting the height of the head restraints
■ Adjusting the rear cent er seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock
release
button
Align the head restraint with the installa-
tion holes and push it down to the lowest
lock position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

108 1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

109
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving

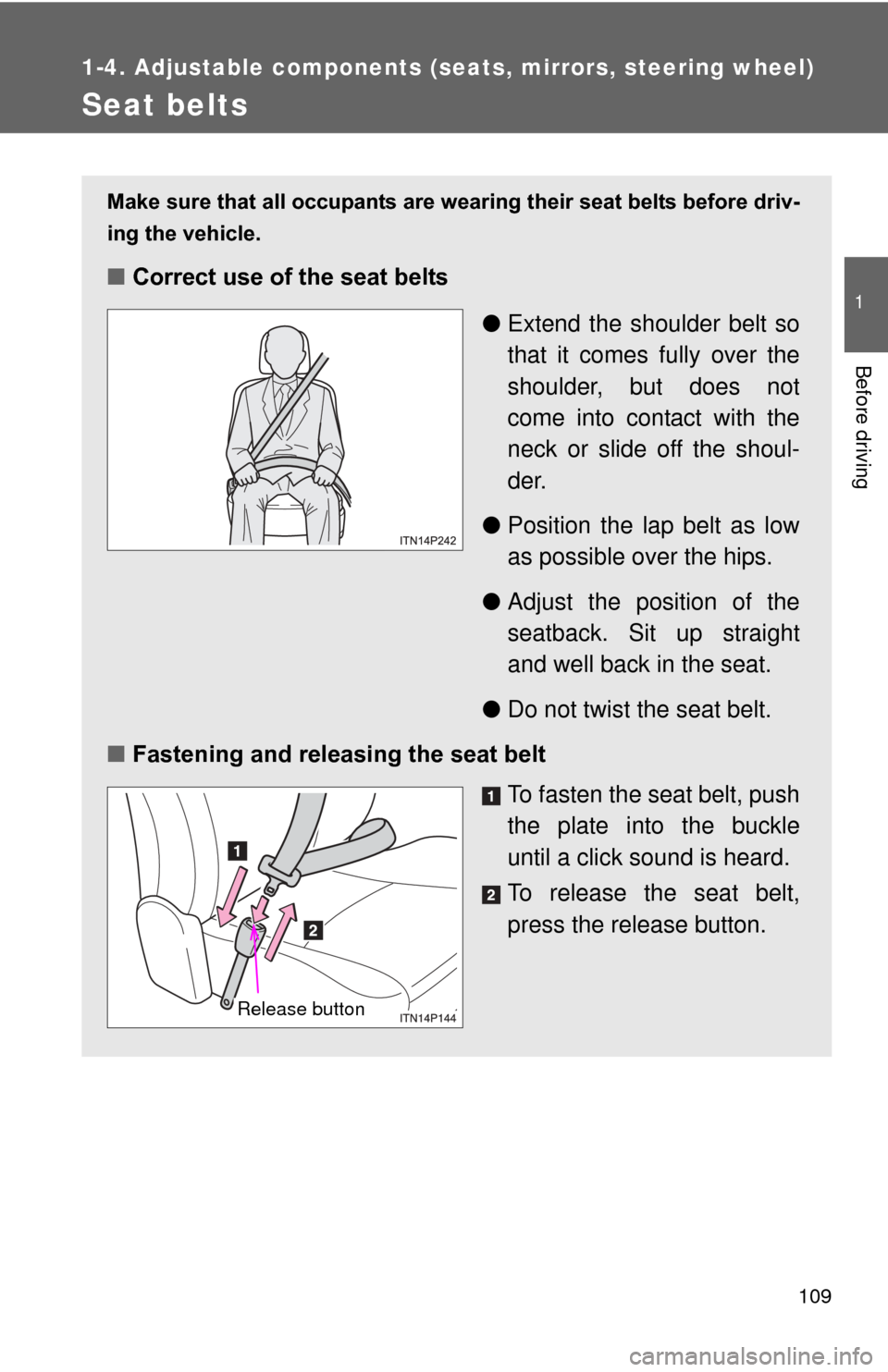

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

110 1-4. Adjustable components (seats, mirrors, steering wheel)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
■Adjusting the seat belt shoulde r anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.

111
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Pre-collision seat belts (front seats of vehicles with pre-collision
system)
If the system determine s that a collision is unavoidable, the front seat
belts will retract before the collision. ( P. 303)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 165)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 160)
● When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 109 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.

112 1-4. Adjustable components (seats, mirrors, steering wheel)
■Seat belt extender
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
● When using the rear outside seat belts, make sure that the belt pass
through the guide.
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.
