4-3. Do-it-yourself maintenance
4
Maintenance and care
Hood

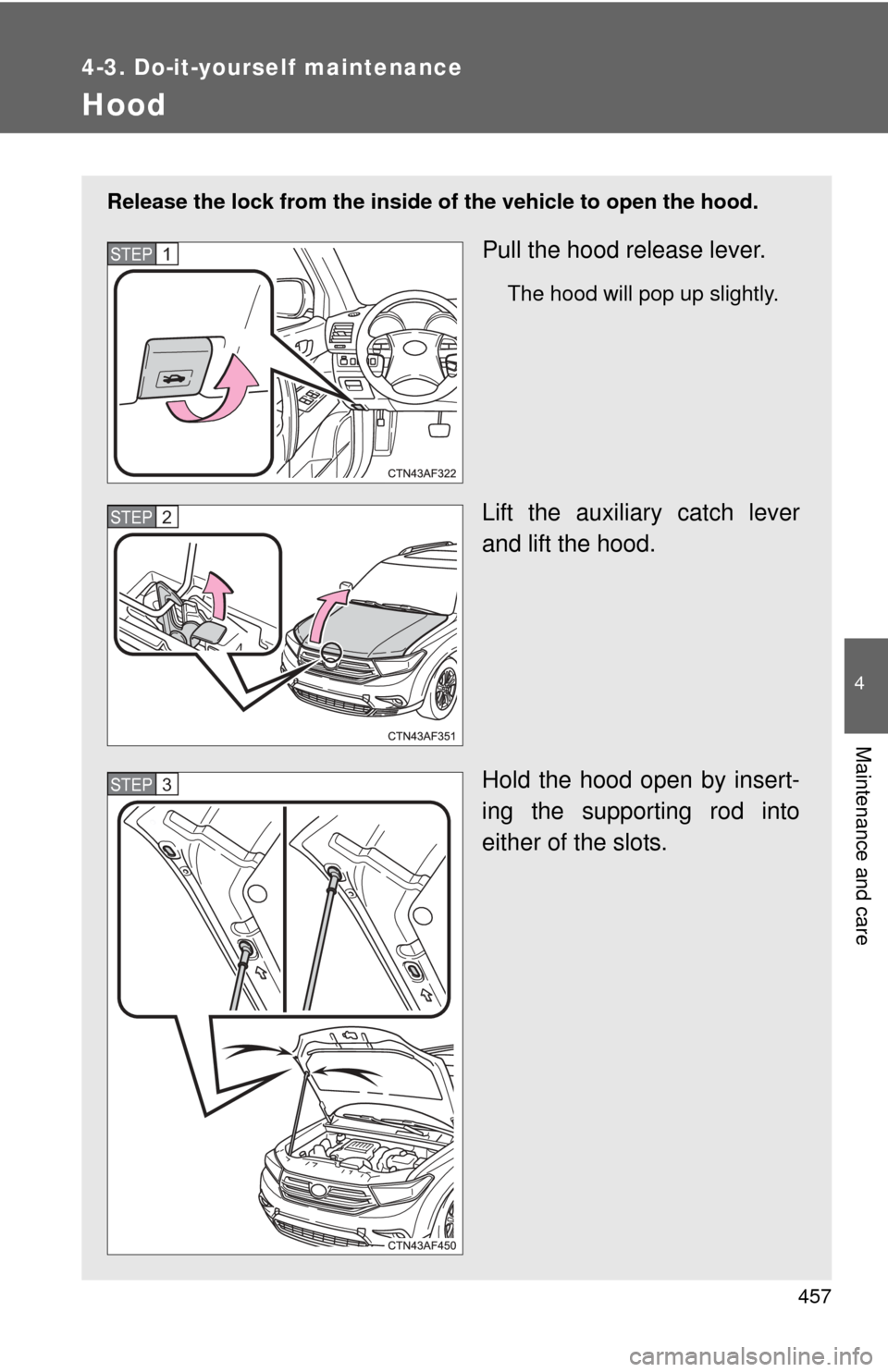

Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the auxiliary catch lever
and lift the hood.
Hold the hood open by insert-
ing the supporting rod into
either of the slots.
STEP1
STEP2
STEP3

458 4-3. Do-it-yourself maintenance
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

459
4-3. Do-it-yourself maintenance
4
Maintenance and care

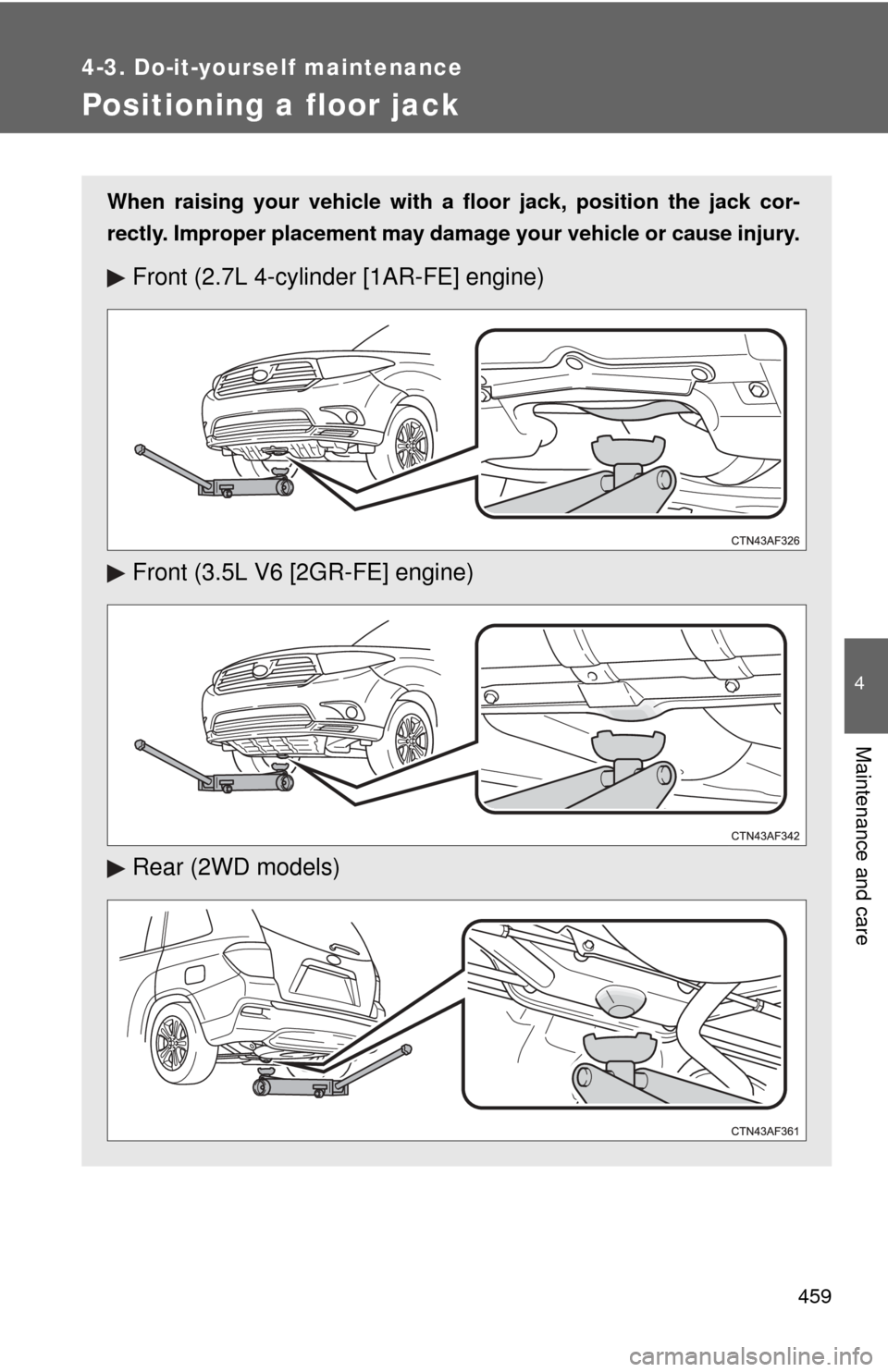

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front (2.7L 4-cylinder [1AR-FE] engine)
Front (3.5L V6 [2GR-FE] engine)
Rear (2WD models)

460 4-3. Do-it-yourself maintenance
Removing the front jack point cover (3.5 L V6 [2GR-FE] engine)Before jacking up the vehicle, remove the jack point cover.
Turn the bolts counterclockwise
and remove them.
Remove the cover.
Rear (4WD models)
STEP1
STEP2

461
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or\
seri-
ous injury.
●When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and shift
the shift lever in P.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

462 4-3. Do-it-yourself maintenance
NOTICE
■Front jack point cover
●After installing the front jack point cover, make sure it is securely in its orig-
inal position.
● Before jacking up your vehicles, remove the front jack point cover. Other-
wise, the cover may be damaged.

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
2.7 L 4-cylinder (1AR-FE) engine
Washer fluid tank (P. 477)
Engine oil filler cap ( P. 467)
Engine oil level dipstick ( P. 466)
Engine coolant reservoir ( P. 469)Battery ( P. 473)
Brake fluid reservoir ( P. 472)
Fuse boxes ( P. 499)
Electric cooling fans
Condenser ( P. 471)
Radiator ( P. 471)

464 4-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FE) engine
Washer fluid tank (P. 477)
Engine oil filler cap ( P. 467)
Engine oil level dipstick ( P. 466)
Engine coolant reservoir ( P. 469)Battery ( P. 473)
Brake fluid reservoir ( P. 472)
Fuse boxes ( P. 499)
Electric cooling fans
Condenser ( P. 471)
Radiator ( P. 471)
