2012 TOYOTA AYGO Owners Manual (in English)

353 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99E96E
Tires and wheels
Tire size 155/65R14 75T
Tire inflation pressure
(Recommended cold
tire inflation pressure)Vehicle speedFront wheel
kPa (kgf/cm
2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)230 (2.3, 34) 230 (2.3, 34)
160 km/h (100
mph) or less220 (2.2, 32) 220 (2.2, 32)
Wheel size 14  4 1/2J
Wheel bolt torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

354 6-1. Specifications
AYGO_WE_99E96E
Light bulbs
A: H4 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights (if equipped) 55 B
Side turn signal lights 5 —
Rear turn signal lights 21 C
Stop/tail lights 21/5 C
License plate lights 5 E
Back-up lights 21 C
Rear fog lights 21 C
High mounted stoplight 5 E
Interior Interior light 5 E

355
6-1. Specifications
6
Vehicle specifications
AYGO_WE_99E96E
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228. For optimum engine performance,
select unleaded gasoline with a Research Octane Number of
95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline. For optimum
engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.

356 6-1. Specifications
AYGO_WE_99E96E
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

Index
357
AYGO_WE_99E96E
Abbreviation list ...................... 358
Alphabetical index................... 359
What to do if... ......................... 366

358
AYGO_WE_99E96E
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/C Air Conditioning
ABS Anti-lock Brake System
ACC Accessory
CRS Child Restraint System
ECU Electronic Control Unit
ELR Emergency Locking Retractor
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
MPAC Maximum Permissible Axle Capacity
SRS Supplemental Restraint System
TRC Traction Control
TWI Treadwear Indicators
VIN Vehicle Identification Number
VSC Vehicle Stability Control

359
AYGO_WE_99E96E

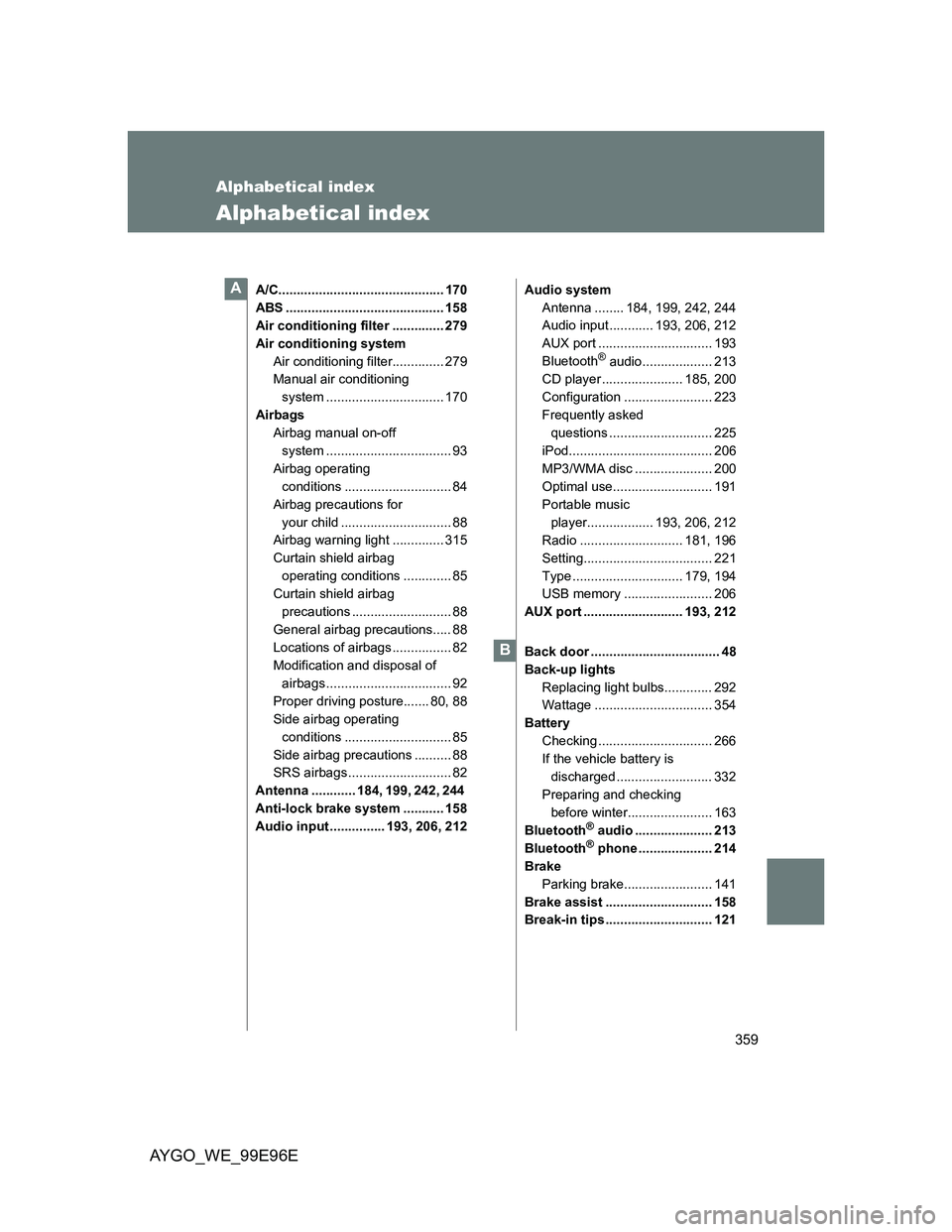

Alphabetical index
Alphabetical index
A/C............................................. 170
ABS ........................................... 158
Air conditioning filter .............. 279
Air conditioning system
Air conditioning filter.............. 279
Manual air conditioning
system ................................ 170
Airbags
Airbag manual on-off
system .................................. 93
Airbag operating
conditions ............................. 84
Airbag precautions for
your child .............................. 88
Airbag warning light .............. 315
Curtain shield airbag
operating conditions ............. 85
Curtain shield airbag
precautions ........................... 88
General airbag precautions..... 88
Locations of airbags ................ 82
Modification and disposal of
airbags .................................. 92
Proper driving posture....... 80, 88
Side airbag operating
conditions ............................. 85
Side airbag precautions .......... 88
SRS airbags ............................ 82
Antenna ............ 184, 199, 242, 244
Anti-lock brake system ........... 158
Audio input ............... 193, 206, 212Audio system
Antenna ........ 184, 199, 242, 244
Audio input ............ 193, 206, 212
AUX port ............................... 193
Bluetooth
® audio................... 213
CD player ...................... 185, 200
Configuration ........................ 223
Frequently asked
questions ............................ 225
iPod....................................... 206
MP3/WMA disc ..................... 200
Optimal use........................... 191
Portable music
player.................. 193, 206, 212
Radio ............................ 181, 196
Setting................................... 221
Type .............................. 179, 194
USB memory ........................ 206
AUX port ........................... 193, 212
Back door ................................... 48
Back-up lights
Replacing light bulbs............. 292
Wattage ................................ 354
Battery
Checking ............................... 266
If the vehicle battery is
discharged .......................... 332
Preparing and checking
before winter....................... 163
Bluetooth
® audio ..................... 213
Bluetooth® phone .................... 214
Brake
Parking brake........................ 141
Brake assist ............................. 158
Break-in tips ............................. 121
A
B

360 Alphabetical index
AYGO_WE_99E96E
Care
Exterior.................................. 242
Interior ................................... 245
Seat belts .............................. 246
CD player .......................... 185, 200
Chains ....................................... 163
Child-protectors ......................... 46
Child restraint system
Baby seats, definition .............. 95
Baby seats, installation ......... 106
Child seats, definition .............. 95
Child seats, installation ......... 106
Installing CRS with ISOFIX
rigid anchor ......................... 110
Installing CRS with seat
belts .................................... 107
Installing CRS with top
straps .................................. 110
Junior seats, definition ............ 95
Junior seats, installation........ 106
Child safety
Airbag precautions .................. 88
Battery precautions ....... 268, 334
Child-protectors....................... 46
Child restraint system ............. 95
How your child should wear
the seat belt .......................... 60
Installing child restraints........ 106
Power window precautions ..... 66
Removed key battery
precautions ......................... 281
Seat belt precautions .............. 61
Cleaning
Exterior.................................. 242
Interior ................................... 245
Seat belts .............................. 246
Clock ......................................... 234
Condenser ................................ 266
Cooling system
Engine overheating ............... 336
Cup holders .............................. 231Curtain shield airbags ............... 82
Daytime running light
system .................................... 150
Defogger
Rear window ......................... 178
Dimension ................................ 344
Do-it-yourself maintenance .... 251
Doors
Back door................................ 48
Door glasses ........................... 66
Door lock........................... 36, 44
Door windows ......................... 66
Rear door child protector ........ 46
Side doors............................... 44
Side mirrors ............................ 65
Driver’s seat belt reminder
light......................................... 316
Driving
Break-in tips .......................... 121
Correct posture ....................... 80
Procedures ........................... 118
Winter driving tips ................. 163
Electric power steering ........... 158
Emergency flashers
Switch ................................... 304
Emergency, in case of
If the engine will not start ...... 329
If the shift lever cannot be
shifted ................................. 330
If the vehicle battery is
discharged .......................... 332
If the warning buzzer
sounds ................................ 312
If the warning light
turns on .............................. 312
If you have a flat tire ............ 318
If you lose your keys ............. 331
If you think something is
wrong.................................. 310C
D
E
