2012 TOYOTA AYGO Owners Manual (in English)

185
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Using the CD player
Loading CD
Insert a CD.
Ejecting CD
Press and remove the CD.
Selecting a tracks
Press “
” to move up or “” to move down using until the
desired track number is displayed.
: If equipped
Vo lu m e Power on/off
Repeat play Playback CD eject Selecting a track,
fast-forwarding or
reversing
Random playbackSearch playback
Fast-forwarding or reversing
Selecting a CD
(with changer only)

186 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
Selecting a CDs (CD player with changer only)
To select the desired CD, press “” or “
” on .
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “ ” or “ ” on .
Scanning a track
Press the “SCAN” button.
The first 10 seconds of each track will be played.
Press the button again when the desired track is reached.
Scanning a CDs (CD player with changer only)
Press and hold the “SCAN” button.
The first 10 seconds of the first track on each CD will be played.
Press the button again when the desired CD is reached.

187 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Random playback
Current CD
Press “RAND” on .
To cancel, press the button again.
All CDs (CD player with changer only)
Press and hold “RAND” on until you hear a beep.
To cancel, press the button again.
Repeat play
To repeat a track
Press “RPT” on .
To cancel, press the button again.
To repeat all of the tracks on a CD (CD player with changer
only)
Press and hold “RPT” on until you hear a beep.
To cancel, press the button again.

188 3-2. Using the audio system (Type A)
AYGO_WE_99E96E

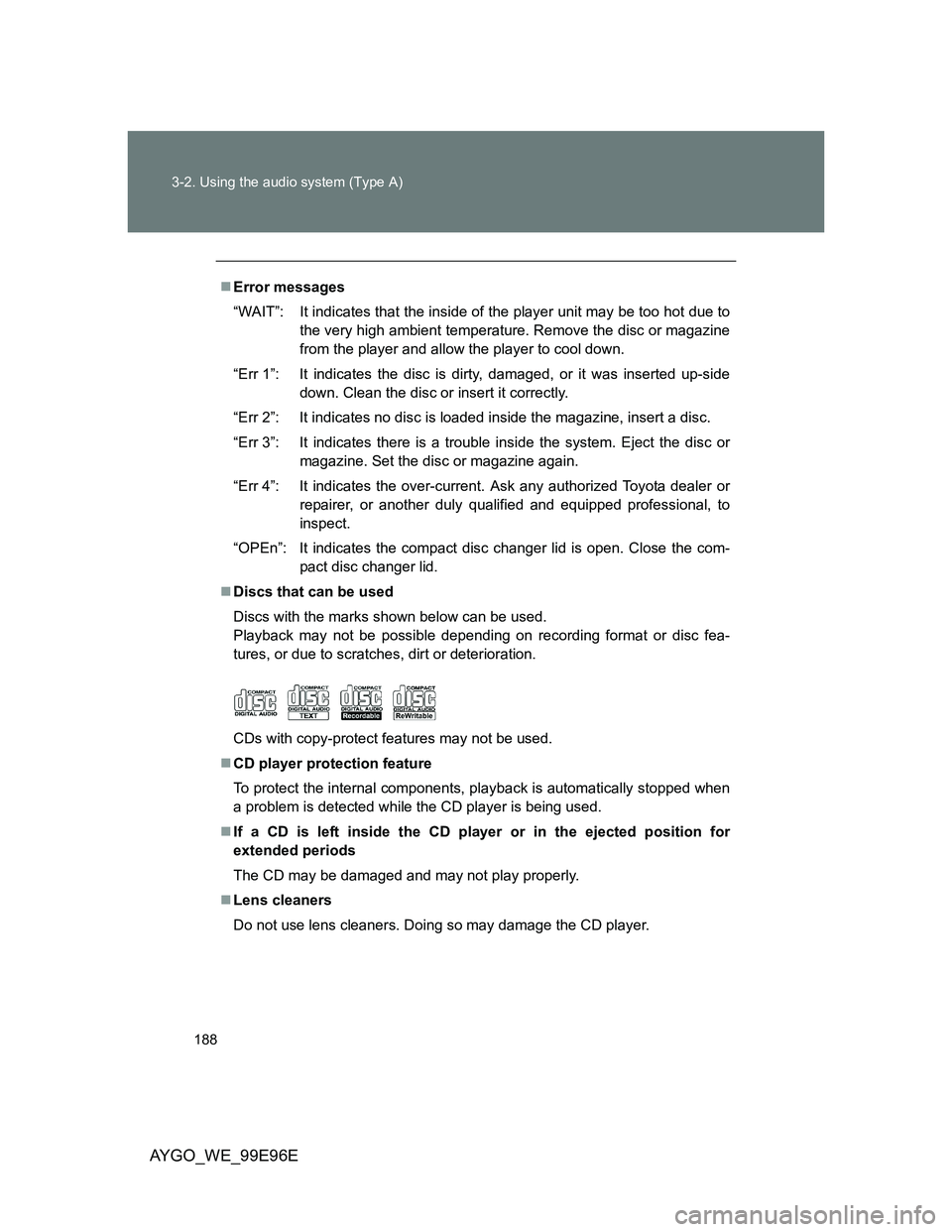

Error messages
“WAIT”: It indicates that the inside of the player unit may be too hot due to
the very high ambient temperature. Remove the disc or magazine
from the player and allow the player to cool down.
“Err 1”: It indicates the disc is dirty, damaged, or it was inserted up-side
down. Clean the disc or insert it correctly.
“Err 2”: It indicates no disc is loaded inside the magazine, insert a disc.
“Err 3”: It indicates there is a trouble inside the system. Eject the disc or
magazine. Set the disc or magazine again.
“Err 4”: It indicates the over-current. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, to
inspect.
“OPEn”: It indicates the compact disc changer lid is open. Close the com-
pact disc changer lid.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for
extended periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

189 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
CAUTION
Certification for the CD player
This product is a class I laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
Laser power: No hazardous
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs or 8 cm (3 in.) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs

190 3-2. Using the audio system (Type A)
AYGO_WE_99E96E
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

191
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99E96E
Optimal use of the audio system
Using the audio control function
Changing sound quality modes
Pressing the “AUDIO CONT” button selects the mode to be
changed in the following order.
“BAS”“TRE”“FAD”“BAL”
: If equipped
Displays the current mode
Changes the sound quality
and volume balance setting
The sound quality and bal-
ance setting can be
changed to produce the
best sound.

192 3-2. Using the audio system (Type A)
AYGO_WE_99E96EAdjusting sound quality
Press “” or “” on adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Sound
quality modeMode
displayedLevelPress “”Press “”
Bass*“BAS”-5 to 5LowHighTreble*“TRE”-5 to 5
Front/rear
volume
balance
“FAD”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BAL”L7 to R7Shifts to leftShifts to right
