297 4-3. Do-it-yourself maintenance
4
Maintenance and care

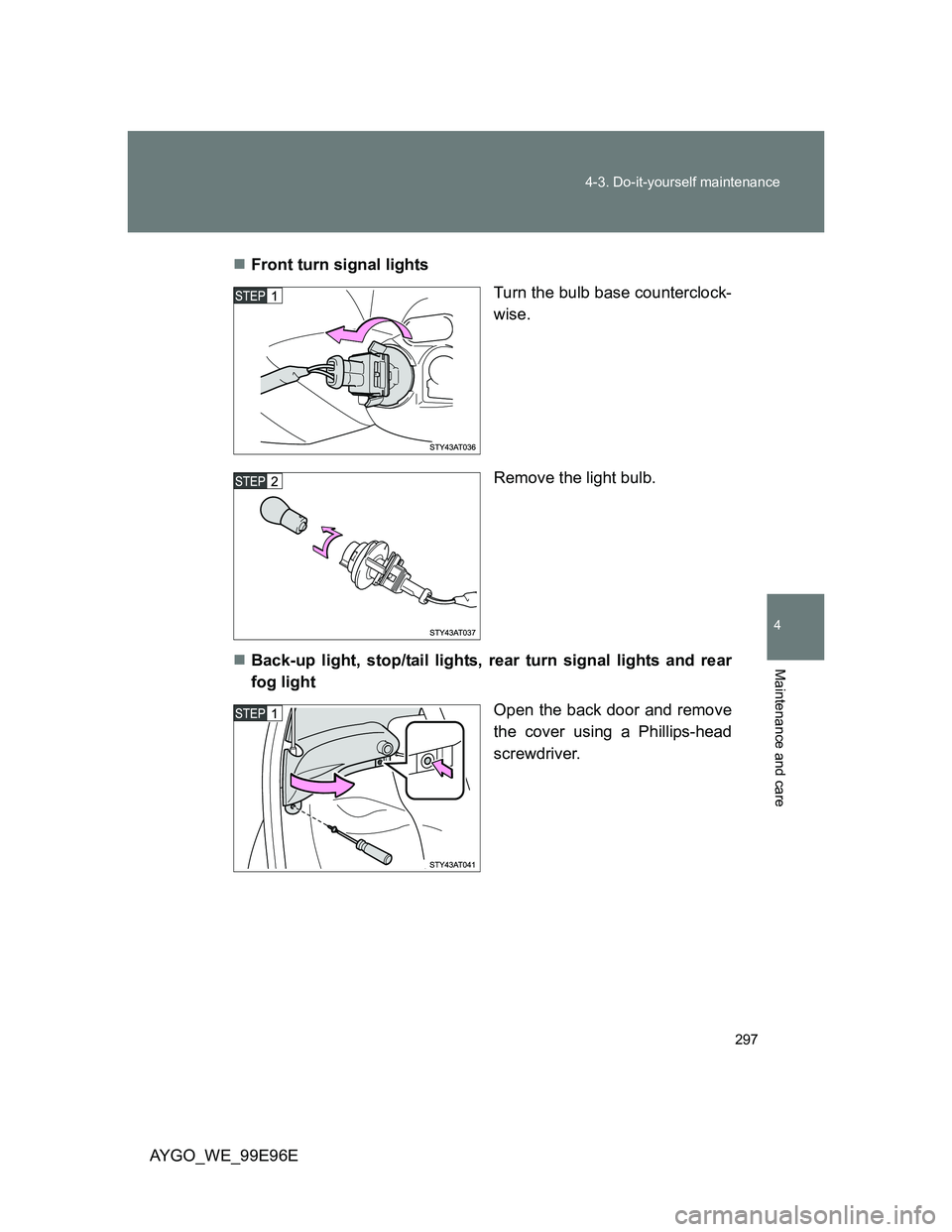

AYGO_WE_99E96EFront turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Back-up light, stop/tail lights, rear turn signal lights and rear
fog light
Open the back door and remove
the cover using a Phillips-head
screwdriver.

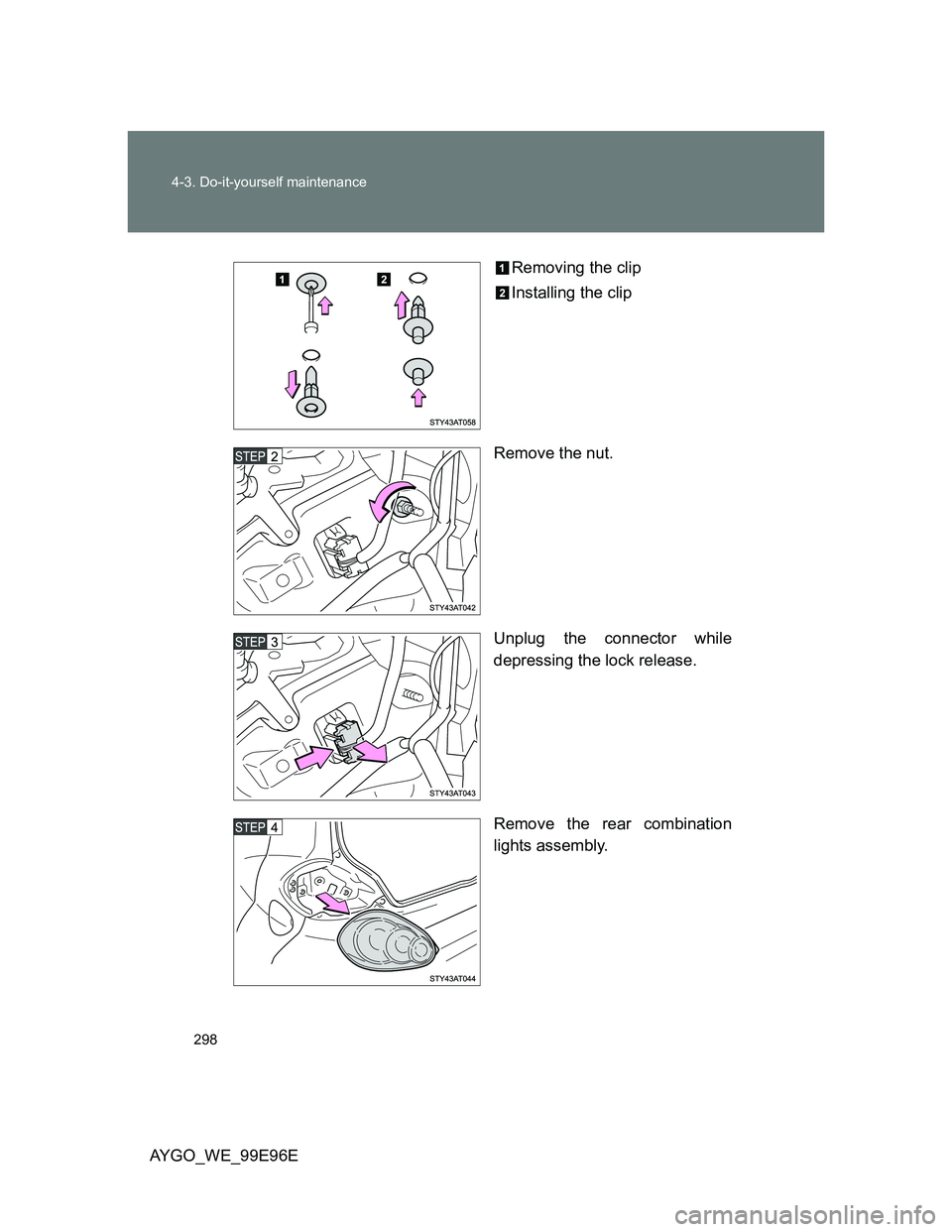

298 4-3. Do-it-yourself maintenance
AYGO_WE_99E96ERemoving the clip
Installing the clip
Remove the nut.
Unplug the connector while
depressing the lock release.
Remove the rear combination
lights assembly.

299 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96ERemove the bulb base.
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog light
High mounted stoplight
Remove the screws using a Phil-
lips-head screwdriver.
Remove the clips by using a flat-
head screwdriver with the tip
wrapped in tape.
Clips

300 4-3. Do-it-yourself maintenance
AYGO_WE_99E96ERemove the bulb base.
Remove the light bulbs.
License plate lights
When the left bulb is needed to replace, detach the right side
license plate light first. Then, remove the left side license plate light
to replace the bulb.
Remove the light.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.

301 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96ETurn the bulb base counterclock-
wise and remove the cover.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
Daytime running lights (if equipped)
When installing the rubber cover of the headlight
Ensure the rubber cover is securely attached.
Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.

302 4-3. Do-it-yourself maintenance
AYGO_WE_99E96E
LED light bulbs
The daytime running lights (if equipped) consist of a number of LEDs. If any
of the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the
light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing the license plate lights
Be careful not to drop the connector into the installation opening when dis-
connecting it. If the connector drops into the opening, please contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, because disassembly is required to pick it up.
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
