2012 RAM CHASSIS CAB Owners Manual

WARNING!• If the black latch and black buckle are not prop-
erly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.
• When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.In Use Position
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47

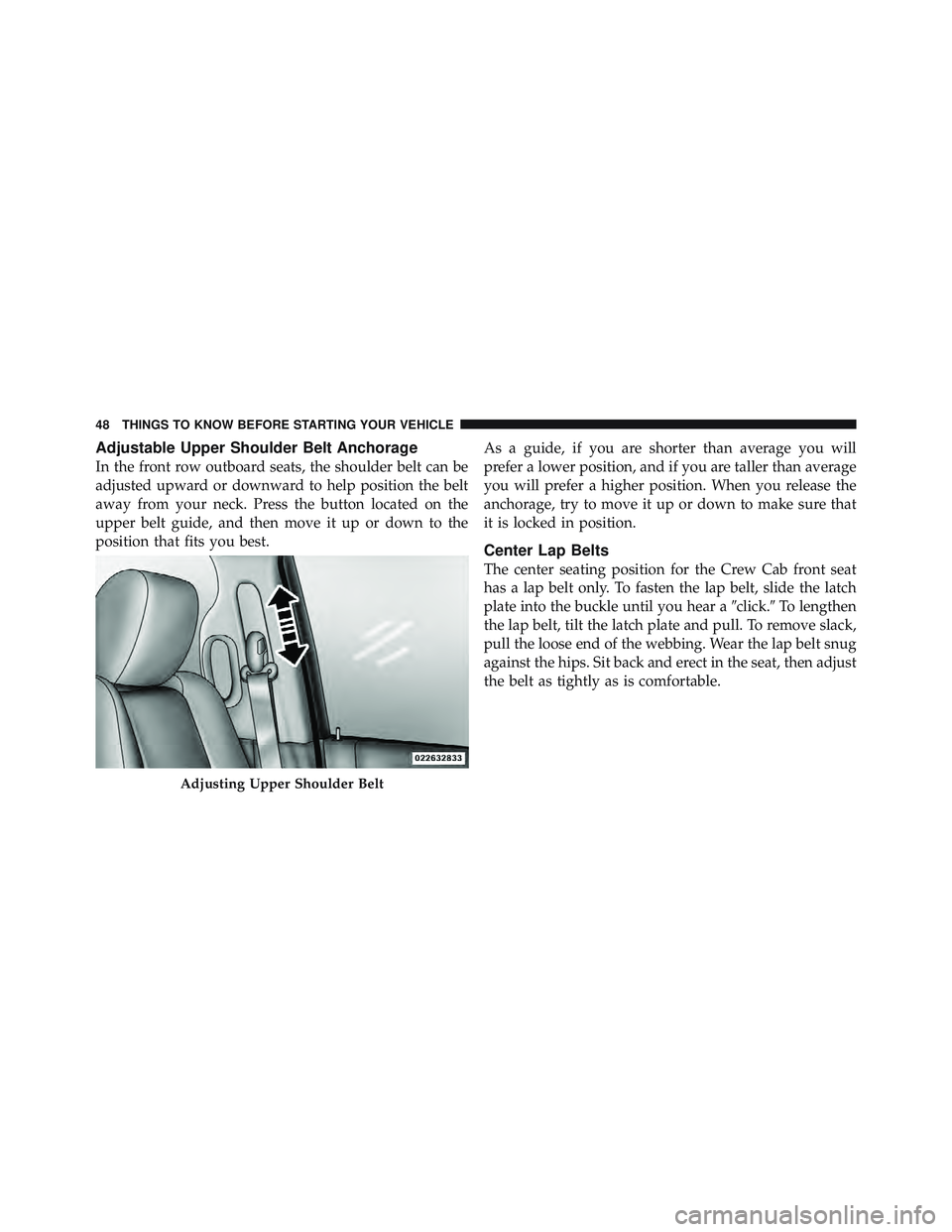

Adjustable Upper Shoulder Belt Anchorage
In the front row outboard seats, the shoulder belt can be
adjusted upward or downward to help position the belt
away from your neck. Press the button located on the
upper belt guide, and then move it up or down to the
position that fits you best. As a guide, if you are shorter than average you will
prefer a lower position, and if you are taller than average
you will prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.
Center Lap Belts
The center seating position for the Crew Cab front seat
has a lap belt only. To fasten the lap belt, slide the latch
plate into the buckle until you hear a  click.  To lengthen
the lap belt, tilt the latch plate and pull. To remove slack,
pull the loose end of the webbing. Wear the lap belt snug
against the hips. Sit back and erect in the seat, then adjust
the belt as tightly as is comfortable.
Adjusting Upper Shoulder Belt48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!• A lap belt worn too loose or too high is dangerous.
• A belt worn too loose can allow you to slip down
and under the belt in a collision.
• A belt that is too loose or too high will apply crash
forces to the abdomen, not to the stronger hip
bones. In either case, the risk of internal injuries is
greater. Wear a lap belt low and snug.
Seat Belts In Passenger Seating Positions
The seat belts in the passenger seating positions are
equipped with an Automatic Locking Retractor (ALR) or
a cinching latch plate which are used to secure a child
restraint system. For additional information refer to
“Installing Child Restraints Using the Vehicle Seat Belt”
under the “Child Restraint” section. The chart below
defines the type of feature for each seating position. Regular Cab
Left Center Right
First Row N/A ALR ALR
• N/A — Not Applicable
• ALR — Automatic Locking Retractor
Crew Cab
Left Center Right
First Row N/A N/A ALR
Second Row ALR Cinch ALR
• N/A — Not Applicable
• ALR — Automatic Locking Retractor
If the passenger seating position is equipped with an
ALR and is being used for normal usage:
Only pull the belt webbing out far enough to comfortably
wrap around the occupants mid-section so as to not 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49

activate the ALR. If the ALR is activated you will hear a
ratcheting sound as the belt retracts. Allow the webbing
to retract completely in this case and then carefully pull
out only the amount of webbing necessary to comfort-
ably wrap around the occupants mid-section. Slide the
latch plate into the buckle until you hear a  click.
Automatic Locking Retractor Mode (ALR) — If
Equipped
In this mode, the shoulder belt is automatically pre-
locked. However, the belt will still retract to remove slack
in the shoulder belt. Use the Automatic Locking Mode
any time a child safety seat is installed in a seating
position that has a seat belt with this feature. Children
12 years old and younger should be properly restrained
in the rear seat whenever possible.
How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
hear a ratcheting sound. This indicates the safety belt is
now in the Automatic Locking mode.
How To Disengage The Automatic Locking Mode
Unbuckle the combination lap and shoulder belt and
allow it to retract completely to disengage the Automatic
Locking mode and activate the vehicle sensitive (emer-
gency) locking mode.
Center Lap Belts — Crew Cab  Only
The front center seating position has a lap belt only. To
fasten the lap belt, slide the latch plate into the buckle
until you hear a “click.” To lengthen the lap belt, tilt the
latch plate and pull. To remove slack, pull the loose end
of the webbing. Wear the lap belt snug against the hips.
Sit back and erect in the seat, then adjust the belt as
tightly as is comfortable.50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Enhanced Seat Belt Use Reminder System
(BeltAlert  )
BeltAlert  is a feature intended to remind the driver and
front passenger (if equipped with front passenger
BeltAlert  ) to fasten their seat belts. The feature is active
whenever the ignition is on. If the driver or front seat
passenger is unbelted, the Seat Belt Reminder Light will
turn on and remain on until both front seat belts are
fastened.
The BeltAlert  warning sequence begins after the vehicle
speed is over 5 mph (8 km/h), by blinking the Seat Belt
Reminder Light and sounding an intermittent chime.
Once the sequence starts, it will continue for the entire
duration or until the respective seatbelts are fastened.
After the sequence completes, the Seat Belt Reminder
Light remains illuminated until the respective seat belts
are fastened. The driver should instruct all other occu-
pants to fasten their seat belts. If a front seat belt is unbuckled while traveling at speeds greater than 5 mph
(8 km/h), BeltAlert  will provide both audio and visual
notification.
The front passenger seat BeltAlert  is not active when the
front passenger seat is unoccupied. BeltAlert  may be
triggered when an animal or heavy object is on the front
passenger seat or when the seat is folded flat (if
equipped). It is recommended that pets be restrained in
the rear seat in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.
BeltAlert  can be enabled or disabled by your authorized
dealer. Chrysler Group LLC does not recommend deac-
tivating BeltAlert  .
NOTE: Although BeltAlert  has been deactivated, the
Seat Belt Reminder Light will continue to illuminate
while the driver ’s or front passenger (if equipped with
BeltAlert  ) seat belt remains unfastened. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51

Seat Belts And Pregnant Women
We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended, your
authorized dealer can provide you with a seat belt
extender. This extender should be used only if the
existing belt is not long enough. When it is not required,
remove the extender and store it. WARNING!Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.
Driver and Right Front Passenger Supplemental
Restraint System (SRS) — Air Bag
This vehicle has Advanced Front Air Bags for both the
driver and front passenger (if equipped) as a supplement
to the seat belt restraint systems. The driver’s Advanced
Front Air Bag is mounted in the center of the steering
wheel. The passenger’s Advanced Front Air Bag is
mounted in the instrument panel, above the glove com-
partment. The words SRS AIRBAG are embossed on the
air bag covers.52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: The Driver and Front Passenger Advanced Front
Air Bags are certified to the new Federal regulations for
Advanced Air Bags. The Advanced Front Air Bags have a multistage inflator
design. This allows the air bag to have different rates of
inflation based on several factors, including the severity
and type of collision.
This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.
This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.
NOTE:
• Air Bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.Advanced Front Air Bag And Knee Bolster Locations 1 — Driver And Passenger
Advanced Front Air Bags
(if equipped) 2 — Knee Bolster
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53

• After any accident, the vehicle should be taken to an
authorized dealer immediately.
Air Bag System Components
Your vehicle may be equipped with the following air bag
system components:
• Occupant Restraint Controller (ORC)
• Air Bag Warning Light
• Steering Wheel and Column
• Instrument Panel
• Knee Impact Bolster
• Driver Advanced Front Air Bag
• Passenger Advanced Front Air Bag
• Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage
driver and front passenger (if equipped) air bags. This
system provides output appropriate to the severity and
type of collision as determined by the Occupant Restraint
Controller (ORC).
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
WARNING!• No objects should be placed over or near the air
bag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the air bag to
inflate.
(Continued)54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
