2012 RAM CHASSIS CAB Owners Manual

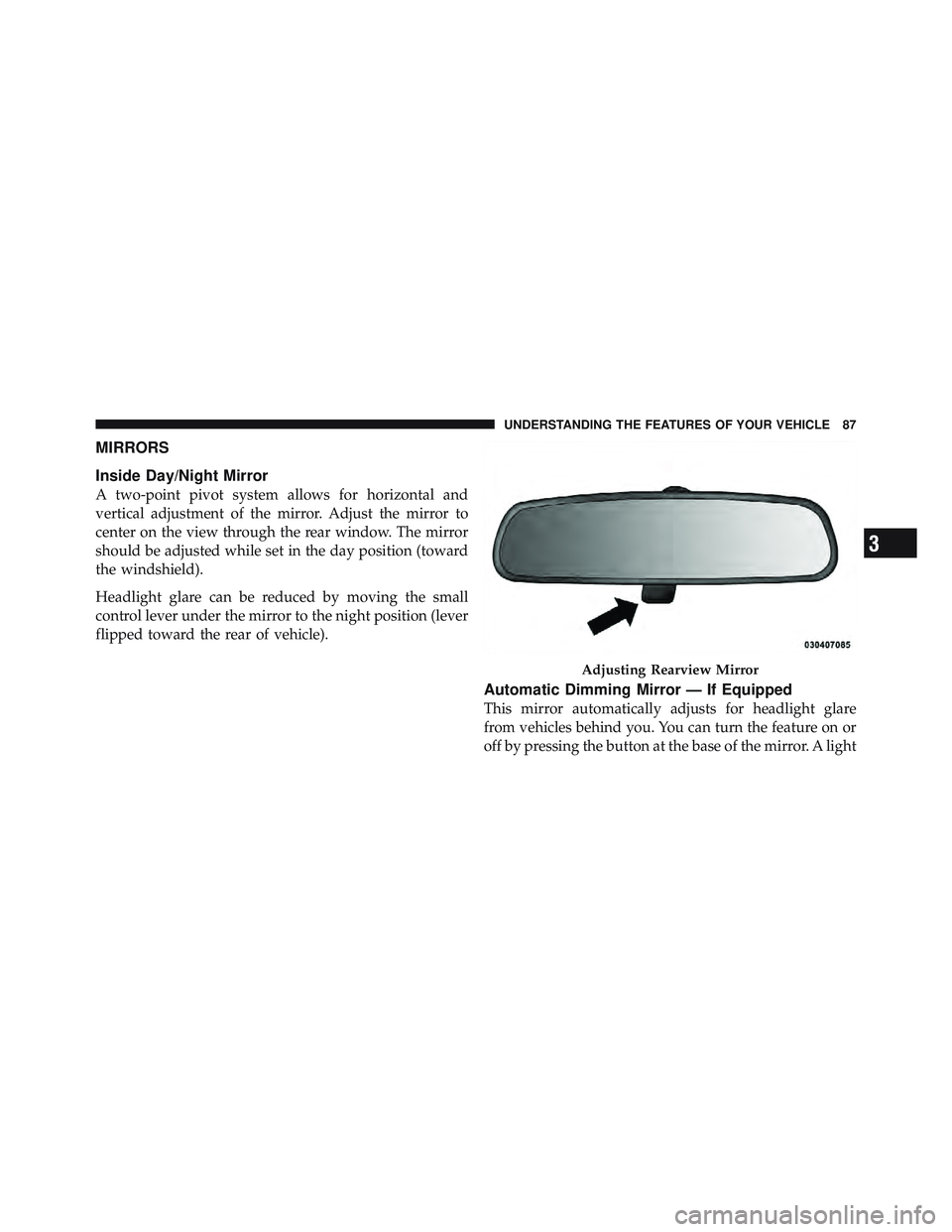

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window. The mirror
should be adjusted while set in the day position (toward
the windshield).
Headlight glare can be reduced by moving the small
control lever under the mirror to the night position (lever
flipped toward the rear of vehicle).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light Adjusting Rearview Mirror
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE: This feature is disabled when the vehicle is
moving in reverse. CAUTION!To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Automatic Dimming Mirror88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!Vehicles and other objects seen in a passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex right side
mirror.
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage.
CAUTION!It is recommended to fold the mirrors into the full
rearward position to resist damage when entering a
car wash or a narrow location. Folding Mirror
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

Power Mirrors — If Equipped
The controls for the power mirrors are located on the
driver’s door trim panel.
The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a mirror, press the mirror select button for the
mirror that you want to adjust. Using the mirror control
switch, press on any of the four arrows for the direction
that you want the mirror to move.Power Mirror Controls Power Mirror Controls1 — Mirror Select Buttons
2 — Mirror Control90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

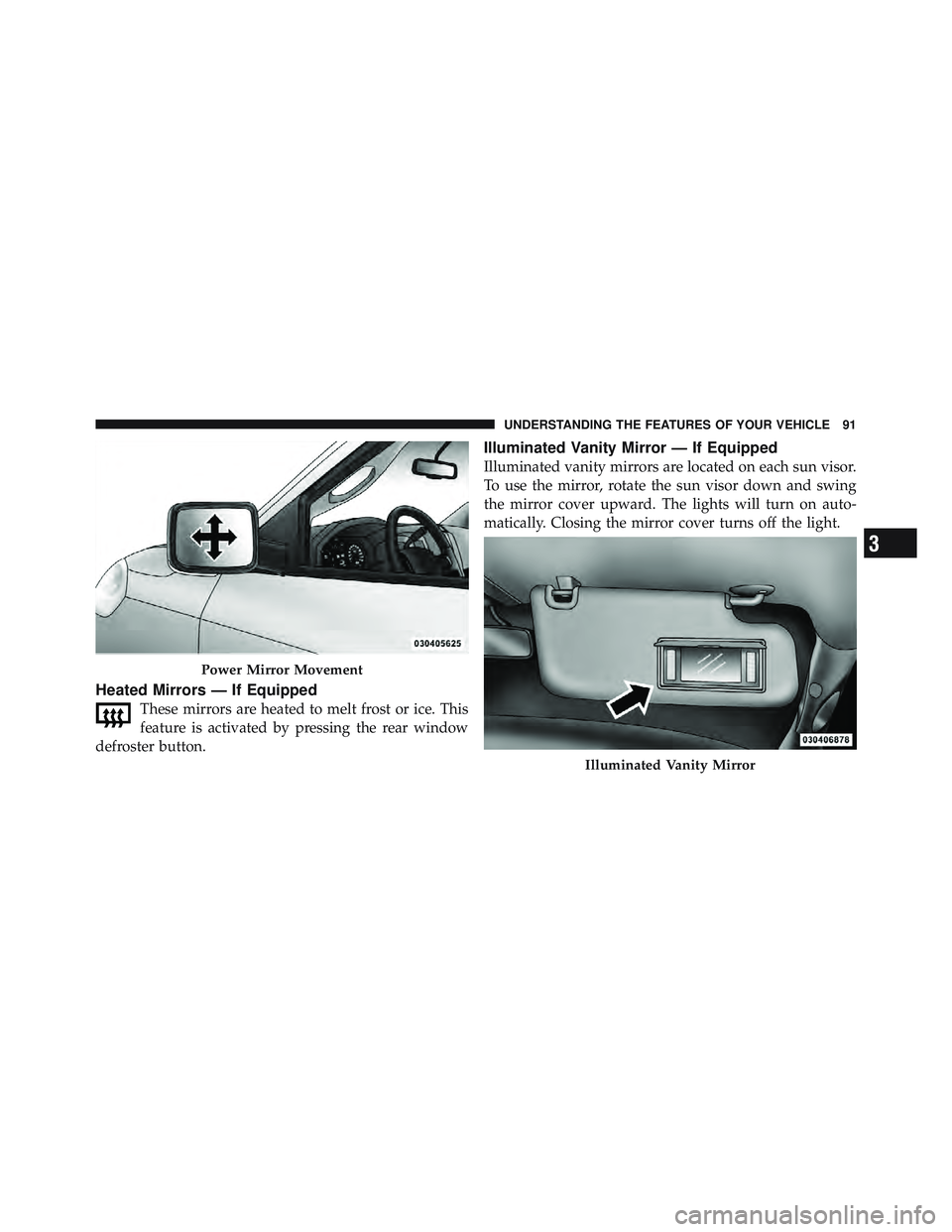

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated by pressing the rear window
defroster button. Illuminated Vanity Mirror — If Equipped
Illuminated vanity mirrors are located on each sun visor.
To use the mirror, rotate the sun visor down and swing
the mirror cover upward. The lights will turn on auto-
matically. Closing the mirror cover turns off the light.
Power Mirror Movement
Illuminated Vanity Mirror
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

“Slide-On-Rod” Features Of Sun Visor — If
Equipped
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.
To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.
Trailer Towing Mirrors — If Equipped
These mirrors are designed with an adjustable mirror
head to provide a greater vision range when towing
extra-wide loads. To change position inboard or out-
board, the mirror head should be rotated (flipped in or
out). Slide-On-Rod Extender92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE: Fold the trailer towing mirrors rearward prior to
entering an automated car wash.
A small blindspot mirror is located next to main mirror
and can be adjusted separately. Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”
“Mike”  “Work” or “Dial”  “248-555-1212”). YourTrailer Towing Position Blindspot Mirror
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
NOTE: The Uconnect™ Phone requires a mobile phone
equipped with the Bluetooth  “Hands-Free Profile”, Ver-
sion 0.96 or higher. See the Uconnect™ website for
supported phones.
For Uconnect™ customer support, visit the following
websites:
• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
• or call 1–877–855–8400 Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth  “Hands-Free Profile” mobile phone.
Uconnect™ features Bluetooth  technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
