2012 RAM CHASSIS CAB Owners Manual

Door Storage
Front Door Storage — If Equipped
Storage areas and bottle holders (drivers side only) are
located in the door trim panels. Rear Door Storage — Crew Cab
Storage compartments are located in both the driver and
passenger door trim panels.
Front Door Storage Rear Door Storage
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

Center Storage Compartment — If Equipped
The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both and upper and
lower storage area.
WARNING!• This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or a collision. Only use the center
seating position when the armrest is fully upright.
• In a collision, the latch may open if the total
weight of the items stored exceeds about 10 lbs
(4.5 kg). These items could be thrown about en-
dangering occupants of the vehicle. Items stored
should not exceed a total of 10 lbs (4.5 kg).
Pull on the upper handle on the front of the armrest to
raise the cover. The upper storage area contains a 12 Volt
power outlet that can be used to power small electrical
devices, refer to “Electrical Power Outlets” for further
information.Center Storage Compartment176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

With the upper lid closed, pull on the lower handle to
open the lower storage bin. Upper Storage Compartment Lower Storage Bin
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

WARNING!Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Storage (Regular Cab)
The storage bin is located behind the front seats and runs
the length of the cab. Drivers Side Seatback Storage178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Storage and Seats (Crew Cab)
The Crew Cab models provide additional storage under
the rear seats. Lift the seats to access the storage com-
partment.
To open the storage compartments, lift upward on the
handle of the latch and open the lid. CAUTION!Always lift the storage compartment lids by using
the handle. Failure to lift the lids by using the handle
can result in damage to the lids.Storage Bin Crew Cab Storage
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

Plastic Grocery Bag Retainers (Regular Cab
Models)
Retainer hooks which will hold plastic grocery bag
handles are built into the back panel of the cab, behind
the seats. REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control panel. Press this button to turn on
the rear window defroster and the heated outside mirrors
(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately
10 minutes. For an additional five minutes of operation,
press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Grocery Bag Hooks180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
• Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.

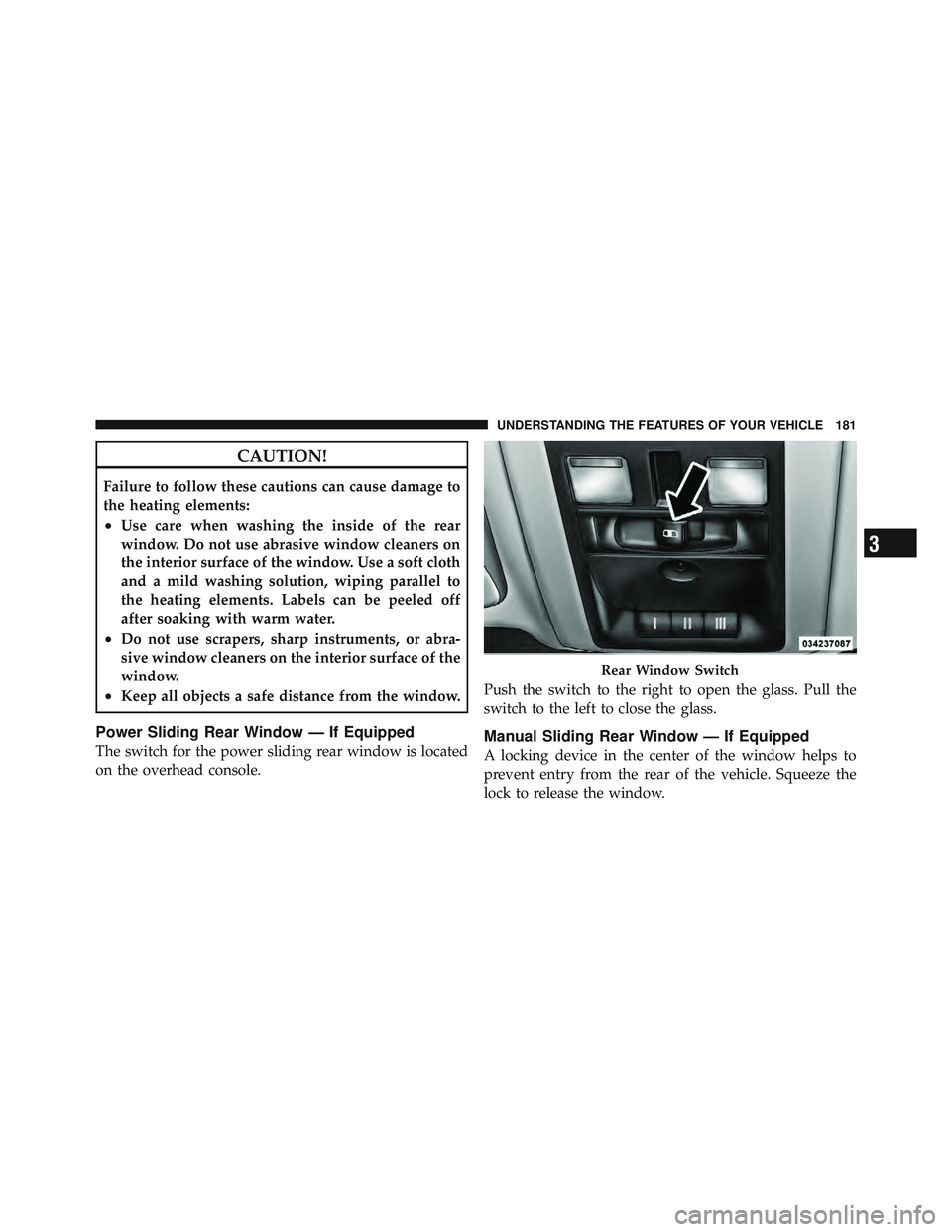

Power Sliding Rear Window — If Equipped
The switch for the power sliding rear window is located
on the overhead console. Push the switch to the right to open the glass. Pull the
switch to the left to close the glass.
Manual Sliding Rear Window — If Equipped
A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the
lock to release the window. Rear Window Switch
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
