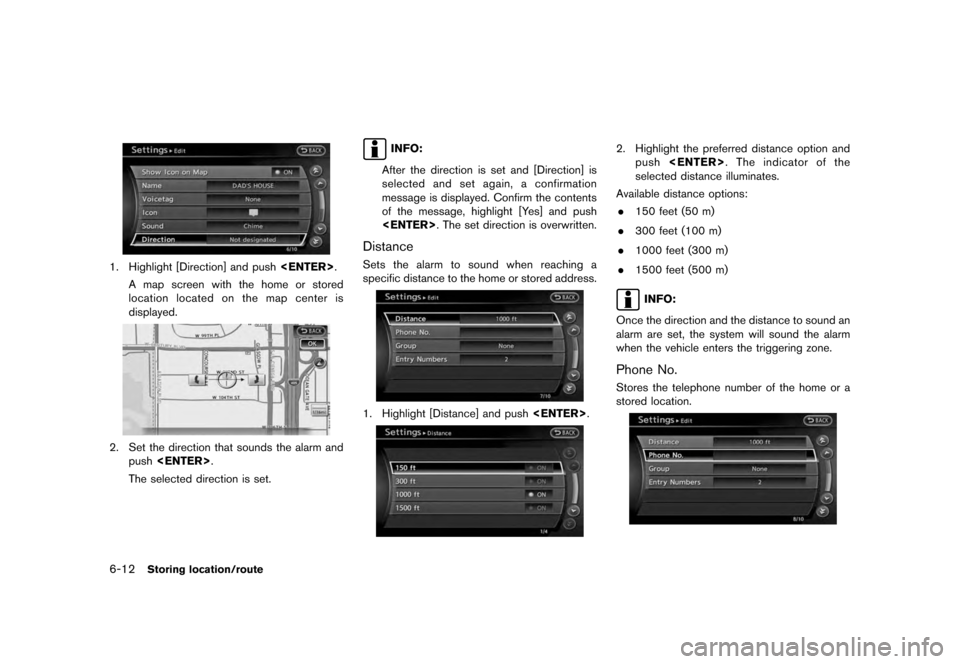

6-12
Storing location/route
1. Highlight [Direction] and push .
A map screen with the home or stored
location located on the map center is
displayed.2. Set the direction that sounds the alarm and push .
The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation
message is displayed. Confirm the contents
of the message, highlight [Yes] and push
. The set direction is overwritten.
DistanceSets the alarm to sound when reaching a
specific distance to the home or stored address.1. Highlight [Distance] and push .
2. Highlight the preferred distance option and
push . The indicator of the
selected distance illuminates.
Available distance options: . 150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone No.Stores the telephone number of the home or a
stored location.

Black plate (127,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

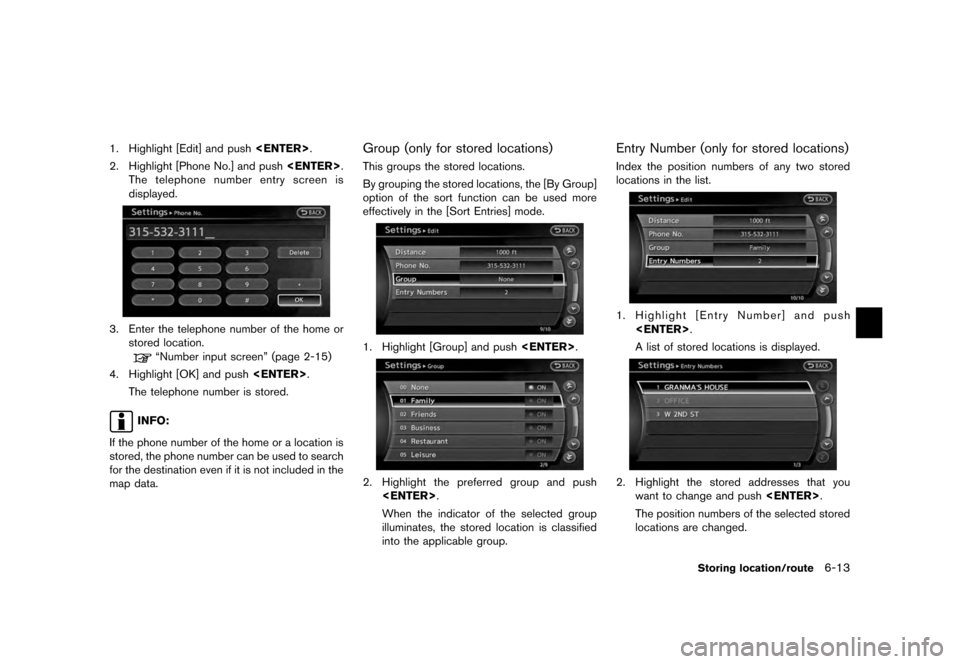

1. Highlight [Edit] and push .
2. Highlight [Phone No.] and push .
The telephone number entry screen is
displayed.3. Enter the telephone number of the home or stored location.
“Number input screen” (page 2-15)
4. Highlight [OK] and push .
The telephone number is stored.
INFO:
If the phone number of the home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in the
map data.
Group (only for stored locations)This groups the stored locations.
By grouping the stored locations, the [By Group]
option of the sort function can be used more
effectively in the [Sort Entries] mode.1. Highlight [Group] and push .2. Highlight the preferred group and push
.
When the indicator of the selected group
illuminates, the stored location is classified
into the applicable group.
Entry Number (only for stored locations)Index the position numbers of any two stored
locations in the list.1. Highlight [Entry Number] and push .
A list of stored locations is displayed.2. Highlight the stored addresses that you want to change and push .
The position numbers of the selected stored
locations are changed.
Storing location/route
6-13

Black plate (128,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-14
Storing location/route
EDITING STORED ROUTE1. Highlight[StoredRoutes]andpush .
2. Highlight the preferred stored route and push .3. Highlight the preferred item to edit from the
list on the right side of the screen and push
.
4. After finishing the editing, highlight [OK] and push .
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available setting items: . [Rename]:
Changes the name.
“Character (letters and numbers) input
screen” (page 2-14)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route.
. [OK]:
Applies the settings.
EDITING STORED TRACKING
1. Highlight [Stored Tracking] and push
.
2. Highlight a stored tracked route and push . When the “ON” indicator is not
illuminated, push . The indicator
illuminates, and the Edit screen is displayed.
If is pushed while the “ON”
indicator is illuminated, the indicator turns
off.3. Highlight the preferred item and push
.
Available setting items (Current tracking): . [View Track]:
Displays the tracked route up to the current
location.
. [Delete]:
Deletes the stored current tracking.
. [OK]:
Applies the settings.

Black plate (129,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

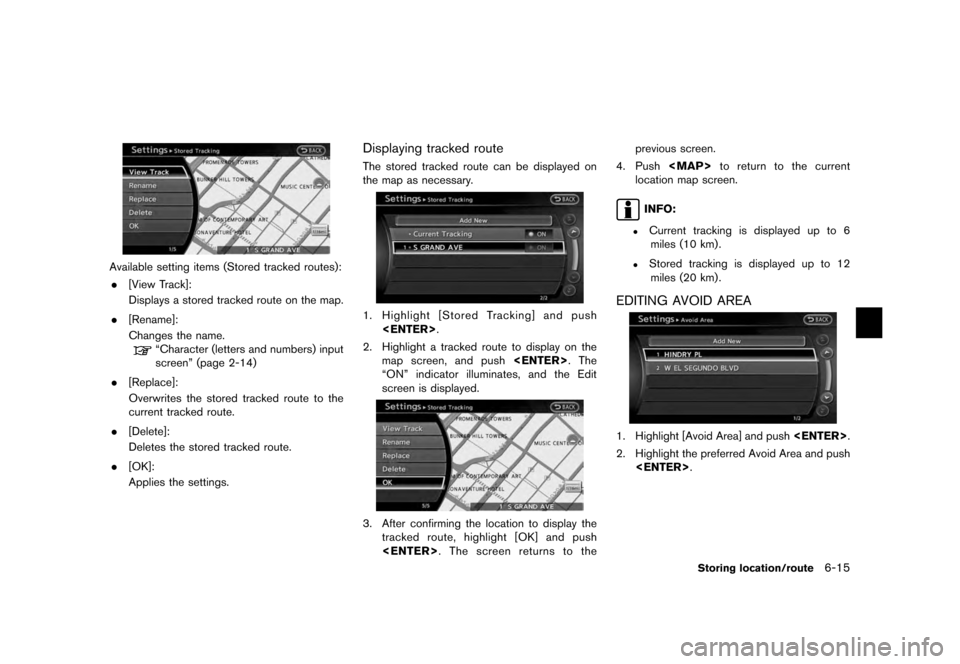

Available setting items (Stored tracked routes): . [View Track]:
Displays a stored tracked route on the map.
. [Rename]:
Changes the name.
“Character (letters and numbers) input
screen” (page 2-14)
. [Replace]:
Overwrites the stored tracked route to the
current tracked route.
. [Delete]:
Deletes the stored tracked route.
. [OK]:
Applies the settings.
Displaying tracked routeThe stored tracked route can be displayed on
the map as necessary.1. Highlight [Stored Tracking] and push
.
2. Highlight a tracked route to display on the map screen, and push .The
“ON” indicator illuminates, and the Edit
screen is displayed.3. After confirming the location to display the tracked route, highlight [OK] and push
. The screen returns to the previous screen.
4. Push

Black plate (130,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

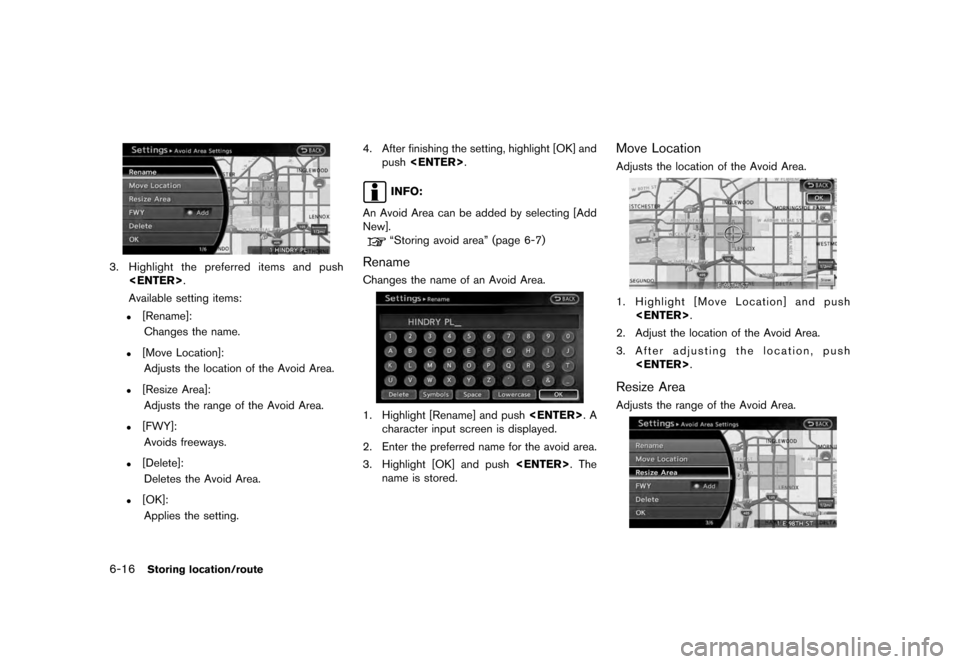

6-16
Storing location/route
3. Highlight the preferred items and push .
Available setting items:
.
[Rename]: Changes the name.
.
[Move Location]:Adjusts the location of the Avoid Area.
.
[Resize Area]:
Adjusts the range of the Avoid Area.
.
[FWY]:Avoids freeways.
.
[Delete]:Deletes the Avoid Area.
.
[OK]:Applies the setting. 4. After finishing the setting, highlight [OK] and
push .
INFO:
An Avoid Area can be added by selecting [Add
New].“Storing avoid area” (page 6-7)
RenameChanges the name of an Avoid Area.1. Highlight [Rename] and push .A
character input screen is displayed.
2. Enter the preferred name for the avoid area.
3. Highlight [OK] and push . The
name is stored.
Move LocationAdjusts the location of the Avoid Area.1. Highlight [Move Location] and push .
2. Adjust the location of the Avoid Area.
3. After adjusting the location, push .Resize AreaAdjusts the range of the Avoid Area.

Black plate (131,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
1. Highlight [Resize Area] and push .
2. Highlight the range from 5 available levels.
3. After highlight ing the range, push
.
INFO:
Push or (if so
equipped) to change the scale of the map.
FWYSets the route to avoid freeways.1. Highlight [FWY].
To include freeways in the Avoid Area, push
to illuminate this indicator.
2. The Avoid Area is displayed in green if it
includes a freeway or in blue if it does not
include a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance.
DeleteDeletes the Avoid Area.
1. Highlight [Delete] and push .2. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push . The stored item
is deleted from the Address Book.
Storing location/route
6-17

Black plate (133,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

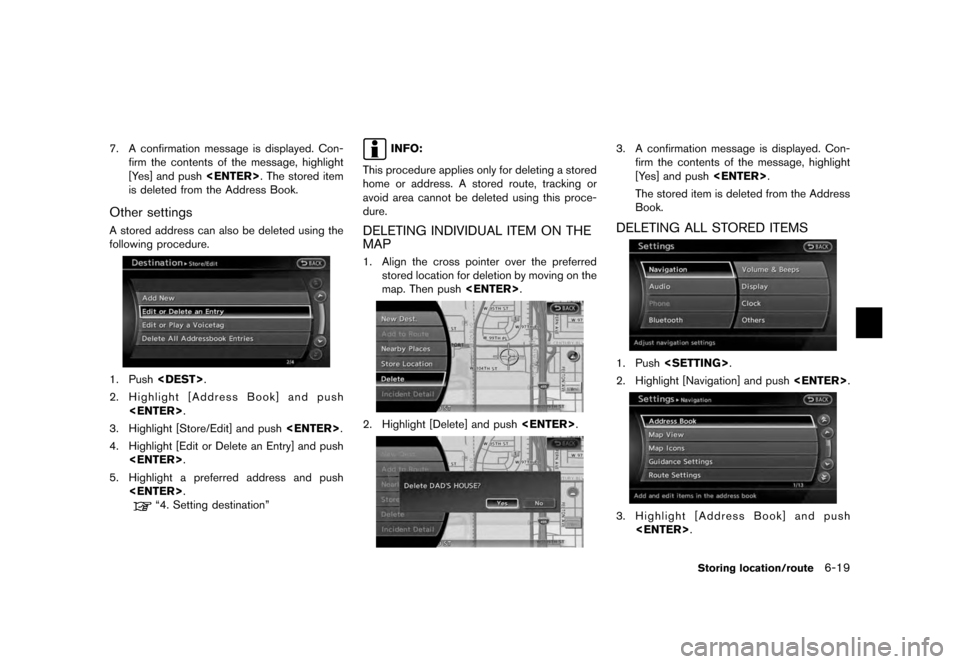

7. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The stored item
is deleted from the Address Book.Other settingsA stored address can also be deleted using the
following procedure.1. Push .
2. Highlight [Address Book] and push .
3. Highlight [Store/Edit] and push .
4. Highlight [Edit or Delete an Entry] and push .
5. Highlight a preferred address and push .
“4. Setting destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this proce-
dure.
DELETING INDIVIDUAL ITEM ON THE
MAP1. Align the cross pointer over the preferred stored location for deletion by moving on the
map. Then push .2. Highlight [Delete] and push .
3. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The stored item is deleted from the Address
Book.DELETING ALL STORED ITEMS1. Push .
2. Highlight [Navigation] and push .3. Highlight [Address Book] and push
.
Storing location/route
6-19

Black plate (134,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-20
Storing location/route
4. Highlight [Delete Stored Items] and push .5. Highlight the preferred item for deletion and
push .
Items that can be deleted
.
[Delete Home Location]: Deletes the home location.
.
[Delete Address Book]:Deletes all stored locations.
.
[Delete Stored Routes]:Deletes all stored routes.
.
[Delete Current Tracking]:Deletes the current tracked route.
.
[Delete Stored Tracking]:Deletes all stored tracked routes.
.
[Delete Avoid Areas]:Deletes all stored Avoid Areas.
.
[Delete Stored Voicetags]:Deletes all stored voicetags.
.
[Delete Previous Destinations]:Deletes all or one of the previous
destinations.
.
[Delete Previous Start Point]:Deletes all previous start points.
.
[Delete Learned Route]:Deletes all system learned routes.
6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The stored items
are deleted from the Address Book.Other settingsAll stored addresses can also be deleted using
the following procedure.1. Push .
2. Highlight [Address Book] and push .
