2012 NISSAN QUEST display

Black plate (144,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-8
Viewing technical information

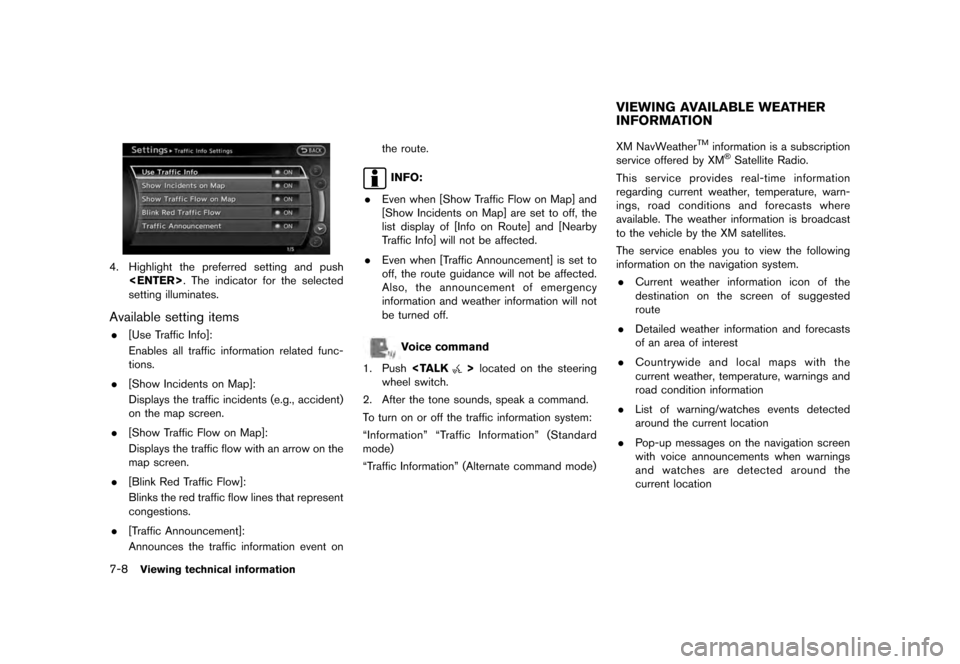

4. Highlight the preferred setting and push . The indicator for the selected
setting illuminates.Available setting items. [Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Blink Red Traffic Flow]:
Blinks the red traffic flow lines that represent
congestions.
. [Traffic Announcement]:
Announces the traffic information event on the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency
information and weather information will not
be turned off.Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To turn on or off the traffic information system:
“Information” “Traffic Information” (Standard
mode)
“Traffic Information” (Alternate command mode) XM NavWeather
TM
information is a subscription
service offered by XM®Satellite Radio.
This service provides real-time information
regarding current weather, temperature, warn-
ings, road conditions and forecasts where
available. The weather information is broadcast
to the vehicle by the XM satellites.
The service enables you to view the following
information on the navigation system. . Current weather information icon of the
destination on the screen of suggested
route
. Detailed weather information and forecasts
of an area of interest
. Countrywide and local maps with the
current weather, temperature, warnings and
road condition information
. List of warning/watches events detected
around the current location
. Pop-up messages on the navigation screen
with voice announcements when warnings
and watches are detected around the
current location
VIEWING AVAILABLE WEATHER
INFORMATION

Black plate (145,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

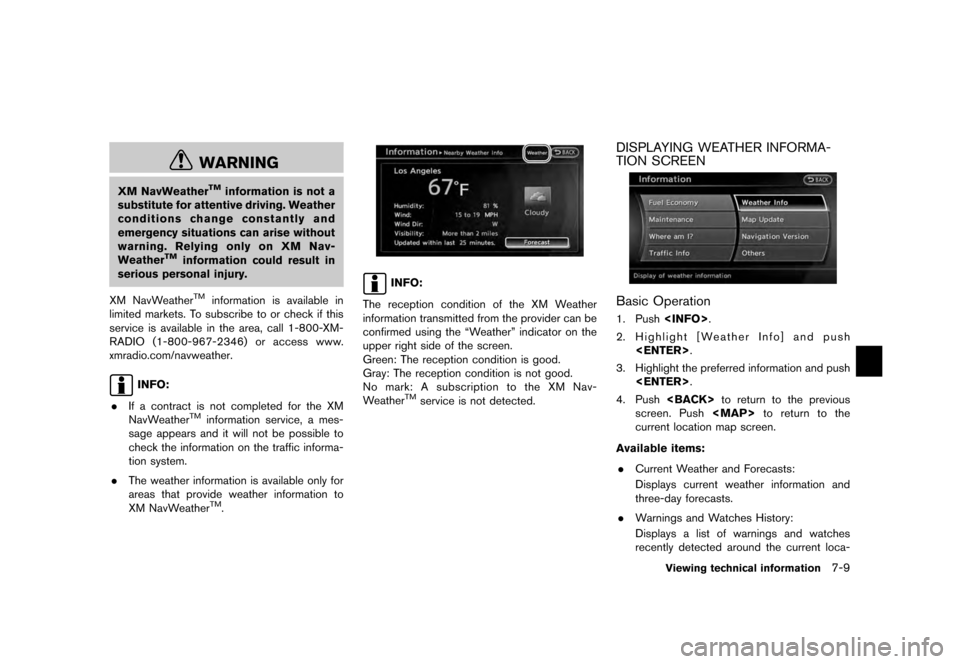

WARNING
XM NavWeather
TM
information is not a
substitute for attentive driving. Weather
conditions change constantly and
emergency situations can arise without
warning. Relying only on XM Nav-
Weather
TM
information could result in
serious personal injury.
XM NavWeatherTM
information is available in
limited markets. To subscribe to or check if this
service is available in the area, call 1-800-XM-
RADIO (1-800-967-2346) or access www.
xmradio.com/navweather.
INFO:
. If a contract is not completed for the XM
NavWeather
TM
information service, a mes-
sage appears and it will not be possible to
check the information on the traffic informa-
tion system.
. The weather information is available only for
areas that provide weather information to
XM NavWeatherTM.
INFO:
The reception condition of the XM Weather
information transmitted from the provider can be
confirmed using the “Weather” indicator on the
upper right side of the screen.
Green: The reception condition is good.
Gray: The reception condition is not good.
No mark: A subscription to the XM Nav-
Weather
TM
service is not detected.
DISPLAYING WEATHER INFORMA-
TION SCREENBasic Operation1. Push .
2. Highlight [Weather Info] and push .
3. Highlight the preferred information and push .
4. Push to return to the previous
screen. Push

Black plate (146,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-10
Viewing technical information
tion.

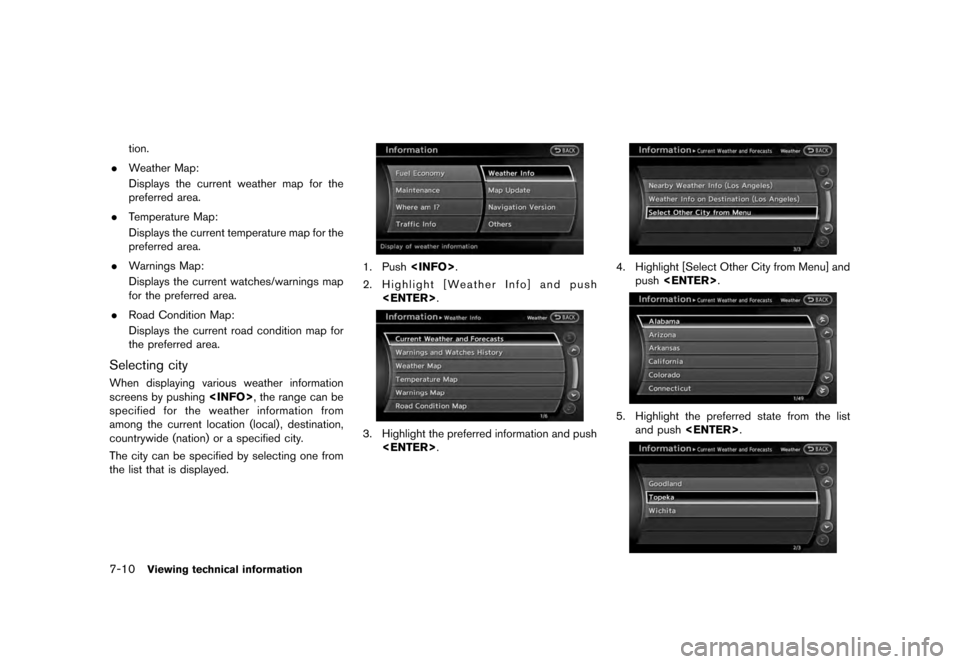

. Weather Map:
Displays the current weather map for the
preferred area.
. Temperature Map:
Displays the current temperature map for the
preferred area.
. Warnings Map:
Displays the current watches/warnings map
for the preferred area.
. Road Condition Map:
Displays the current road condition map for
the preferred area.
Selecting cityWhen displaying various weather information
screens by pushing , the range can be
specified for the weather information from
among the current location (local) , destination,
countrywide (nation) or a specified city.
The city can be specified by selecting one from
the list that is displayed.
1. Push .
2. Highlight [Weather Info] and push .3. Highlight the preferred information and push
.
4. Highlight [Select Other City from Menu] and
push .5. Highlight the preferred state from the list
and push .

Black plate (147,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

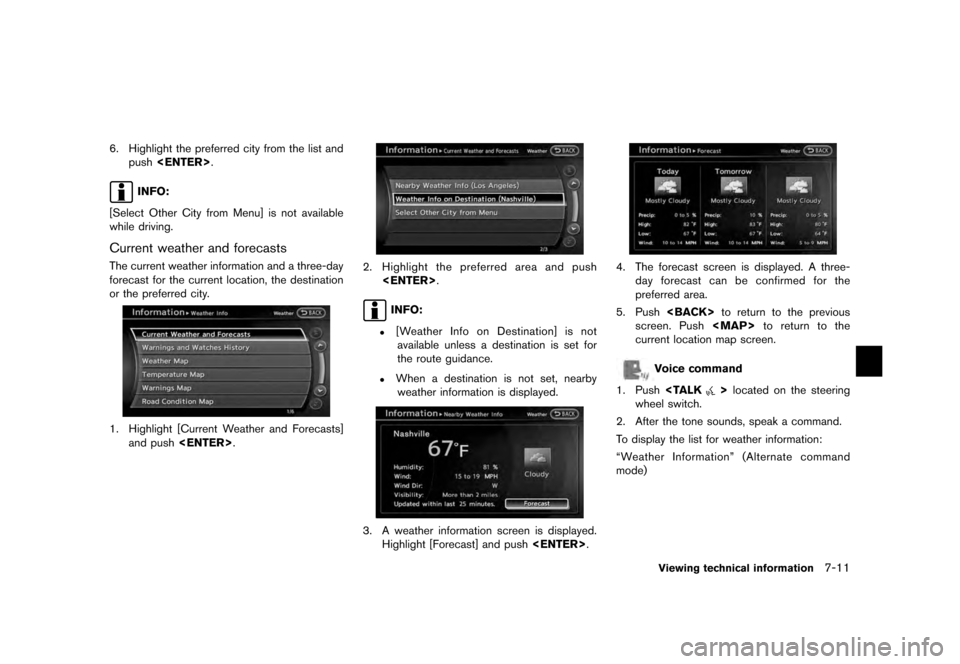

6. Highlight the preferred city from the list and push .
INFO:
[Select Other City from Menu] is not available
while driving.
Current weather and forecastsThe current weather information and a three-day
forecast for the current location, the destination
or the preferred city.1. Highlight [Current Weather and Forecasts] and push .
2. Highlight the preferred area and push
.
INFO:.
[Weather Info on Destination] is not
available unless a destination is set for
the route guidance.
.
When a destination is not set, nearby weather information is displayed.
3. A weather information screen is displayed.
Highlight [Forecast] and push .
4. The forecast screen is displayed. A three-
day forecast can be confirmed for the
preferred area.
5. Push to return to the previous
screen. Push

Black plate (148,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-12
Viewing technical information

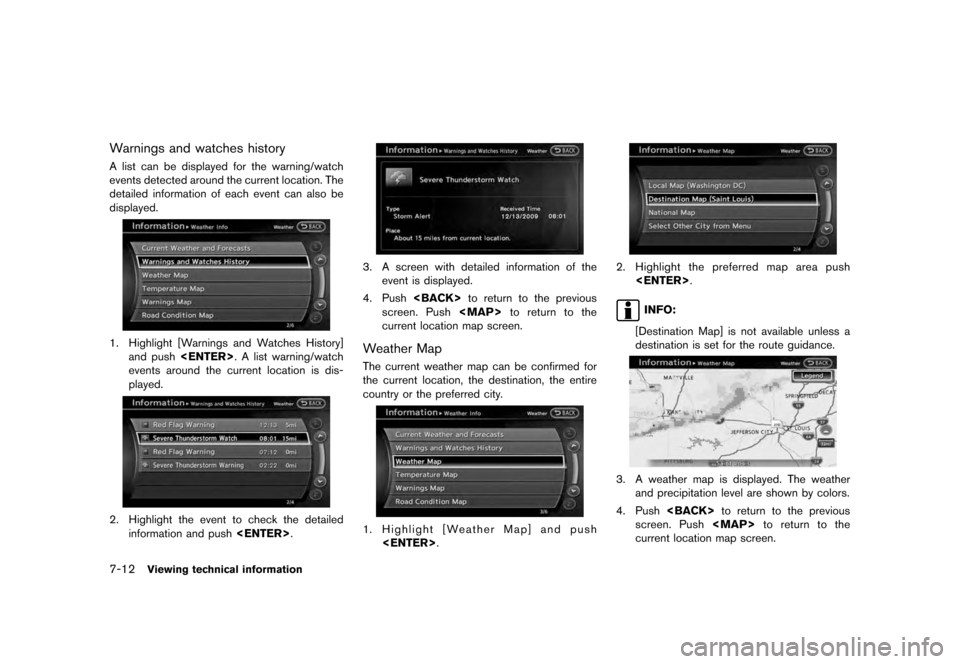

Warnings and watches historyA list can be displayed for the warning/watch
events detected around the current location. The
detailed information of each event can also be
displayed.1. Highlight [Warnings and Watches History] and push . A list warning/watch
events around the current location is dis-
played.2. Highlight the event to check the detailed information and push .
3. A screen with detailed information of the
event is displayed.
4. Push to return to the previous
screen. Push

Black plate (149,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
INFO:

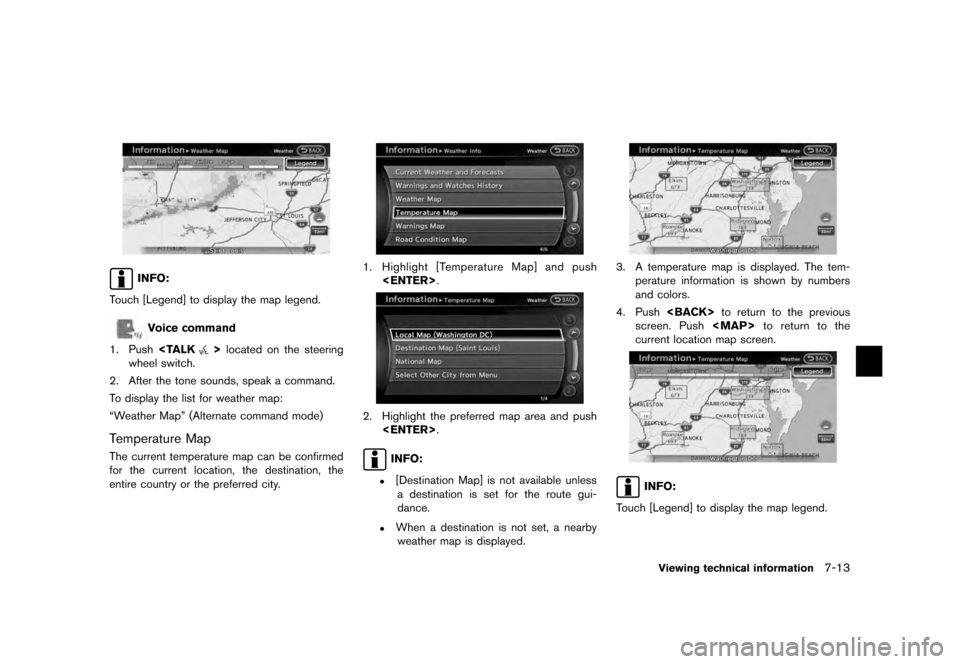

Touch [Legend] to display the map legend.Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the list for weather map:
“Weather Map” (Alternate command mode)
Temperature MapThe current temperature map can be confirmed
for the current location, the destination, the
entire country or the preferred city.
1. Highlight [Temperature Map] and push .2. Highlight the preferred map area and push
.
INFO:.
[Destination Map] is not available unless
a destination is set for the route gui-
dance.
.
When a destination is not set, a nearbyweather map is displayed.
3. A temperature map is displayed. The tem- perature information is shown by numbers
and colors.
4. Push to return to the previous
screen. Push

Black plate (150,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-14
Viewing technical information

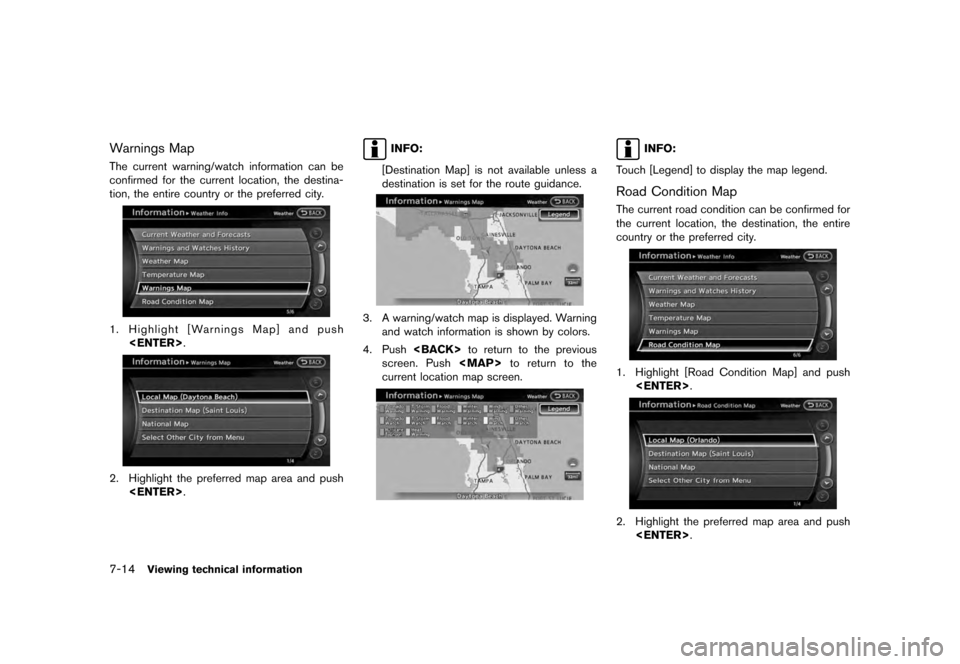

Warnings MapThe current warning/watch information can be
confirmed for the current location, the destina-
tion, the entire country or the preferred city.1. Highlight [Warnings Map] and push .2. Highlight the preferred map area and push
.
INFO:
[Destination Map] is not available unless a
destination is set for the route guidance.
3. A warning/watch map is displayed. Warning and watch information is shown by colors.
4. Push to return to the previous
screen. Push

Black plate (151,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

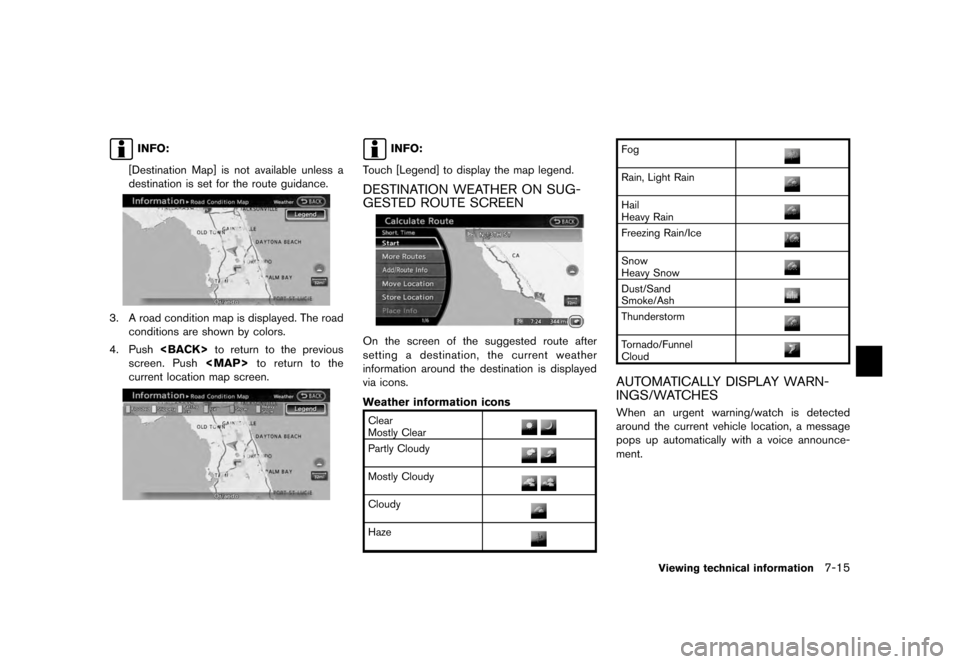

INFO:
[Destination Map] is not available unless a
destination is set for the route guidance.
3. A road condition map is displayed. The road conditions are shown by colors.
4. Push to return to the previous
screen. Push
