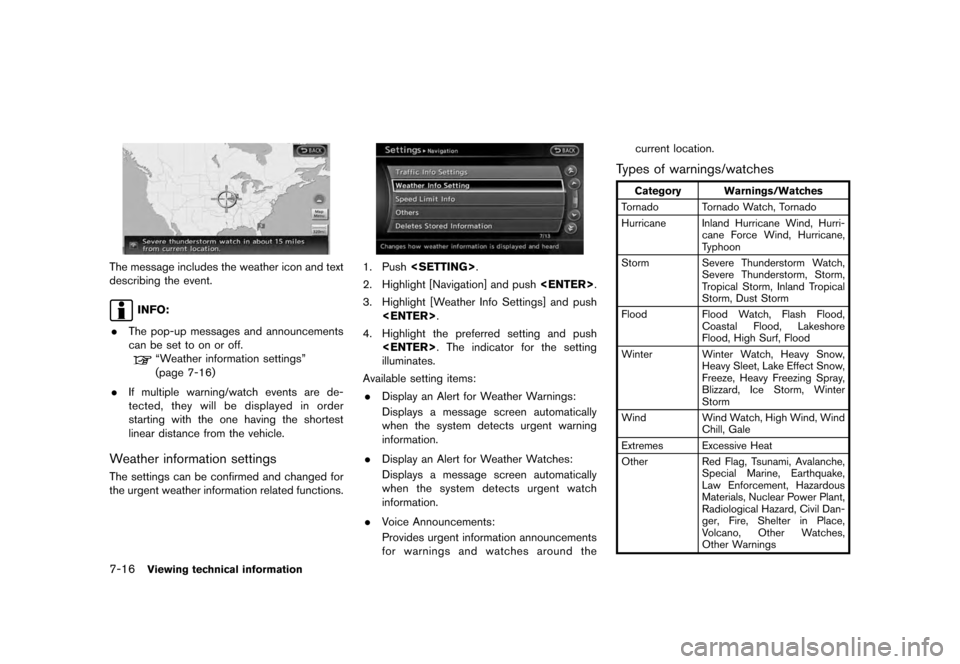

2012 NISSAN QUEST display

Black plate (152,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-16
Viewing technical information
The message includes the weather icon and text
describing the event.
INFO:
. The pop-up messages and announcements
can be set to on or off.
“Weather information settings”
(page 7-16)
. If multiple warning/watch events are de-
tected, they will be displayed in order
starting with the one having the shortest
linear distance from the vehicle.
Weather information settingsThe settings can be confirmed and changed for
the urgent weather information related functions.
1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Weather Info Settings] and push .
4. Highlight the preferred setting and push . The indicator for the setting
illuminates.
Available setting items: . Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
. Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
. Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current location.
Types of warnings/watches
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurri- cane Force Wind, Hurricane,
Typhoon
Storm Severe Thunderstorm Watch, Severe Thunderstorm, Storm,
Tropical Storm, Inland Tropical
Storm, Dust Storm
Flood Flood Watch, Flash Flood, Coastal Flood, Lakeshore
Flood, High Surf, Flood
Winter Winter Watch, Heavy Snow, Heavy Sleet, Lake Effect Snow,
Freeze, Heavy Freezing Spray,
Blizzard, Ice Storm, Winter
Storm
Wind Wind Watch, High Wind, Wind Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche, Special Marine, Earthquake,
Law Enforcement, Hazardous
Materials, Nuclear Power Plant,
Radiological Hazard, Civil Dan-
ger, Fire, Shelter in Place,
Volcano, Other Watches,
Other Warnings

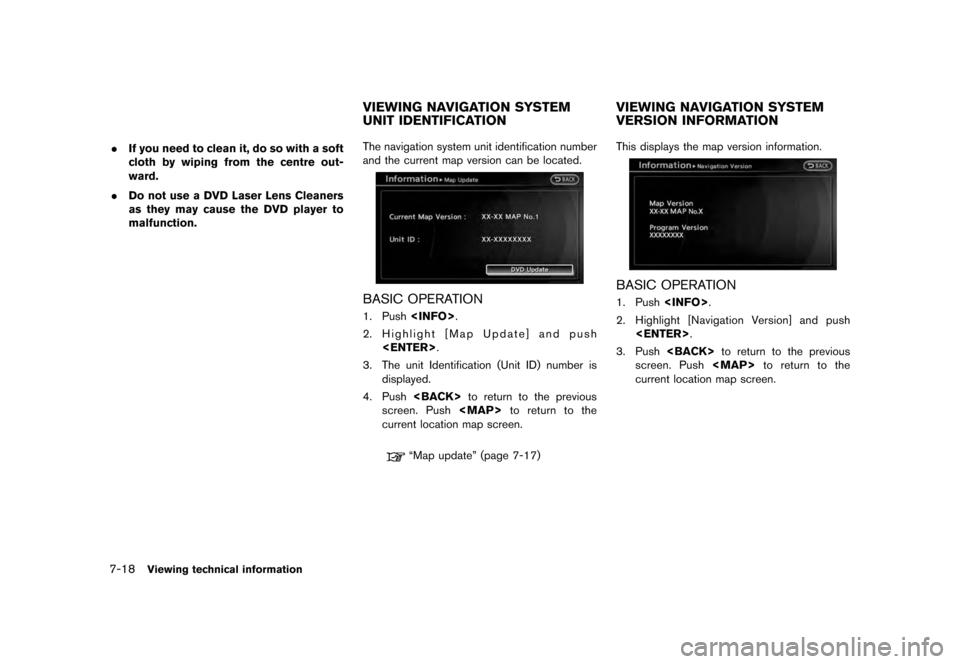

Black plate (154,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7-18
Viewing technical information
. If you need to clean it, do so with a soft
cloth by wiping from the centre out-
ward.
. Do not use a DVD Laser Lens Cleaners
as they may cause the DVD player to
malfunction. The navigation system unit identification number
and the current map version can be located.
BASIC OPERATION1. Push
.
2. Highlight [Map Update] and push .
3. The unit Identification (Unit ID) number is displayed.
4. Push to return to the previous
screen. Push

Black plate (155,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

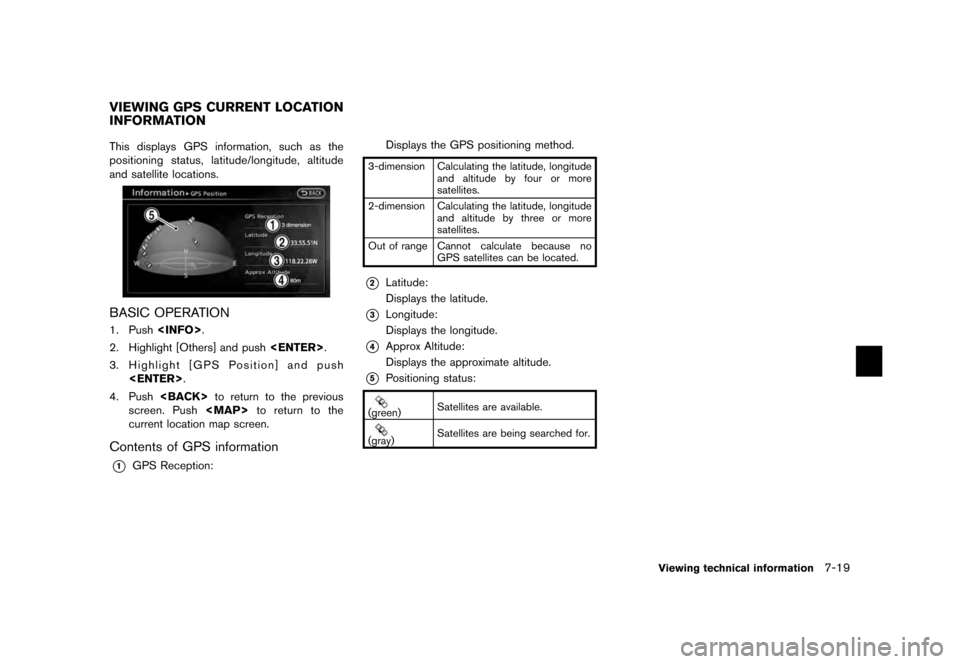

This displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.BASIC OPERATION1. Push .
2. Highlight [Others] and push .
3. Highlight [GPS Position] and push .
4. Push to return to the previous
screen. Push

Black plate (157,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8 Other settingsSettings screen ........................................................................\
. 8-2 Basic operation .................................................................... 8-2
Display settings ........................................................................\
. 8-3 Basic operation .................................................................... 8-3
Display adjustment .............................................................. 8-3
Basic operation .................................................................... 8-3
Setting color theme ............................................................ 8-5
Navigation setting ..................................................................... 8-6 Basic operation .................................................................... 8-6
Speed limit indication on map ......................................... 8-6 Other navigation settings ................................................ 8-7
Delete stored items ....................................................... 8-10
Reset all navigation settings to default .................... 8-10
Volume adjustment ................................................................ 8-11 Basic operation .............................................................. 8-11
Clock settings ........................................................................ 8-12 Basic operation .............................................................. 8-12
Language and unit settings ................................................ 8-13 Language settings ......................................................... 8-13
Unit settings .................................................................... 8-14

Black plate (158,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-2
Other settings
The navigation system can be customized to
make it easier for you to use.BASIC OPERATION1. Push .
2. Highlight the preferred setting item and push .Available setting items.[Navigation]:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-6)
. [Audio]:
Refer to the vehicle Owner’s Manual.
. [Phone]:
Refer to the vehicle Owner’s Manual.
. [Bluetooth]:
Set Bluetooth
®Audio and Phone.
Refer to the vehicle Owner’s Manual. .
[Volume and Beeps]:
“Volume adjustment” (page 8-11)
. [Rear Display] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Display]:“Display settings” (page 8-3)
. [Clock]:“Clock settings” (page 8-12)
. [Others]:
— [Comfort]: This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
— [Language and Units]:
“Language and unit settings”
(page 8-13)
— [Voice Recognition]:“System feedback announcement
modes” (page 9-20)
— [Camera] (if so equipped): Refer to the vehicle Owner’s Manual.
— [Sensor] (if so equipped): Adjust the parking sensor detection
sensitivity, etc.
Refer to the vehicle Owner’s Manual. — [Image Viewer]:
Refer to the vehicle Owner’s Manual.
INFO:
The displayed items vary depending on the
equipped options.
SETTINGS SCREEN

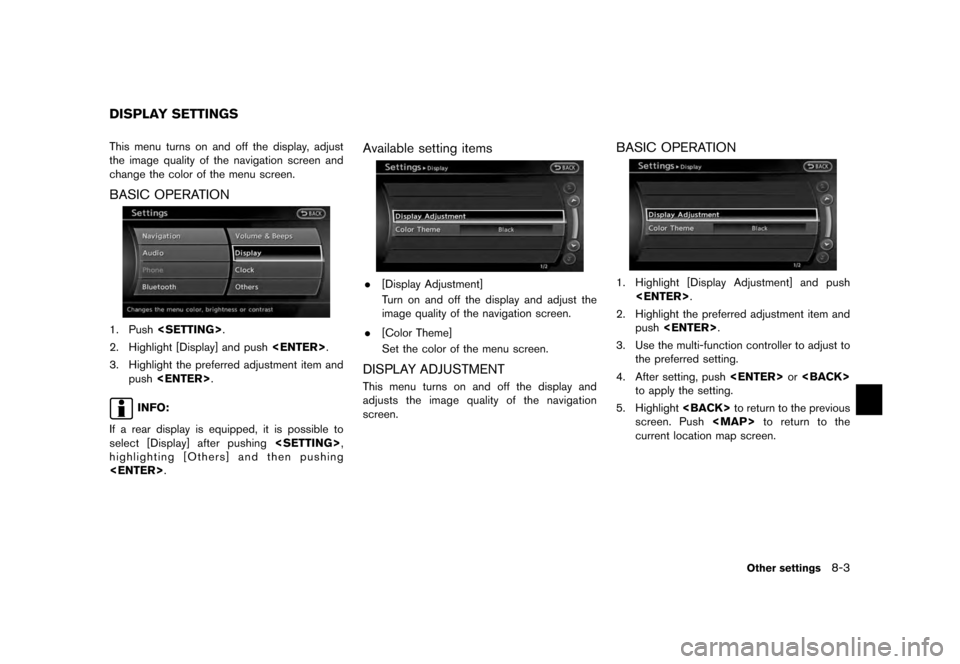

Black plate (159,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
This menu turns on and off the display, adjust
the image quality of the navigation screen and
change the color of the menu screen.BASIC OPERATION1. Push .
2. Highlight [Display] and push .
3. Highlight the preferred adjustment item and push .
INFO:
If a rear display is equipped, it is possible to
select [Display] after pushing ,
highlighting [Others] and then pushing
.
Available setting items.[Display Adjustment]
Turn on and off the display and adjust the
image quality of the navigation screen.
. [Color Theme]
Set the color of the menu screen.DISPLAY ADJUSTMENTThis menu turns on and off the display and
adjusts the image quality of the navigation
screen.
BASIC OPERATION1. Highlight [Display Adjustment] and push
.
2. Highlight the preferred adjustment item and push .
3. Use the multi-function controller to adjust to the preferred setting.
4. After setting, push or
to apply the setting.
5. Highlight to return to the previous
screen. Push

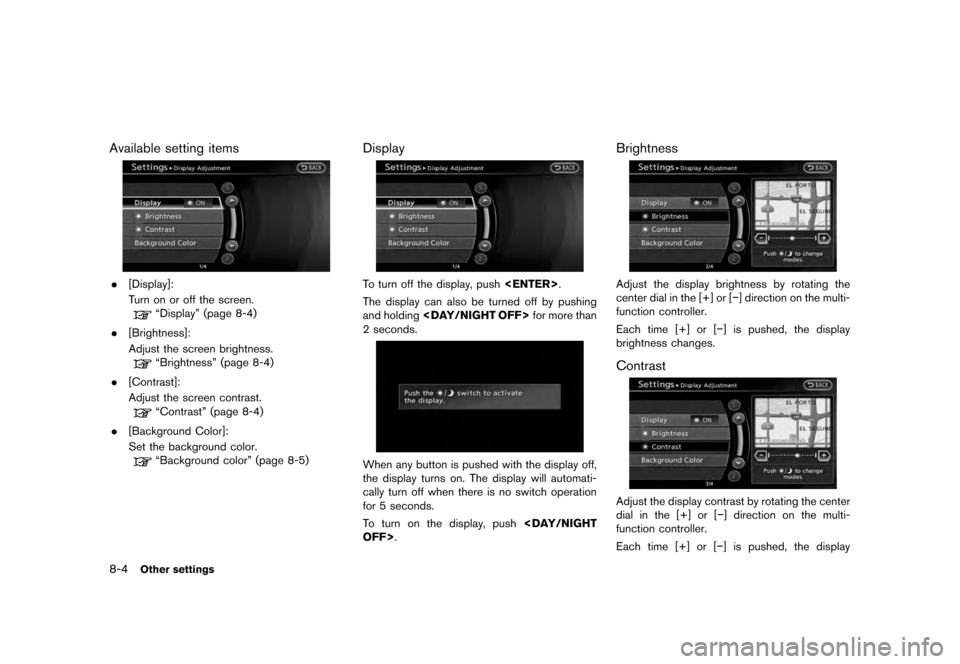

Black plate (160,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-4
Other settings
Available setting items. [Display]:
Turn on or off the screen.
“Display” (page 8-4)
. [Brightness]:
Adjust the screen brightness.“Brightness” (page 8-4)
. [Contrast]:
Adjust the screen contrast.“Contrast” (page 8-4)
. [Background Color]:
Set the background color.“Background color” (page 8-5)
DisplayTo turn off the display, push .
The display can also be turned off by pushing
and holding for more than
2 seconds.When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, push OFF> .
BrightnessAdjust the display brightness by rotating the
center dial in the [+] or [ ] direction on the multi-
function controller.
Each time [+] or [] is pushed, the display
brightness changes.ContrastAdjust the display contrast by rotating the center
dial in the [+] or [ ] direction on the multi-
function controller.
Each time [+] or [] is pushed, the display

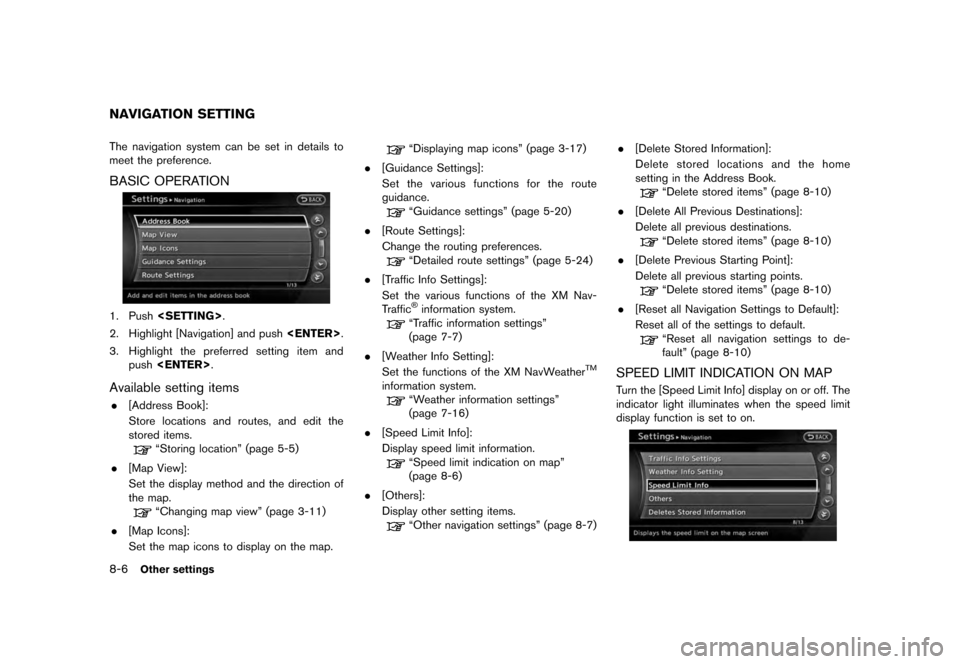

Black plate (162,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-6
Other settings
The navigation system can be set in details to
meet the preference.BASIC OPERATION1. Push .
2. Highlight [Navigation] and push .
3. Highlight the preferred setting item and push .Available setting items.[Address Book]:
Store locations and routes, and edit the
stored items.
“Storing location” (page 5-5)
. [Map View]:
Set the display method and the direction of
the map.“Changing map view” (page 3-11)
. [Map Icons]:
Set the map icons to display on the map.
“Displaying map icons” (page 3-17)
. [Guidance Settings]:
Set the various functions for the route
guidance.“Guidance settings” (page 5-20)
. [Route Settings]:
Change the routing preferences.“Detailed route settings” (page 5-24)
. [Traffic Info Settings]:
Set the various functions of the XM Nav-
Traffic®information system.“Traffic information settings”
(page 7-7)
. [Weather Info Setting]:
Set the functions of the XM NavWeather
TM
information system.
“Weather information settings”
(page 7-16)
. [Speed Limit Info]:
Display speed limit information.“Speed limit indication on map”
(page 8-6)
. [Others]:
Display other setting items.“Other navigation settings” (page 8-7) .
[Delete Stored Information]:
Delete stored locations and the home
setting in the Address Book.
“Delete stored items” (page 8-10)
. [Delete All Previous Destinations]:
Delete all previous destinations.“Delete stored items” (page 8-10)
. [Delete Previous Starting Point]:
Delete all previous starting points.“Delete stored items” (page 8-10)
. [Reset all Navigation Settings to Default]:
Reset all of the settings to default.“Reset all navigation settings to de-
fault” (page 8-10)
SPEED LIMIT INDICATION ON MAPTurn the [Speed Limit Info] display on or off. The
indicator light illuminates when the speed limit
display function is set to on.
NAVIGATION SETTING
