2012 NISSAN QUEST display

Black plate (163,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

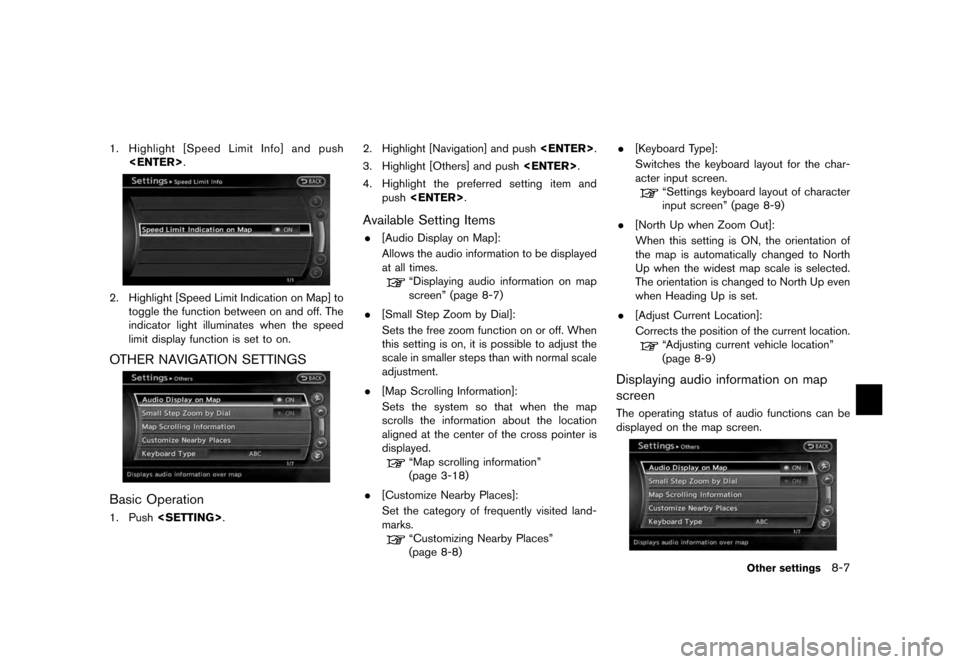

1. Highlight [Speed Limit Info] and push .2. Highlight [Speed Limit Indication on Map] to
toggle the function between on and off. The
indicator light illuminates when the speed
limit display function is set to on.OTHER NAVIGATION SETTINGSBasic Operation1. Push . 2. Highlight [Navigation] and push
.
3. Highlight [Others] and push .
4. Highlight the preferred setting item and push .
Available Setting Items.[Audio Display on Map]:
Allows the audio information to be displayed
at all times.
“Displaying audio information on map
screen” (page 8-7)
. [Small Step Zoom by Dial]:
Sets the free zoom function on or off. When
this setting is on, it is possible to adjust the
scale in smaller steps than with normal scale
adjustment.
. [Map Scrolling Information]:
Sets the system so that when the map
scrolls the information about the location
aligned at the center of the cross pointer is
displayed.“Map scrolling information”
(page 3-18)
. [Customize Nearby Places]:
Set the category of frequently visited land-
marks.“Customizing Nearby Places”
(page 8-8) .
[Keyboard Type]:
Switches the keyboard layout for the char-
acter input screen.
“Settings keyboard layout of character
input screen” (page 8-9)
. [North Up when Zoom Out]:
When this setting is ON, the orientation of
the map is automatically changed to North
Up when the widest map scale is selected.
The orientation is changed to North Up even
when Heading Up is set.
. [Adjust Current Location]:
Corrects the position of the current location.“Adjusting current vehicle location”
(page 8-9)
Displaying audio information on map
screenThe operating status of audio functions can be
displayed on the map screen.
Other settings
8-7

Black plate (164,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-8
Other settings

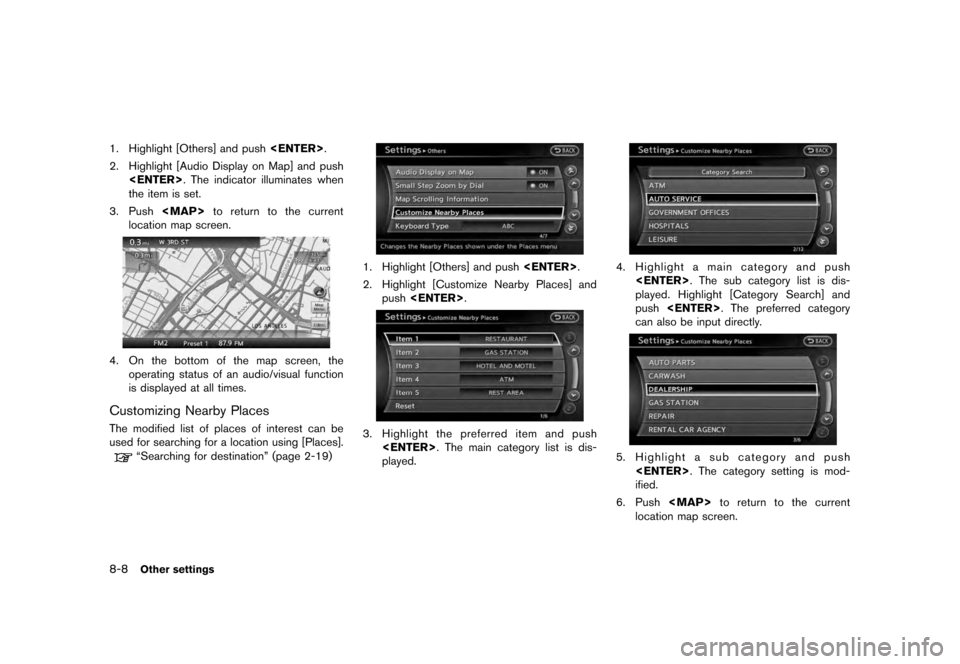

1. Highlight [Others] and push .
2. Highlight [Audio Display on Map] and push . The indicator illuminates when
the item is set.
3. Push

Black plate (165,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

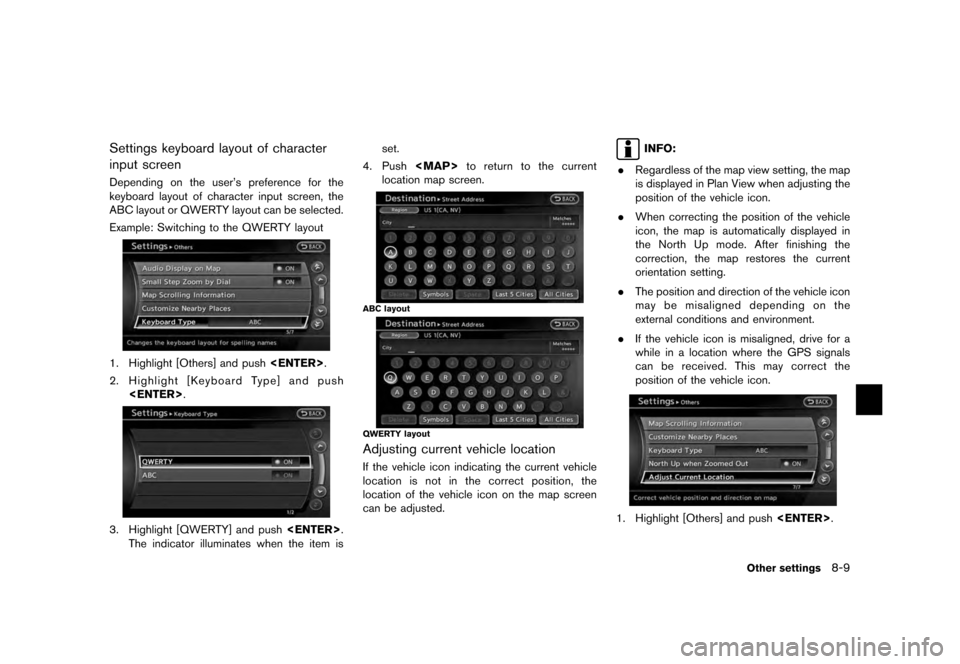

Settings keyboard layout of character
input screenDepending on the user’s preference for the
keyboard layout of character input screen, the
ABC layout or QWERTY layout can be selected.
Example: Switching to the QWERTY layout1. Highlight [Others] and push .
2. Highlight [Keyboard Type] and push .3. Highlight [QWERTY] and push .
The indicator illuminates when the item is set.
4. Push

Black plate (166,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-10
Other settings

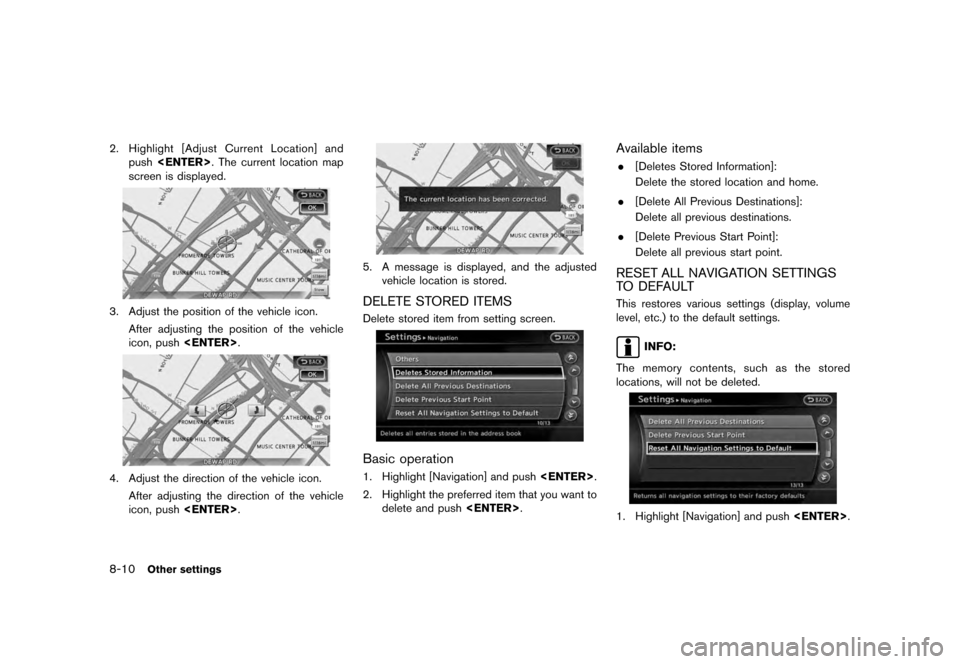

2. Highlight [Adjust Current Location] and push . The current location map
screen is displayed.3. Adjust the position of the vehicle icon.
After adjusting the position of the vehicle
icon, push .4. Adjust the direction of the vehicle icon.
After adjusting the direction of the vehicle
icon, push .
5. A message is displayed, and the adjusted
vehicle location is stored.DELETE STORED ITEMSDelete stored item from setting screen.Basic operation1. Highlight [Navigation] and push .
2. Highlight the preferred item that you want to delete and push .
Available items.[Deletes Stored Information]:
Delete the stored location and home.
. [Delete All Previous Destinations]:
Delete all previous destinations.
. [Delete Previous Start Point]:
Delete all previous start point.RESET ALL NAVIGATION SETTINGS
TO DEFAULTThis restores various settings (display, volume
level, etc.) to the default settings.
INFO:
The memory contents, such as the stored
locations, will not be deleted.
1. Highlight [Navigation] and push .

Black plate (167,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

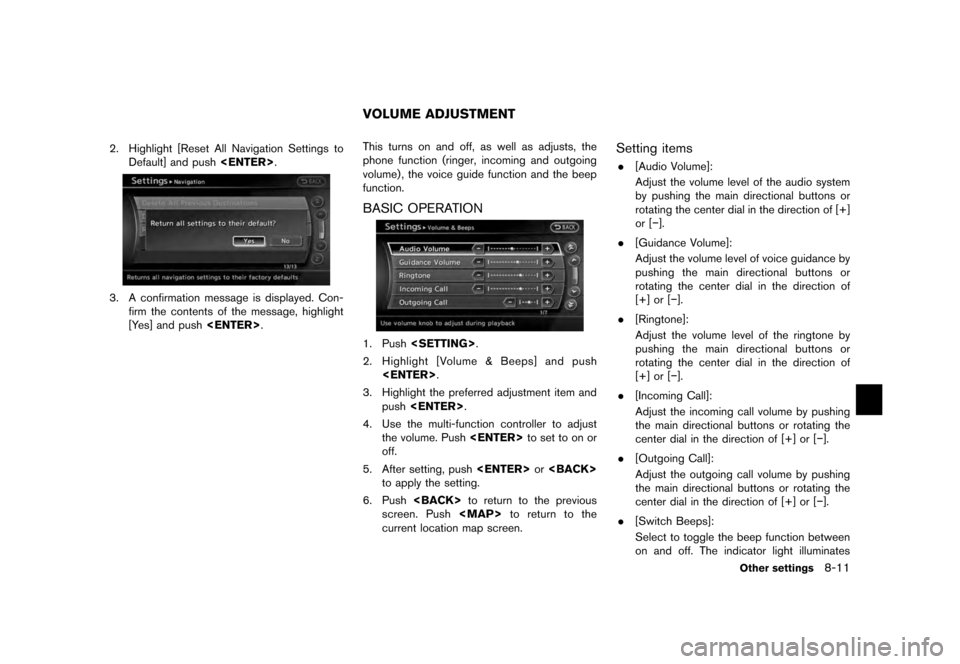

2. Highlight [Reset All Navigation Settings to Default] and push .3. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push . This turns on and off, as well as adjusts, the
phone function (ringer, incoming and outgoing
volume) , the voice guide function and the beep
function.
BASIC OPERATION1. Push
.
2. Highlight [Volume & Beeps] and push .
3. Highlight the preferred adjustment item and push .
4. Use the multi-function controller to adjust the volume. Push to set to on or
off.
5. After setting, push or
to apply the setting.
6. Push to return to the previous
screen. Push

Black plate (168,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
8-12
Other settings
when the beep function is set to on. The
beep sounds when pushing and holding a
button or when a prohibited operation is
performed.
. [Guidance Voice]:
Select to toggle the voice guidance function
between on and off. The indicator light
illuminates when the voice guidance func-
tion is set to on.INFO:
For more details about [Ringtone], [Incoming
Call] and [Outgoing Call], refer to the vehicle
Owner’s Manual. This changes the clock settings.
BASIC OPERATION1. Push
.
2. Highlight [Clock] and push .
3. Highlight the preferred adjustment item and push .
4. Use the multi-function controller to adjust to the preferred setting. Push to
set on or off.
5. After setting, push or
to apply the setting.
6. Push to return to the previous
screen. Push

Black plate (173,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

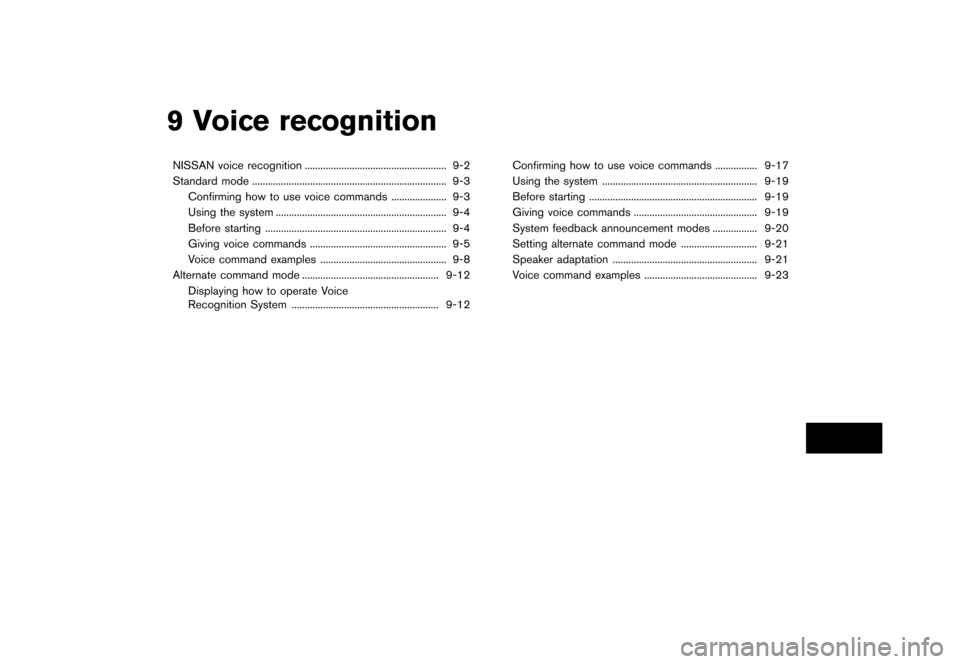

9 Voice recognitionNISSAN voice recognition ...................................................... 9-2
Standard mode .......................................................................... 9-3 Confirming how to use voice commands ..................... 9-3
Using the system ................................................................. 9-4
Before starting ..................................................................... 9-4
Giving voice commands .................................................... 9-5
Voice command examples ................................................ 9-8
Alternate command mode .................................................... 9-12 Displaying how to operate Voice
Recognition System ........................................................ 9-12 Confirming how to use voice commands ................ 9-17
Using the system ........................................................... 9-19
Before starting ................................................................ 9-19
Giving voice commands ............................................... 9-19
System feedback announcement modes ................. 9-20
Setting alternate command mode ............................. 9-21
Speaker adaptation ....................................................... 9-21
Voice command examples ........................................... 9-23

Black plate (174,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9-2
Voice recognition
NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, in one of two
modes, Standard Mode or Alternate Command
Mode. Standard Mode allows the operation of
Navigation, Phone, Audio, Information and Help.
The commands that are available are always
shown on the display and announced by the
system. To perform operations, simply follow the
prompts given by the system. In Standard Mode,
hands-free operation of Change map view,
Route selection and Bluetooth Audio, etc. is
not available through Voice Recognition.
Alternate Command Mode allows advanced
operations. When this mode is active, an
expanded list of commands can be spoken after
pushing >, and the voice command
menu prompts are turned off. Note that in this
mode the recognition success rate may be
affected because the number of available
commands and ways of speaking each com-
mand are increased. Otherwise, it is recom-
mended that Alternate Command Mode be
turned OFF and Standard Mode be used for
the best recognition performance.
“Alternate command mode” (page 9-12)
INFO:
. To improve recognition success when Alter-
nate Command Mode is active, try using the
Speaker Adaptation function available in that
mode.
“Speaker adaptation” (page 9-21)
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Stan-
dard Mode be used for the best recognition
performance.
. For the voice commands for the audio,
phone and other systems, refer to the
vehicle Owner’s Manual. The following sec-
tions refer only to the navigation, phone and
information systems.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster and CrossCabriolet models) .
NISSAN VOICE RECOGNITION
