2012 NISSAN QUEST display

Black plate (116,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-2
Storing location/route

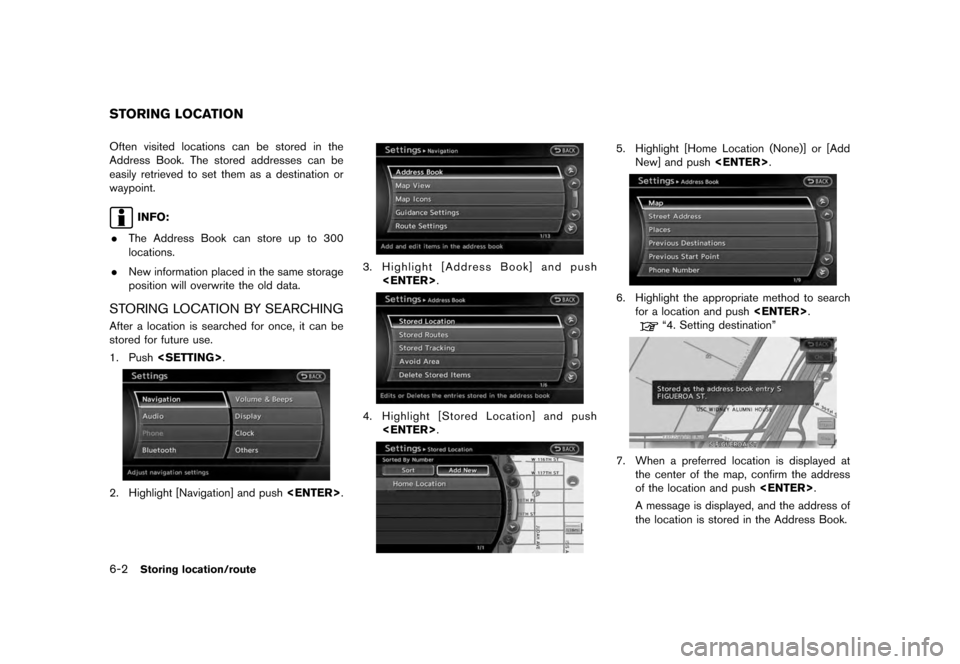

Often visited locations can be stored in the
Address Book. The stored addresses can be
easily retrieved to set them as a destination or
waypoint.
INFO:
. The Address Book can store up to 300
locations.
. New information placed in the same storage
position will overwrite the old data.
STORING LOCATION BY SEARCHINGAfter a location is searched for once, it can be
stored for future use.
1. Push .2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.4. Highlight [Stored Location] and push
.
5. Highlight [Home Location (None)] or [Add
New] and push .6. Highlight the appropriate method to search
for a location and push .
“4. Setting destination”
7. When a preferred location is displayed at
the center of the map, confirm the address
of the location and push .
A message is displayed, and the address of
the location is stored in the Address Book.
STORING LOCATION

Black plate (117,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

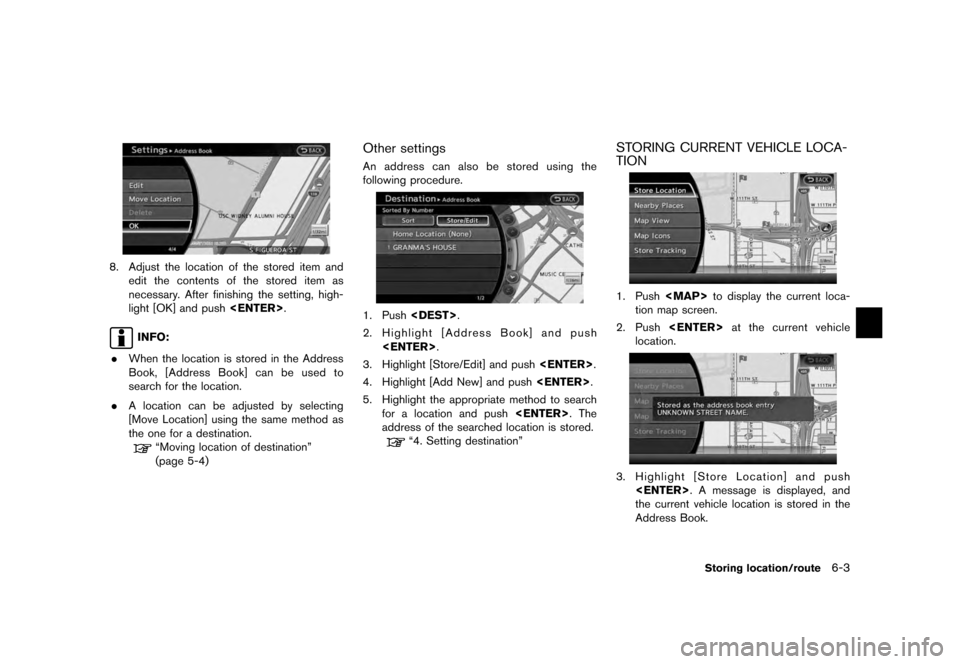

8. Adjust the location of the stored item and edit the contents of the stored item as
necessary. After finishing the setting, high-
light [OK] and push .
INFO:
. When the location is stored in the Address
Book, [Address Book] can be used to
search for the location.
. A location can be adjusted by selecting
[Move Location] using the same method as
the one for a destination.
“Moving location of destination”
(page 5-4)
Other settingsAn address can also be stored using the
following procedure.1. Push .
2. Highlight [Address Book] and push .
3. Highlight [Store/Edit] and push .
4. Highlight [Add New] and push .
5. Highlight the appropriate method to search for a location and push . The
address of the searched location is stored.
“4. Setting destination”
STORING CURRENT VEHICLE LOCA-
TION1. Push

Black plate (118,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-4
Storing location/route

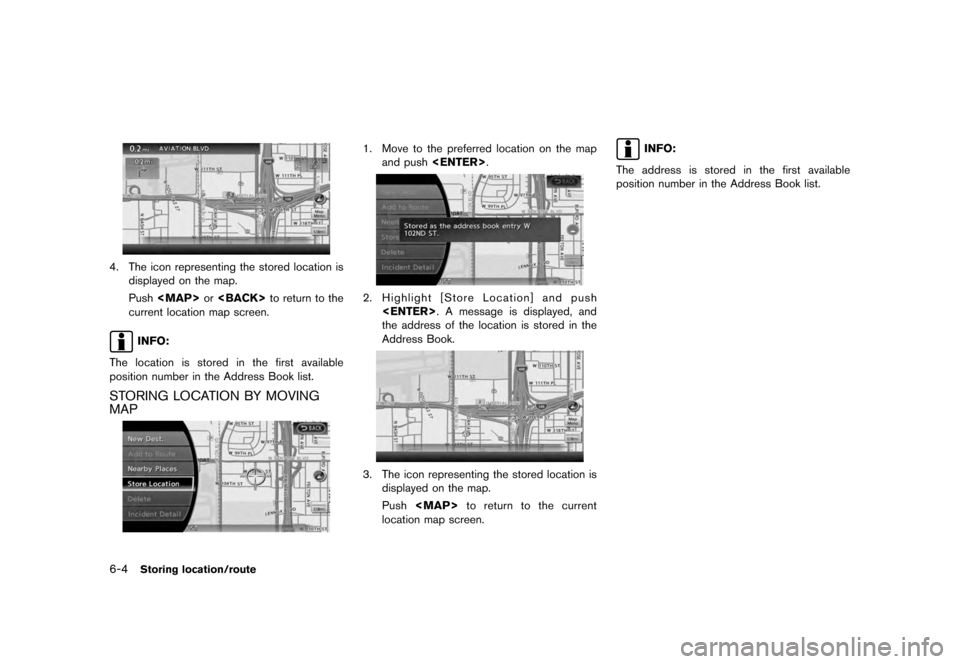

4. The icon representing the stored location is displayed on the map.
Push

Black plate (119,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

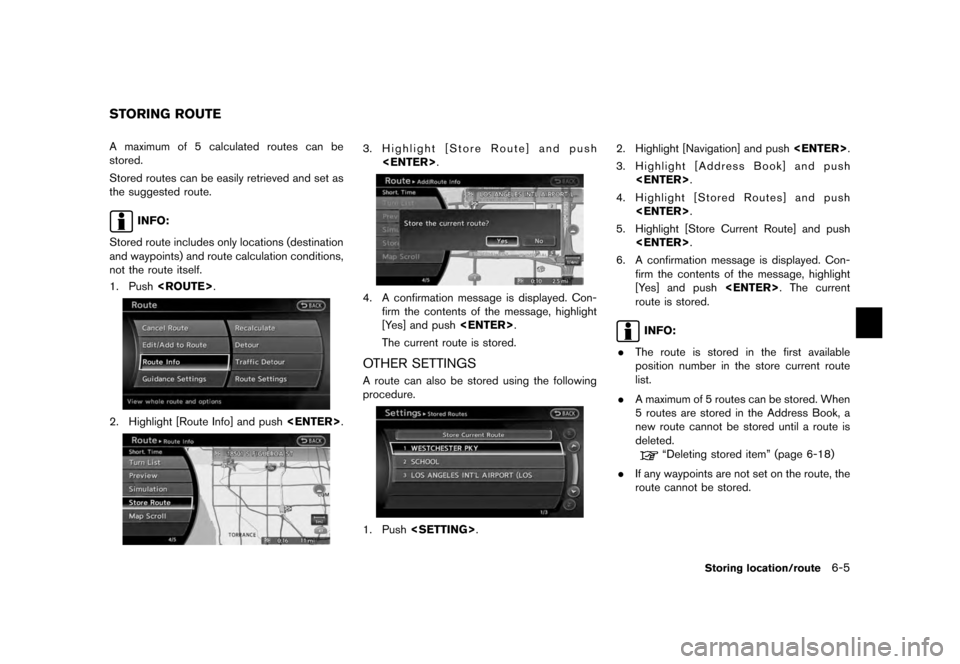

A maximum of 5 calculated routes can be
stored.
Stored routes can be easily retrieved and set as
the suggested route.
INFO:
Stored route includes only locations (destination
and waypoints) and route calculation conditions,
not the route itself.
1. Push .
2. Highlight [Route Info] and push .
3. Highlight [Store Route] and push
.4. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The current route is stored.OTHER SETTINGSA route can also be stored using the following
procedure.1. Push . 2. Highlight [Navigation] and push
.
3. Highlight [Address Book] and push .
4. Highlight [Stored Routes] and push .
5. Highlight [Store Current Route] and push .
6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The current
route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
“Deleting stored item” (page 6-18)
. If any waypoints are not set on the route, the
route cannot be stored.
Storing location/route
6-5
STORING ROUTE

Black plate (120,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-6
Storing location/route

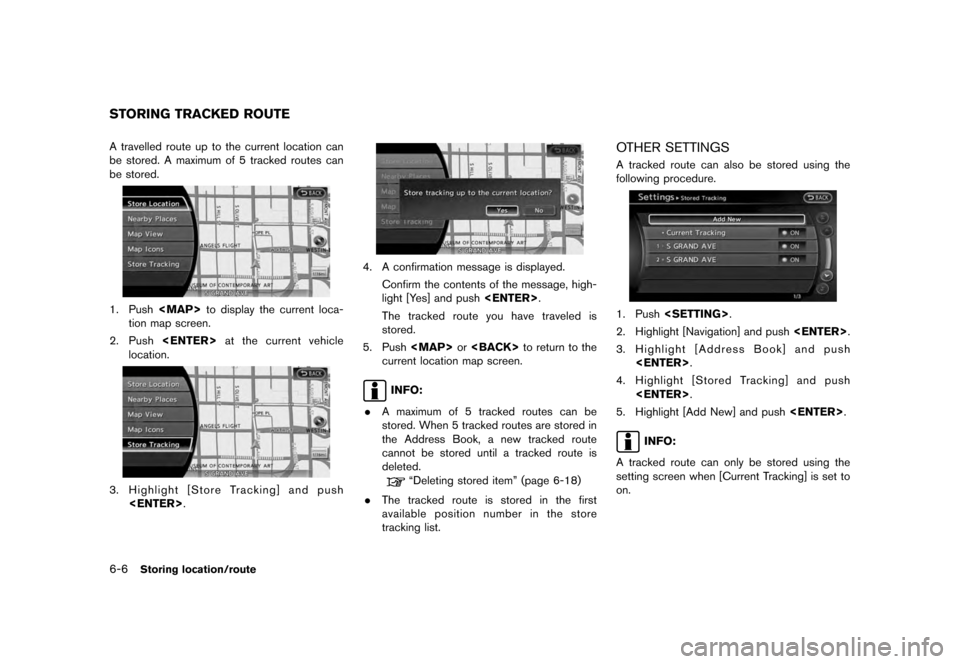

A travelled route up to the current location can
be stored. A maximum of 5 tracked routes can
be stored.1. Push

Black plate (123,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

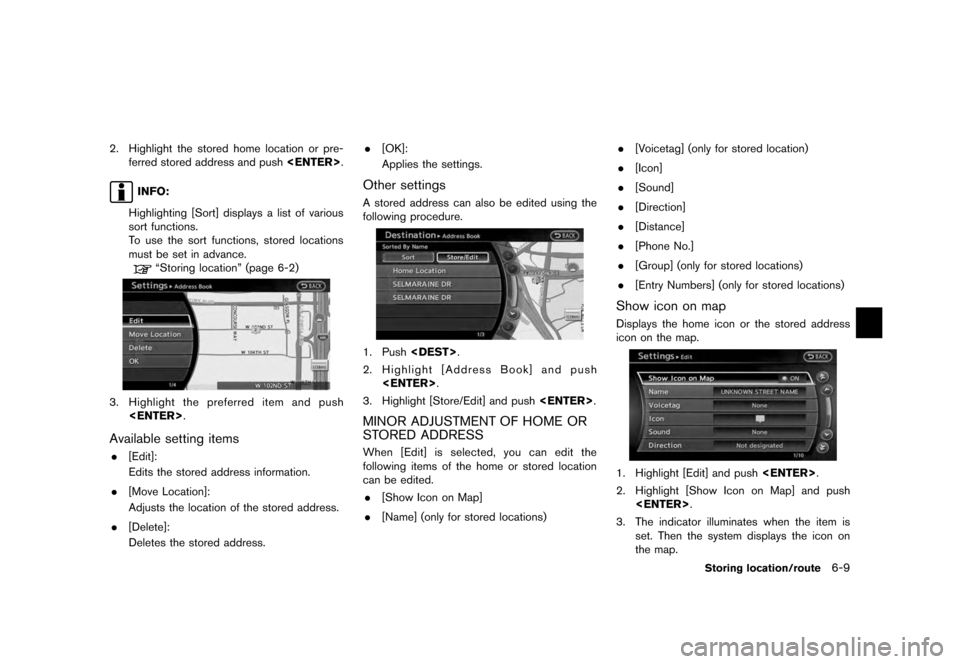

2. Highlight the stored home location or pre- ferred stored address and push .
INFO:
Highlighting [Sort] displays a list of various
sort functions.
To use the sort functions, stored locations
must be set in advance.
“Storing location” (page 6-2)
3. Highlight the preferred item and push .Available setting items.[Edit]:
Edits the stored address information.
. [Move Location]:
Adjusts the location of the stored address.
. [Delete]:
Deletes the stored address. .
[OK]:
Applies the settings.
Other settingsA stored address can also be edited using the
following procedure.1. Push .
2. Highlight [Address Book] and push .
3. Highlight [Store/Edit] and push .MINOR ADJUSTMENT OF HOME OR
STORED ADDRESSWhen [Edit] is selected, you can edit the
following items of the home or stored location
can be edited.
. [Show Icon on Map]
. [Name] (only for stored locations) .
[Voicetag] (only for stored location)
. [Icon]
. [Sound]
. [Direction]
. [Distance]
. [Phone No.]
. [Group] (only for stored locations)
. [Entry Numbers] (only for stored locations)
Show icon on mapDisplays the home icon or the stored address
icon on the map.1. Highlight [Edit] and push .
2. Highlight [Show Icon on Map] and push .
3. The indicator illuminates when the item is set. Then the system displays the icon on
the map.
Storing location/route
6-9

Black plate (124,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-10
Storing location/route

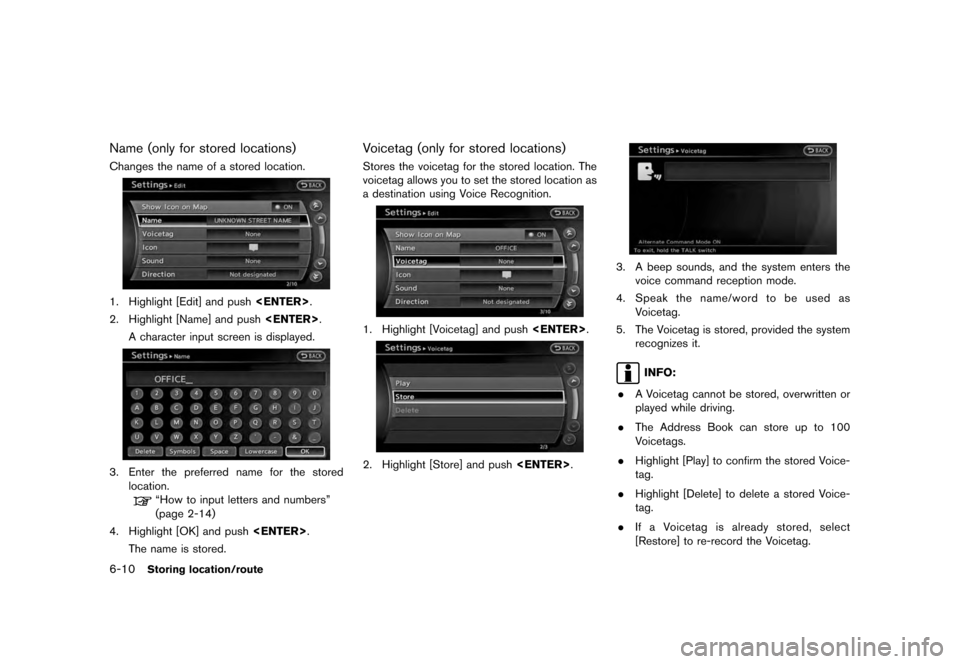

Name (only for stored locations)Changes the name of a stored location.1. Highlight [Edit] and push .
2. Highlight [Name] and push .
A character input screen is displayed.3. Enter the preferred name for the stored location.
“How to input letters and numbers”
(page 2-14)
4. Highlight [OK] and push .
The name is stored.
Voicetag (only for stored locations)Stores the voicetag for the stored location. The
voicetag allows you to set the stored location as
a destination using Voice Recognition.1. Highlight [Voicetag] and push .2. Highlight [Store] and push .
3. A beep sounds, and the system enters the
voice command reception mode.
4. Speak the name/word to be used as Voicetag.
5. The Voicetag is stored, provided the system recognizes it.
INFO:
. A Voicetag cannot be stored, overwritten or
played while driving.
. The Address Book can store up to 100
Voicetags.
. Highlight [Play] to confirm the stored Voice-
tag.
. Highlight [Delete] to delete a stored Voice-
tag.
. If a Voicetag is already stored, select
[Restore] to re-record the Voicetag.

Black plate (125,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

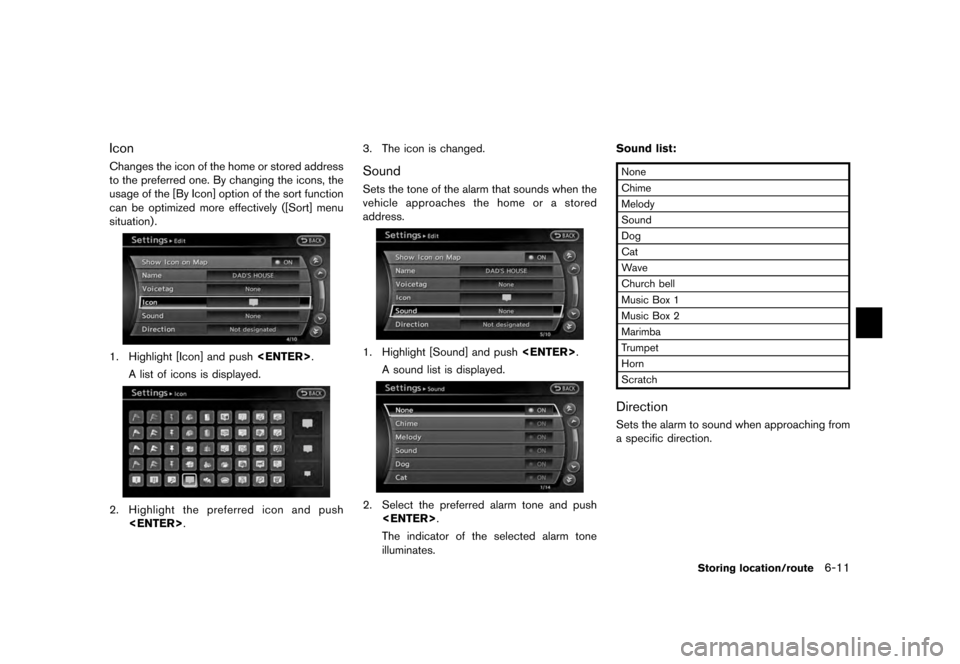

IconChanges the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of the [By Icon] option of the sort function
can be optimized more effectively ([Sort] menu
situation) .1. Highlight [Icon] and push .
A list of icons is displayed.2. Highlight the preferred icon and push . 3. The icon is changed.
SoundSets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.1. Highlight [Sound] and push
.
A sound list is displayed.2. Select the preferred alarm tone and push .
The indicator of the selected alarm tone
illuminates. Sound list:
None
Chime
Melody
Sound
Dog
Cat
Wave
Church bell
Music Box 1
Music Box 2
Marimba
Trumpet
Horn
ScratchDirectionSets the alarm to sound when approaching from
a specific direction.
Storing location/route
6-11
