2012 NISSAN QUEST display

Black plate (87,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

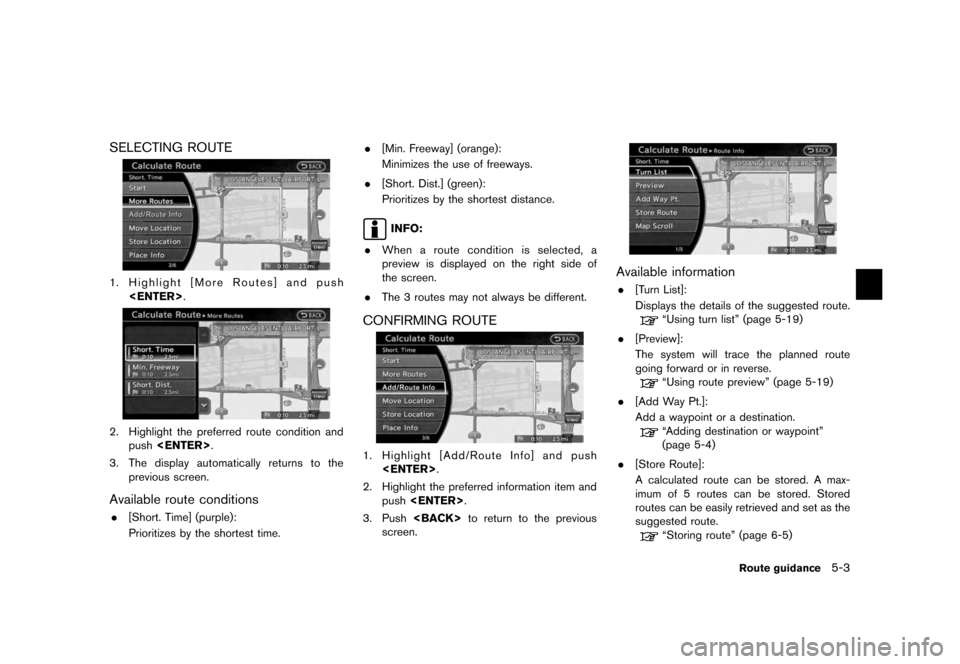

SELECTING ROUTE1. Highlight [More Routes] and push .2. Highlight the preferred route condition and
push .
3. The display automatically returns to the previous screen.Available route conditions.[Short. Time] (purple):
Prioritizes by the shortest time. .
[Min. Freeway] (orange):
Minimizes the use of freeways.
. [Short. Dist.] (green):
Prioritizes by the shortest distance.
INFO:
. When a route condition is selected, a
preview is displayed on the right side of
the screen.
. The 3 routes may not always be different.
CONFIRMING ROUTE1. Highlight [Add/Route Info] and push
.
2. Highlight the preferred information item and push .
3. Push to return to the previous
screen.
Available information. [Turn List]:
Displays the details of the suggested route.
“Using turn list” (page 5-19)
. [Preview]:
The system will trace the planned route
going forward or in reverse.“Using route preview” (page 5-19)
. [Add Way Pt.]:
Add a waypoint or a destination.“Adding destination or waypoint”
(page 5-4)
. [Store Route]:
A calculated route can be stored. A max-
imum of 5 routes can be stored. Stored
routes can be easily retrieved and set as the
suggested route.“Storing route” (page 6-5)
Route guidance
5-3

Black plate (88,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-4
Route guidance

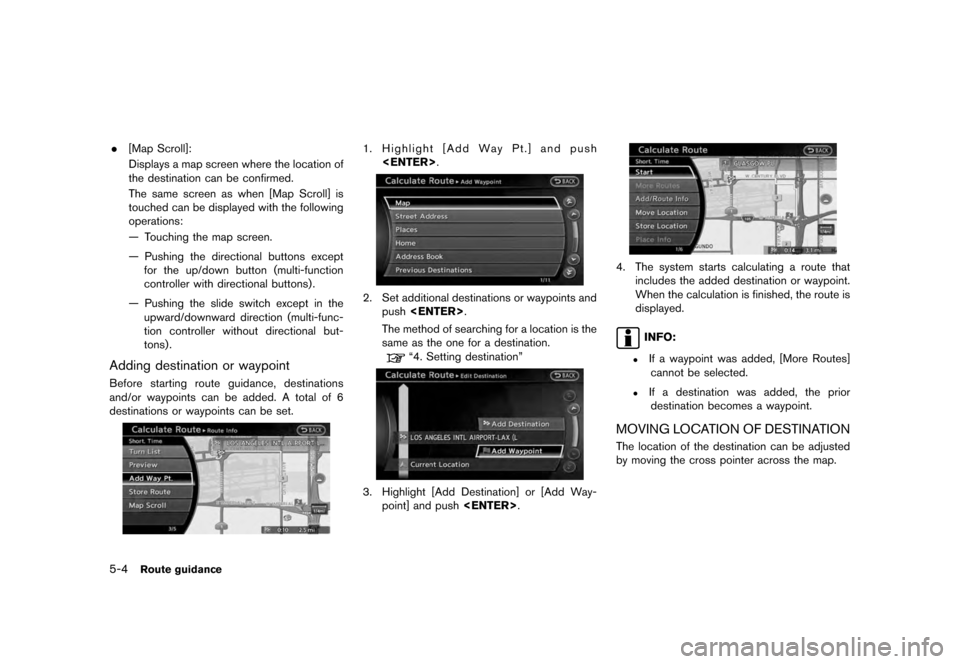

. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except for the up/down button (multi-function
controller with directional buttons) .
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .Adding destination or waypointBefore starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
1. Highlight [Add Way Pt.] and push .2. Set additional destinations or waypoints and
push .
The method of searching for a location is the
same as the one for a destination.
“4. Setting destination”
3. Highlight [Add Destination] or [Add Way- point] and push .
4. The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:.
If a waypoint was added, [More Routes]
cannot be selected.
.
If a destination was added, the priordestination becomes a waypoint.
MOVING LOCATION OF DESTINATIONThe location of the destination can be adjusted
by moving the cross pointer across the map.

Black plate (89,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

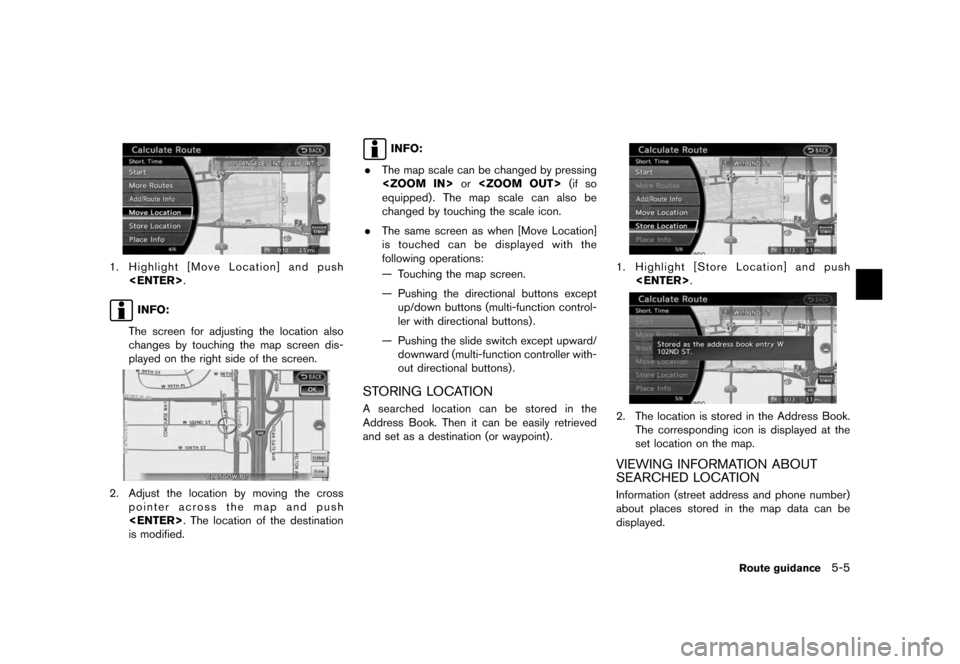

1. Highlight [Move Location] and push .
INFO:
The screen for adjusting the location also
changes by touching the map screen dis-
played on the right side of the screen.
2. Adjust the location by moving the cross pointer across the map and push
. The location of the destination
is modified.
INFO:
. The map scale can be changed by pressing
or (if so
equipped) . The map scale can also be
changed by touching the scale icon.
. The same screen as when [Move Location]
is touched can be displayed with the
following operations:
— Touching the map screen.
— Pushing the directional buttons except up/down buttons (multi-function control-
ler with directional buttons) .
— Pushing the slide switch except upward/ downward (multi-function controller with-
out directional buttons) .
STORING LOCATIONA searched location can be stored in the
Address Book. Then it can be easily retrieved
and set as a destination (or waypoint) .
1. Highlight [Store Location] and push .2. The location is stored in the Address Book.
The corresponding icon is displayed at the
set location on the map.VIEWING INFORMATION ABOUT
SEARCHED LOCATIONInformation (street address and phone number)
about places stored in the map data can be
displayed.
Route guidance
5-5

Black plate (90,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-6
Route guidance
1. Select [Place Info] and push .2. Information about the location is displayed.
3. Push to return to the previous
screen.
INFO:
. If [Call] is displayed on the right side of the
screen, it is possible to call the location
indicated.
. The Bluetooth
®Hands-Free Phone system
is required to be active and the cellular phone must be connected to call the
location indicated.
. Information about locations is not displayed
while driving.

Black plate (91,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

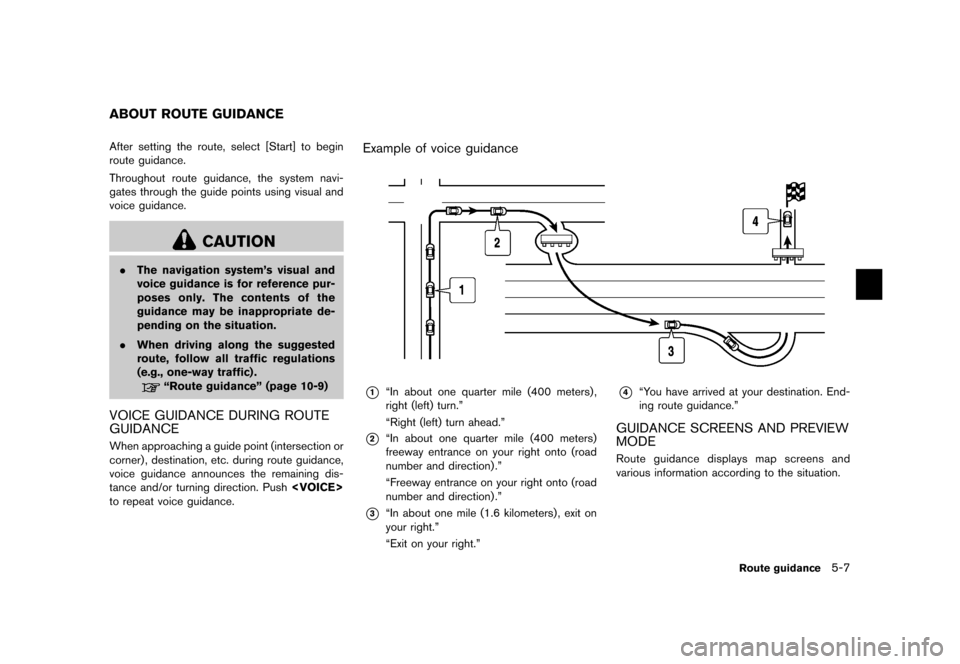

After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates through the guide points using visual and
voice guidance.
CAUTION
. The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“Route guidance” (page 10-9)
VOICE GUIDANCE DURING ROUTE
GUIDANCEWhen approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push
to repeat voice guidance.
Example of voice guidance*1
“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
*2
“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
*3
“In about one mile (1.6 kilometers) , exit on
your right.”
“Exit on your right.”
*4
“You have arrived at your destination. End-
ing route guidance.”
GUIDANCE SCREENS AND PREVIEW
MODERoute guidance displays map screens and
various information according to the situation.
Route guidance
5-7
ABOUT ROUTE GUIDANCE

Black plate (92,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-8
Route guidance

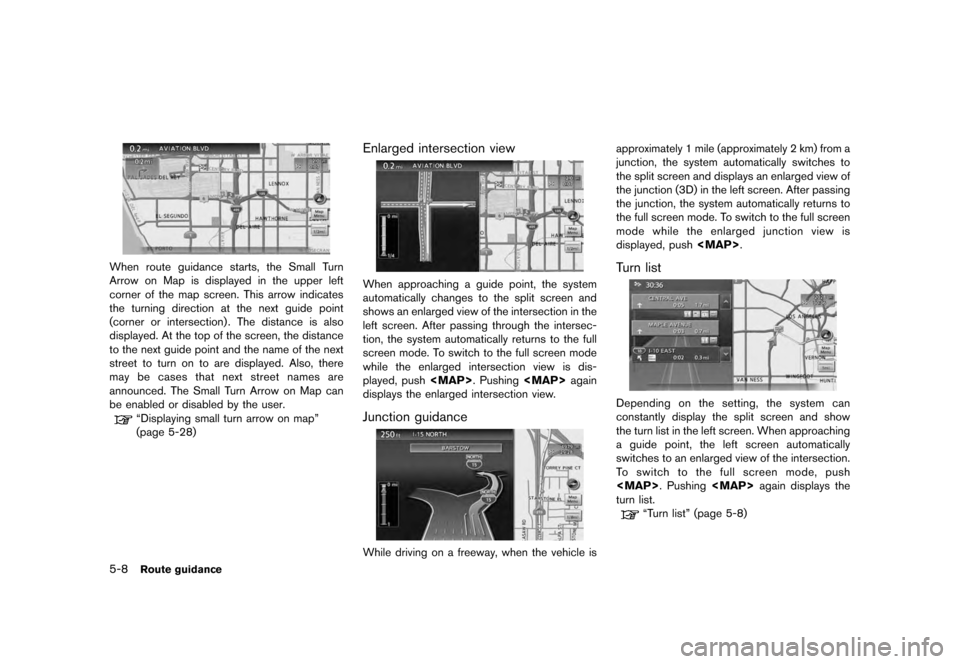

When route guidance starts, the Small Turn
Arrow on Map is displayed in the upper left
corner of the map screen. This arrow indicates
the turning direction at the next guide point
(corner or intersection) . The distance is also
displayed. At the top of the screen, the distance
to the next guide point and the name of the next
street to turn on to are displayed. Also, there
may be cases that next street names are
announced. The Small Turn Arrow on Map can
be enabled or disabled by the user.
“Displaying small turn arrow on map”
(page 5-28)
Enlarged intersection viewWhen approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection in the
left screen. After passing through the intersec-
tion, the system automatically returns to the full
screen mode. To switch to the full screen mode
while the enlarged intersection view is dis-
played, push

Black plate (93,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

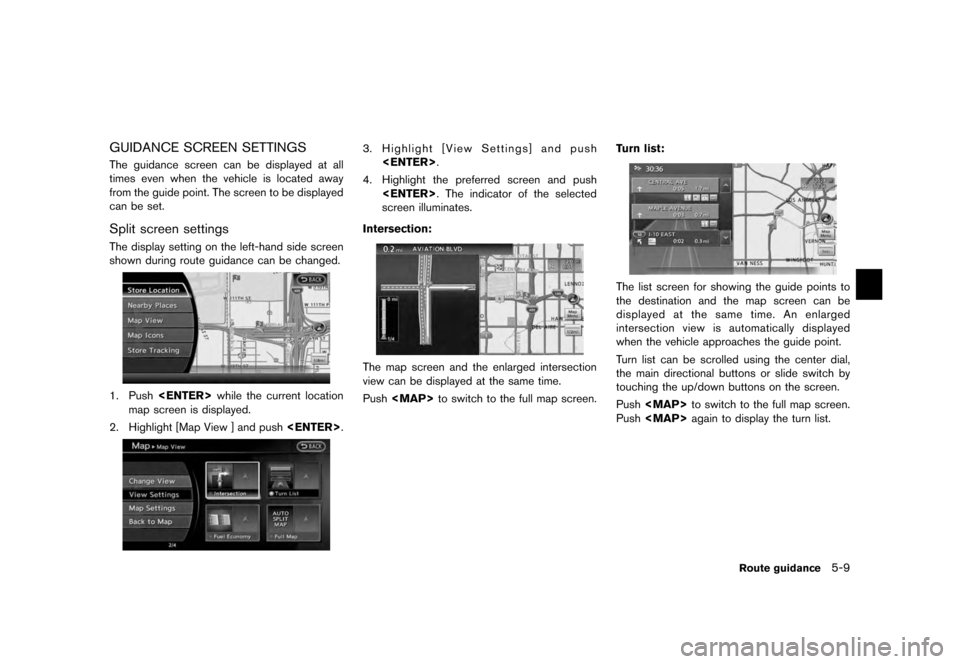

GUIDANCE SCREEN SETTINGSThe guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.Split screen settingsThe display setting on the left-hand side screen
shown during route guidance can be changed.1. Push while the current location
map screen is displayed.
2. Highlight [Map View ] and push .
3. Highlight [View Settings] and push
.
4. Highlight the preferred screen and push . The indicator of the selected
screen illuminates.
Intersection:The map screen and the enlarged intersection
view can be displayed at the same time.
Push

Black plate (94,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
5-10
Route guidance

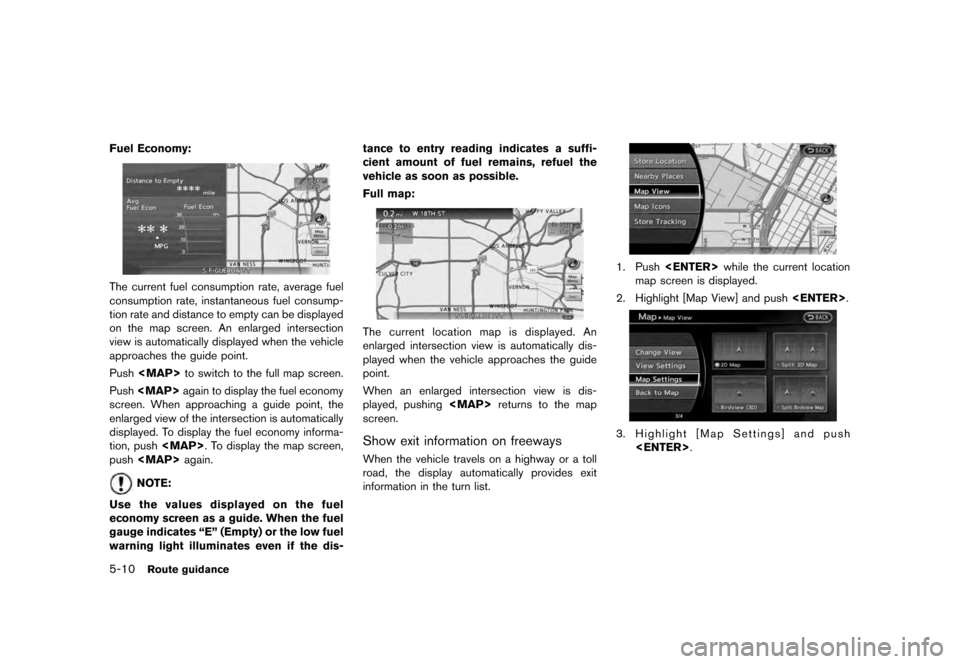

Fuel Economy:The current fuel consumption rate, average fuel
consumption rate, instantaneous fuel consump-
tion rate and distance to empty can be displayed
on the map screen. An enlarged intersection
view is automatically displayed when the vehicle
approaches the guide point.
Push
