2012 NISSAN QUEST display

Black plate (58,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

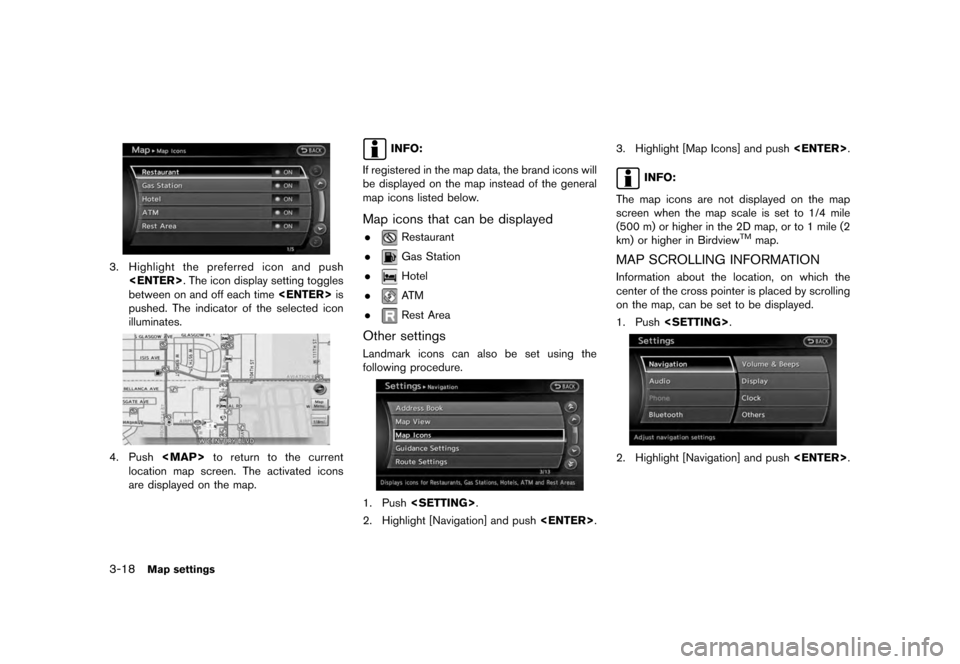

3-18
Map settings
3. Highlight the preferred icon and push . The icon display setting toggles
between on and off each time is
pushed. The indicator of the selected icon
illuminates.4. Push

Black plate (59,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

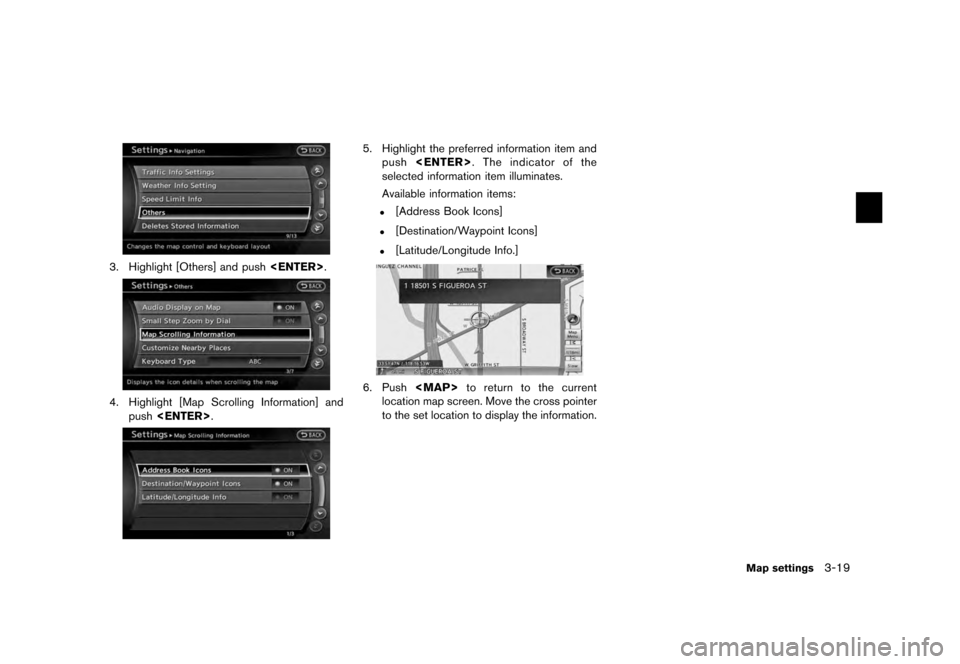

3. Highlight [Others] and push .4. Highlight [Map Scrolling Information] and
push .
5. Highlight the preferred information item and
push . The indicator of the
selected information item illuminates.
Available information items:
.
[Address Book Icons]
.
[Destination/Waypoint Icons]
.
[Latitude/Longitude Info.]
6. Push

Black plate (60,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

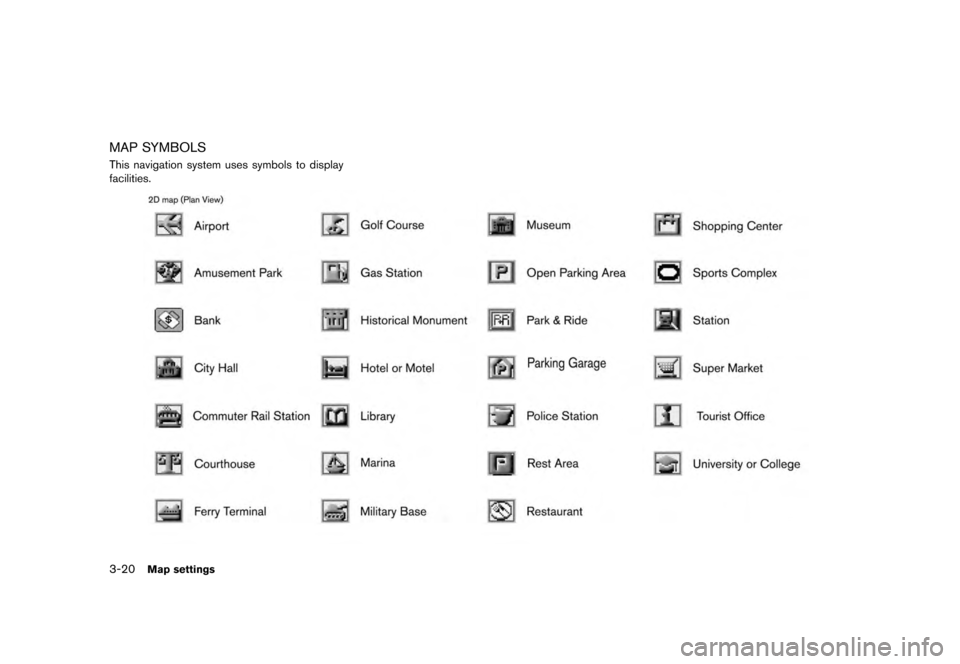

3-20
Map settings
MAP SYMBOLSThis navigation system uses symbols to display
facilities.

Black plate (61,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

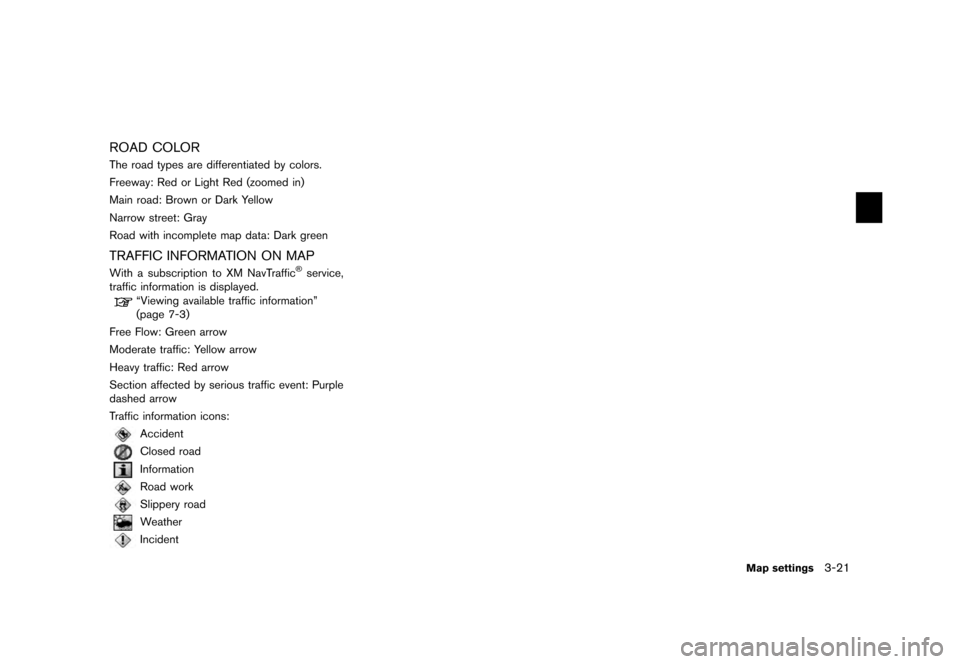

ROAD COLORThe road types are differentiated by colors.
Freeway: Red or Light Red (zoomed in)
Main road: Brown or Dark Yellow
Narrow street: Gray
Road with incomplete map data: Dark greenTRAFFIC INFORMATION ON MAPWith a subscription to XM NavTraffic
®service,
traffic information is displayed.
“Viewing available traffic information”
(page 7-3)
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event: Purple
dashed arrow
Traffic information icons:AccidentClosed roadInformationRoad workSlippery roadWeatherIncident
Map settings
3-21

Black plate (65,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

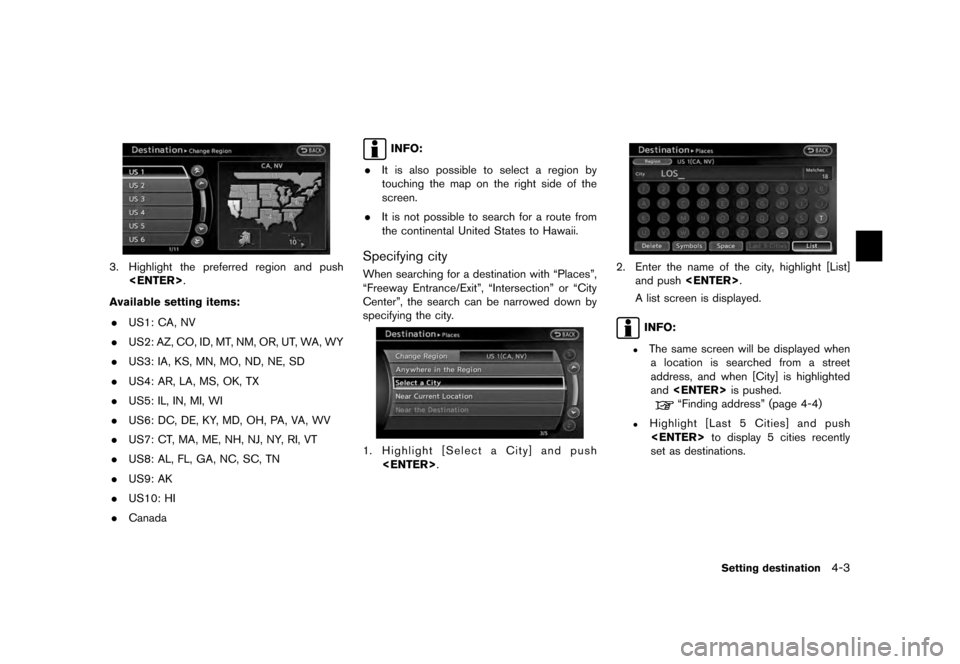

3. Highlight the preferred region and push .
Available setting items: . US1: CA, NV
. US2: AZ, CO, ID, MT, NM, OR, UT, WA, WY
. US3: IA, KS, MN, MO, ND, NE, SD
. US4: AR, LA, MS, OK, TX
. US5: IL, IN, MI, WI
. US6: DC, DE, KY, MD, OH, PA, VA, WV
. US7: CT, MA, ME, NH, NJ, NY, RI, VT
. US8: AL, FL, GA, NC, SC, TN
. US9: AK
. US10: HI
. Canada
INFO:
. It is also possible to select a region by
touching the map on the right side of the
screen.
. It is not possible to search for a route from
the continental United States to Hawaii.
Specifying cityWhen searching for a destination with “Places”,
“Freeway Entrance/Exit”, “Intersection” or “City
Center”, the search can be narrowed down by
specifying the city.1. Highlight [Select a City] and push
.
2. Enter the name of the city, highlight [List]
and push .
A list screen is displayed.
INFO:.
The same screen will be displayed when a location is searched from a street
address, and when [City] is highlighted
and is pushed.
“Finding address” (page 4-4)
.
Highlight [Last 5 Cities] and push
to display 5 cities recently
set as destinations.
Setting destination
4-3

Black plate (66,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

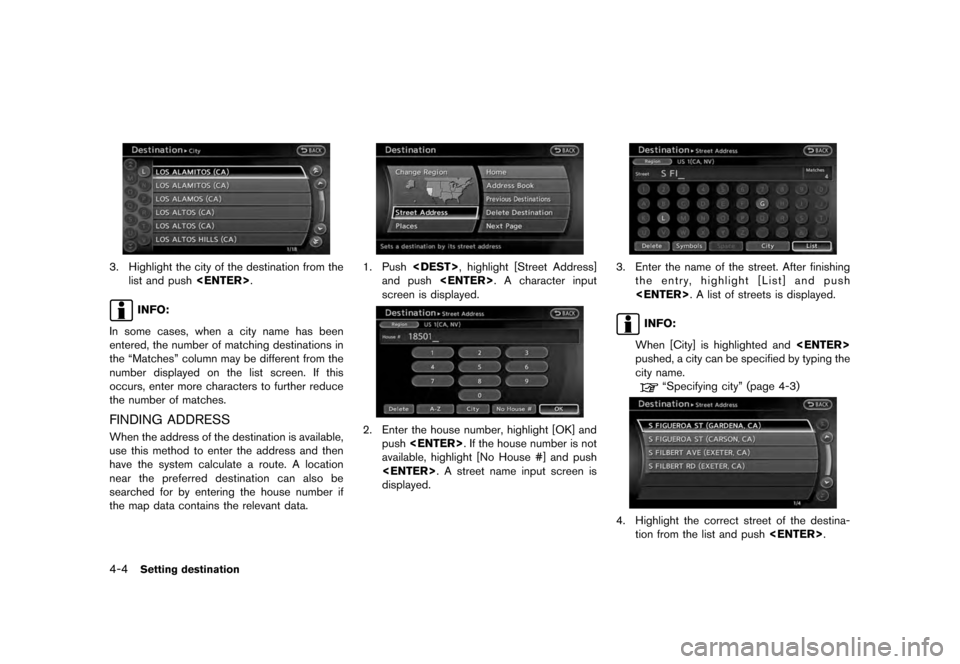

4-4
Setting destination
3. Highlight the city of the destination from the list and push .
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING ADDRESSWhen the address of the destination is available,
use this method to enter the address and then
have the system calculate a route. A location
near the preferred destination can also be
searched for by entering the house number if
the map data contains the relevant data.
1. Push , highlight [Street Address]
and push . A character input
screen is displayed.2. Enter the house number, highlight [OK] and push . If the house number is not
available, highlight [No House #] and push
. A street name input screen is
displayed.
3. Enter the name of the street. After finishing the entry, highlight [List] and push
. A list of streets is displayed.
INFO:
When [City] is highlighted and
pushed, a city can be specified by typing the
city name.
“Specifying city” (page 4-3)
4. Highlight the correct street of the destina- tion from the list and push .

Black plate (67,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

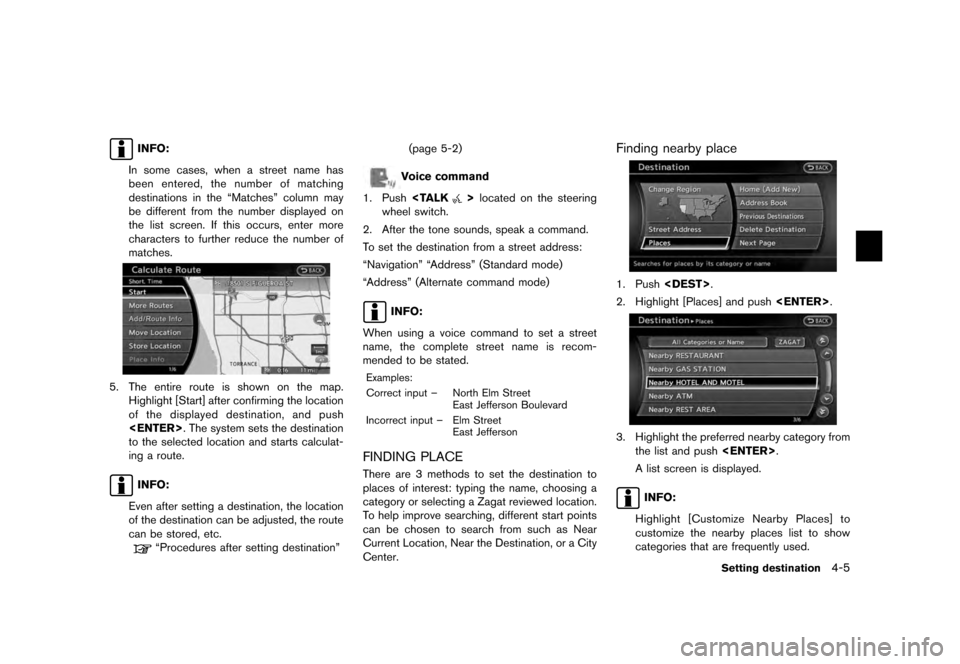

INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the “Matches” column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.
“Procedures after setting destination” (page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the destination from a street address:
“Navigation” “Address” (Standard mode)
“Address” (Alternate command mode)
INFO:
When using a voice command to set a street
name, the complete street name is recom-
mended to be stated.
Examples:
Correct input – North Elm Street East Jefferson Boulevard
Incorrect input – Elm Street East JeffersonFINDING PLACEThere are 3 methods to set the destination to
places of interest: typing the name, choosing a
category or selecting a Zagat reviewed location.
To help improve searching, different start points
can be chosen to search from such as Near
Current Location, Near the Destination, or a City
Center.
Finding nearby place1. Push.
2. Highlight [Places] and push .3. Highlight the preferred nearby category from
the list and push .
A list screen is displayed.
INFO:
Highlight [Customize Nearby Places] to
customize the nearby places list to show
categories that are frequently used.
Setting destination
4-5

Black plate (68,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

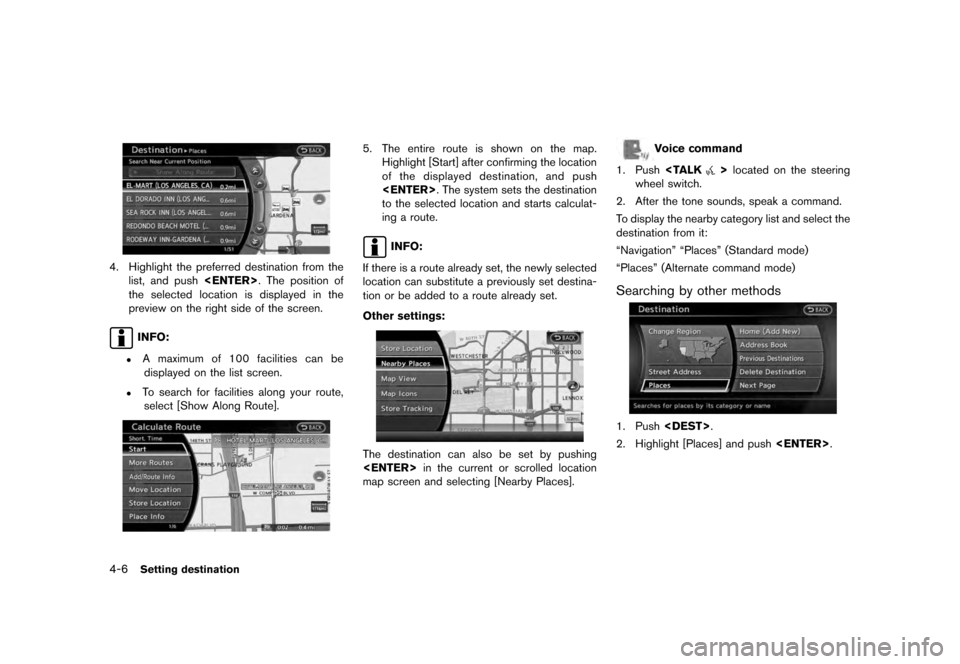

4-6
Setting destination
4. Highlight the preferred destination from the list, and push . The position of
the selected location is displayed in the
preview on the right side of the screen.
INFO:.
A maximum of 100 facilities can be displayed on the list screen.
.
To search for facilities along your route, select [Show Along Route].
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
If there is a route already set, the newly selected
location can substitute a previously set destina-
tion or be added to a route already set.
Other settings:
The destination can also be set by pushing
in the current or scrolled location
map screen and selecting [Nearby Places].
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the nearby category list and select the
destination from it:
“Navigation” “Places” (Standard mode)
“Places” (Alternate command mode)
Searching by other methods1. Push .
2. Highlight [Places] and push .
