2012 NISSAN QUEST display

Black plate (28,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-20
Getting started

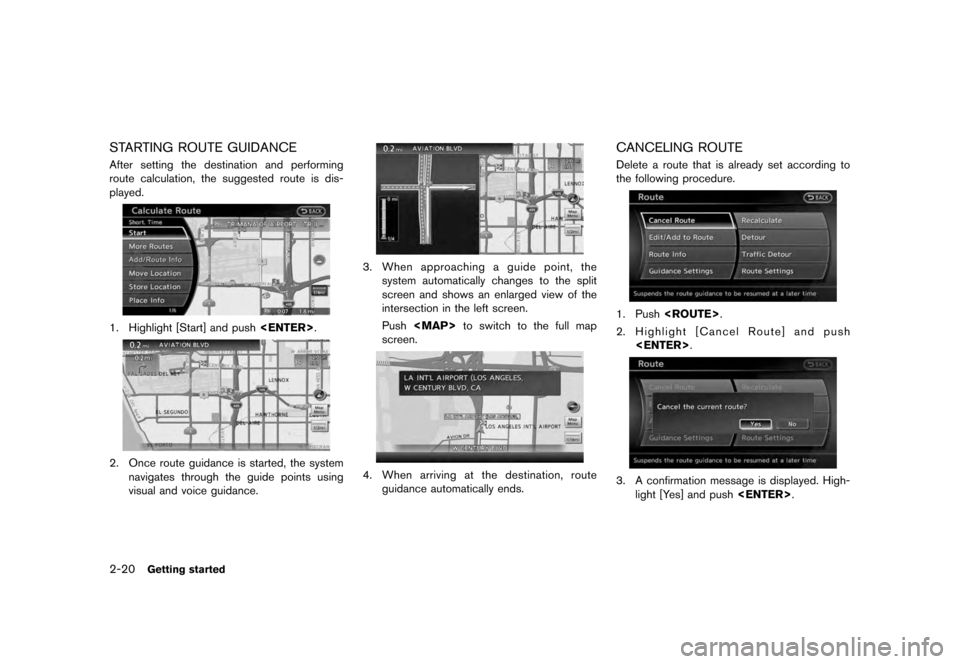

STARTING ROUTE GUIDANCEAfter setting the destination and performing
route calculation, the suggested route is dis-
played.1. Highlight [Start] and push .2. Once route guidance is started, the system
navigates through the guide points using
visual and voice guidance.
3. When approaching a guide point, thesystem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Push

Black plate (29,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
INFO:
. If a route is canceled, [Cancel Route]
changes to [Resume Route].
Highlight [Resume Route] and push
to reactivate the canceled route.
This is available only until a new route is set
or a currently set destination is deleted.
. The above step does not delete the
destination that has been set. To delete a
destination, push and highlight
[Delete Destination], then push .
“Delete destination” (page 4-20)

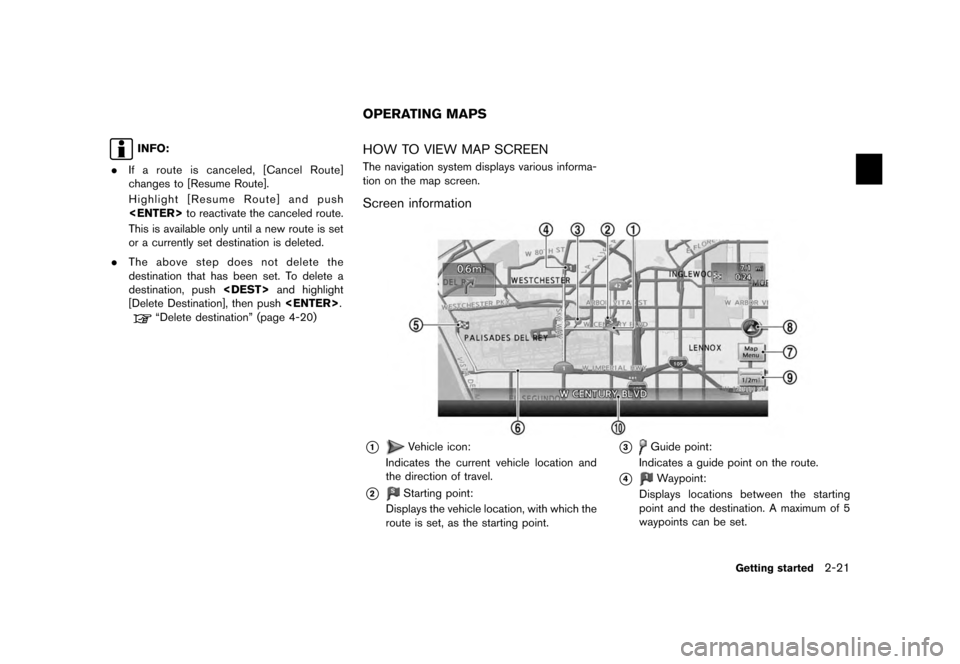

HOW TO VIEW MAP SCREENThe navigation system displays various informa-
tion on the map screen.Screen information*1
Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
*2
Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*3
Guide point:
Indicates a guide point on the route.
*4
Waypoint:
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
Getting started
2-21
OPERATING MAPS

Black plate (30,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

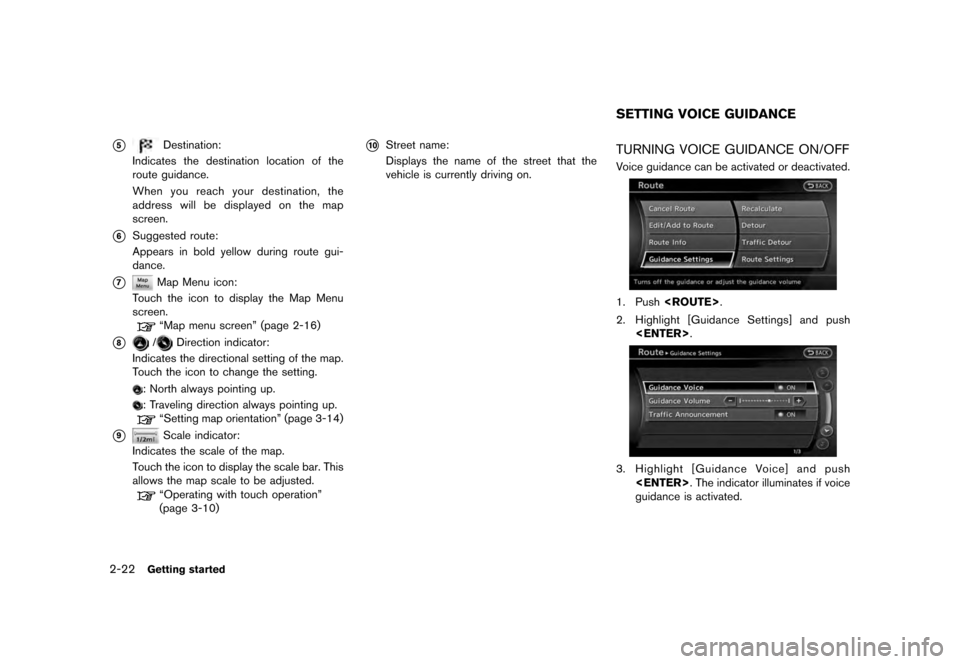

2-22
Getting started
*5
Destination:
Indicates the destination location of the
route guidance.
When you reach your destination, the
address will be displayed on the map
screen.
*6
Suggested route:
Appears in bold yellow during route gui-
dance.
*7
Map Menu icon:
Touch the icon to display the Map Menu
screen.“Map menu screen” (page 2-16)
*8
/
Direction indicator:
Indicates the directional setting of the map.
Touch the icon to change the setting.
: North always pointing up.: Traveling direction always pointing up.
“Setting map orientation” (page 3-14)
*9
Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.“Operating with touch operation”
(page 3-10)
*10
Street name:
Displays the name of the street that the
vehicle is currently driving on.
TURNING VOICE GUIDANCE ON/OFFVoice guidance can be activated or deactivated.1. Push .
2. Highlight [Guidance Settings] and push .3. Highlight [Guidance Voice] and push
. The indicator illuminates if voice
guidance is activated.SETTING VOICE GUIDANCE

Black plate (32,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-24
Getting started
NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, such as the
phone, vehicle information and audio. NISSAN
Voice Recognition can be used in one of two
selectable modes, Standard Mode or Alternate
Command Mode.
In Standard Mode, the commands that are
available are always shown on the display and
announced by the system. To perform opera-
tions, simply follow the prompts given by the
system.
For advanced operation, change to Alternate
Command Mode. When this mode is active, an
expanded list of commands can be spoken after
pushing >on the steering wheel
switch and the voice command menu prompts
are turned off. Note that in this mode the
recognition success rate may be affected
because the number of available commands
and ways of speaking each command are
increased. Otherwise, it is recommended that
Alternate Command Mode be turned to OFF
andStandardModebeusedforthebest
recognition performance.
For U.S. customers, Standard Mode is selected
by default. For Canadian customers, Alternate
Command Mode is the default mode.
Otherwise, it is recommended that Alternate Command Mode be turned to OFF and Stan-
dard Mode be used for the best recognition
performance.
INFO:
. For voice recognition system operation
related to the phone, audio or vehicle
information systems, refer to the Owner’s
Manual of your vehicle.
. When the system language is set to
“Franc¸ ais” (French) or “Espan ˜
ol” (Spanish) ,
the available commands and functions may
differ from those that are available when
using the system in English.
USING THE SYSTEM
InitializationWhen the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If >is pushed before the
initialization completes, the display will show the
message: “System not ready.”
BEFORE STARTINGTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing points:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster and CrossCabriolet models) .
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that voice
commands can be recognized more easily.GIVING VOICE COMMANDSThe method of giving a voice command in
Standard Mode is described in this section.
NISSAN VOICE RECOGNITION

Black plate (33,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Type AType B1. Push >located on the steering
wheel switch.
2. A list of commands appears on the screen, and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from [
]to[
], speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until
operation is completed.
Operating tips.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system. .
If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons <+>
or < > on the steering wheel switch or use
the audio system volume control knob while
the system is making an announcement.
Getting started
2-25

Black plate (34,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-26
Getting started

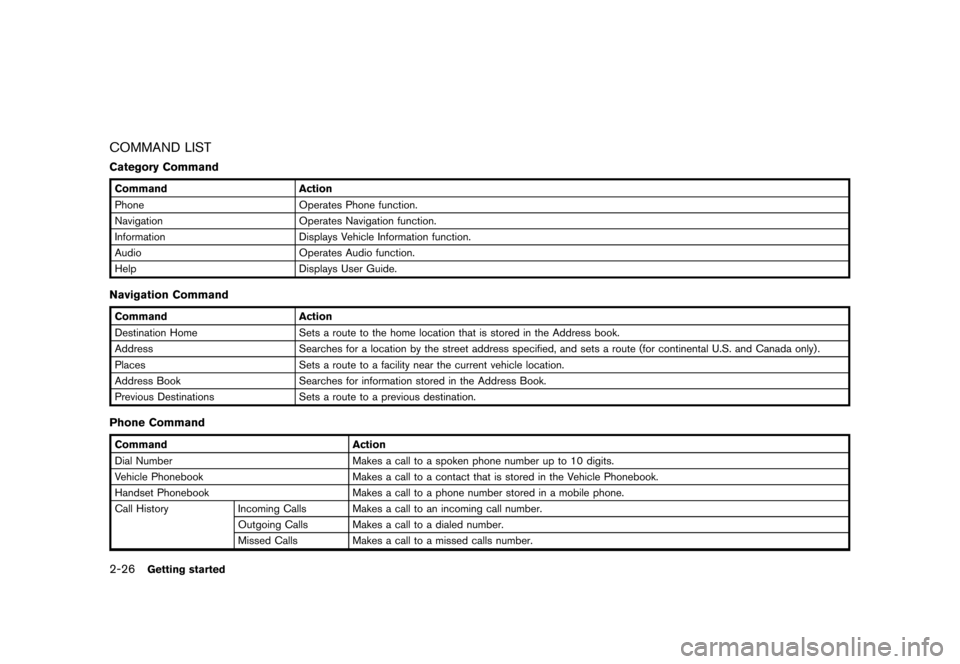

COMMAND LISTCategory CommandCommand Action
Phone Operates Phone function.
Navigation Operates Navigation function.
Information Displays Vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.Navigation CommandCommand Action
Destination Home Sets a route to the home location that is stored in the Address book.
Address Searches for a location by the street address specified, and sets a route (for continental U.S. and Canada only).
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for information stored in the Address Book.
Previous Destinations Sets a route to a previous destination.Phone CommandCommand Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a phone number stored in a mobile phone.
Call History Incoming Calls Makes a call to an incoming call number.
Outgoing Calls Makes a call to a dialed number.
Missed CallsMakes a call to a missed calls number.

Black plate (35,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

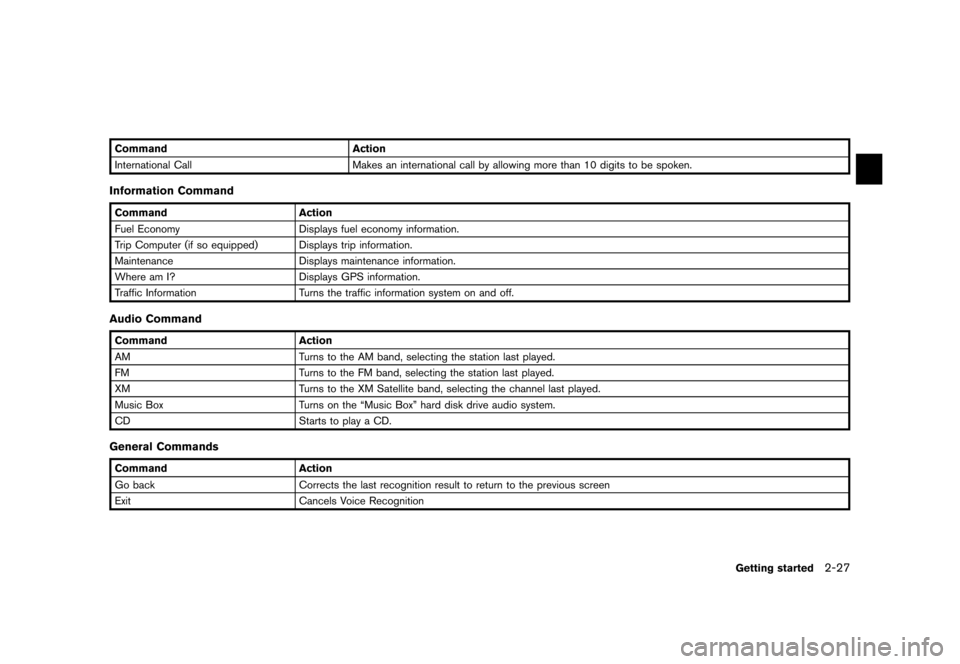

Command Action
International Call Makes an international call by allowing more than 10 digits to be spoken.Information CommandCommandAction
Fuel Economy Displays fuel economy information.
Trip Computer (if so equipped) Displays trip information.
Maintenance Displays maintenance information.
Where am I? Displays GPS information.
Traffic Information Turns the traffic information system on and off.Audio CommandCommandAction
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.General CommandsCommand Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Getting started
2-27

Black plate (38,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

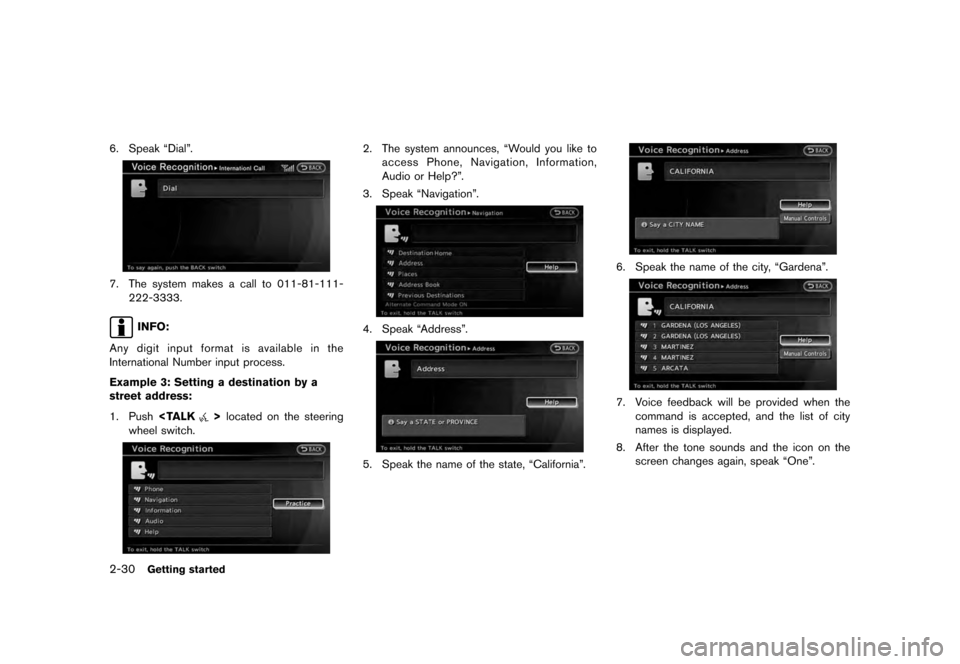

2-30
Getting started
6. Speak “Dial”.7. The system makes a call to 011-81-111- 222-3333.
INFO:
Any digit input format is available in the
International Number input process.
Example 3: Setting a destination by a
street address:
1. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Navigation”.4. Speak “Address”.5. Speak the name of the state, “California”.
6. Speak the name of the city, “Gardena”.7. Voice feedback will be provided when the command is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
