3-10

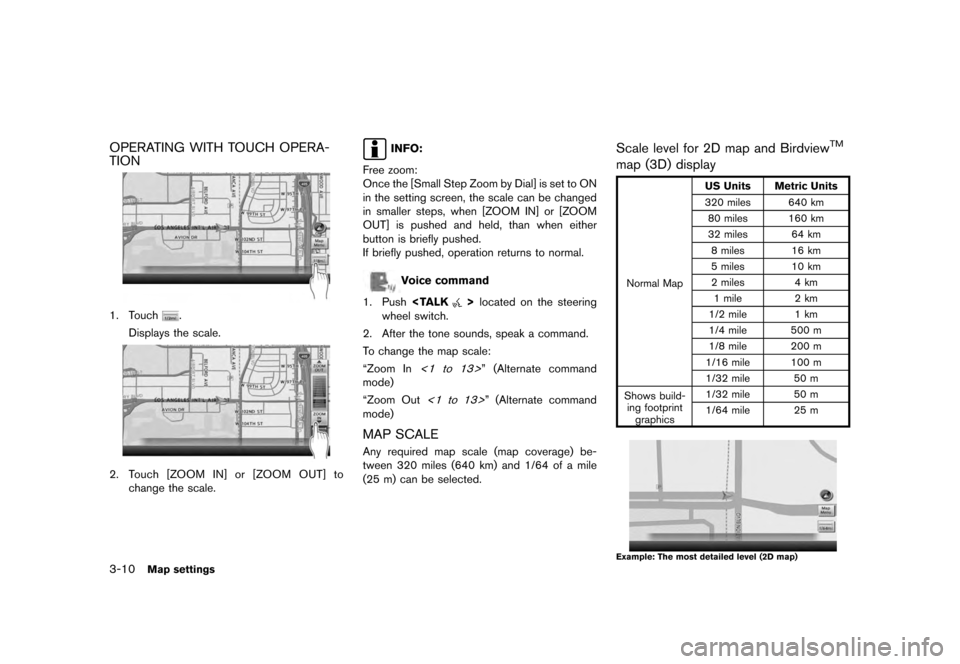

Map settings
OPERATING WITH TOUCH OPERA-
TION1. Touch
.
Displays the scale.
2. Touch [ZOOM IN] or [ZOOM OUT] to change the scale.
INFO:
Free zoom:
Once the [Small Step Zoom by Dial] is set to ON
in the setting screen, the scale can be changed
in smaller steps, when [ZOOM IN] or [ZOOM
OUT] is pushed and held, than when either
button is briefly pushed.
If briefly pushed, operation returns to normal.Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To change the map scale:
“Zoom In
<1 to 13>
” (Alternate command
mode)
“Zoom Out
<1 to 13>
” (Alternate command
mode)
MAP SCALEAny required map scale (map coverage) be-
tween 320 miles (640 km) and 1/64 of a mile
(25 m) can be selected.
Scale level for 2D map and Birdview
TM
map (3D) displayNormal Map US Units Metric Units
320 miles 640 km 80 miles 160 km
32 miles 64 km8 miles 16 km
5 miles 10 km
2 miles 4 km1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
Shows build- ing footprint graphics 1/32 mile 50 m
1/64 mile 25 mExample: The most detailed level (2D map)

Black plate (51,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

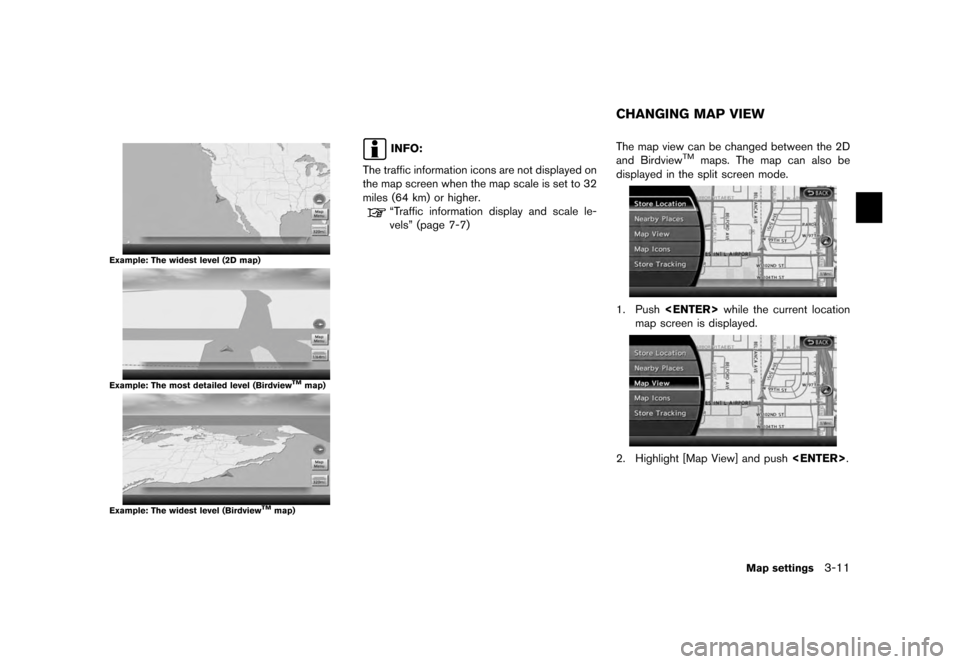

Example: The widest level (2D map)Example: The most detailed level (Birdview
TMmap)
Example: The widest level (Birdview
TMmap)
INFO:
The traffic information icons are not displayed on
the map screen when the map scale is set to 32
miles (64 km) or higher.“Traffic information display and scale le-
vels” (page 7-7) The map view can be changed between the 2D
and Birdview
TM
maps. The map can also be
displayed in the split screen mode.
1. Push while the current location
map screen is displayed.2. Highlight [Map View] and push .
Map settings
3-11
CHANGING MAP VIEW

Black plate (52,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-12
Map settings
3. Highlight [Change View] and push the right button of the directional buttons.
4. Highlight the preferred map view and push . The indicator of the selected
map view illuminates.
5. The display automatically returns to the map screen.AVAILABLE VIEWS.[2D map]:
Switches to the 2D map.
. [Birdview (3D)]:
Switches to the Birdview
TM
map.
. [Split: 2D Map]:
Changes to the split screen mode and both
halves display maps in 2D.
. [Split: Birdview
TM
Map]:
Changes to the split screen mode and the
left half displays the map in 2D and the right half displays the map in Birdview
TM.
INFO:
. When the split screen mode is selected, the
map settings for the left screen can be
changed independently.
“Setting left screen display”
(page 3-17)
. If the split screen mode is selected, the
normal map scrolling and scale adjustment
are set in the right screen. However, if an
icon is touched before adjusting the map
direction or scale, then each screen can be
adjusted independently.
Split: 2D Map
Split: Birdview
TMMap
OTHER SETTINGSThe map view can also be set using the
following procedure.1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Map View] and push .
4. Highlight [Change View] and push .
5. Highlight the preferred item and push .

Black plate (53,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

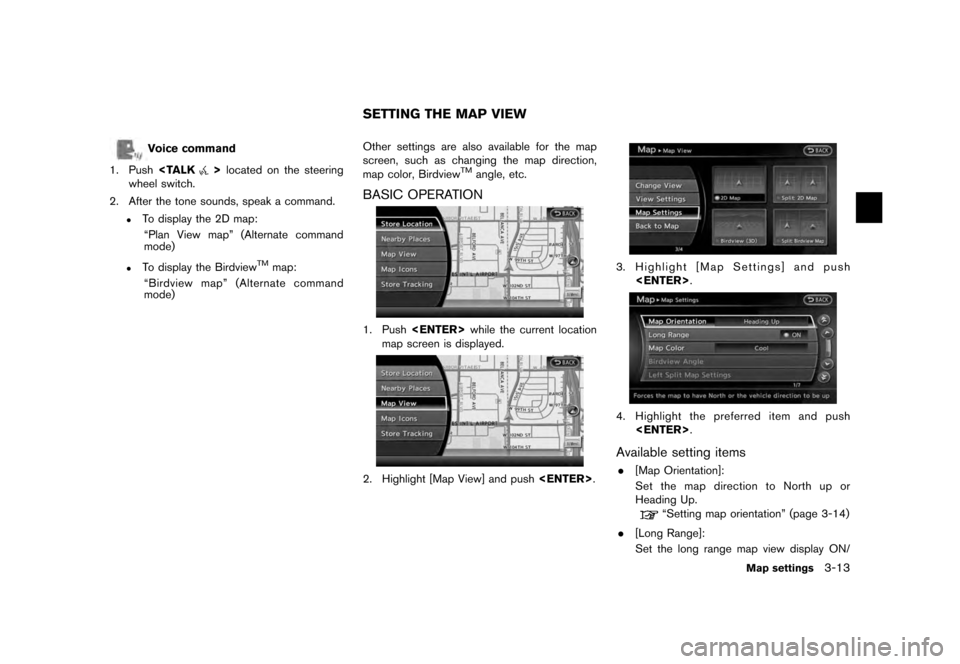

Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
.
To display the 2D map: “Plan View map” (Alternate command
mode)
.
To display the Birdview
TM
map:
“Birdview map” (Alternate command
mode) Other settings are also available for the map
screen, such as changing the map direction,
map color, Birdview
TM
angle, etc.
BASIC OPERATION1. Push
while the current location
map screen is displayed.2. Highlight [Map View] and push .
3. Highlight [Map Settings] and push
.4. Highlight the preferred item and push
.Available setting items.[Map Orientation]:
Set the map direction to North up or
Heading Up.
“Setting map orientation” (page 3-14)
. [Long Range]:
Set the long range map view display ON/
Map settings
3-13
SETTING THE MAP VIEW

Black plate (54,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-14
Map settings

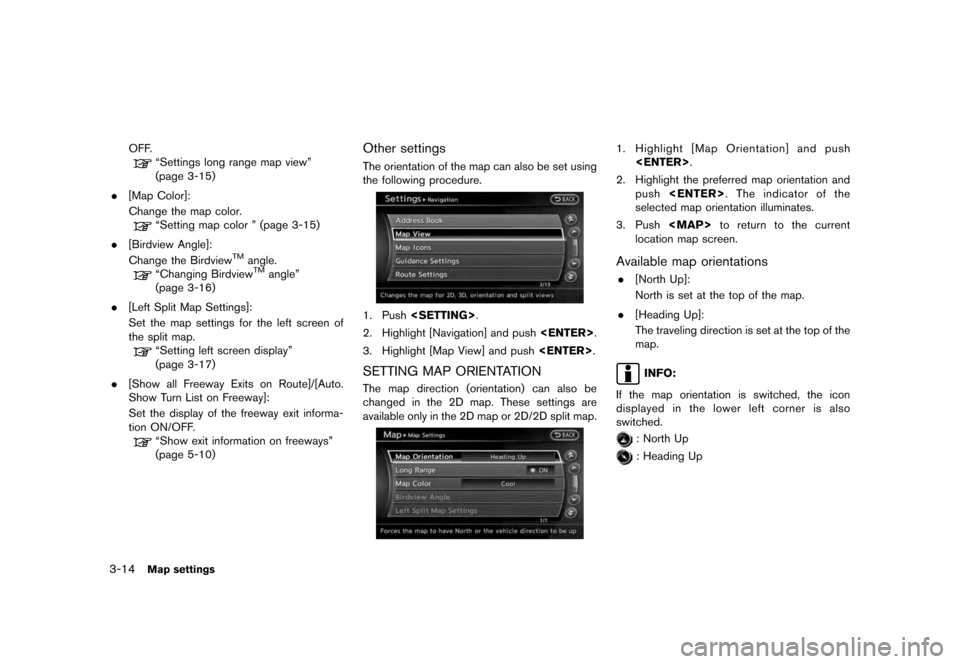

OFF.
“Settings long range map view”
(page 3-15)
. [Map Color]:
Change the map color.“Setting map color ” (page 3-15)
. [Birdview Angle]:
Change the Birdview
TM
angle.
“Changing Birdview
TM
angle”
(page 3-16)
. [Left Split Map Settings]:
Set the map settings for the left screen of
the split map.
“Setting left screen display”
(page 3-17)
. [Show all Freeway Exits on Route]/[Auto.
Show Turn List on Freeway]:
Set the display of the freeway exit informa-
tion ON/OFF.“Show exit information on freeways”
(page 5-10)
Other settingsThe orientation of the map can also be set using
the following procedure.1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Map View] and push .SETTING MAP ORIENTATIONThe map direction (orientation) can also be
changed in the 2D map. These settings are
available only in the 2D map or 2D/2D split map.
1. Highlight [Map Orientation] and push
.
2. Highlight the preferred map orientation and push . The indicator of the
selected map orientation illuminates.
3. Push

Black plate (55,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

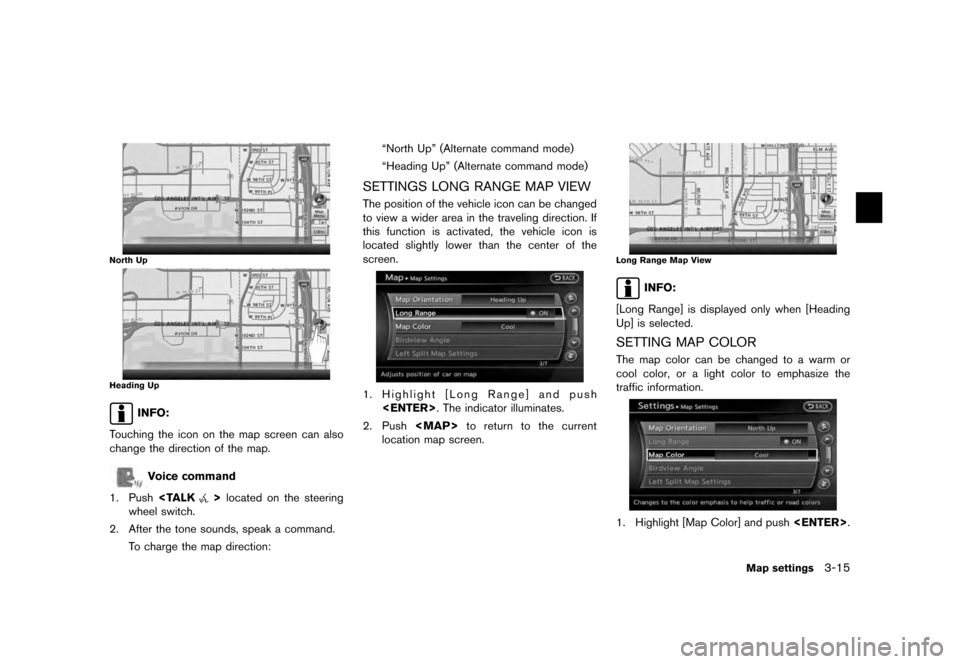

North UpHeading Up
INFO:
Touching the icon on the map screen can also
change the direction of the map.Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command. To charge the map direction: “North Up” (Alternate command mode)
“Heading Up” (Alternate command mode)
SETTINGS LONG RANGE MAP VIEWThe position of the vehicle icon can be changed
to view a wider area in the traveling direction. If
this function is activated, the vehicle icon is
located slightly lower than the center of the
screen.1. Highlight [Long Range] and push
. The indicator illuminates.
2. Push

Black plate (56,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-16
Map settings

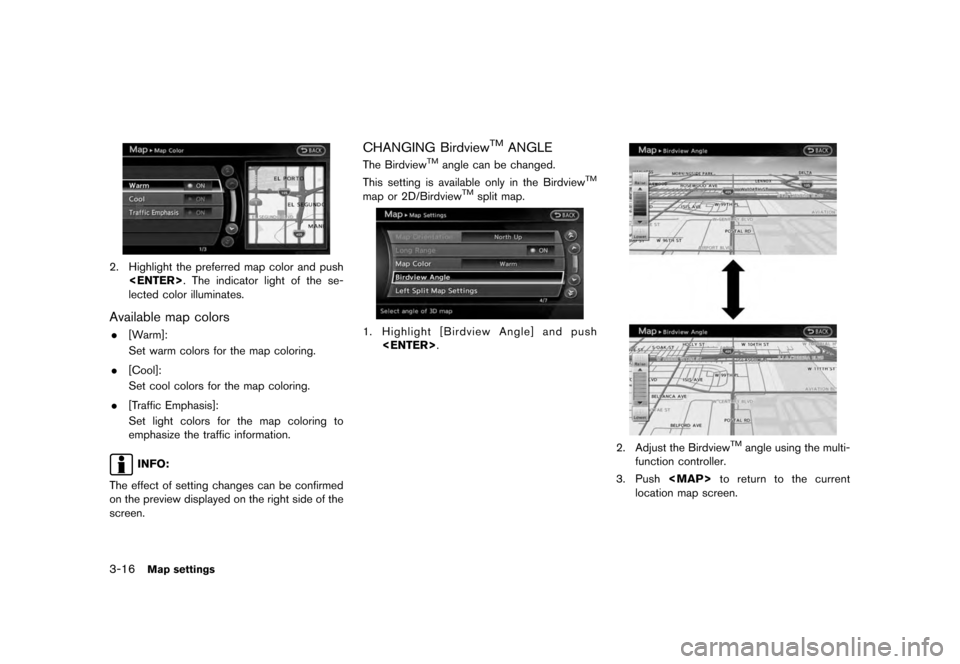

2. Highlight the preferred map color and push . The indicator light of the se-
lected color illuminates.Available map colors. [Warm]:
Set warm colors for the map coloring.
. [Cool]:
Set cool colors for the map coloring.
. [Traffic Emphasis]:
Set light colors for the map coloring to
emphasize the traffic information.
INFO:
The effect of setting changes can be confirmed
on the preview displayed on the right side of the
screen.
CHANGING Birdview
TM
ANGLE
The Birdview
TM
angle can be changed.
This setting is available only in the Birdview
TM
map or 2D/Birdview
TM
split map.
1. Highlight [Birdview Angle] and push .
2. Adjust the Birdview
TM
angle using the multi-
function controller.
3. Push

Black plate (57,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

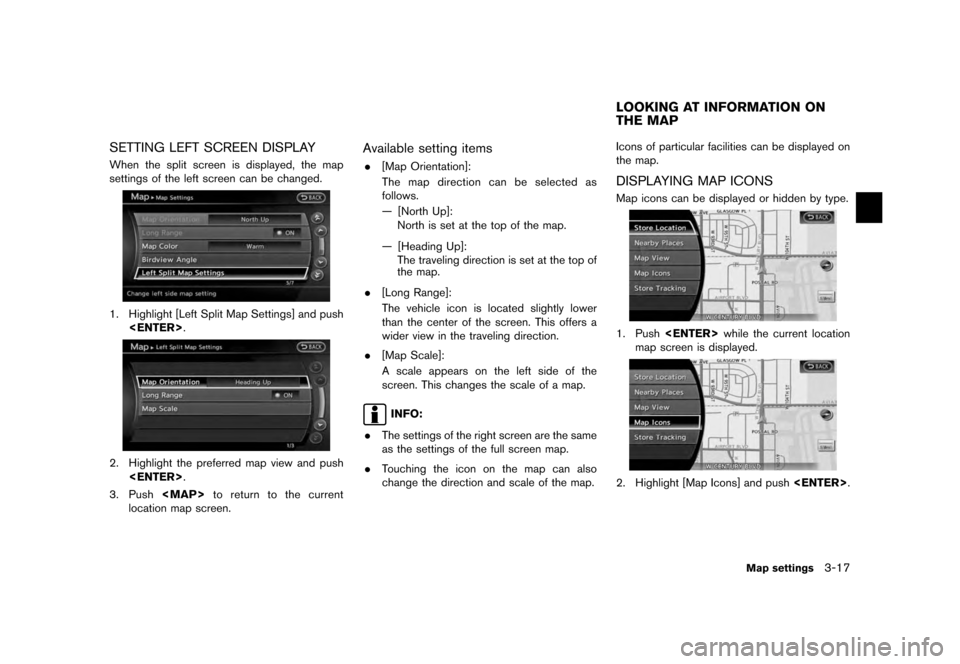

SETTING LEFT SCREEN DISPLAYWhen the split screen is displayed, the map
settings of the left screen can be changed.1. Highlight [Left Split Map Settings] and push .2. Highlight the preferred map view and push
.
3. Push
