2012 NISSAN QUEST display

Black plate (41,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

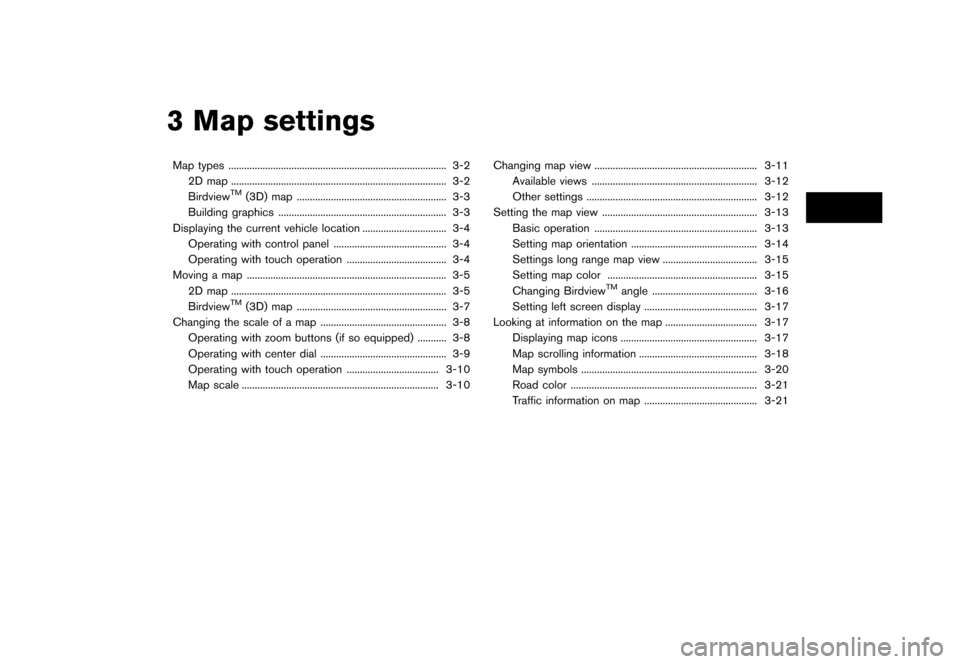

3 Map settingsMap types ................................................................................... 3-2 2D map ........................................................................\
.......... 3-2
Birdview
TM
(3D) map ......................................................... 3-3
Building graphics ................................................................ 3-3
Displaying the current vehicle location ................................ 3-4 Operating with control panel ........................................... 3-4
Operating with touch operation ...................................... 3-4
Moving a map ........................................................................\
.... 3-5 2D map ........................................................................\
.......... 3-5
Birdview
TM
(3D) map ......................................................... 3-7
Changing the scale of a map ................................................ 3-8
Operating with zoom buttons (if so equipped) ........... 3-8
Operating with center dial ................................................ 3-9
Operating with touch operation ................................... 3-10
Map scale ........................................................................\
... 3-10 Changing map view .............................................................. 3-11
Available views ............................................................... 3-12
Other settings ................................................................. 3-12
Setting the map view ........................................................... 3-13 Basic operation .............................................................. 3-13
Setting map orientation ................................................ 3-14
Settings long range map view .................................... 3-15
Setting map color ......................................................... 3-15
Changing Birdview
TM
angle ........................................ 3-16
Setting left screen display ........................................... 3-17
Looking at information on the map ................................... 3-17
Displaying map icons .................................................... 3-17
Map scrolling information ............................................. 3-18
Map symbols ................................................................... 3-20
Road color ....................................................................... 3-21
Traffic information on map ........................................... 3-21

Black plate (42,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-2

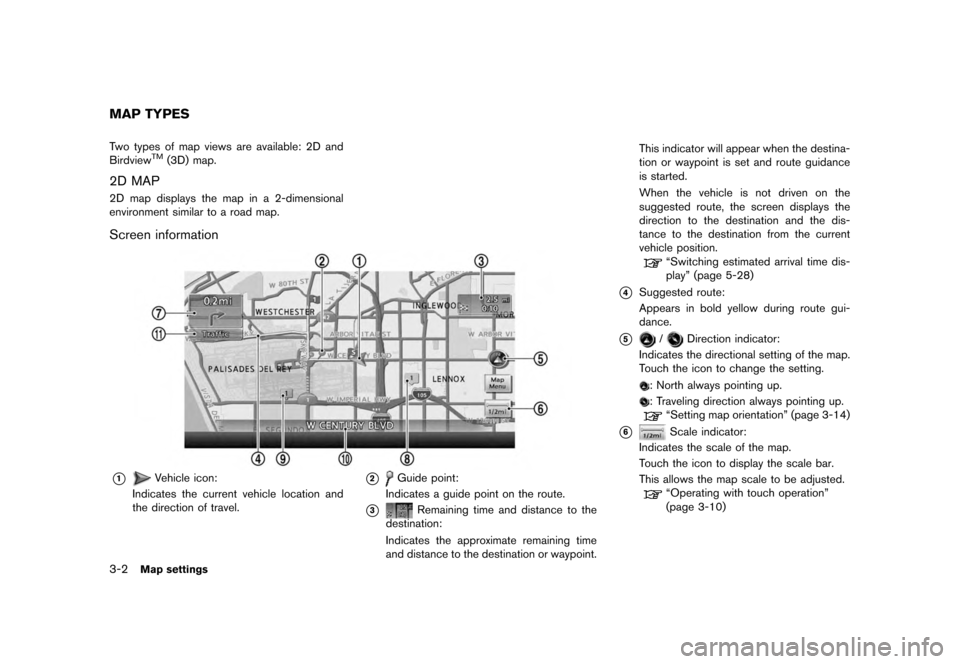

Map settings
Two types of map views are available: 2D and
Birdview
TM
(3D) map.
2D MAP2D map displays the map in a 2-dimensional
environment similar to a road map.Screen information*1
Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
*2
Guide point:
Indicates a guide point on the route.
*3
Remaining time and distance to the
destination:
Indicates the approximate remaining time
and distance to the destination or waypoint. This indicator will appear when the destina-
tion or waypoint is set and route guidance
is started.
When the vehicle is not driven on the
suggested route, the screen displays the
direction to the destination and the dis-
tance to the destination from the current
vehicle position.
“Switching estimated arrival time dis-
play” (page 5-28)
*4
Suggested route:
Appears in bold yellow during route gui-
dance.
*5
/
Direction indicator:
Indicates the directional setting of the map.
Touch the icon to change the setting.
: North always pointing up.: Traveling direction always pointing up.
“Setting map orientation” (page 3-14)
*6
Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar.
This allows the map scale to be adjusted.“Operating with touch operation”
(page 3-10)
MAP TYPES

Black plate (43,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

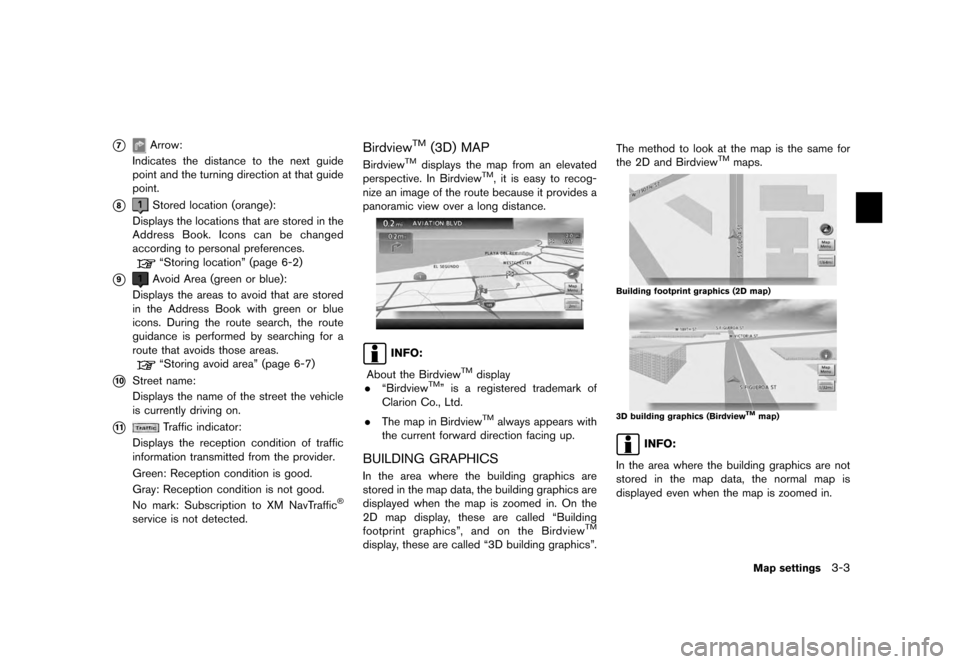

*7
Arrow:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8
Stored location (orange):
Displays the locations that are stored in the
Address Book. Icons can be changed
according to personal preferences.“Storing location” (page 6-2)
*9
Avoid Area (green or blue):
Displays the areas to avoid that are stored
in the Address Book with green or blue
icons. During the route search, the route
guidance is performed by searching for a
route that avoids those areas.“Storing avoid area” (page 6-7)
*10
Street name:
Displays the name of the street the vehicle
is currently driving on.
*11
Traffic indicator:
Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
No mark: Subscription to XM NavTraffic
®
service is not detected.
Birdview
TM
(3D) MAP
Birdview
TM
displays the map from an elevated
perspective. In Birdview
TM, it is easy to recog-
nize an image of the route because it provides a
panoramic view over a long distance.
INFO:
About the Birdview
TM
display
. “Birdview
TM” is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TM
always appears with
the current forward direction facing up.
BUILDING GRAPHICSIn the area where the building graphics are
stored in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called “Building
footprint graphics”, and on the Birdview
TM
display, these are called “3D building graphics”. The method to look at the map is the same for
the 2D and Birdview
TM
maps.
Building footprint graphics (2D map)3D building graphics (Birdview
TMmap)
INFO:
In the area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
Map settings
3-3

Black plate (44,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-4
Map settings

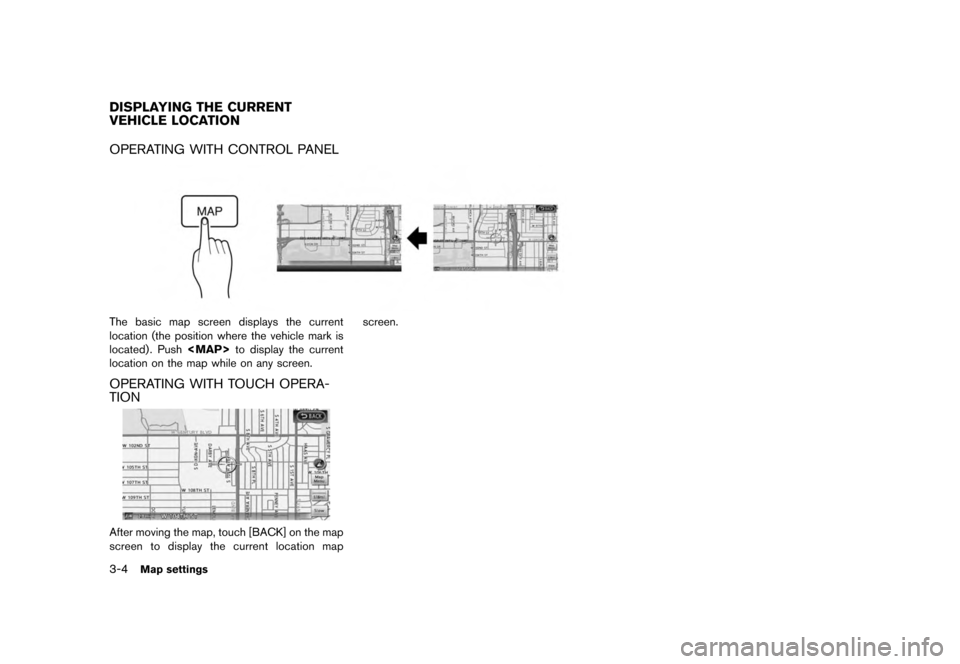

OPERATING WITH CONTROL PANELThe basic map screen displays the current
location (the position where the vehicle mark is
located) . Push

Black plate (45,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

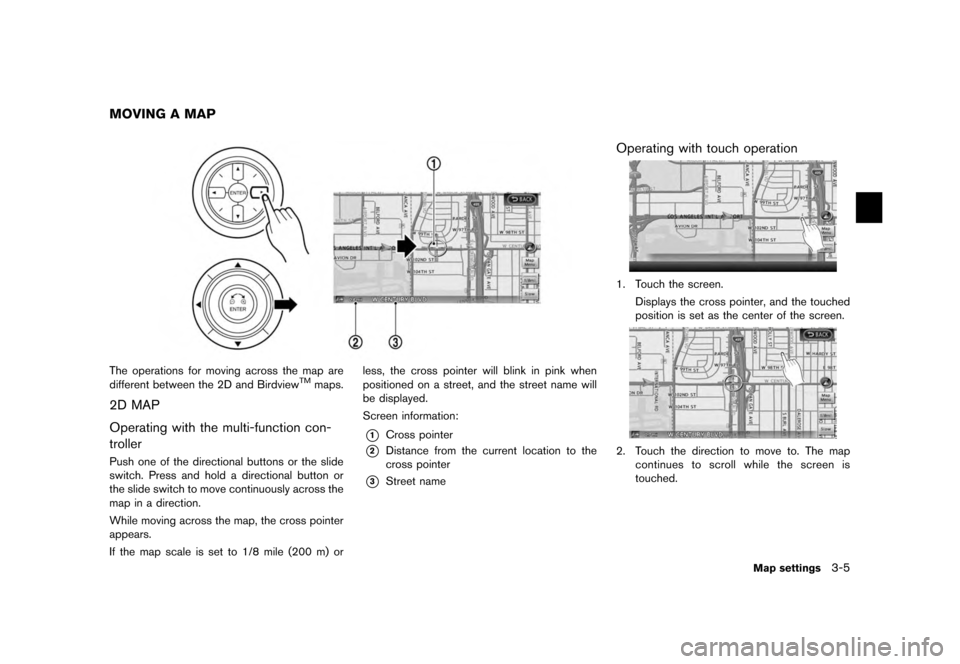

The operations for moving across the map are
different between the 2D and Birdview
TM
maps.
2D MAP
Operating with the multi-function con-
trollerPush one of the directional buttons or the slide
switch. Press and hold a directional button or
the slide switch to move continuously across the
map in a direction.
While moving across the map, the cross pointer
appears.
If the map scale is set to 1/8 mile (200 m) or less, the cross pointer will blink in pink when
positioned on a street, and the street name will
be displayed.
Screen information:
*1
Cross pointer
*2
Distance from the current location to the
cross pointer
*3
Street name
Operating with touch operation1. Touch the screen.
Displays the cross pointer, and the touched
position is set as the center of the screen.2. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
Map settings
3-5
MOVING A MAP

Black plate (46,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
3-6

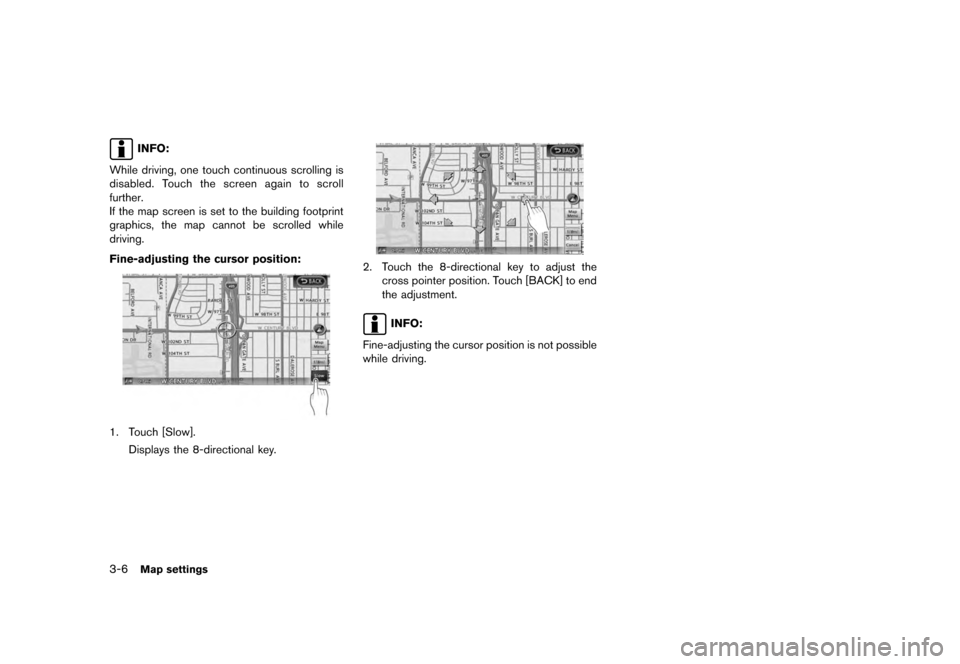

Map settingsINFO:
While driving, one touch continuous scrolling is
disabled. Touch the screen again to scroll
further.
If the map screen is set to the building footprint
graphics, the map cannot be scrolled while
driving.
Fine-adjusting the cursor position:
1. Touch [Slow]. Displays the 8-directional key.
2. Touch the 8-directional key to adjust thecross pointer position. Touch [BACK] to end
the adjustment.
INFO:
Fine-adjusting the cursor position is not possible
while driving.

Black plate (47,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

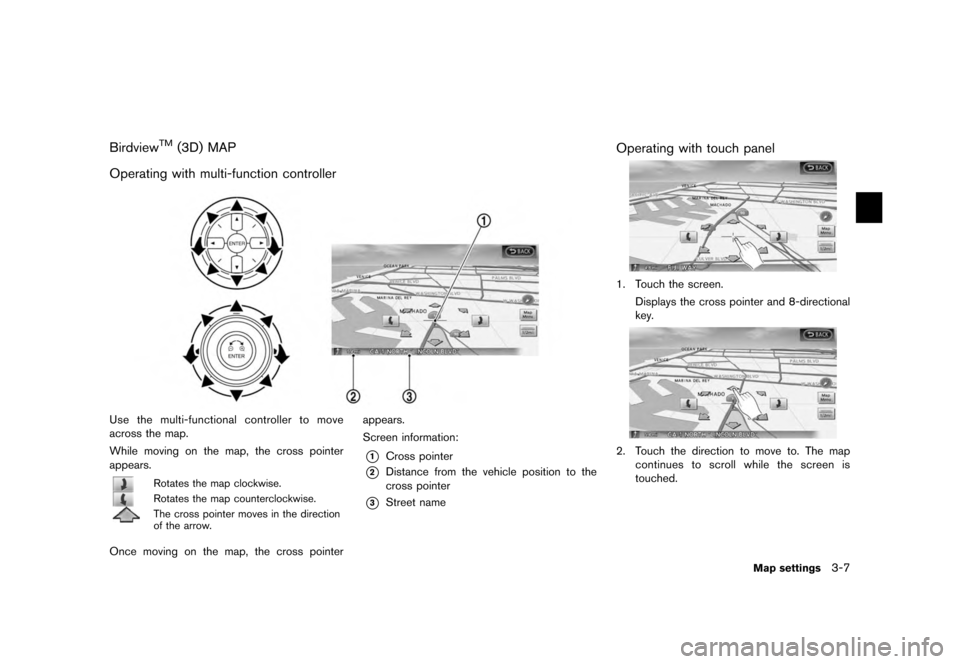

Birdview
TM
(3D) MAP
Operating with multi-function controller
Use the multi-functional controller to move
across the map.
While moving on the map, the cross pointer
appears.
Rotates the map clockwise.Rotates the map counterclockwise.The cross pointer moves in the direction
of the arrow.
Once moving on the map, the cross pointer appears.
Screen information:
*1
Cross pointer
*2
Distance from the vehicle position to the
cross pointer
*3
Street name
Operating with touch panel1. Touch the screen.
Displays the cross pointer and 8-directional
key.2. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
Map settings
3-7

Black plate (49,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

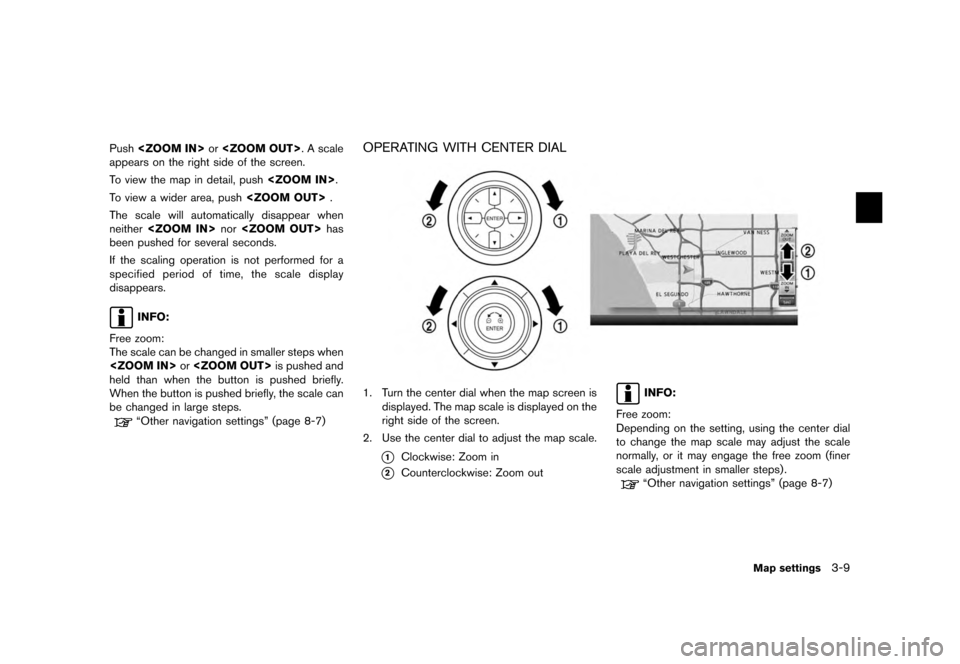

Push or . A scale
appears on the right side of the screen.
To view the map in detail, push .
To view a wider area, push .
The scale will automatically disappear when
neither nor has
been pushed for several seconds.
If the scaling operation is not performed for a
specified period of time, the scale display
disappears.
INFO:
Free zoom:
The scale can be changed in smaller steps when
or is pushed and
held than when the button is pushed briefly.
When the button is pushed briefly, the scale can
be changed in large steps.“Other navigation settings” (page 8-7)
OPERATING WITH CENTER DIAL1. Turn the center dial when the map screen is displayed. The map scale is displayed on the
right side of the screen.
2. Use the center dial to adjust the map scale.
*1
Clockwise: Zoom in
*2
Counterclockwise: Zoom out
INFO:
Free zoom:
Depending on the setting, using the center dial
to change the map scale may adjust the scale
normally, or it may engage the free zoom (finer
scale adjustment in smaller steps) .“Other navigation settings” (page 8-7)
Map settings
3-9
