2012 NISSAN LEAF Owners Manual

WARNING

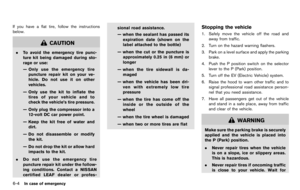

.After using Emergency Tire Sealant
to repair a minor tire puncture, do
not drive the vehicle at speeds
faster than 50 MPH (80 km/h) .
. Immediately after using Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to a
NISSAN certified LEAF dealer to
inspect, and repair or replace the
tire. The Emergency Tire Sealant
cannot permanently seal a punctu-
red tire. Continuing operation of the
vehicle without a permanent tire
repair can lead to a crash.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.
. If you used the Emergency Tire
Sealant to repair a minor tire punc-
ture, your NISSAN certified LEAF
dealer will also need to replace the
TPMS sensor in addition to repair-
ing or replacing the tire . .
NISSAN recommends using only
NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure.

thing, immediately flush the con-
tacted area with water.
. Keep the 12-volt battery out of the
reach of children.
. The booster battery must be rated at
12 volt. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a 12-
volt battery, always wear suitable
eye protectors (for example, gog-
gles or industrial safety spectacles)
and remove rings, metal bands, or
any other jewelry. Do not lean over
the 12-volt battery when jump start-
ing.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic cool-
ing fan. It could come on at any
time. Keep hands and other objects
away from it.

Do not allow the two vehicles to touch.
2. Apply the parking brake.
If the 12-volt battery is discharged, the
power switch cannot be moved from
the OFF position. Connect the jumper
cables to the booster vehicle
*Bbefore
pushing the power switch.
3. Push the P position switch to place the vehicle in the P (Park) position.
4. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.).
5. Place the power switch in the OFF position.
6. Remove the vent caps on the 12-volt battery (if so equipped) . Cover the battery with a
firmly wrung out moist cloth to reduce the
hazard of an explosion.
7. Connect jumper cables in the sequence as illustrated (
*1?*2?*3?*4).

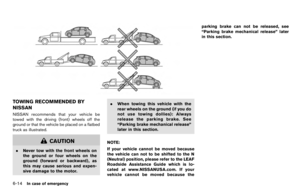

TOWING RECOMMENDED BY
NISSAN
NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or that the vehicle be placed on a flatbed
truck as illustrated.

Front

.Never tow a vehicle using the vehi-
cle tie down hook or recovery hook.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicle
If the vehicle is stuck in sand, snow, mud, etc.,
try to free it by following the procedure below.
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel left and right to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between the R
(Reverse) and D (Drive) positions.
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal before
shifting between R and D.
.Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.
