2012 NISSAN LEAF Owners Manual

pressure warning light. Use a tire pressure
gauge to check the tire pressure.
. The Check tire Pressure warning appears on
the dot matrix liquid crystal display when the
low tire pressure warning light is illuminated
and low tire pressure is detected. The
Check tire Pressure warning turns off when
the low tire pressure warning light turns off.
The Check tire Pressure warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
. Tire pressure rises and falls depending on
the heat caused by operation of the vehicle
and the outside temperature. A low outside
temperature can decrease the temperature
of the air inside the tire, which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “Tire Pressure Monitoring
System (TPMS)” in the “6. In case of emer-
gency” section.

.Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire
pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
. Facilities or electric devices using similar
radio frequencies that are near the vehicle.
. If a transmitter set to similar frequencies is
being used in or near the vehicle.
. If a computer (or similar equipment) or a DC/
AC converter is being used in or near the
vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation. NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
TPMS with Easy Fill Tire Alert
When tire pressure is low, the low tire pressure
warning light illuminates.
This vehicle provides visual and audible signals
to help you inflate the tires to the recommended
COLD tire pressure.
Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and push the P
position switch on the selector lever.
3. Place the power switch in the ON position. Do not place in the READY to drive mode. Operation:
1. Add air to the tire.
2. After a few seconds, the hazard indicators
will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard
indicators stop flashing.
4. Perform the above steps for each tire.
. If the tire is over-inflated more than approxi-
mately 4 psi (30 kPa), the horn beeps and
the hazard indicators flash 3 times. To
correct the pressure, push the core of the
valve stem on the tire briefly to release
pressure. When the pressure reaches the
designated pressure, the horn beeps once.
. If the hazard indicator does not flash within
approximately 15 seconds after starting to
inflate the tire, it indicates that the Easy Fill
Tire Alert is not operating.
. The TPMS will not activate the Easy Fill Tire
Alert under the following conditions:
— If there is interference from an external
device or transmitter.
— The air pressure from the inflation device is not sufficient to inflate the tire such as
those using a power socket.

— If an electrical equipment is being used inor near the vehicle.
— There is a malfunction in the TPMS system.
— There is a malfunction in the horn or hazard indicators.
— If the Easy Fill Tire Alert does not operate due to TPMS interference, move the
vehicle about 3 ft (1 m) backward or
forward and try again.
If the Easy Fill Tire Alert is not working, use a tire
pressure gauge.
AVOIDING COLLISION AND ROLL-
OVER

inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“Wheels and tires” in the “8. Maintenance and
do-it-yourself” section of this manual.
If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.

10 Index
A
ABS (Anti-lock Braking System) ............................ 5-23
Advanced air bag system ......................................... 1-42
Air bag systemAdvanced air bag system .................................. 1-42
Front passenger air bag and status light....... 1-44
Front-seat mounted side-impact supplemental
air bag system....................................................... 1-47
Roof-mounted curtain side-impact
supplemental air bag system ............................ 1-47
Air bag warning labels............................................... 1-50
Air bag warning light...................................... 1-50, 2-18
Air conditioner Air conditioner specification label....................... 9-8
Air conditioning system refrigerant and
lubricant recommendations................................... 9-3
Alarm, How to stop alarm (see vehicle
security system)........................................................... 2-36
Alcohol, drugs and driving.......................................... 5-6
Anti-lock Braking System (ABS) ............................ 5-23
Anti-lock braking system (ABS) warning light..... 2-14
Appearance care Exterior appearance care ...................................... 7-2
Interior appearance care ....................................... 7-4
Audible reminders....................................................... 2-21
Autolight system.......................................................... 2-42
Automatic Door locks................................................................. 3-5
Automatic climate control ........................................... 4-6
Avoiding collision and rollover ................................... 5-5
B
Battery 12-volt battery....................................................... 8-11
Battery saver system........................................... 2-43
Intelligent Key battery.......................................... 8-18
Li-ion battery.......................................................... EV-2
Li-ion battery temperature gauge........................ 2-7
Before starting system............................................... 5-10
Booster seats............................................................... 1-33
Brake Anti-lock Braking System (ABS) ..................... 5-23
Brake fluid................................................................. 8-9
Brake system......................................................... 5-21
BRAKE system warning light (yellow) ............ 2-14
BRAKE warning light (red) ................................ 2-15
Brakes..................................................................... 8-15
Electric parking brake operation ...................... 5-15
BRAKE system warning light (yellow) ................... 2-14
BRAKE warning light (red) ....................................... 2-15
Bulb replacement........................................................ 8-20
C
Cabin air filter............................................................... 4-13
Capacities and recommended lubricants ............... 9-2
Cargo cover.................................................................. 2-51
Ceiling light................................................................... 2-57
Charging Charge port lid...................................................... 3-17
Charging related indicator light.................... CH-26
Charging timer .................................................. CH-19
Cleaning .................................................................... 7-6
Normal charge ..................................................... CH-9
Precautions on charging ................................... CH-2 Quick charge..................................................... CH-16
Specifications........................................................... 9-4
Tricklle charge................................................... CH-11
Charging methods .................................................. CH-19
Charging related indicator light........................... CH-26
Charging related remote function....................... CH-25
Charging status indicator light ............................ CH-26
Charging timer ......................................................... CH-19
Charging troubleshooting guide.......................... CH-30
Checking Checking bulbs..................................................... 2-13
Checking coolant level .......................................... 8-8
Child restraints............................................................. 1-19 Booster seats........................................................ 1-33
Precautions on child restraints......................... 1-19
Top tether strap.................................................... 1-22
Child safety................................................................... 1-17
Child safety rear door lock ......................................... 3-6
Circuit breaker, Fusible link...................................... 8-17
Cleaning exterior and interior............................ 7-2, 7-4
Climate control Climate control service....................................... 4-14
Climate control system refrigerant and
lubricant recommendations................................ 4-14
In-cabin microfilter ............................................... 4-13
Climate control system Climate control operation...................................... 4-3
Climate Ctrl. Timer........................................................ 4-7
Clock.............................................................................. 2-11

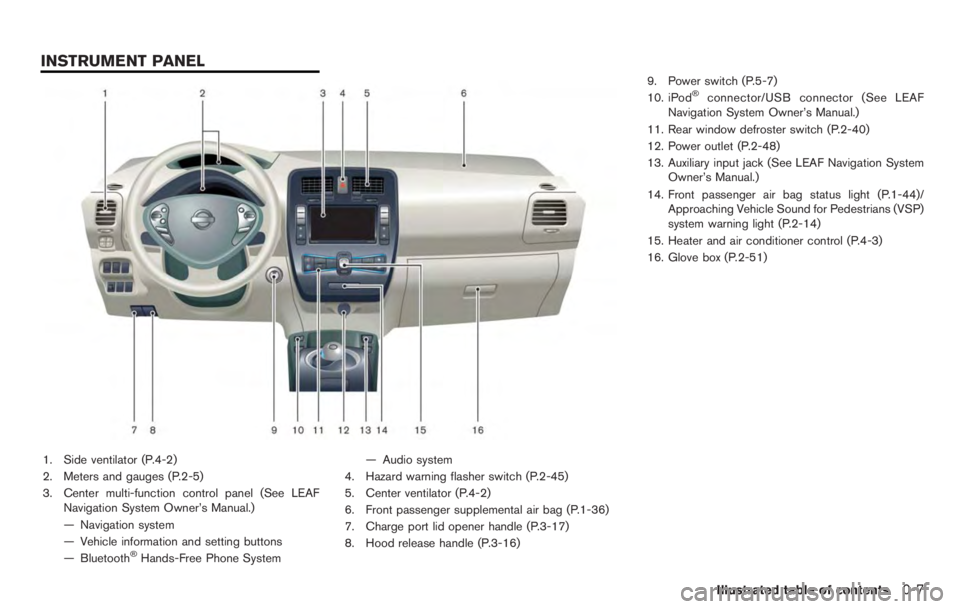

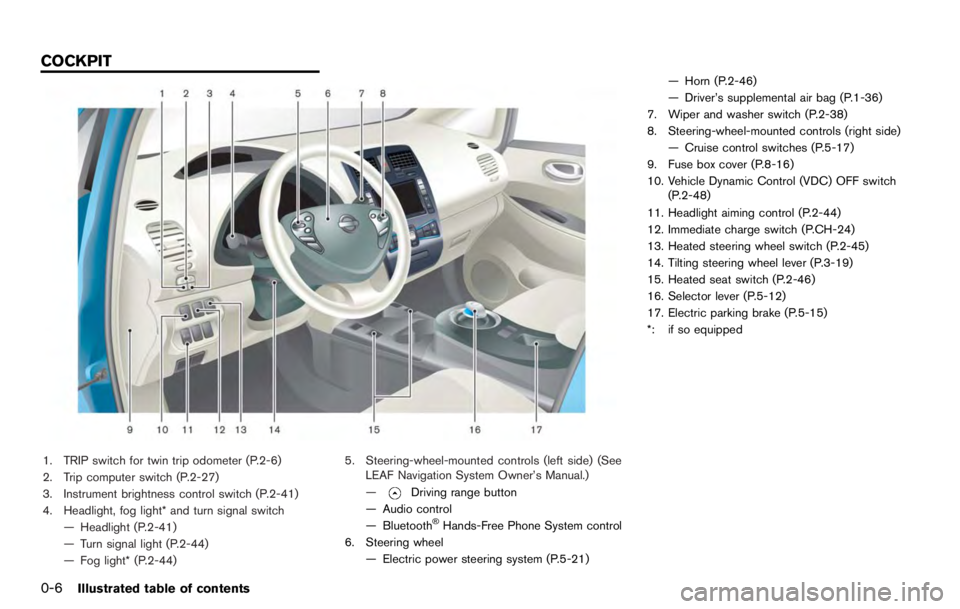

Cockpit ............................................................................ 2-3
Cold weather driving.................................................. 5-26
Console box ................................................................. 2-51
Coolant Capacities and recommended lubricants ......... 9-2
Changing coolant.................................................... 8-8

Checking coolant level .......................................... 8-8
Cooling system.............................................................. 8-7
Corrosion protection .................................................... 7-7
Cruise control............................................................... 5-17
Cup holders.................................................................. 2-49
D
Defroster switch, Rear window and outside mirror
defroster switch........................................................... 2-40
Dimensions and weights............................................. 9-5

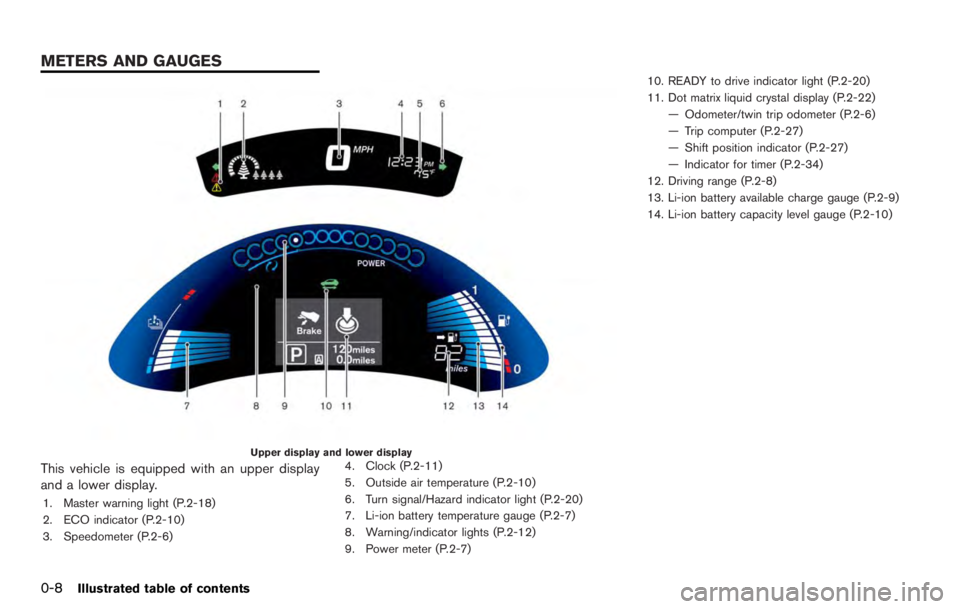

Dot matrix liquid crystal display............................... 2-22
Driving Cold weather driving........................................... 5-26
Driving vehicle....................................................... 5-11
Precautions when starting and driving .............. 5-2
Driving range.................................................................. 2-8
Driving vehicle.............................................................. 5-11
E
ECO indicator.............................................................. 2-10
Efficient use of your vehicle ................................. EV-22
Electric parking brake break-in................................ 5-23
Electric parking brake indicator light...................... 2-19
Electric power steering system ............................... 5-21
Emergency charge.................................................. CH-11
Emergency EV (Electric Vehicle) shut off...... 5-9, 6-2
Emergency shutoff system........................................ EV-9
Emission control information label............................ 9-7
EV Characteristics ..................................................... EV-9
EV system ..................................................................... EV-2
EV unique information............................................. EV-24
Event Data Recorder (EDR)..................................... 9-18
EVSE (Electric Vehicle Supply Equipment) ..... CH-11
EVSE (Electric Vehicle Supply
Equipment) cleaning..................................................... 7-6
F
F.M.V.S.S./C.M.V.S.S. certification label ................. 9-7
Flashers (See hazard warning flasher switch)..... 2-45
Flat tire............................................................................. 6-2
Flat towing .................................................................... 9-14
Floor mat cleaning ........................................................ 7-5
Fluid Brake fluid................................................................. 8-9
Capacities and recommended lubricants ......... 9-2
coolant ....................................................................... 8-7
Reduction gear fluid............................................... 8-9
Window washer fluid .......................................... 8-10
Fog light switch........................................................... 2-44
Front manual seat adjustment.................................... 1-3
Front passenger air bag and status light.............. 1-44
Front seat, Front seat adjustment............................. 1-3
Fuses.............................................................................. 8-16
Fusible links.................................................................. 8-17
G
Garage door open, HomeLink®Universal
Transceiver............................................................. 2-58
Gauge .............................................................................. 2-5 Driving range............................................................ 2-8
ECO indicator....................................................... 2-10
Li-ion battery available charge gauge................ 2-9
Li-ion battery capacity level gauge.................. 2-10
Li-ion battery temperature gauge........................ 2-7
Odometer.................................................................. 2-6
Power meter ............................................................. 2-7
Speedometer............................................................ 2-6
General maintenance ................................................... 8-2
Glove box...................................................................... 2-51
H
Hazard warning flasher switch................................. 2-45
Head restraints .............................................................. 1-4
Headlights Bulb replacement................................................. 8-21
Headlight Aiming Control ................................. 2-44
Headlight switch................................................... 2-41
Heated seats................................................................ 2-46
Heated steering wheel............................................... 2-45
High voltage precautions .......................................... EV-7
HomeLink
®universal transceiver............................. 2-58
Hood release................................................................ 3-16
Horn................................................................................ 2-46
How to normal charge.............................................. CH-9
How to quick charge.............................................. CH-16
How to trickle charge ............................................ CH-11
I
If the Li-ion battery becomes
completely discharged............................................... 6-12
Immediate charge.................................................... CH-24
Immobilizer system...................................................... 2-36
In-cabin microfilter ...................................................... 4-13
indicator Electric parking brake indicator light............... 2-19
Indicator lights.............................................................. 2-19
Indicators for operation.............................................. 2-23
Inside rearview mirror................................................. 3-20
Instrument brightness control .................................. 2-41
Instrument panel............................................................ 2-4
Intelligent Key system ......................................... 3-6, 5-7 Key operating range ............................................... 3-8
Key operation ........................................................ 3-10
Remote keyless operation.................................. 3-13
