Features and controls
3-71
3 Power window control
N00510800383
NOTE
Never try to operate the main switch and sub-switch in
different directions at the same time. This will freeze the
window in position.

Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.1- Open (down)
2- Close (up)
WA R N I N G
!
Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.
Never leave the vehicle without carrying the key.
Never leave children or unreliable adults unat-
tended inside the vehicle.
BK0138000US.book 71 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

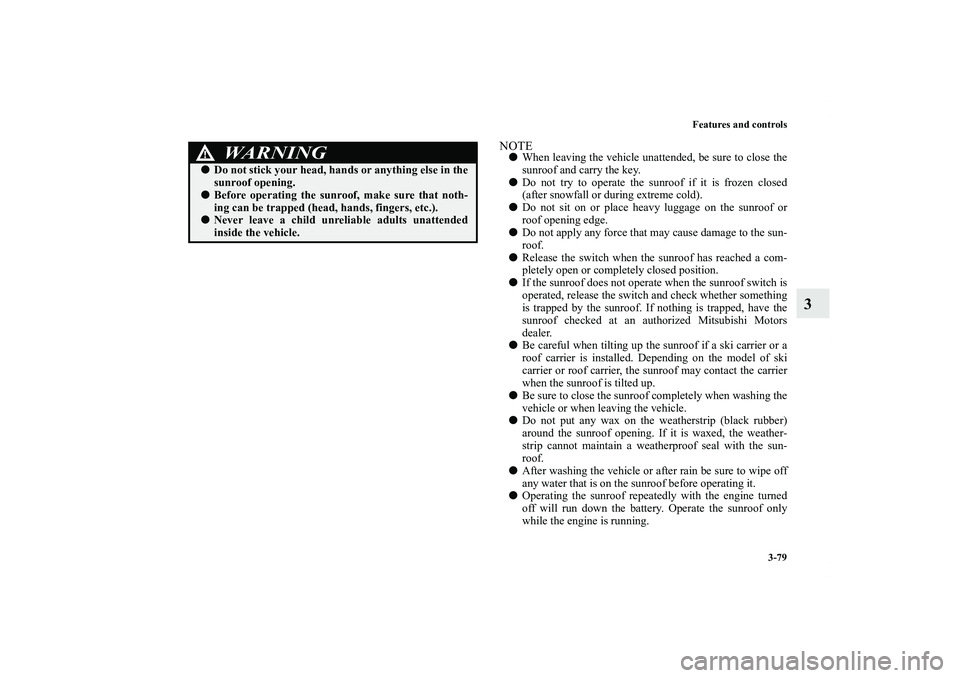

Features and controls
3-79
3
NOTE
When leaving the vehicle unattended, be sure to close the
sunroof and carry the key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the sun-
roof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.

Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.

After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
WA R N I N G
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child unreliable adults unattended
inside the vehicle.
BK0138000US.book 79 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-88 Features and controls
3Ignition switch
N00512400660
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Ignition switch” on page 3-25.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all accessories can be used.STARTEngages the starter. Release the key when the engine starts.It
will automatically back to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer”
on page 3-24.)
BK0138000US.book 88 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

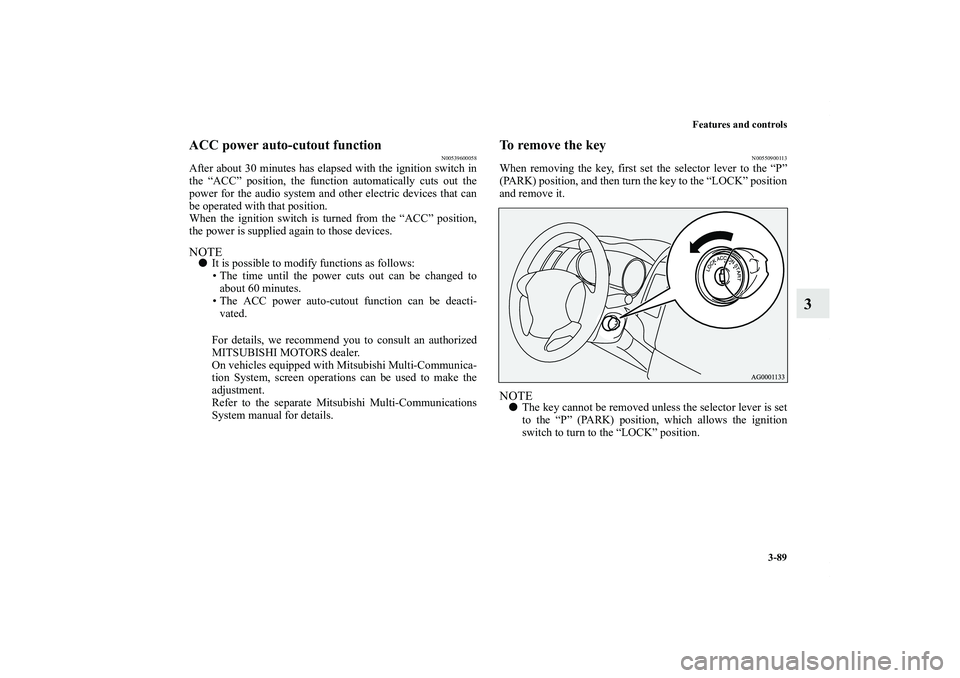

Features and controls
3-89
3
ACC power auto-cutout function
N00539600058
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
MITSUBISHI MOTORS dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.
To remove the key
N00550900113
When removing the key, first set the selector lever to the “P”
(PARK) position, and then turn the key to the “LOCK” position
and remove it.NOTE
The key cannot be removed unless the selector lever is set
to the “P” (PARK) position, which allows the ignition
switch to turn to the “LOCK” position.
BK0138000US.book 89 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-90 Features and controls
3Steering wheel lock
N00512500166
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Steering wheel lock” on page3-32
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0138000US.book 90 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-91
3
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
to “ACC”. Firmly turn the steering wheel to the left or to
the right as you turn the key.
Starting the engine
N00512600721
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting” on page3-16.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-177.
CAUTION
!
Remove the key when leaving the vehicle.
BK0138000US.book 91 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

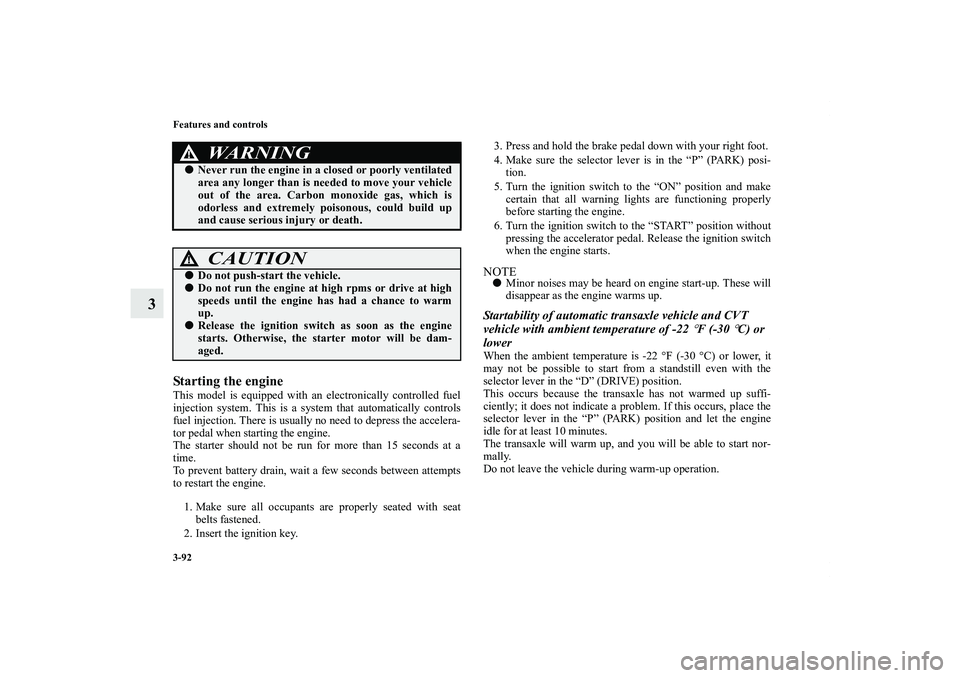

3-92 Features and controls
3
Starting the engineThis model is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.3. Press and hold the brake pedal down with your right foot.
4. Make sure the selector lever is in the “P” (PARK) posi-
tion.
5. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
6. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the ignition switch
when the engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.Startability of automatic transaxle vehicle and CVT
vehicle with ambient temperature of -22
°F (-30
°C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0138000US.book 92 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-94 Features and controls
3
NOTE
During the break-in period or immediately after recon-
necting the battery, your vehicle may not shift smoothly.
This does not indicate a problem in the transaxle. Shifting
will become smoother once the transaxle has been shifted
several times by the electronic control system.
Selector lever operation
N00513800296
As an additional safety precaution, models equipped with an
automatic transaxle have a shift-lock device that holds the
selector lever in the “P” (PARK) position. To move the selector
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition switch is set to the
“LOCK” or “ACC” position, or if the key has been
removed, or if the brake pedal is not pressed and held
down.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to use sports mode to downshift a lower gear.
This will permit the engine to begin braking.
