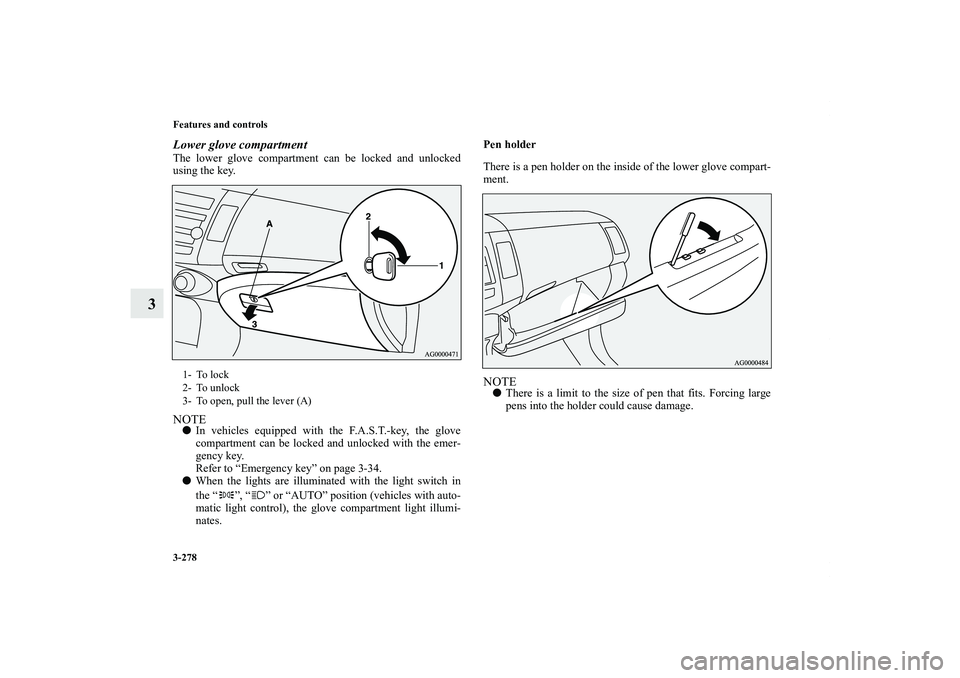

3-278 Features and controls
3
Lower glove compartmentThe lower glove compartment can be locked and unlocked
using the key.NOTE
In vehicles equipped with the F.A.S.T.-key, the glove
compartment can be locked and unlocked with the emer-
gency key.
Refer to “Emergency key” on page 3-34.

When the lights are illuminated with the light switch in
the “ ”, “ ” or “AUTO” position (vehicles with auto-
matic light control), the glove compartment light illumi-
nates.Pen holder
There is a pen holder on the inside of the lower glove compart-
ment.
NOTE
There is a limit to the size of pen that fits. Forcing large
pens into the holder could cause damage.
1- To lock
2- To unlock
3- To open, pull the lever (A)
BK0138000US.book 278 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

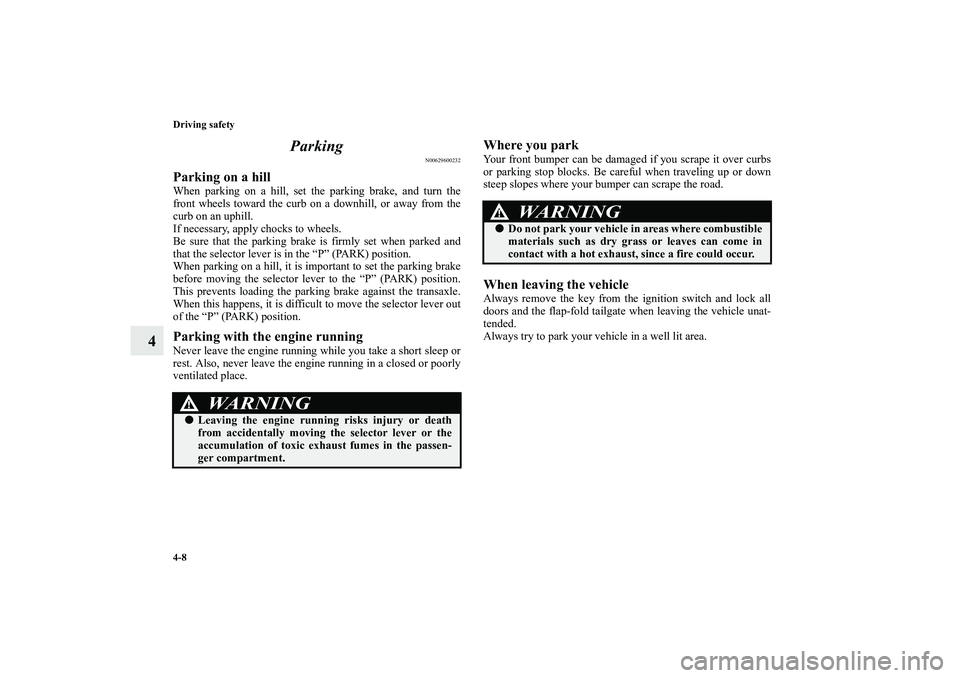

4-8 Driving safety
4Parking
N00629600232
Parking on a hillWhen parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
If necessary, apply chocks to wheels.
Be sure that the parking brake is firmly set when parked and
that the selector lever is in the “P” (PARK) position.
When parking on a hill, it is important to set the parking brake
before moving the selector lever to the “P” (PARK) position.
This prevents loading the parking brake against the transaxle.
When this happens, it is difficult to move the selector lever out
of the “P” (PARK) position.Parking with the engine runningNever leave the engine running while you take a short sleep or
rest. Also, never leave the engine running in a closed or poorly
ventilated place.
Where you parkYour front bumper can be damaged if you scrape it over curbs
or parking stop blocks. Be careful when traveling up or down
steep slopes where your bumper can scrape the road.When leaving the vehicleAlways remove the key from the ignition switch and lock all
doors and the flap-fold tailgate when leaving the vehicle unat-
tended.
Always try to park your vehicle in a well lit area.
WA R N I N G
!
Leaving the engine running risks injury or death
from accidentally moving the selector lever or the
accumulation of toxic exhaust fumes in the passen-
ger compartment.
WA R N I N G
!
Do not park your vehicle in areas where combustible
materials such as dry grass or leaves can come in
contact with a hot exhaust, since a fire could occur.
BK0138000US.book 8 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

5-126 Comfort controls
5
NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.INVALID ↔ CHANNEL Channel is invalidNo program is currently being broadcast
on this channel; or reception is not possi-
ble with this channel.Consult SIRIUS Satellite Radio at
888-539-SIRUS.
SAT ERRORMechanical fault or bad
connectionThere is a mechanical fault or a bad con-
nection.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
OFF AIR OFF AIRThis channel is not broadcasting at the
present time; or satellite radio broadcast-
ing is suspended.Check the broadcast times with
SIRIUS Satellite Radio.
NOT ACTIVATED ID not registeredThe ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
READING Data reading in progress Reading of received data is in progress.Received data are being read. Please
wait.
UPDATINGChannel data updating
in progressSIRIUS Satellite Radio is presently updat-
ing the channel data.Wait until updating is complete.
SUB UPDATEDContract status updating
completeThe contract status has been updated. Press any audio key.
Error display
Problem
Description
Repair
BK0138000US.book 126 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

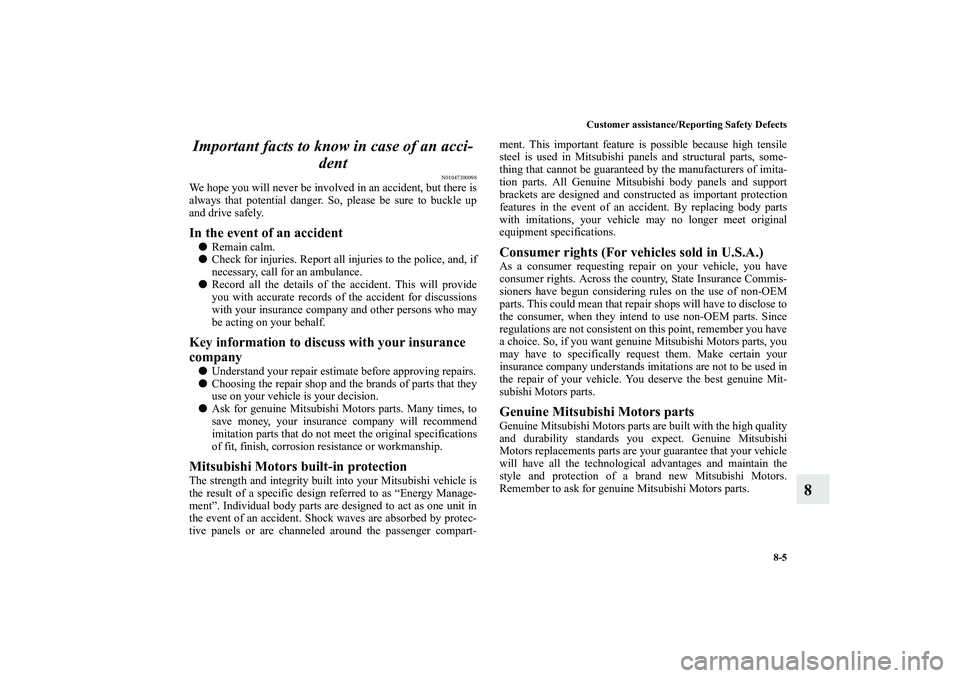

Customer assistance/Reporting Safety Defects
8-5
8 Important facts to know in case of an acci-
dent
N01047300098
We hope you will never be involved in an accident, but there is
always that potential danger. So, please be sure to buckle up
and drive safely. In the event of an accident
Remain calm.

Check for injuries. Report all injuries to the police, and, if
necessary, call for an ambulance.

Record all the details of the accident. This will provide
you with accurate records of the accident for discussions
with your insurance company and other persons who may
be acting on your behalf. Key information to discuss with your insurance
company
Understand your repair estimate before approving repairs.

Choosing the repair shop and the brands of parts that they
use on your vehicle is your decision.

Ask for genuine Mitsubishi Motors parts. Many times, to
save money, your insurance company will recommend
imitation parts that do not meet the original specifications
of fit, finish, corrosion resistance or workmanship. Mitsubishi Motors built-in protection The strength and integrity built into your Mitsubishi vehicle is
the result of a specific design referred to as “Energy Manage-
ment”. Individual body parts are designed to act as one unit in
the event of an accident. Shock waves are absorbed by protec-
tive panels or are channeled around the passenger compart-ment. This important feature is possible because high tensile
steel is used in Mitsubishi panels and structural parts, some-
thing that cannot be guaranteed by the manufacturers of imita-
tion parts. All Genuine Mitsubishi body panels and support
brackets are designed and constructed as important protection
features in the event of an accident. By replacing body parts
with imitations, your vehicle may no longer meet original
equipment specifications.
Consumer rights (For vehicles sold in U.S.A.)As a consumer requesting repair on your vehicle, you have
consumer rights. Across the country, State Insurance Commis-
sioners have begun considering rules on the use of non-OEM
parts. This could mean that repair shops will have to disclose to
the consumer, when they intend to use non-OEM parts. Since
regulations are not consistent on this point, remember you have
a choice. So, if you want genuine Mitsubishi Motors parts, you
may have to specifically request them. Make certain your
insurance company understands imitations are not to be used in
the repair of your vehicle. You deserve the best genuine Mit-
subishi Motors parts. Genuine Mitsubishi Motors partsGenuine Mitsubishi Motors parts are built with the high quality
and durability standards you expect. Genuine Mitsubishi
Motors replacements parts are your guarantee that your vehicle
will have all the technological advantages and maintain the
style and protection of a brand new Mitsubishi Motors.
Remember to ask for genuine Mitsubishi Motors parts.
BK0138000US.book 5 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
3
Electronic immobilizer (Anti-theft starting system) 3-5
,3-42
Electronically controlled 4WD system 3-114
Emission-control system maintenance 7-35
Engine
Compartment 7-7
Coolant 7-12
,9-11
Hood 7-4
MIVEC 3-33,3-41
,3-93
Oil and oil filter 7-8,9-11
Overheating 6-5
Serial number 9-2
Specification 9-9
Engine coolant temperature display 3-174
Engine hood 7-4
Exhaust system 7-38
F
Floor console box 3-280
Floor mat 4-3
Fluid
Automatic transaxle fluid 7-16
,9-11
Brake fluid 9-11
Continuously variable transmission (CVT) fluid 7-18
,9-11
Engine coolant 7-12
,9-11
Engine oil 7-8
Power steering fluid 7-21
,9-11
Rear axle oil 7-19
Transfer oil 7-18
Washer fluid 7-19
,9-11Fluid capacities and lubricants 9-11
Free-hand advanced security transmitter (F.A.S.T.-key) 3-16
Front fog lights
Bulb capacity 7-49
Indicators 3-210
Replacement 7-62
Switch 3-226
Front seat adjustment 2-5
Front side-marker lights
Bulb capacity 7-49
Replacement 7-58
Front turn-signal light
Bulb capacity 7-49
Replacement 7-60
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-35
Fuel selection 1-2
Tank capacity 9-11
Fuses 7-40
Fusible links 7-39
G
General maintenance
Maintenance 7-37
General vehicle data 9-6
Genuine parts 1-8
Glove compartment 3-277
BK0138000US.book 3 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
4
H
Hazard warning flasher switch 3-225
Hazard warning lights 3-210
Head restraints 2-26
Headlight leveling switch 3-223
Headlights
Bulb capacity 7-49
Dimmer 3-220
Headlight flasher 3-221
Replacement 7-52
,7-54
Switch 3-216
High beam indicator 3-210
High mount stop light
Bulb capacity 7-49
Hill start assist 3-130
Hood lock release mechanism and safety catch 7-38
Horn switch 3-237
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-88
Important facts to know in case of an accident 8-5
Indicators 3-210
Information screen display 3-165
,3-198
Inside rearview mirror 3-82
Inspection and maintenance following rough road operation 3-
126
Instrument cluster 3-161Interior lights 3-272
J
Jack 6-7
Storage 6-7
Jump-starting the engine 6-2
K
Keyless entry system 3-9
,3-45
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-49
Replacement 7-71
Link System 3-237
Loading information 4-9
Lubricants 9-11
Luggage floor box 3-283
Luggage hooks 3-290
M
Malfunction indicator light 3-211
Manual air conditioning 5-6
,5-16
MIVEC engine 3-33
,3-41
,3-93
Modification of your vehicle 1-6
Multi-information display 3-165
