Page 171 of 714
3-56 Features and controls
3
Lock out protection
N00517300026
If the key is in the ignition switch when you push the lock knob
forward with the driver’s door or passenger’s door open, the
lock knob will automatically return to the unlocked position.
Ignition switch return reminder system
(if so
equipped)
N00503800118
When the F.A.S.T.-key was used to start the engineTy p e 1
Ty p e 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0138000US.book 56 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 172 of 714
Features and controls
3-57

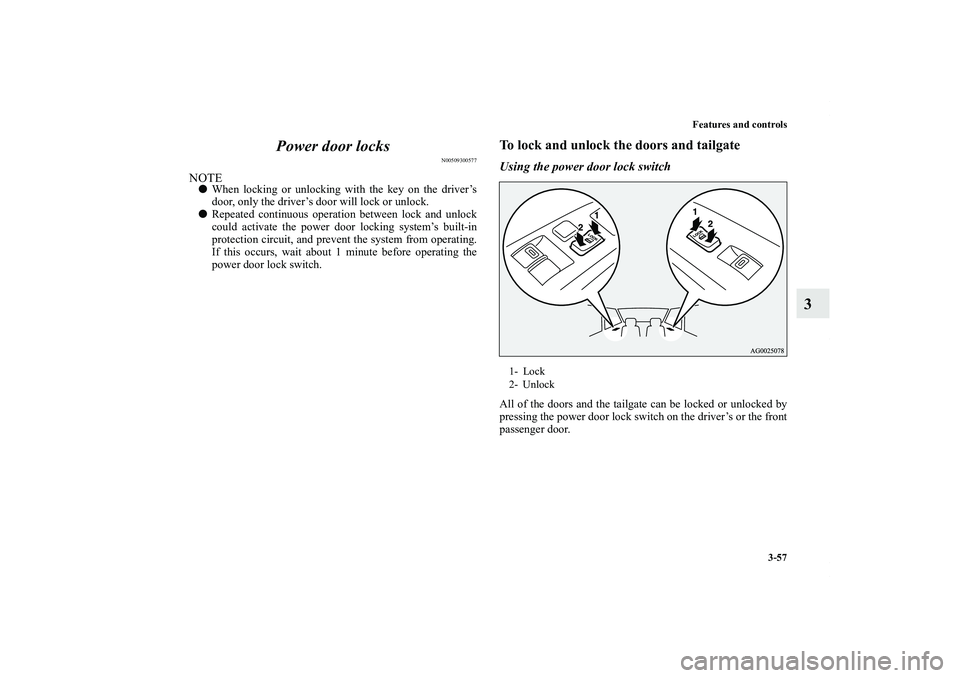

3 Power door locks
N00509300577
NOTEWhen locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.
Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit, and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.
To lock and unlock the doors and tailgateUsing the power door lock switchAll of the doors and the tailgate can be locked or unlocked by
pressing the power door lock switch on the driver’s or the front
passenger door.1- Lock
2- Unlock
BK0138000US.book 57 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 175 of 714
3-60 Features and controls

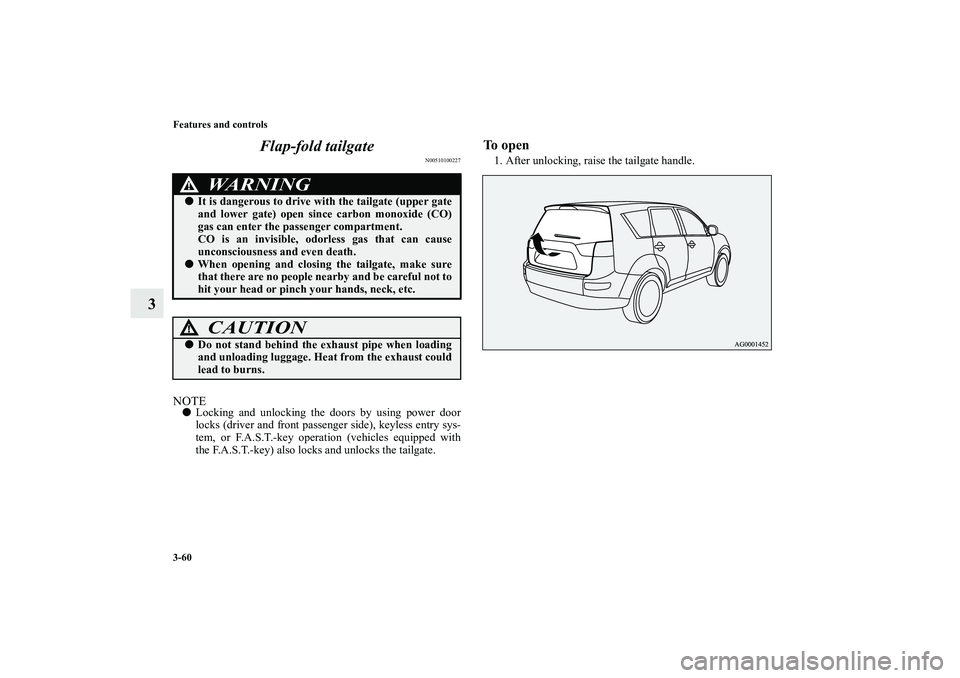

3Flap-fold tailgate
N00510100227
NOTELocking and unlocking the doors by using power door
locks (driver and front passenger side), keyless entry sys-
tem, or F.A.S.T.-key operation (vehicles equipped with
the F.A.S.T.-key) also locks and unlocks the tailgate.
To open1. After unlocking, raise the tailgate handle.
WA R N I N G
!It is dangerous to drive with the tailgate (upper gate
and lower gate) open since carbon monoxide (CO)
gas can enter the passenger compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.When opening and closing the tailgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0138000US.book 60 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 181 of 714
3-66 Features and controls
3
Armed stagePark the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the engine hood is closed.
3. Lock all doors and the tailgate by using the keyless entry
system or the F.A.S.T.-key operation.At this time, the theft-alarm indicator (A) on the audio
panel flashes for confirmation.
4. The system has entered the armed stage after about 20
seconds, when the theft-alarm indicator (A) flashing
becomes slower.
The theft-alarm indicator (A) continues to flash while the
system is in the armed stage.Arm the system and leaveBK0138000US.book 66 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 182 of 714
Features and controls
3-67
3
NOTEIf the engine hood is open, the theft-alarm indicator (A)
illuminates and the system cannot enter the armed stage.
The system enters the armed stage about 20 seconds after
the engine hood is closed.
The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the tailgate are
unlocked by using the keyless entry system or the
F.A.S.T.-key operation.
The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON”.
The system will not be armed if a door, the tailgate or the
engine hood is not completely closed. If this happens,
rearm the system as described above.
The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.
For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors and the tailgate)
is deactivated, the turn signal lights do not flash after the
locking and unlocking operation.For information on the answerback function, refer to
“Keyless entry system” on pages 3-9 and 3-45 and “To
operate using the F.A.S.T.-key” on page 3-20.
For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• During a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-65.
For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0138000US.book 67 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 183 of 714
3-68 Features and controls
3
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.
One of the doors and the tailgate is opened without using
the keyless entry system or the F.A.S.T.-key operation.
The engine hood is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.
Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)
Detect a motion in the vehicle. (the interior intrusion
detection function)
Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.
The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.Horn or siren sounds!
Headlights blink on and off!
BK0138000US.book 68 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 184 of 714
Features and controls
3-69
3
While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2Alarm deactivationThe alarm can be deactivated in the following ways.
By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and tailgate.
Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0138000US.book 69 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 185 of 714
3-70 Features and controls
3
NOTEThe function will be activated again if the following oper-
ation is performed.
• If the doors and the tailgate are unlocked using the key-
less entry system or the F.A.S.T.-key operation.
• If the ignition switch is turned to the “ON” or “ACC”
position.Disarmed stageThe system will be disarmed if the following operation is per-
formed.
The ignition switch is turned to the “ON” position.
All doors and the tailgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.
NOTEIf the UNLOCK button on the remote control transmitter,
or the driver’s or front passenger’s door lock/unlock
switch is pressed when all doors and the tailgate are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.
The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob. Open the door.
5. Make sure that the horn (the siren for vehicles equipped
with the interior alarm sensor) sounds intermittently and
the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the tailgate
by using the keyless entry system or the F.A.S.T.-key
operation.
Disarm...by using the keyless entry system or F.A.S.T.-key
operationBK0138000US.book 70 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
