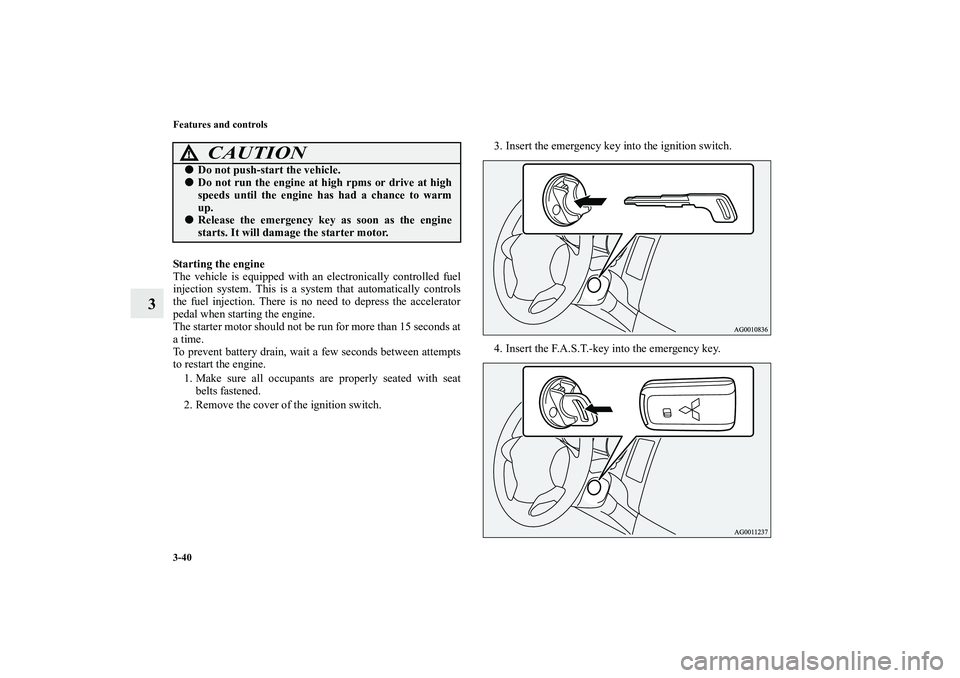

3-40 Features and controls
3
Starting the engine
The vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
the fuel injection. There is no need to depress the accelerator
pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Remove the cover of the ignition switch.3. Insert the emergency key into the ignition switch.
4. Insert the F.A.S.T.-key into the emergency key.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the emergency key as soon as the engine
starts. It will damage the starter motor.
BK0138000US.book 40 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-41
3
5. Press and hold the brake pedal down with your right foot.
6. Make sure the selector lever is in the “P” (PARK) posi-
tion.
7. Turn the emergency key with the F.A.S.T.-key to the
“ON” position and make certain that all warning lights
and warning displays are functioning properly before
starting the engine.
8. Turn the emergency key with the F.A.S.T.-key to the
“START” position without pressing the accelerator pedal.
Release the emergency key with the F.A.S.T.-key when
the engine starts.
9. Remove the F.A.S.T.-key from the emergency key.
Starting the engine with an ambient temperature of -22°F (-
30 °C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Using the MIVEC engine (3.0 liter models)
The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.
NOTE
To protect the engine, the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
WA R N I N G
!
Make sure to remove the F.A.S.T.-key from the
emergency key after the engine is started.
If not removed, the F.A.S.T.-key could fall to the
floor, which could disturb the pedal operation.
BK0138000US.book 41 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

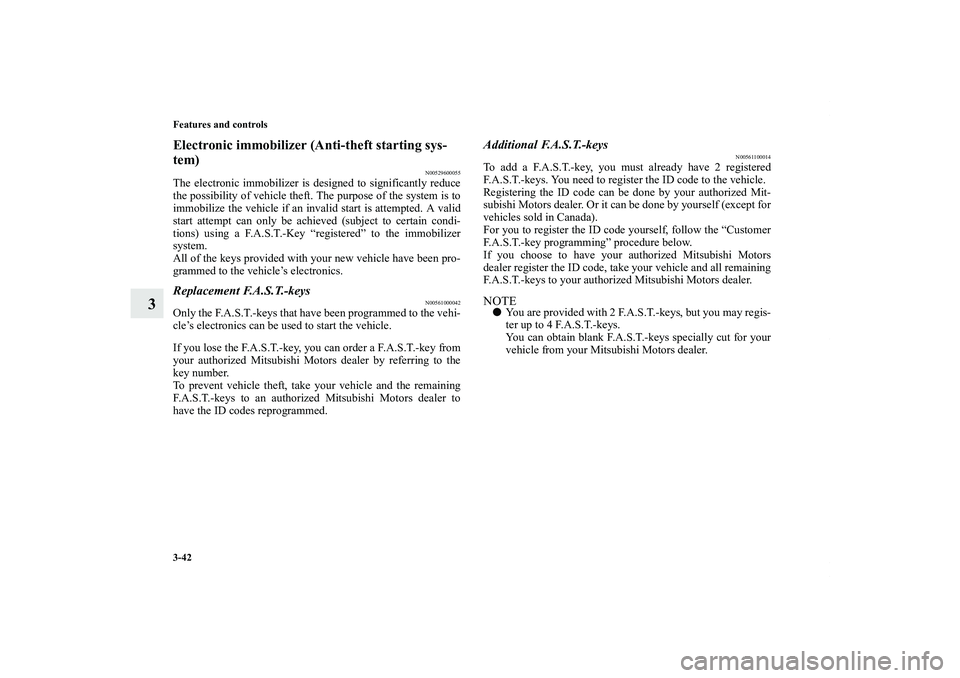

3-42 Features and controls
3
Electronic immobilizer (Anti-theft starting sys-
tem)
N00529600055
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a F.A.S.T.-Key “registered” to the immobilizer
system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.Replacement F.A.S.T.-keys
N00561000042
Only the F.A.S.T.-keys that have been programmed to the vehi-
cle’s electronics can be used to start the vehicle.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, take your vehicle and the remaining
F.A.S.T.-keys to an authorized Mitsubishi Motors dealer to
have the ID codes reprogrammed.
Additional F.A.S.T.-keys
N00561100014
To add a F.A.S.T.-key, you must already have 2 registered
F.A.S.T.-keys. You need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized Mit-
subishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
F.A.S.T.-key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 F.A.S.T.-keys, but you may regis-
ter up to 4 F.A.S.T.-keys.
You can obtain blank F.A.S.T.-keys specially cut for your
vehicle from your Mitsubishi Motors dealer.
BK0138000US.book 42 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

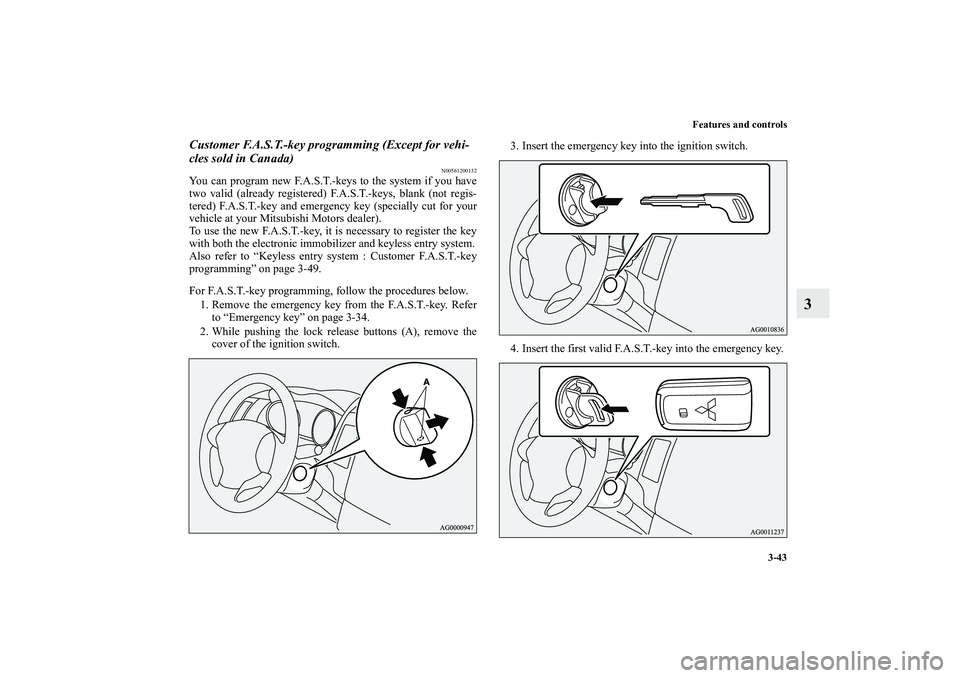

Features and controls
3-43
3
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200132
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Keyless entry system : Customer F.A.S.T.-key
programming” on page 3-49.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-34.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch.
4. Insert the first valid F.A.S.T.-key into the emergency key.
BK0138000US.book 43 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-44 Features and controls
3
5. Turn the emergency key with the F.A.S.T.-key to the
“ON” position for 5 seconds.
6. Turn the emergency key with the F.A.S.T.-key to the
“LOCK” position. Within 30 seconds after doing so,
remove the F.A.S.T.-key from the emergency key, insert
the second valid F.A.S.T.-key into the emergency key and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.7. When the immobilizer display starts blinking, turn the
second valid F.A.S.T.-key to the “LOCK” position and
remove it. Within 30 seconds after doing so, insert a blank
F.A.S.T.-key into the emergency key and turn it to the
“ON” position. Perform this operation no more than 30
seconds after the immobilizer display starts blinking.
When registration of the ID code is complete, the immobi-
lizer display will come on for 3 seconds then go off. If an
error occurs, the immobilizer display will go off during
the procedure.
8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1.
BK0138000US.book 44 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-45
3
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-49.
Keyless entry system
N00515500183
Press the remote control transmitter buttons to lock or unlock
the doors and the tailgate.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0138000US.book 45 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-46 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the tail-
gate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice, the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and tailgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-221.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and tailgate unlock function can be set so that all
doors and tailgate unlock when the UNLOCK button (2)
is pressed once.
Refer to “Setting of door and tailgate unlock function” on
page 3-48.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function does not operate when the key is
in the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0138000US.book 46 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

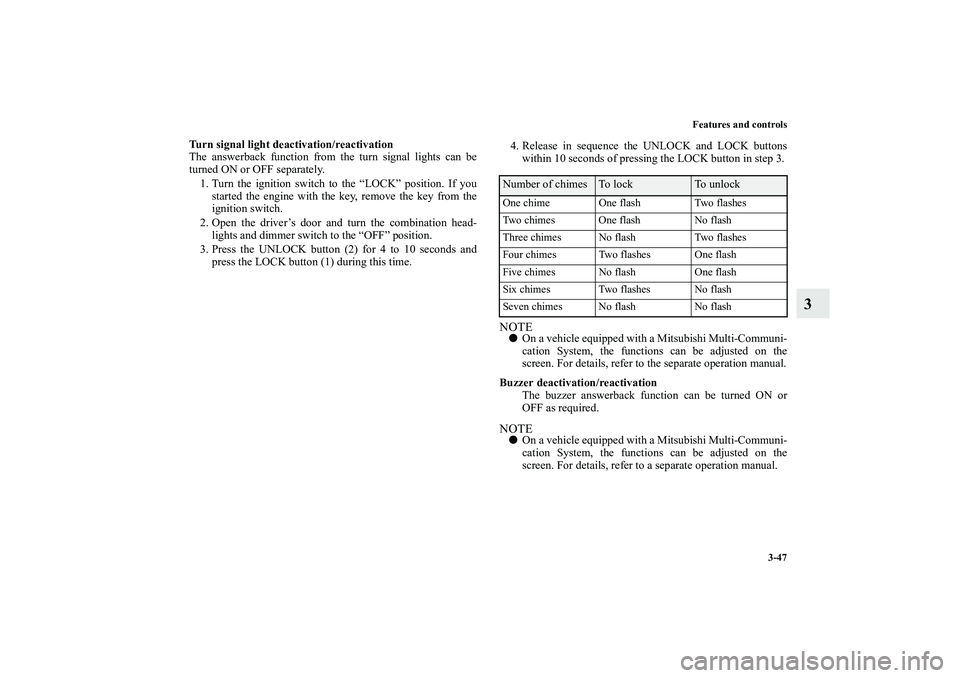

Features and controls
3-47
3
Turn signal light deactivation/reactivation
The answerback function from the turn signal lights can be
turned ON or OFF separately.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or
OFF as required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0138000US.book 47 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
