3-2 Features and controls
3Break-in recommendations
N00508700284
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
13.)

Refrain from towing a trailer or other vehicle (Refer to
“Trailer towing” on page 4-17).
Keys
N00508800575
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0138000US.book 2 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-11
4
Ty p e 2

Steps for Determining Correct Load Limit
N00630200094
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and pas-
sengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passen-
gers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five
150 lbs. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.
BK0138000US.book 11 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-12 Driving safety
4
NOTE
The following table shows examples on how to calculate total load, cargo/luggage and towing capacities of your vehicle
with varying seating configurations and number and size of occupants. This table is for illustration purposes only and
may not be accurate for the seating and load carry capacity of your vehicle.

For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR’s) for the front and rear axles must not be
exceeded. For further information on GAWR’s, vehicle loading and trailer towing, see the “Specifications” section of
this manual.
BK0138000US.book 12 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-17
4 Trailer towing
N00629800319
Towing a trailer will adversely affect your vehicle’s handling,
performance, braking, durability and driving economy (fuel
consumption, etc.).
If you do tow a trailer with this vehicle, be sure to use proper
equipment and cautious steering and braking for safe driving.
Weight limitsNever exceed the vehicle capacity weight, maximum trailer
weight (A), maximum tongue weight (B) and Gross Axle
Weight Rating (GAWR).Vehicle capacity weightThe vehicle capacity weight is printed on the tire and loading
information placard as “combined weight of occupants and
cargo”.
The weight includes the weight of all occupants and the total
weight it can carry.
For more information, refer to “Tire and loading information
placard” on page 4-10.
CAUTION
!
Do not lose control of your vehicle when towing a
trailer.
• Always use proper equipment.
• Always drive carefully

Damage to your vehicle caused by improper equip-
ment or driving is not covered by your warranty.
BK0138000US.book 17 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

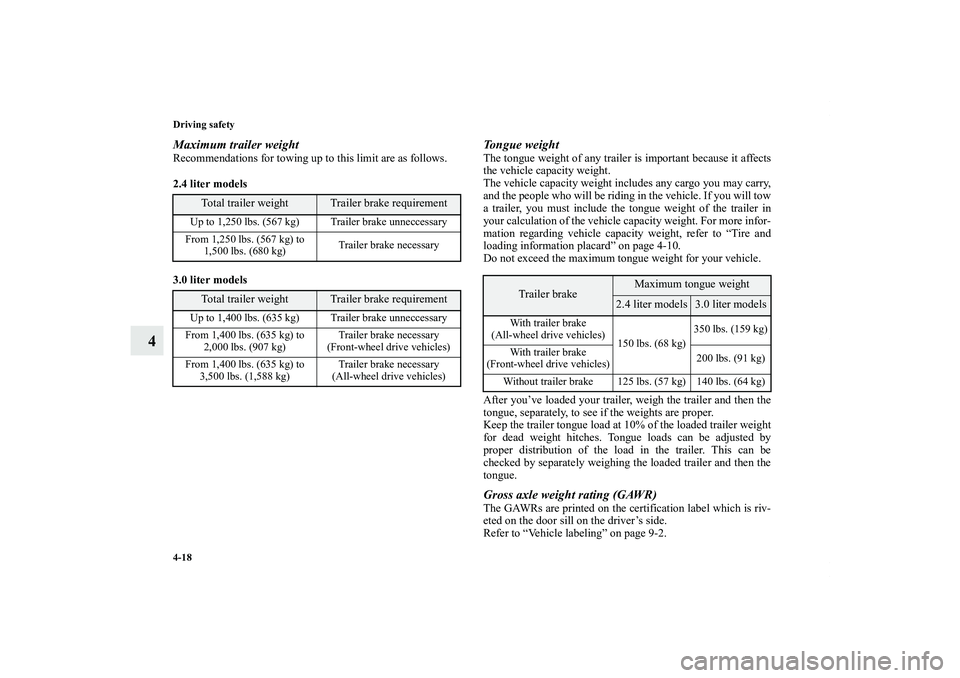

4-18 Driving safety
4
Maximum trailer weightRecommendations for towing up to this limit are as follows.
2.4 liter models

3.0 liter models

Tongue weightThe tongue weight of any trailer is important because it affects
the vehicle capacity weight.
The vehicle capacity weight includes any cargo you may carry,
and the people who will be riding in the vehicle. If you will tow
a trailer, you must include the tongue weight of the trailer in
your calculation of the vehicle capacity weight. For more infor-
mation regarding vehicle capacity weight, refer to “Tire and
loading information placard” on page 4-10.
Do not exceed the maximum tongue weight for your vehicle.
After you’ve loaded your trailer, weigh the trailer and then the
tongue, separately, to see if the weights are proper.
Keep the trailer tongue load at 10% of the loaded trailer weight
for dead weight hitches. Tongue loads can be adjusted by
proper distribution of the load in the trailer. This can be
checked by separately weighing the loaded trailer and then the
tongue.Gross axle weight rating (GAWR)The GAWRs are printed on the certification label which is riv-
eted on the door sill on the driver’s side.
Refer to “Vehicle labeling” on page 9-2.
Total trailer weight
Trailer brake requirement
Up to 1,250 lbs. (567 kg) Trailer brake unneccessary
From 1,250 lbs. (567 kg) to
1,500 lbs. (680 kg)Trailer brake necessaryTotal trailer weight
Trailer brake requirement
Up to 1,400 lbs. (635 kg) Trailer brake unneccessary
From 1,400 lbs. (635 kg) to
2,000 lbs. (907 kg)Trailer brake necessary
(Front-wheel drive vehicles)
From 1,400 lbs. (635 kg) to
3,500 lbs. (1,588 kg)Trailer brake necessary
(All-wheel drive vehicles)
Trailer brake
Maximum tongue weight
2.4 liter models
3.0 liter models
With trailer brake
(All-wheel drive vehicles)
150 lbs. (68 kg)350 lbs. (159 kg)
With trailer brake
(Front-wheel drive vehicles)200 lbs. (91 kg)
Without trailer brake 125 lbs. (57 kg) 140 lbs. (64 kg)
BK0138000US.book 18 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

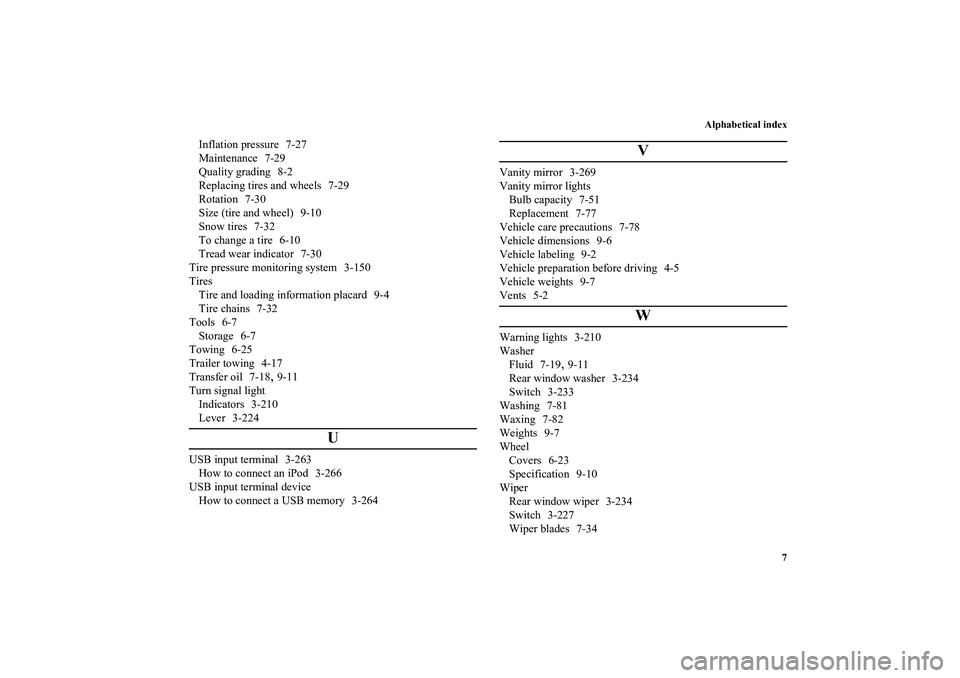

Alphabetical index
7
Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-29
Rotation 7-30
Size (tire and wheel) 9-10
Snow tires 7-32
To change a tire 6-10
Tread wear indicator 7-30
Tire pressure monitoring system 3-150
Tires
Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7
Storage 6-7
Towing 6-25
Trailer towing 4-17
Transfer oil 7-18
,9-11
Turn signal light
Indicators 3-210
Lever 3-224
U
USB input terminal 3-263
How to connect an iPod 3-266
USB input terminal device
How to connect a USB memory 3-264
V
Vanity mirror 3-269
Vanity mirror lights
Bulb capacity 7-51
Replacement 7-77
Vehicle care precautions 7-78
Vehicle dimensions 9-6
Vehicle labeling 9-2
Vehicle preparation before driving 4-5
Vehicle weights 9-7
Vents 5-2
W
Warning lights 3-210
Washer
Fluid 7-19
,9-11
Rear window washer 3-234
Switch 3-233
Washing 7-81
Waxing 7-82
Weights 9-7
Wheel
Covers 6-23
Specification 9-10
Wiper
Rear window wiper 3-234
Switch 3-227
Wiper blades 7-34
