2012 MITSUBISHI OUTLANDER XL maintenance schedule

Features and controls
3-123
3
NOTE
Driving on rough roads can be hard on a vehicle. Before
you leave the pavement, be sure all scheduled mainte-
nance and service has been done, and that you have
inspected your vehicle. Pay special attention to the condi-
tion of the tires, and check the tire pressures.

Mitsubishi Motors is not responsible to the operator for
any damage or injury caused or liability incurred by
improper and negligent operation of a vehicle. All tech-
niques of vehicle operation depend on the skill and experi-
ence of the operator and other participating parties. Any
deviation from the recommended operating instructions
above is at their own risk.
Note that the stopping distance required of the 4-wheel
drive vehicle differs very little from that of the front-
wheel drive vehicle. When driving on a snow-covered
road or a slippery, muddy surface, make sure that you
keep a sufficient distance between your vehicle and the
one ahead of you.

The driving posture should be more upright; adjust the
seat to a good position for easy steering and pedal opera-
tion. Be sure to wear the seat belt.

After driving on rough roads, check each part of the vehi-
cle and wash it thoroughly with water. Refer to the
“Inspection and maintenance following rough road opera-
tion” section and “Vehicle care and Maintenance” sec-
tions.
Turning sharp cornersWhen turning a sharp corner in “4WD LOCK” or “LOCK”
position at low speed, a slight difference in steering may be
experienced similar to feeling as if the brakes were applied.
This is called tight corner braking and results from each of the
four tires being at a different distance from the corner. The phe-
nomenon is typical of 4-wheel drive vehicles. If this occurs,
either straighten out the steering wheel or change to another
mode.
WA R N I N G
!
Do not over-rely on the 4-wheel drive vehicles. Even
4-wheel drive vehicles have limits to the system and
ability to maintain control and traction. Reckless
driving may lead to accidents. Always drive care-
fully, taking account of the road conditions.
Improperly operating this vehicle on or off-pave-
ment can cause an accident or rollover in which you
and your passengers could be seriously injured or
killed.
• Follow all instructions and guidelines in the
owner’s manual.
• Keep your speed low and do not drive faster than
conditions.
CAUTION
!
Setting the drive mode-selector to “4WD LOCK” or
“LOCK” position to drive on dry paved road will
increase fuel consumption, with possible noise gen-
eration.
BK0138000US.book 123 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-180 Features and controls
3
NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.ECO mode indicator
(if so equipped)
N00568700022
This indicator will be displayed when fuel-efficient driving is
achieved.
Service reminder
N00556700184
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
1. Shows the time until the next periodic inspection.NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0138000US.book 180 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-9
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
ILSAC certification symbol
BK0138000US.book 9 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-14 Vehicle care and maintenance

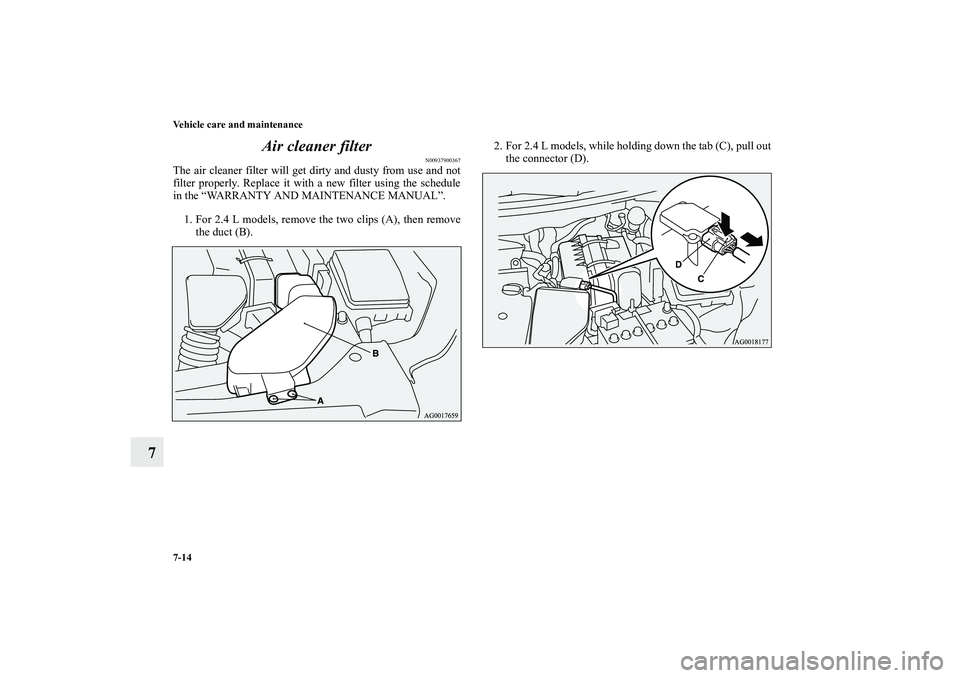

7Air cleaner filter
N00937900367
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.
1. For 2.4 L models, remove the two clips (A), then remove
the duct (B).2. For 2.4 L models, while holding down the tab (C), pull out
the connector (D).BK0138000US.book 14 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
