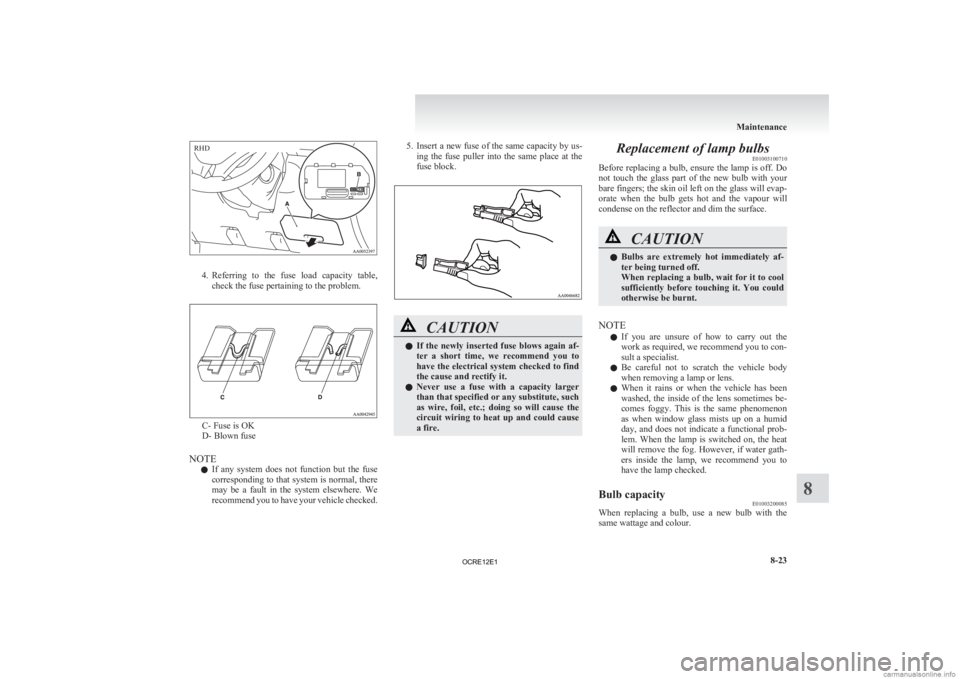

4. Referring
to the fuse load capacity table,
check the fuse pertaining to the problem. C- Fuse is OK
D- Blown fuse
NOTE l If

any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle checked. 5. Insert
a new fuse of the same capacity by us-
ing the fuse puller into the same place at the
fuse block. CAUTION
l
If
the newly inserted fuse blows again af-
ter a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
l Never use a fuse with a capacity larger
than that specified or any substitute, such
as wire, foil, etc.; doing so will cause the
circuit wiring to heat up and could cause
a fire. Replacement of lamp bulbs
E01003100710
Before

replacing a bulb, ensure the lamp is off. Do
not touch the glass part of the new bulb with your
bare fingers; the skin oil left on the glass will evap-
orate when the bulb gets hot and the vapour will
condense on the reflector and dim the surface. CAUTION
l
Bulbs
are extremely hot immediately af-
ter being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burnt.
NOTE l If

you are unsure of how to carry out the
work as required, we recommend you to con-
sult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath-
ers inside the lamp, we recommend you to
have the lamp checked.
Bulb capacity E01003200085
When replacing a bulb, use a new bulb with the
same wattage and colour. Maintenance
8-23 8RHD
OCRE12E1

Outside
E01003302716Front (Type 1)1- Headlamps, high-beam: 60 W (HB3)
2-

Headlamps, low beam: 55 W (H11)
3- Position lamps: 5 W (W5W)
4- Front turn-signal lamps: 21 W (PY21W)
5- Side turn-signal lamps: 5 W (WY5W)
6- Front fog lamps*: 55 W (H11)
Front (Type 2) 1- Headlamps, high/low beam: 60/55 W (H4)
2-

Position lamps: 5 W (W5W)
3- Front turn-signal lamps: 21 W (PY21W) 4- Side turn-signal lamps: 5 W (WY5W)
5-

Front fog lamps*: 55 W (H11)
Codes in parentheses indicate bulb types.
Rear 6- High-mounted stop lamp: 5 W (W5W)
7-

Rear turn-signal lamps: 16 W (W16W)
8- Tail and stop lamps: 21/5 W (P21/5W)
9- Reversing lamps: 16 W (W16W)
10- Rear fog lamp (Type 1, Driver’s side only): 21 W (P21W)
11- Rear fog lamp (Type 2, Driver’s side only): 21 W (W21W)
12- Licence plate lamps: 5 W (W5W)
Codes in parentheses indicate bulb types. Inside
E01003401518
Single cab 1- Door courtesy lamps*: 3.4 W
2-

Room lamp: 8 W
3- Glove box lamp: 1.4 W
4- Centre console downlight: 1.4 W Maintenance
8-24
8
OCRE12E1

Club cab
1- Door courtesy lamps*: 3.4 W
2- Front
room lamp and personal lamps*:
7.5 W
3- Rear room lamp: 8 W
4- Glove box lamp: 1.4 W
5- Centre console downlight: 1.4 W
Double cab 1- Door courtesy lamps*: 3.4 W
2-

Front room lamp and personal lamps: 7.5 W
3- Rear room lamp*: 8 W
4- Glove box lamp: 1.4 W
5- Centre console downlight: 1.4 W Headlamps
E01003501375
Type 1 1. Remove

the bulb and connector assembly
(A) by turning it anticlockwise.
High beam
Low beam 2. Depress
the tab (B) on the harness connector
and pull the harness connector (C) to remove
it.
High beam Low beam 3. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Maintenance
8-25 8
OCRE12E1

Type 2
1. Disconnect the connector (A). 2. Remove the sealing cover (B).
3. Unhook
the spring (C) which secures the
bulb, and then remove the headlamp bulb. 4. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Maintenance
8-26
8
OCRE12E1

Position lamps
E01003700833
Type 1 1. Turn
the bulb socket anticlockwise to re-
move it. And remove the bulb from the sock-
et by pulling out. 2. To
install the bulb, perform the removal
steps in reverse. Type 2
1. Turn
the bulb socket anticlockwise to re-
move it. And remove the bulb from the sock-
et by pulling out. 2. To
install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps E01003800818
Type 1 1. Turn
the bulb socket anticlockwise to re-
move it. And remove the bulb from the sock- et by turning it anticlockwise while pressing
in.
2. To
install the bulb, perform the removal
steps in reverse.
Type 2 1. Turn the bulb socket anticlockwise to re-move it. And remove the bulb from the sock-
et by turning it anticlockwise while pressing
in. Maintenance
8-27 8
OCRE12E1

2. To install the bulb, perform the removal
steps in reverse.
Side turn-signal lamps E01003900037
1. To
remove a side turn-signal lamp, insert a
straight blade (or minus) screwdriver at the
end of the lamp nearer the front of the body
and use it to gently lever the lamp out of the
body.
Front NOTE
l Wrap

a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body. 2. Remove
the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling out. 3. To
install the bulb, perform the removal
steps in reverse.
NOTE l When replacing the lamp assembly, push in
the end facing the rear of the vehicle first.
Front Front fog lamps*
E01004001537
1. Insert

a straight blade (or minus) screwdriver
with a cloth over its tip at the edge of the cov-
er and pry gently to remove the cover.
Type 1
Type 2 Maintenance
8-28
8
OCRE12E1

2. Turn the 3 bolts (A) anticlockwise to remove
them. And then remove the lamp assembly. 3. Depress
the tab (B) on the harness connector
and pull the harness connector (C) to remove
it. 4. Turn
the entire socket and bulb assembly (D)
anticlockwise to remove it. 5. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying thoroughly. Rear fog lamp
E01004100384
Type 1 (Driver’s side only) 1. Remove
the screws (A) from the rear fog
lamp lens, and then remove the lens (B). Maintenance
8-29 8
OCRE12E1

2. Remove the bulb (C) by turning it anticlock-
wise while pressing it inward. 3. To
install the bulb, perform the removal
steps in reverse.
Type 2 (Driver’s side only) 1. Remove the socket and bulb assemblies byturning it anticlockwise, and then remove the
bulb by pulling out. 2. To
install the bulb, perform the removal
steps in reverse. Rear combination lamps
E01004200763
1.

Open the rear gate.(Refer to “Rear gate” on page 1-13.)
2. Remove the screws (A) that hold the lamp unit. 3. Move
the lamp unit towards the rear of the ve-
hicle and remove the clips (B). 4. Remove
each socket and bulb assembly by
turning it anticlockwise. C- Rear turn-signal lamp
Remove the bulb by pulling it out.
D- Tail and stop lamp Remove the bulb from the socket by turn-
ing it anticlockwise while pressing in.
E- Reversing lamp Remove the bulb by pulling it out.
5. To
install the bulb, perform the removal steps in reverse.
NOTE l When mounting the lamp unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body. Maintenance
