2012 Lexus HS250h Navigation Manual

1
Introduction
This manual explains the operation of the Navigation System.
Please read this manual carefully to ensure proper use. Keep this
manual in your vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes Point of Interest categories to
allow you to easily select destinations such as restaurants and hotels. If
a destination is not in the database, you can enter the street address or
a major intersection close to it and the system will guide you there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.
11 08.03HS250h_NAVI_U
75051U

2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 392 through 393.
11 08.03HS250h_NAVI_U
75051U

3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
U0001LC
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able screen buttons are dimmed. Only
when the vehicle is not moving, can the
destination and route selection be done.
11 08.03HS250h_NAVI_U
75051U
Important information about
this manual Safety Instruction

4
CAUTION
DFor safety, the driver should not
operate the navigation system
while he/she is driving. Insufficient
attention to the road and traffic
may cause an accident.
DWhile driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has been
changed, route guidance may not
have the updated information such
as the direction of a one way street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.
11 08.03HS250h_NAVI_U
75051U

5
Table of Contents
Quick guide —
— Remote Touch10
...................................
— Map screen 12
.....................................
— Registering home 14
................................
— Registering preset destinations 16
...................
— Operation flow: guiding the route 18
.................
— Setting home as the destination 20
..................
Navigation system function index 22
...................
Quick reference (“Start” screen) 24
....................
Quick reference (“Destination” screen) 25
..............
Quick reference (“Setup” screen) 27
...................

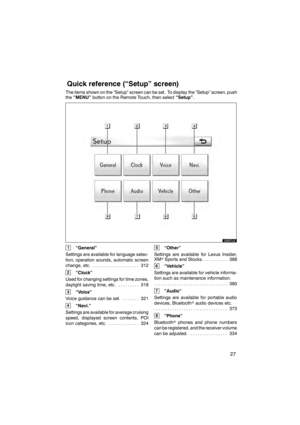

Quick reference (“Information” screen) 28
..............
1 Navigation System: Basic Functions 〈Basic information before operation 〉
Initial screen 30
..............................................
How to use the Remote Touch 31
..............................
Inputting letters and numbers/List screen operation 33
............
Screen adjustment 36
........................................
Display operation 38
..........................................
Help icon 39
.................................................
Map screen operation 39
.....................................
Current position display 39
.................................
Screen scroll operation 40
..................................
Switching the screens 46
...................................
Map scale 48
.............................................
Foot print map 49
.........................................
Orientation of the map 50
...................................
Standard map icons 50
.....................................
Voice command system 51
...................................
Natural speech information 53
...............................
Command list 55
..........................................
11 08.03HS250h_NAVI_U
75051U
Quick
Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
Index

6
2 Navigation System: Destination Search
Destination search68
.......................................
Selecting the search area 68 ................................
Destination search by Home 70 .............................
Destination search by Preset destinations 70 ..................
Destination search by “Address” 71 ..........................
Destination search by “Point of Interest” 75 ...................
Destination search by “Destination Assist” 82 .................
Destination search by “Previous Destinations” 82 ..............
Destination search by “Address Book” 83 .....................
Destination search by “Emergency” 83 .......................
Destination search by “Intersection & Freeway” 84 .............
Destination search by “Map” 87 .............................
Destination search by “Coordinates” 88 .......................
Deleting set destinations 88 .................................
Starting route guidance 89 ....................................
3 Navigation System: Route Guidance
Route guidance screen 94
.....................................
Typical voice guidance prompts 97
.............................
Distance and time to destination 99
.............................
Setting and deleting destinations 100
.........................
Adding destinations 100
....................................
Reordering destinations 100
................................
Deleting destinations 101
...................................
Setting route 102
............................................
Detour setting 102
.........................................
Route overview 103
........................................
Route preference 105
......................................
Pausing and resuming guidance 107
.........................
Show on map 108
...........................................
Display POI
∗icons 108
.....................................
Route trace 112
...........................................
∗: Point of Interest
11 08.03HS250h_NAVI_U
75051U

7
4 Navigation System: Memory Points
Navigation settings11 6
......................................
Setting up the “Home” 117 ..................................
Setting up the “Preset Destinations” 119 ......................
Setting up the “Address Book” 122 ...........................
Setting up the “Areas to Avoid” 128 ..........................
Deleting previous destinations 133 ...........................
5 Telephone and Information
Telephone (Hands−free system for cellular phone) 136
.........
Enter a Bluetooth rphone 140 ...............................
Call on the Bluetooth rphone 145 ............................
Receive on the Bluetooth rphone 152 ........................
Talk on the Bluetooth rphone 152 ...........................
Fuel consumption 155 ........................................
Calendar 156 ................................................
6 Lexus Enform with Safety Connect
Lexus Enform with Safety Connect −Overview 158 ................
Destination Assist 161 ........................................
eDestination 164 .............................................
XM rSports and Stocks 167
...................................
XM NavWeather t 173
........................................
XM rNavTraffic 177
..........................................
Lexus Insider 179
............................................
7 Audio/video System
Quick reference 186
..........................................
Using your audio/video system 189
...........................
Some basics 189
..........................................
Radio operation 197
.......................................
CD changer operation 208
..................................
DVD changer operation 222
.................................
Bluetooth raudio operation 247
.............................
USB memory/iPod operation 255
............................
Audio/video remote controls 263
...............................
Audio/video system operating hints 265
.........................
8 Air Conditioning
Automatic air conditioning controls 276
..........................
11 08.03HS250h_NAVI_U
75051U
