2012 Lancia Ypsilon Owner handbook (in English)

REGIONAL MODE function
(regional transmission reception)
Some national broadcasters will transmit regional
programmes at certain times of the day (that vary
from region to region).
This function makes it possible to tune into local
(regional) broadcasters automatically (see "EON
function" paragraph).
If you want the radio to automatically tune into
the regional stations being broadcast on the
selected network, the function must be activated.
To activate/deactivate the function use the
or
buttons.The current status of the function appears on the
display:
❒"Regional On": function activated;
❒"Regional Off": function deactivated.
If the function is deactivated and you have tuned
into a regional station working in a given area and
you enter a different area, then the regional station
received in the new area will be broadcast.
Note
If the AF and REG functions are on at the same
time, once a border between two regions is
crossed, the radio may not switch correctly to a
valid alternative frequency.
279
SOUND-SYSTEM

MP3 DISPLAY function
(MP3 CD data displaying)
This function makes it possible to select the
information shown by the display when listening
to a CD containing MP3 tracks.
The function can only be selected if an MP3 CD is
inserted: in this case "MP3 Display" will appear
on the display.
To change the function, use the
or
buttons.
The following settings are available:
❒"Title" (track title, if the ID3-TAG is available);
❒"Author" (track author, if ID3-TAG is
available);
❒"Album" (track album, the ID3-TAG if
available);
❒"Folder" name (name assigned to the folder);
❒"File" name (name assigned to the MP3 file).SPEED VOLUME function
(speed-based volume change)
(excluding versions with 360° HI-FI MUSIC
system)
This function automatically adapts the volume
level to the speed of the car, increasing the volume
when the speed increases to maintain the ratio
with the noise level inside the passenger
compartment.
To turn the function on/off, press the
/
buttons. The words "Speed volume" appear on
the display, followed by the current status of the
function:
❒Off: function deactivated
❒Low: function activated (low setting)
❒High: function activated (high setting).
280
SOUND-SYSTEM

RADIO ON VOLUME function
(radio max. volume limit
activation/deactivation)
This function makes it possible to
activate/deactivate the maximum volume limit
when the radio is on.
The display shows the function status:
❒“Radio on vol – Limit on”: when the radio is
switched on the volume level will be: – if the
volume level is equal to or higher than the
maximum value or higher, the radio will come
on at the maximum volume;
– if the volume level is between the minimum and
maximum values, the radio will come on at the
same volume as before it was switched off
– if the volume level is equal to or lower than the
minimum value, the radio will come on at the
minimum volume.
❒"Radio on vol – Limit off": the radio will come
on at the volume level it was at before switching
off. The volume level can be between 0 and 40.
To change the setting of the selected function, use
the
/
buttons.NOTES
❒Using the Menu it is only possible to adjust the
activation/deactivation of the function and not
the minimum or maximum volume value.
❒If the "TA" or "TEL" functions or an outside
audio source are activated when the radio is
turned on, the radio will come on at the volume
set for these sources. The volume can be
adjusted between the minimum and the
maximum level, by deactivating the external
audio source.
❒If the battery charge is low, it will not be
possible to adjust the volume between the
minimum and maximum levels.
281
SOUND-SYSTEM

SPEECH VOLUME function
(telephone volume setting)
By turning the
(ON/OFF) button/knob or
pressing the
/
buttons, this function allows the
volume to be adjusted (settings from 1 to 40) or to
be excluded (OFF setting) for the Telephone and
Blue&Me™ (except the Media Player function).
The display shows the current function status:
❒"Speech Off": function deactivated.
❒“Speech volume 23”: function activated with
volume setting 23.
AUX OFFSET function
(alignment of the portable device volume with
that of the other sources)
This function enables the alignment of the volume
of the AUX source, depending on its own portable
player, with that of the other sources.
To activate the function, press the MENU button
and select “AUX offset”.
Press the buttonsor
to decrease or increase
the volume value (set from–6to+6).RADIO OFF function
(on and off mode)
This function is used to set the radio turning off
mode to one of two different settings. To turn the
function on, use the
or
buttons.
The chosen mode appears on the display:
❒"00 MIN": the radio turns off automatically in
connection with the ignition key; the radio turns
off automatically as soon as the key is turned to
the STOP position;
❒"20 MIN": the radio turns off independently of
the ignition key; the radio remains switched on
for a maximum period of 20 minutes after the
key has been turned to the STOP position.
282
SOUND-SYSTEM

SYSTEM RESET function
This function is used to restore all settings to the
factory values.
The options are:
❒NO: no restore intervention;
❒YES: the default parameters will be restored.
The display will show "Resetting" during this
operation. At the end of the operation, the
source does not change and the previous
situation will be displayed.PHONE SET-UP
If a hands-free kit is installed on the car, when
there is an incoming phone call the radio audio
will be connected to the telephone output. The
incoming telephone sound is always at a fixed
volume, but it can be adjusted during the
conversation using the
ON/OFF button/knob.
The fixed telephone audio volume can be adjusted
using the "SPEECH VOLUME" function in the
Menu. The word "PHONE" will appear on the
display during the deactivation of the audio for the
phone call.
283
SOUND-SYSTEM

ANTI-THEFT PROTECTION
The radio is equipped with an anti-theft protection
system based on the exchange of information
between the radio and the electronic control unit
(Body Computer) on the car.
This system guarantees maximum safety and
prevents the secret code from being entered each
time the radio power supply is disconnected.
If the check has a positive outcome, the radio will
start to function, whereas if the comparison codes
are not the same or if the electronic control unit
(Body Computer) is replaced, the device will ask
the user to enter the secret code according to the
procedure described in the paragraph below.Entering the secret code
When the radio is switched on, if the code is
requested, the display will show "Radio code" for
about 2 seconds followed by four dashes "----".
The code is made up of four numbers from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding button of the pre-selected stations
(from 1 to 6). Enter the other code digits in the
same way.
If the four digits are not entered within 20
seconds, the display will show "Enter code----".
If this occurs, it is not considered an incorrect code
entry.
284
SOUND-SYSTEM

After entering the fourth digit (within 20 seconds),
the car radio will start to work.
If an incorrect code is entered, the radio will emit
a sound and the display shows the text "Radio
blocked/wait" to notify the user of the need to
enter the correct code.
Each time the user enters an incorrect code, the
waiting time will gradually increase (1 min, 2 min,
4 min, 8 min, 16 min, 30 min, 1 h, 2 h, 4 h, 8 h,
16 h, 24 h) up to a maximum of 24 hours.
The waiting time will be shown on the display
with the text "Radio blocked/wait". After the text
has disappeared it is possible to start the code
entering procedure again.Code Card
This document certifies ownership of the car radio.
The Code Card shows the radio model, serial
number and secret code.
Note
Keep this Code Card in a safe place so that you
can give the information to the relevant authorities
if the car radio is stolen.
285
SOUND-SYSTEM

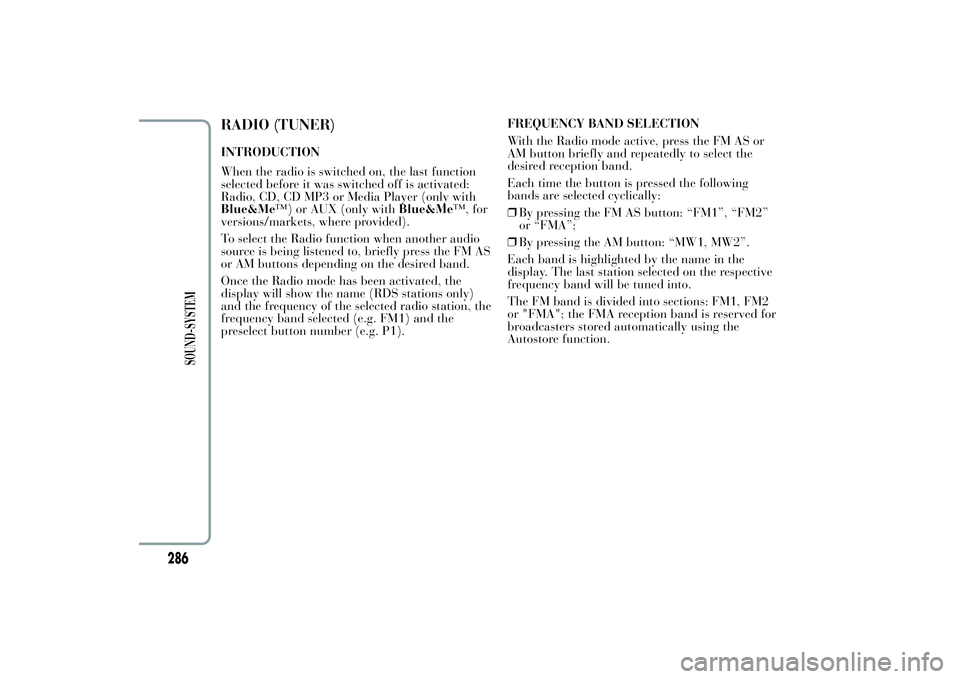

RADIO (TUNER)INTRODUCTION
When the radio is switched on, the last function
selected before it was switched off is activated:
Radio, CD, CD MP3 or Media Player (only with
Blue&Me™) or AUX (only withBlue&Me™, for
versions/markets, where provided).
To select the Radio function when another audio
source is being listened to, briefly press the FM AS
or AM buttons depending on the desired band.
Once the Radio mode has been activated, the
display will show the name (RDS stations only)
and the frequency of the selected radio station, the
frequency band selected (e.g. FM1) and the
preselect button number (e.g. P1).FREQUENCY BAND SELECTION
With the Radio mode active, press the FM AS or
AM button briefly and repeatedly to select the
desired reception band.
Each time the button is pressed the following
bands are selected cyclically:
❒By pressing the FM AS button: “FM1”, “FM2”
or “FMA”;
❒By pressing the AM button: “MW1, MW2”.
Each band is highlighted by the name in the
display. The last station selected on the respective
frequency band will be tuned into.
The FM band is divided into sections: FM1, FM2
or "FMA"; the FMA reception band is reserved for
broadcasters stored automatically using the
Autostore function.
286
SOUND-SYSTEM
