2012 Lancia Ypsilon Owner handbook (in English)

CD functionsButton Functions Method
CD ejection Short button pressPlay previous/next track Short press of
or
buttons
Fast forwarding/rewinding CD track Long pressing of
or
buttons
Playing previous/next folder (for CD-MP3) Short press of
or
buttons
263
SOUND-SYSTEM

Media Player functions (only with Blue&Me™)Button Functions Method
Select previous/next
folder/artist/genre/album depending on the
active selection modeShort button pressPlay previous/next track Short button press
264
SOUND-SYSTEM

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Method
AudioMute on/off (Radio mode) or Pause
function (MP3 or Media Player mode only
withBlue&Me
™
)Short button press
+Increasing volume Button press
-Decreasing volume Button press
SRCSelection of Radio frequency range (FM1,
FM2, FMT, FMA, MW1, MW2) and listening
sources; Radio, MP3 or Media Player (only
withBlue&Me
™
) /AUX (only with
Blue&Me
™
, for versions/markets, where
provided)Button press
NOTE: Starting from the FM or AM source set
on the radio (e.g. FM1 or MW1), if you cycle
through the audio sources using the SRC
button (stopping on a source other than radio)
when the radio source is selected (FM or AM)
using the commands on the radio panel, the
radio always switches to the last radio source
(FMA or MW2).
SRC
fig. 2
L0F0049
265
SOUND-SYSTEM

Button Functions Method
Radio: recall stored stations (from 1 to 6)
CD/CD MP3: select next trackButton pressRadio: recall stored stations (from 6 to 1)
CD/CD MP3: select previous trackButton press
266
SOUND-SYSTEM

INTRODUCTIONThe radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA (traffic
alerts) function - TP (traffic programmes) -
EON (Enhanced Other Network) - REG
(regional programmes);
❒AF: search selection for alternative frequencies
in RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning into stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band
(6 on FM1, 6 on FM2, 6 on FMT), 12 on MW
band (6 on MW1, 6 on MW2);
❒automatic programming (Autostore function) of
6 stations on dedicated FM band;
❒SPEED VOLUME function (excluding versions
with 360° HI-FI MUSIC system): speed-
dependent automatic volume adjustment;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒CD Display function: display of disc name and
time elapsed since the start of the track;
❒Playing of audio CD, CD-R and CD-RW.
Multimedia CDs include data tracks in
addition to the audio tracks. Playing
this type of CD can cause hissing at a
volume that may jeopardise road safety as well
as causing damage to the final stages and the
speakers.
267
SOUND-SYSTEM

MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒MP3 Display function: display of name of folder,
ID3-TAG information, time elapsed since the
start of the track, name of the file);
❒Playing of audio or data CD, CD-R and CD-RW.Audio section
❒Mute/Pause function;
❒Soft-Mute function;
❒Loudness function (excluding versions with
360° HI-FI MUSIC system);
❒7 band graphic equalizer (excluding versions
with 360° HI-FI MUSIC system);
❒Separate bass/treble adjustment;
❒Right/left channel balance.
268
SOUND-SYSTEM

Media Player section (only with Blue&Me™)
For the Media Player functions see, the
Blue&Me™ supplement.
AUX section (only with Blue&Me™)
(for versions/markets, where provided)
❒AUX source selection;
❒AUX Offset function: alignment of the portable
device volume with that of the other sources;
❒Portable player playback.
FUNCTIONS AND ADJUSTMENTSSWITCHING ON THE CAR RADIO
The car radio comes on when the button/knob
(ON/OFF) is pressed briefly.
When the car radio is turned on, the volume is
limited to value 20 if it was set to a higher value
when previously used or to value 5 if it was
previously set to value 0 or to Mute/Pause. The
previously set value is maintained in all other
cases.
When the radio is switched on with the key
extracted from the ignition, it switches off
automatically after about 20 minutes. After the
radio has switched itself off automatically it can be
turned on for a further 20 minutes by pressing the(ON/OFF) button/knob.
269
SOUND-SYSTEM

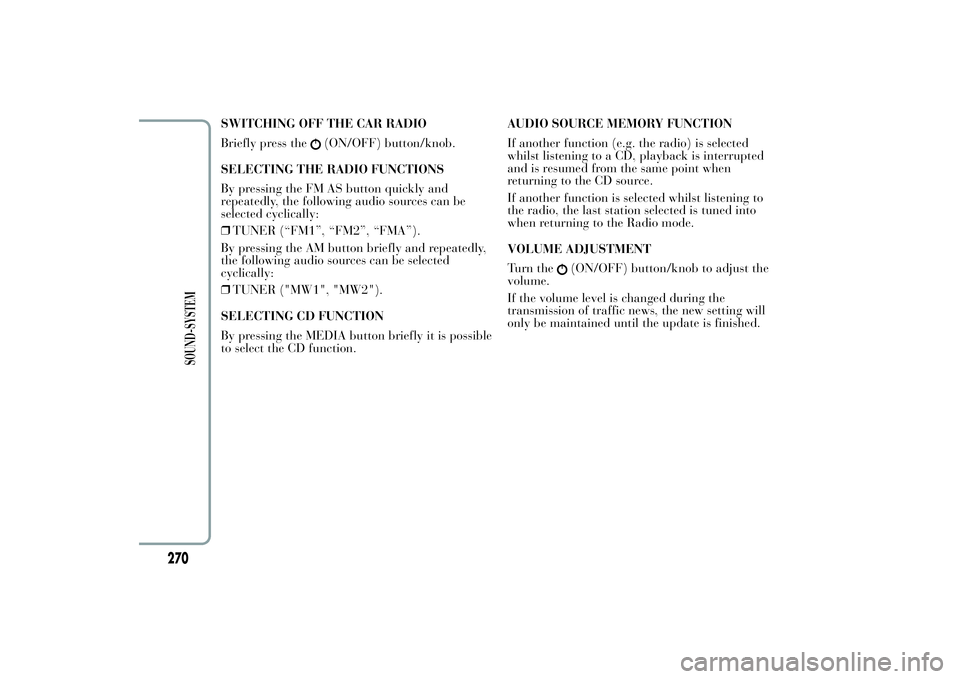

SWITCHING OFF THE CAR RADIO
Briefly press the
(ON/OFF) button/knob.
SELECTING THE RADIO FUNCTIONS
By pressing the FM AS button quickly and
repeatedly, the following audio sources can be
selected cyclically:
❒TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and repeatedly,
the following audio sources can be selected
cyclically:
❒TUNER ("MW1", "MW2").
SELECTING CD FUNCTION
By pressing the MEDIA button briefly it is possible
to select the CD function.AUDIO SOURCE MEMORY FUNCTION
If another function (e.g. the radio) is selected
whilst listening to a CD, playback is interrupted
and is resumed from the same point when
returning to the CD source.
If another function is selected whilst listening to
the radio, the last station selected is tuned into
when returning to the Radio mode.
VOLUME ADJUSTMENT
Turn the
(ON/OFF) button/knob to adjust the
volume.
If the volume level is changed during the
transmission of traffic news, the new setting will
only be maintained until the update is finished.
270
SOUND-SYSTEM
